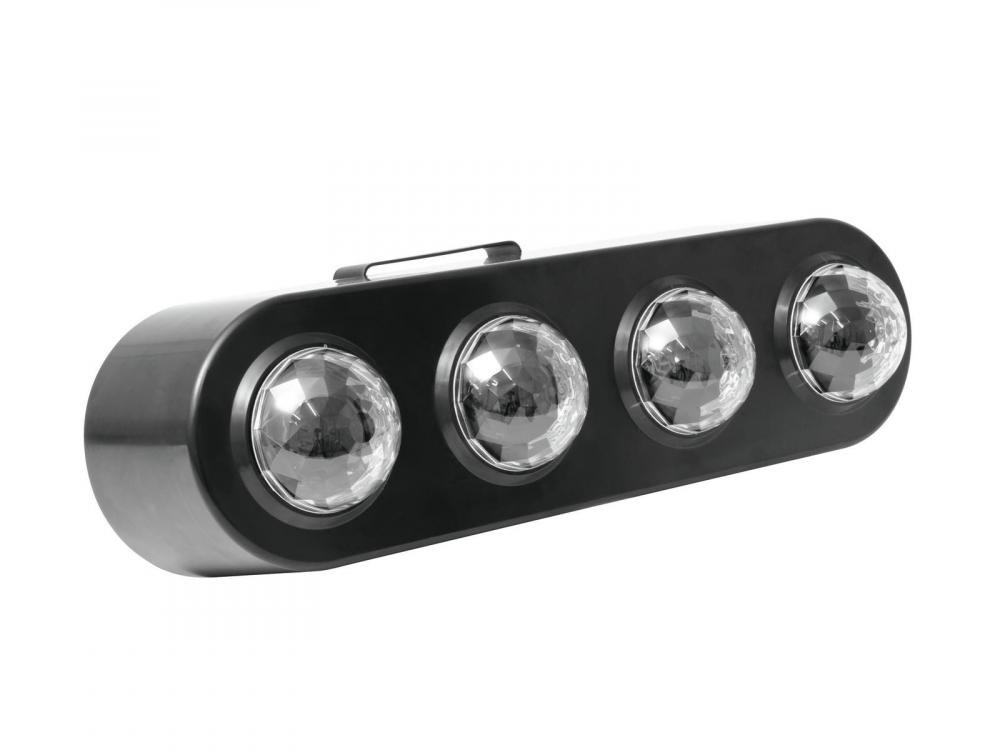

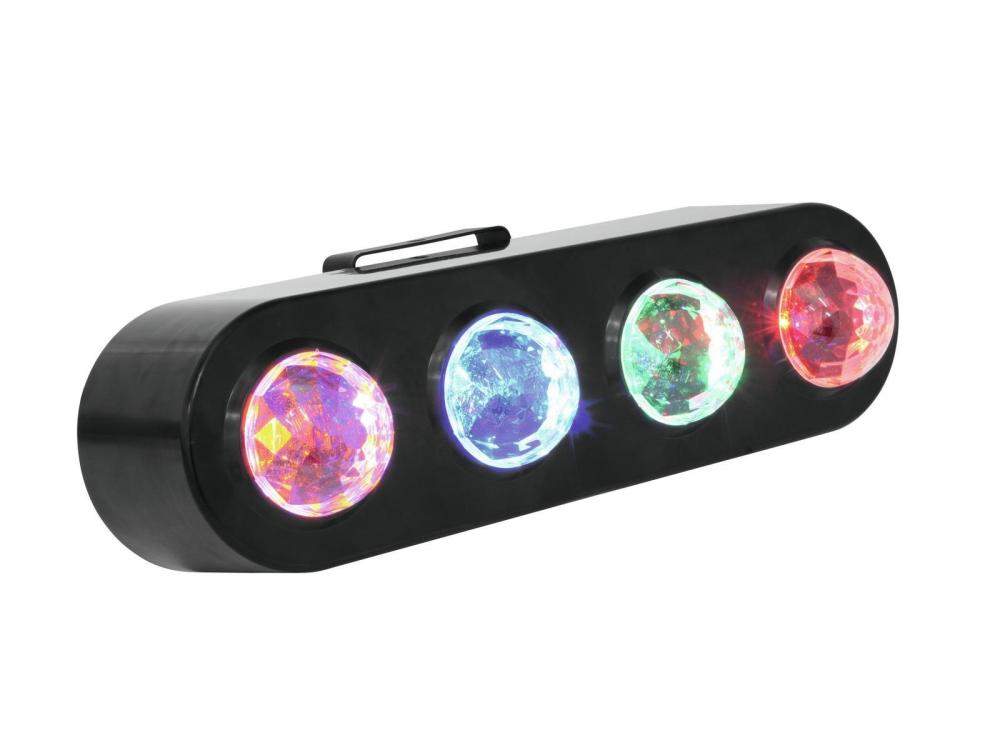

EUROLITE LED CPE-4 Flower Effect

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED CPE-4 Flower Effect

Info
order code
51918533
product link
EAN
4026397470918
Product Name
EUROLITE LED CPE-4 Flower Effect
technical overview
Power supply: 230 V AC, 50 Hz
Sound-control: via built-in microphone
LED type: 3 W RGBA
LED number: 4
Beam angle: 75-100°
Dimensions (L x W x H): 460 x 160 x 200 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Cooling fan: No, cooling by convection
IP classification: IP20
Beam angle: 100°
Power consumption: 20 W
Lamp type: LED lamp
Weight: 1,77 kg
Laser class: Without laser
Height: 20 cm
Depth: 46 cm
Width: 16 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
LED: 4 x high-power 3 W RGBA
Power supply: 230 V AC, 50 Hz
main features
RGBA lighting bar with 3 W LEDs
-The colorful flower-beams change their direction of movement at every bass-beat
-Sound-control via built-in microphone
-Microphone-sensitivity adjustable via rotary-control
-Equipped with particularly bright 3 W LEDs
-Compact housing and an appealing design
-Innumerable uses: for bands, stages, solo entertainers or party rooms
-Ready for connection via IEC power cord with safety-plug
-Delivered in a four-color carton
-Case color: Black
-Effect: Multi beam effect; Flower effect
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: Stand-alone
-LED: 4 x high-power 3 W RGBA
Electrical
power consumption watt, max
3.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
cooling
passive
Mechanical
weight
1.77 kg
width
160.00 mm
height
200.00 mm
length
460.00 mm
Optical
beam angle/zoom, min
100.00 °
beam angle/zoom, max
100.00 °
light source
LED
Number of light sources
4 pcs
wattage per light source
3.00 W
RED light source
yes
GREEN light source
yes
BLUE light source
yes

add to list

Collect interesting products in a list and download tender specifications at once

show list

Videos
Downloads
Bedienungsanleitung
00092859.pdf
