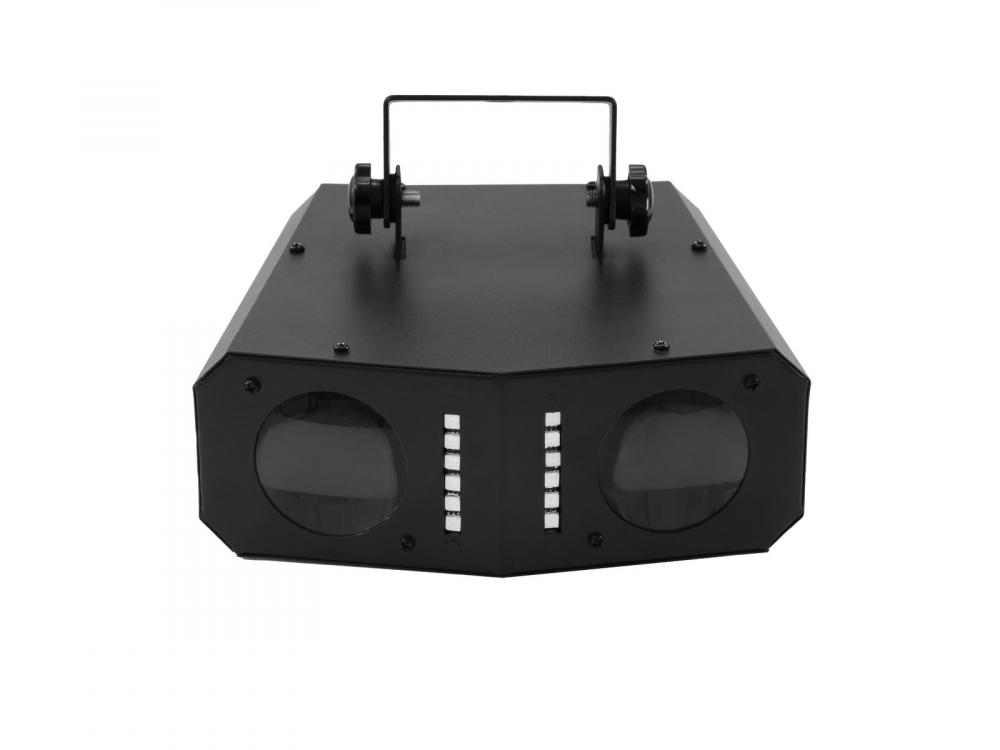

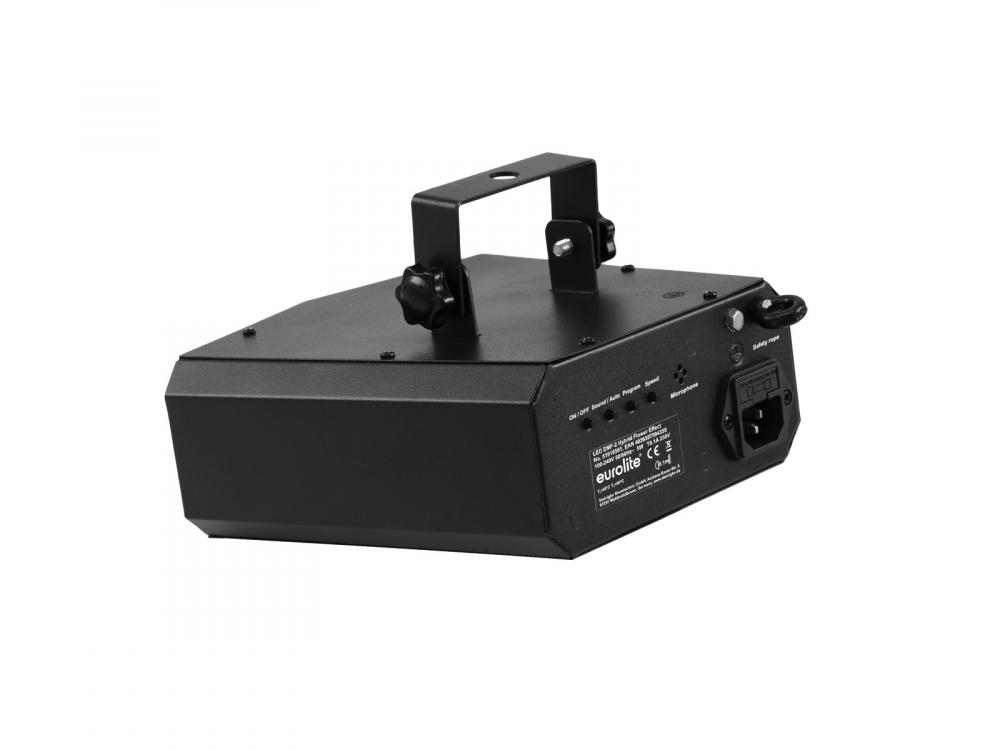

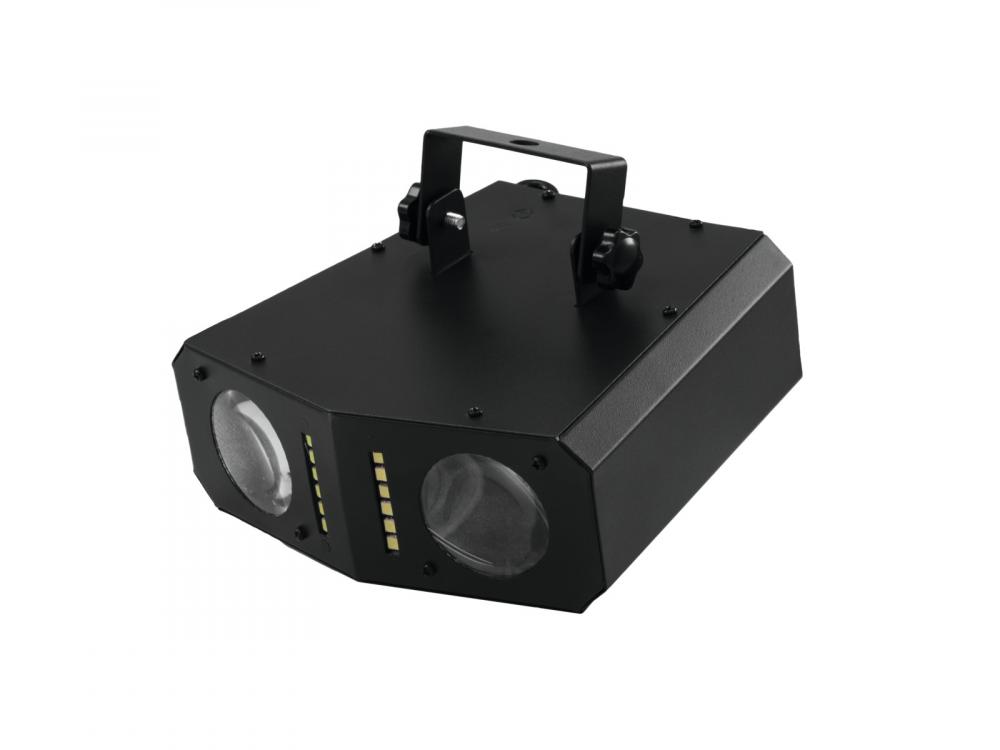

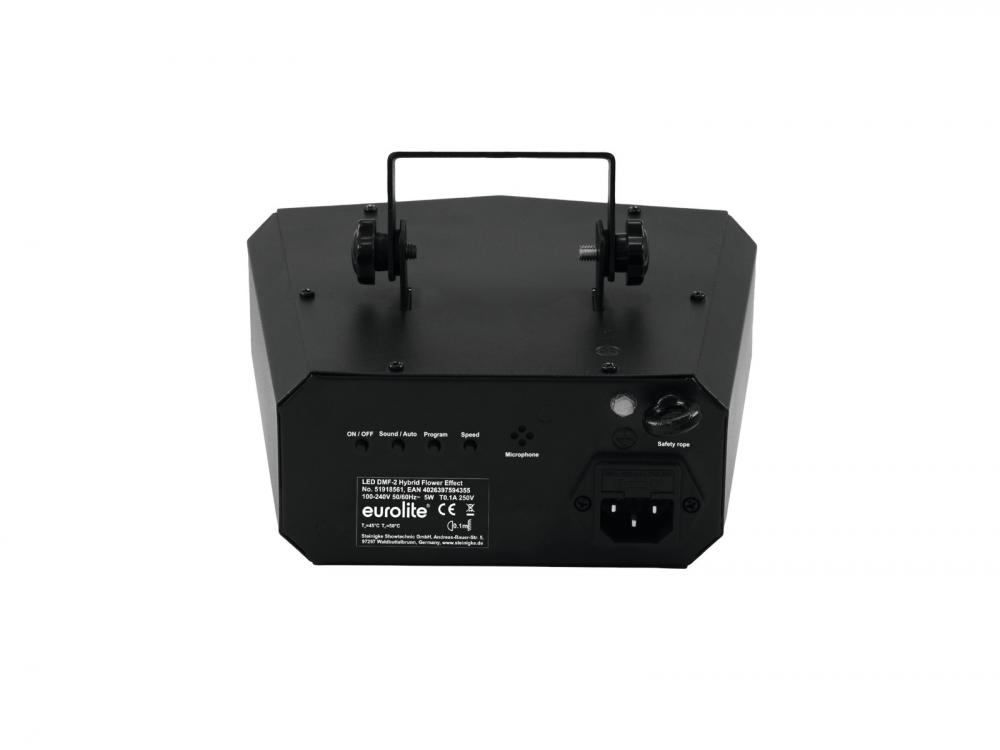

EUROLITE LED DMF-2 Hybrid Flower Effect

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED DMF-2 Hybrid Flower Effect

Info
order code
51918561
product link
EAN
4026397594355
Product Name
EUROLITE LED DMF-2 Hybrid Flower Effect
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Sound-control: via built-in microphone
LED type: 5 mm RGB / SMD 5050 white
LED number: 54 / 12
Dimensions (L x W x H): 180x200x130 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Lamp type: LED lamp
Cooling fan: No, cooling by convection
IP classification: IP20
Weight: 1,21 kg
Power consumption: 5 W
Laser class: Without laser
Height: 13 cm
Depth: 18 cm
Width: 20 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
LED: 12 x SMD 5050 CW (homogenous color mix); 54 x 5 mm RGB
Power supply: 110-240 V AC, 50/60 Hz
main features
Double flower effect with matrix projections and 2 strobe effects
-2 lenses with bright red, green und blue LEDs
-White SMD LEDs for dynamic strobe effects
-Sound-control via built-in microphone
-Comfortable setting via four operating buttons
-Functions: auto mode, sound control, internal programs, strobe effect
-Ideal for mobile operation, party rooms and small discotheques
-Equipped with 54 x 5 mm R, G & B LEDs as well as 12 white SMD LEDs
-Locking possibility at the mounting bracket
-IEC power cord with safety-plug included in delivery
-Case color: Black
-Effect: Multi beam effect; Flower effect; Strobe effect
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: Stand-alone
-LED: 12 x SMD 5050 CW (homogenous color mix); 54 x 5 mm RGB
Electrical
power consumption watt, max
5050.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
cooling
passive
Mechanical
weight
1.21 kg
width
200.00 mm
height
130.00 mm
length
180.00 mm
Optical
light source
LED
Number of light sources
54 pcs
RED light source
yes
GREEN light source
yes
BLUE light source
yes
