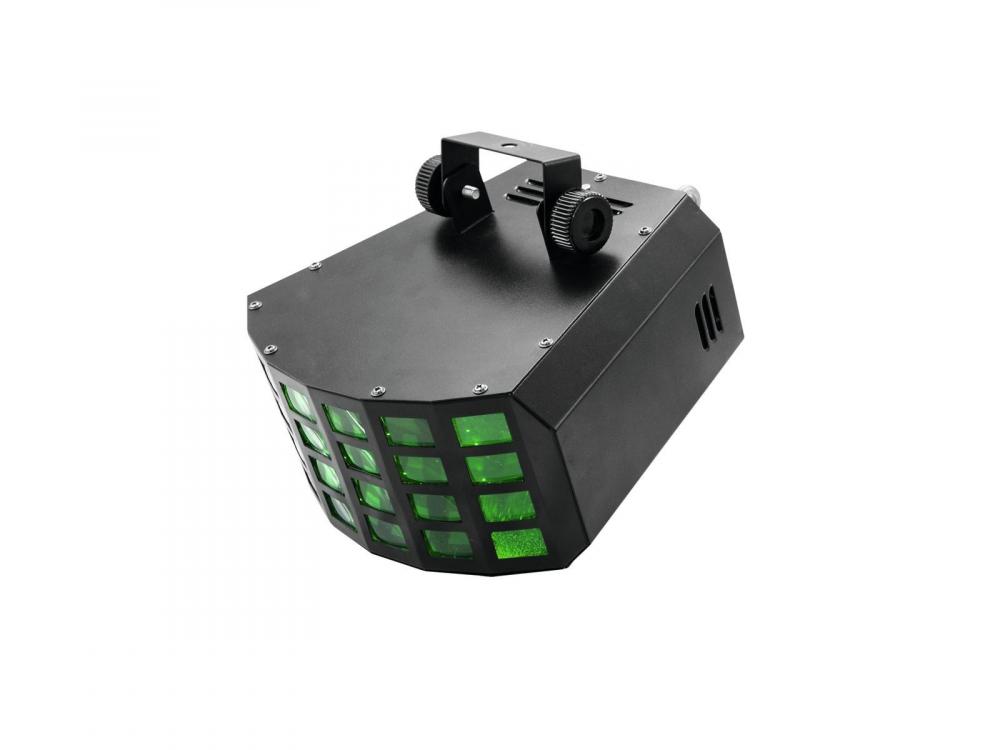

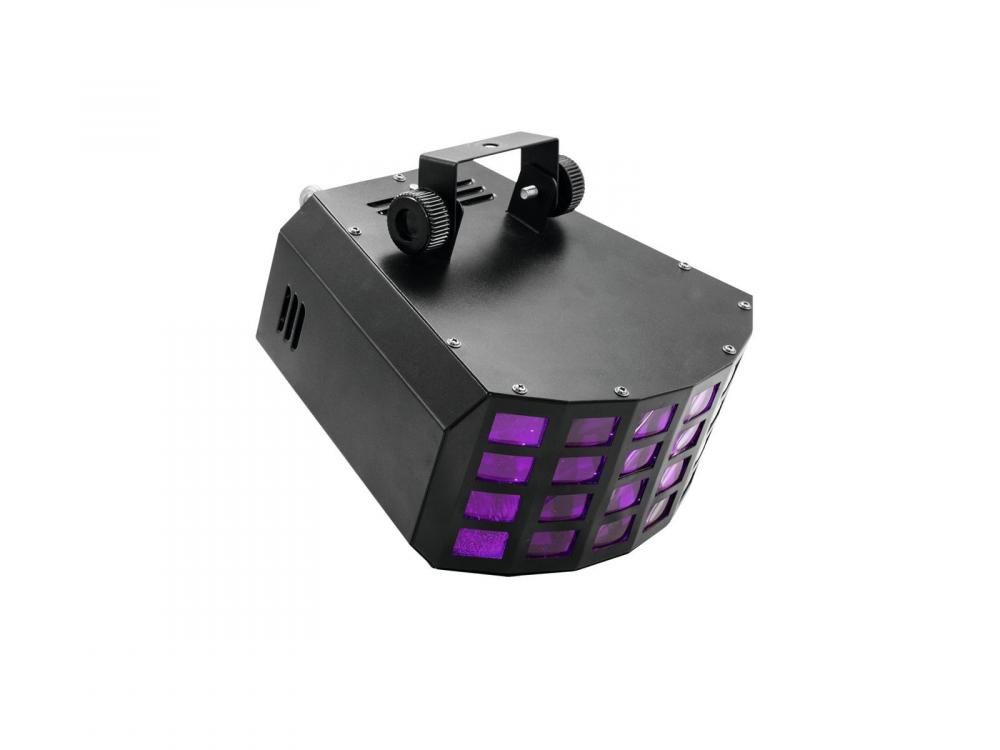

EUROLITE LED D-25 Beam Effect

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED D-25 Beam Effect

Info
order code
51918664
product link
EAN
4026397530308
Product Name
EUROLITE LED D-25 Beam Effect
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Sound-control: via built-in microphone
LED type: 18 W RGBAW+UV(6in1)
LED number: 2
Dimensions (L x W x H): 285 x 290 x 185 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Lamp type: LED lamp
IP classification: IP20
Weight: 2 kg
Power consumption: 24 W
Laser class: Without laser
Height: 18,5 cm
Depth: 28,5 cm
Width: 29 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
LED: 2 x high-power 18 W 6in1 HCL RGBWA/UV
Power supply: 110-240 V AC, 50/60 Hz
main features
Color intensive beam-effect with hexacolor LEDs (6in1) RGBAW+UV
-Beams exit from every lens, perform circular movements and change the direction of movement with every bass-beat
-4 rows of lenses provide a room-filling effect
-Internal program
-Constantly changing color patterns
-Modifiable program speed
-Sound-controlled via built-in microphone
-Microphone-sensitivity adjustable via rotary-control
-Sound-control or auto mode available
-Strobe effect
-Easy hanging installation
-Locking possibility at the mounting bracket
-Equipped with 2 x 18 W 6in1 LED: red, green, blue, amber, white, UV
-Delivery in a four-color carton
-Ready for connection via included IEC power cord with safety power plug
-Case color: Black
-Effect: Multi beam effect; Flower effect; UV
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: Stand-alone
-LED: 2 x high-power 18 W 6in1 HCL RGBWA/UV
Electrical
power consumption watt, max
18.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
Mechanical
weight
2.00 kg
width
290.00 mm
height
185.00 mm
length
285.00 mm
Optical
light source
LED
Number of light sources
2 pcs
wattage per light source
18.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
UV light source
yes
AMBER light source
yes
