EUROLITE LED BCW-4 Beam Effect

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED BCW-4 Beam Effect

Info
order code
51918804
product link
EAN
4026397518139
Product Name
EUROLITE LED BCW-4 Beam Effect
technical overview
LED type upper light effect: 3 x 1 W LEDs, RGB
LED type ring: 48 x 5mm LEDs, RGB
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
IP classification: IP20
Power consumption: 7,00 W
Lamp type: LED lamp
Weight: 0,3 kg
Laser class: Without laser
Height: 13 cm
Depth: 12,8 cm
Width: 12,8 cm
Power connection: Fix Power supply cord with Euro plug (M)
LED: 48 x 5 mm RGB; 3 x high-power 1 W RGB
Power supply: 110-240 V AC, 50/60 Hz
main features

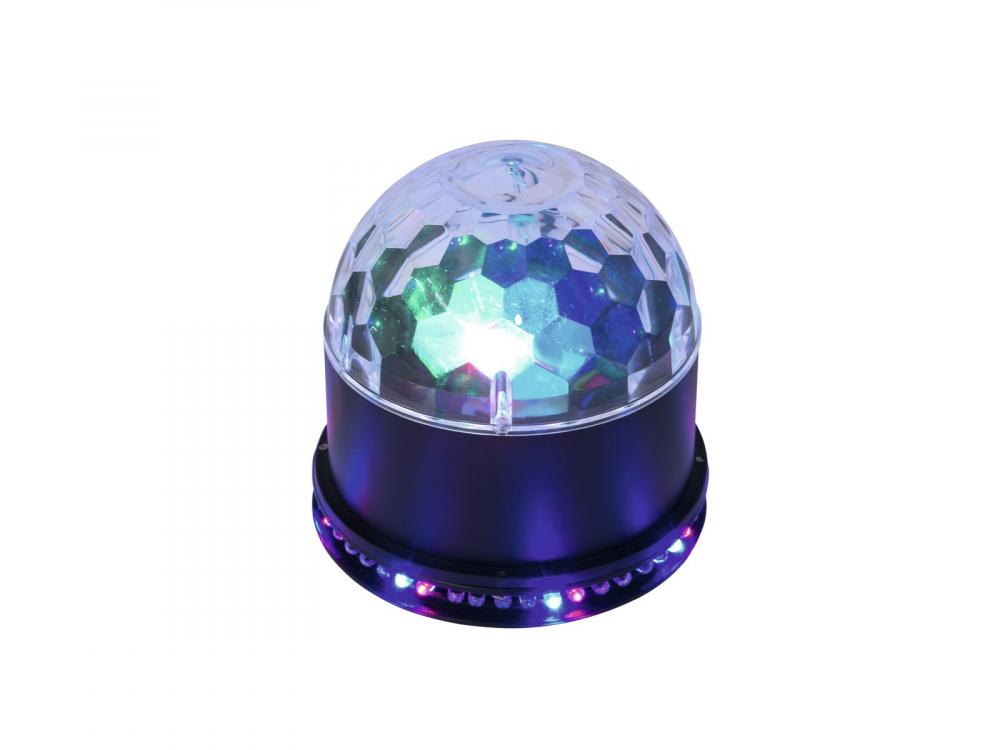

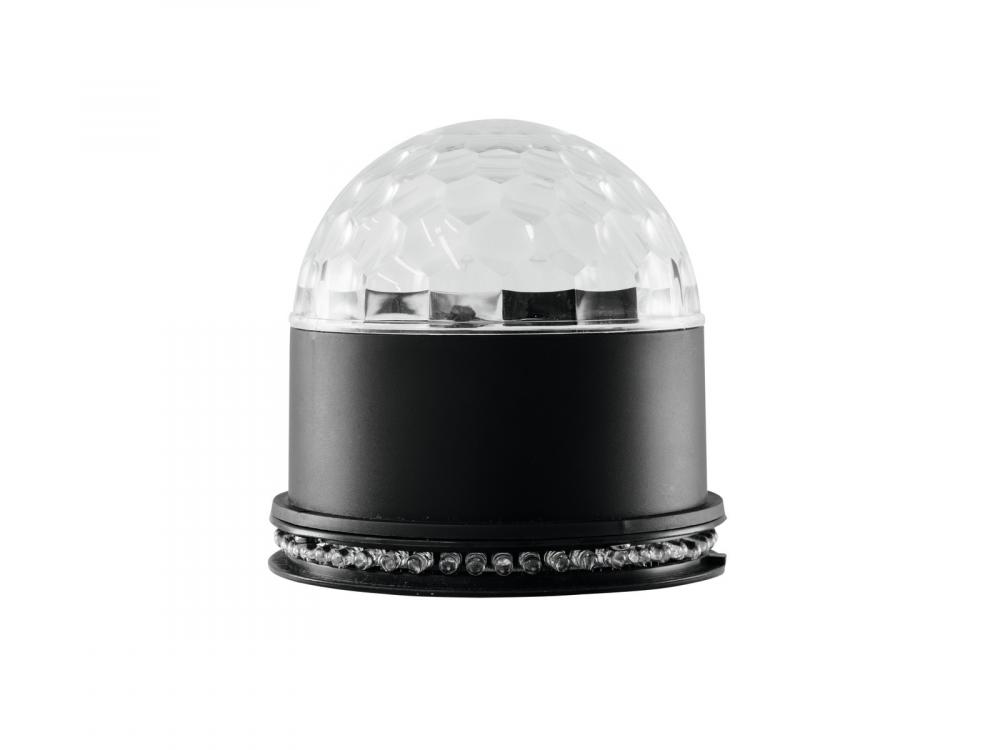

Compact mirror ball effect with a radiating plexiglas dome and LED ring
-Clear, faceted surface provides for unique beam effects, including integrated fancy color changing wall light

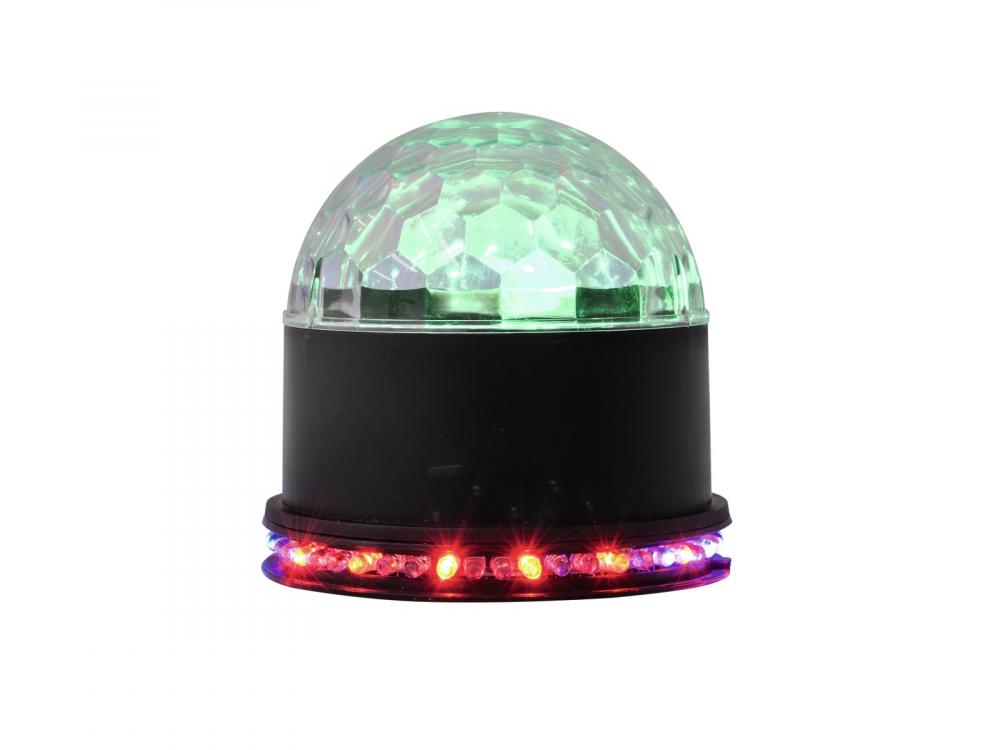

-The upper light effect dome is equipped with 3 bright 1 W LEDs in red, green and blue and the ring below comprises 48 RGB 5 mm LEDs
-2 independent sound control systems via 2 built-in microphones: a rotating light design develops from the dome which changes its direction and colors with every bass beat and the ring features several internal programs in a continuous loop which change direction as well as sequence with every base beat
-For wall mounting

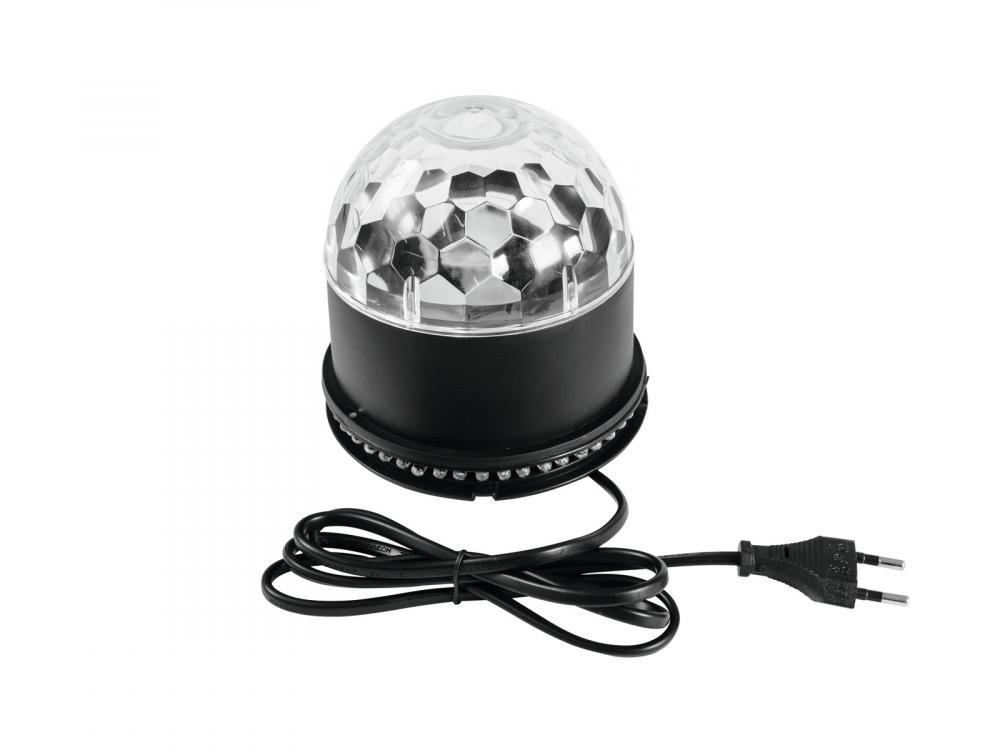

-Ready for connection via power cord with Euro plug
-Switch-mode power supply allows automatic power supply adaption between 100 and 240 Volts without power selector
-Case color: Black
-Effect: Multi beam effect
-Power connection: Fix Power supply cord with Euro plug (M)
-Control: Stand-alone
-LED: 48 x 5 mm RGB; 3 x high-power 1 W RGB
Electrical
power consumption watt, max
7.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Europlug
Mechanical
weight
0.30 kg
width
128.00 mm
height
130.00 mm
length
128.00 mm
Optical
light source
LED
Number of light sources
48 pcs
wattage per light source
1.00 W
RED light source
yes
GREEN light source
yes
BLUE light source
yes

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00082376.pdf
