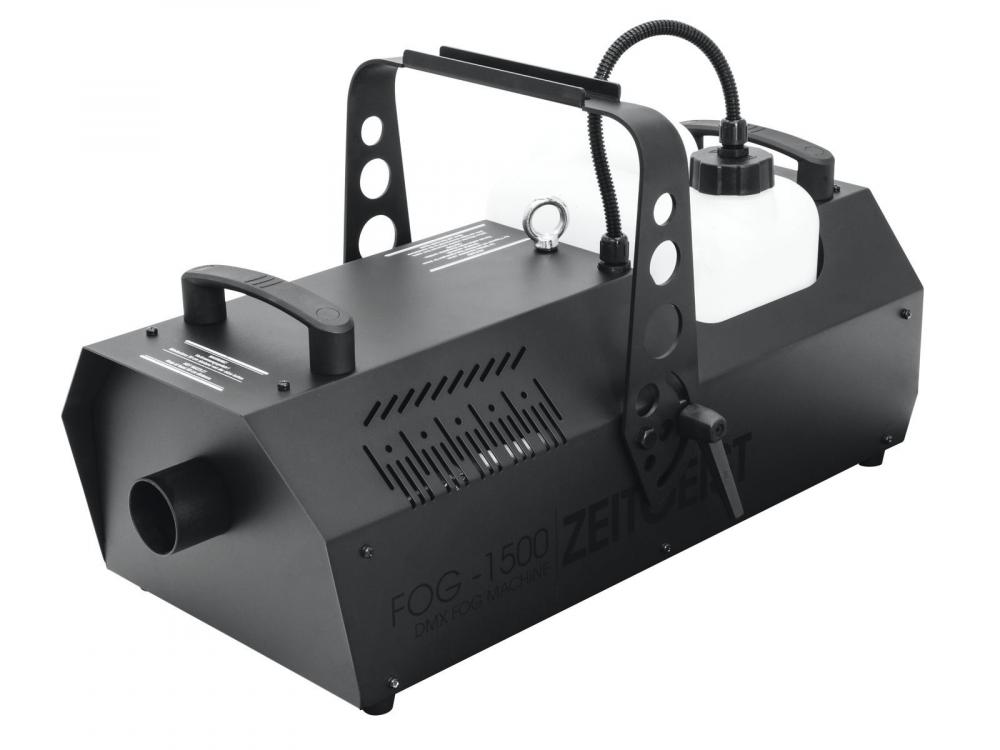

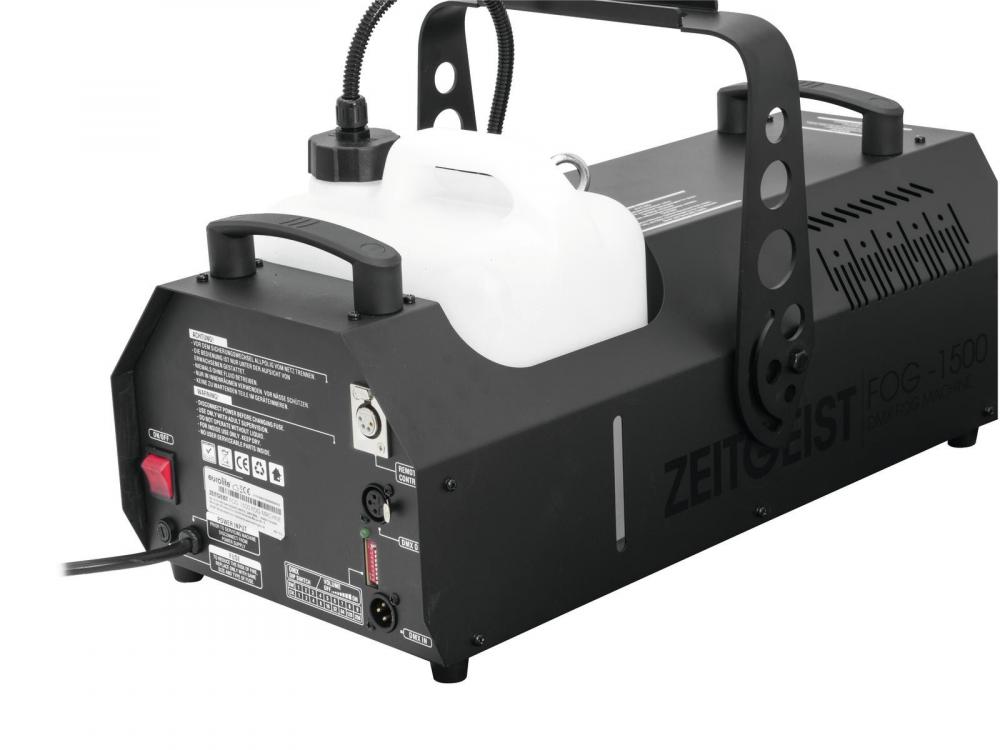

EUROLITE Zeitgeist FOG-1500 Fog machine

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE Zeitgeist FOG-1500 Fog machine

Info
order code
51701992
product link
EAN
4026397499070
Product Name
EUROLITE Zeitgeist FOG-1500 Fog machine
technical overview
Power supply: 230 V AC, 50 Hz
Output distance: 3 m
Warm-up time: 10 min.
Output volume: 570 m³/min.
Tank capacity: 6 l

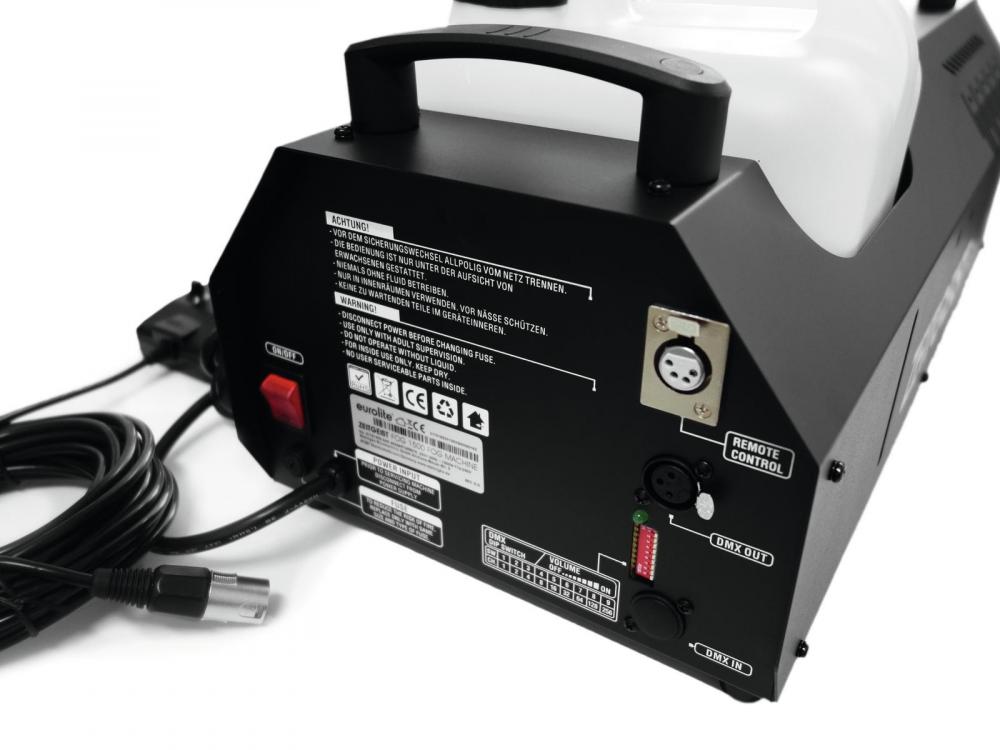

DMX connection: 5-pin and 3-pin XLR
Dimensions (L x W x H): 570 x 350 x 310 mm
Power consumption: 1500 W
Weight: 14 kg
IP classification: IP20
Color: Black
Height: 31 cm
Depth: 27 cm
Width: 35 cm
DMX channels: 1
Power supply: 230 V AC, 50 Hz
main features
Premium fog machine with DMX interface
-Powerful fogger with 1500 W heater for professional use

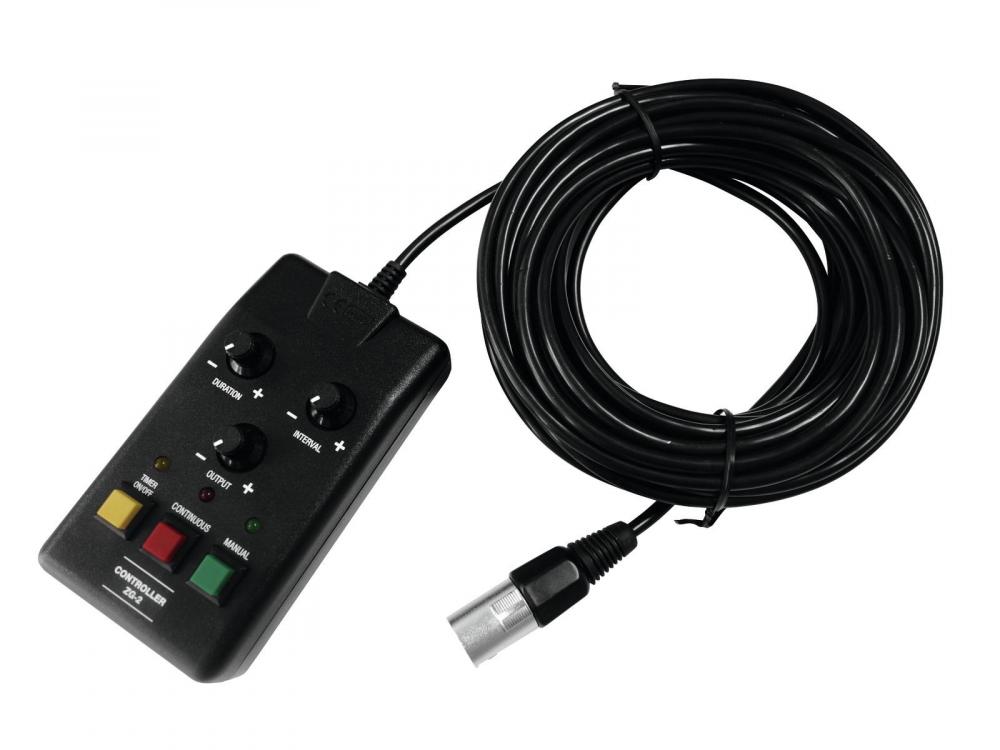

-Control via supplied cable remote control ZG-2 with timer or integrated DMX interface
-Functions ZG-2: timer with interval, duration and output volume
-Continuous or manual activation

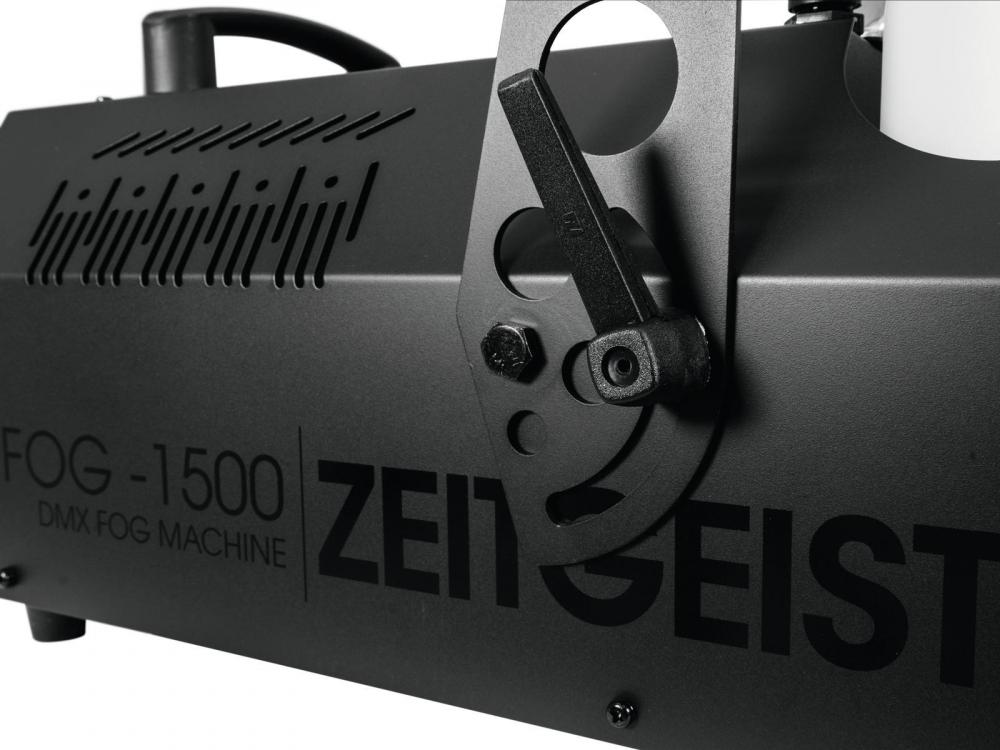

-Metal housing with carrying handle, movable mounting bracket and safety eyelet
-Removable tank, fluid level indication
-Optional wireless controller ZG-2W
-Perfect for large clubs, stage productions, rental companies and industrial applications
-Smoke-output: ca. 3 m
-Case color: Black
-Control: Wireless remote control (optional); Wired remote control (provided); DMX
Connectors
DMX connector types
both 3/5pin
Control
control channels, min
1 ch
control channels, max
1 ch
*# category-effect
output volume
570 m3/min
tank size
6.00 l
Electrical
power consumption watt, max
1500.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
Mechanical
weight
14.00 kg
width
350.00 mm
height
310.00 mm
length
570.00 mm
color
black

add to list

Collect interesting products in a list and download tender specifications at once

show list

Videos
Downloads
Bedienungsanleitung
00079879.pdf
