EUROLITE Dynamic Fog 2000 Fog Machine

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE Dynamic Fog 2000 Fog Machine

Info
order code
51702050
product link
EAN
4026397549218
Product Name
EUROLITE Dynamic Fog 2000 Fog Machine
technical overview
Power supply: 230 V AC, 50 Hz
Output distance: 5 m
Warm-up time: 4 min.
Fluid consumption: 90 ml/min.
Output volume: 566 m³/min.
Tank capacity: 5 l
DMX connection: 5-pin and 3-pin XLR
Dimensions (L x W x H): 520 x 360 x 370 mm
Wireless remote control:
Carrier frequency: 433.920 MHz
Battery: 12 V, type A27
Power consumption: 2000 W
Weight: 10,95 kg
IP classification: IP20
Color: Black
Height: 37 cm
Width: 36 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Depth: 52 cm
DMX channels: 1
Power supply: 230 V AC, 50 Hz
main features
DMX fog machine with 2000 W power, timer and wireless remote
-High-output fog machine for clubs and stage applications
-Concentrated and steady fog output
-Ideal for accentuating light and laser beams

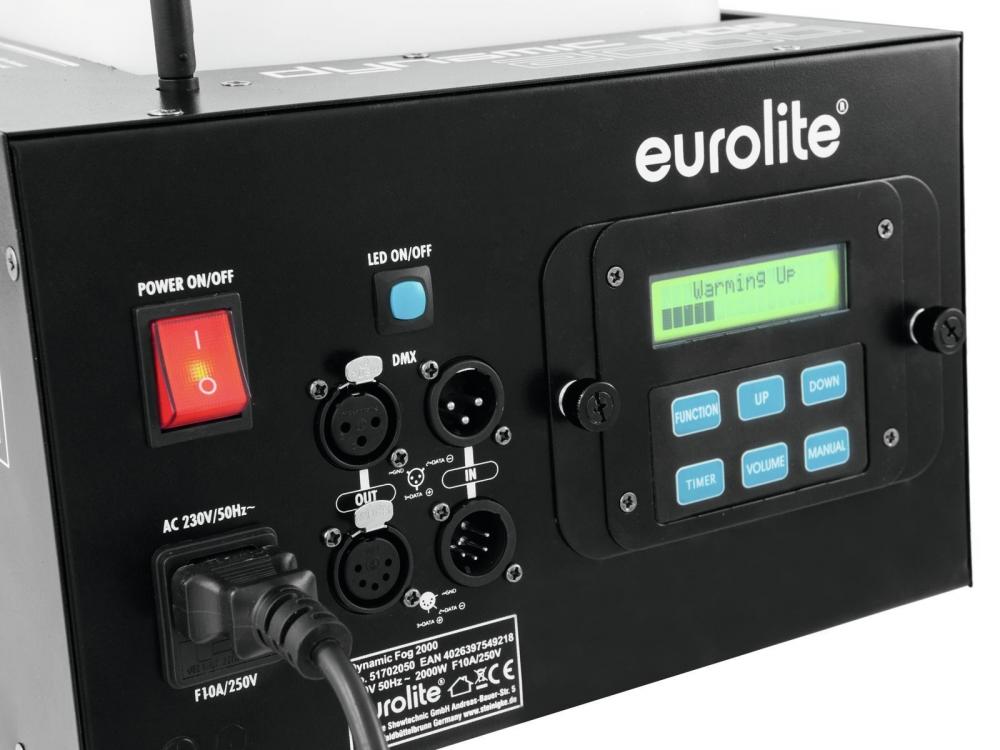

-Control via integrated DMX interface or control module with LCD screen
-Adjustable timer with interval, duration and output volume
-Additional handy transmitter for continuous activation
-Temperature control via thermo switch
-Removable tank, fluid level indication
-Low fluid sensor

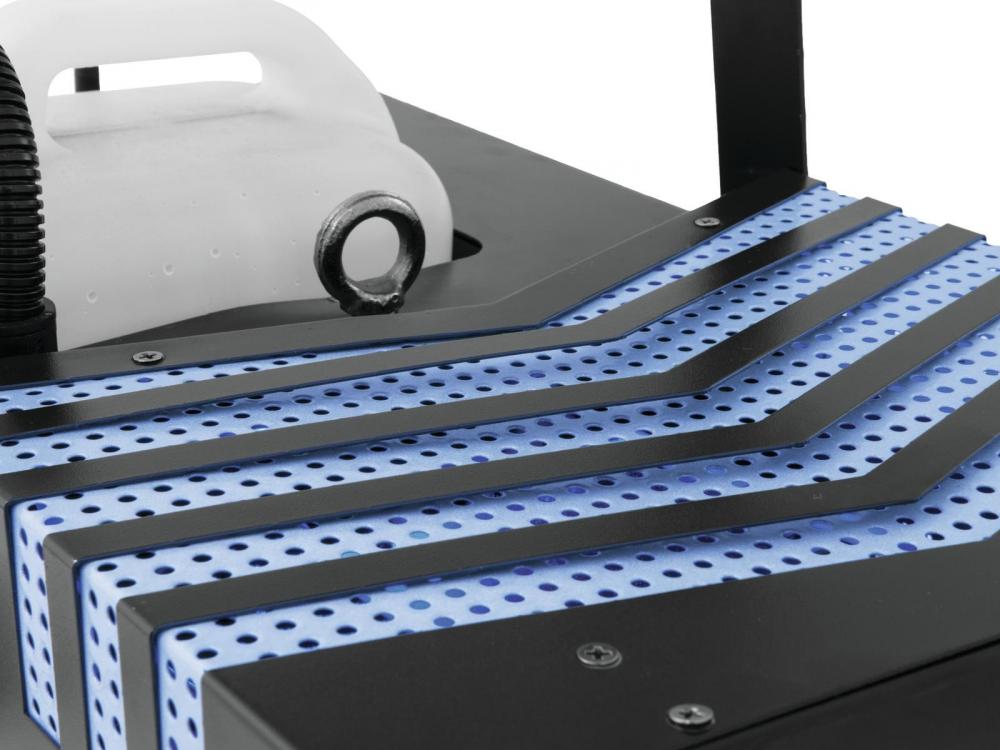

-Fan grille with blue LED illumination, switchable
-DMX interface with 3- and 5-pin connectors
-Operates on standard waterbased fluid
-Metal housing with movable mounting bracket and safety eyelet
-Smoke-output: ca. 5 m
-Case color: Black
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: Wired remote control (provided); DMX; Wireless remote control (provided)
Connectors
DMX connector types
both 3/5pin
Control
control channels, min
1 ch
control channels, max
1 ch
*# category-effect
output volume
566 m3/min
tank size
5.00 l
Electrical
power consumption watt, max
2000.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
Mechanical
weight
10.95 kg
width
360.00 mm
height
370.00 mm
length
520.00 mm
color
black

add to list

Collect interesting products in a list and download tender specifications at once

show list

Videos
Downloads
Bedienungsanleitung
00120496.pdf
