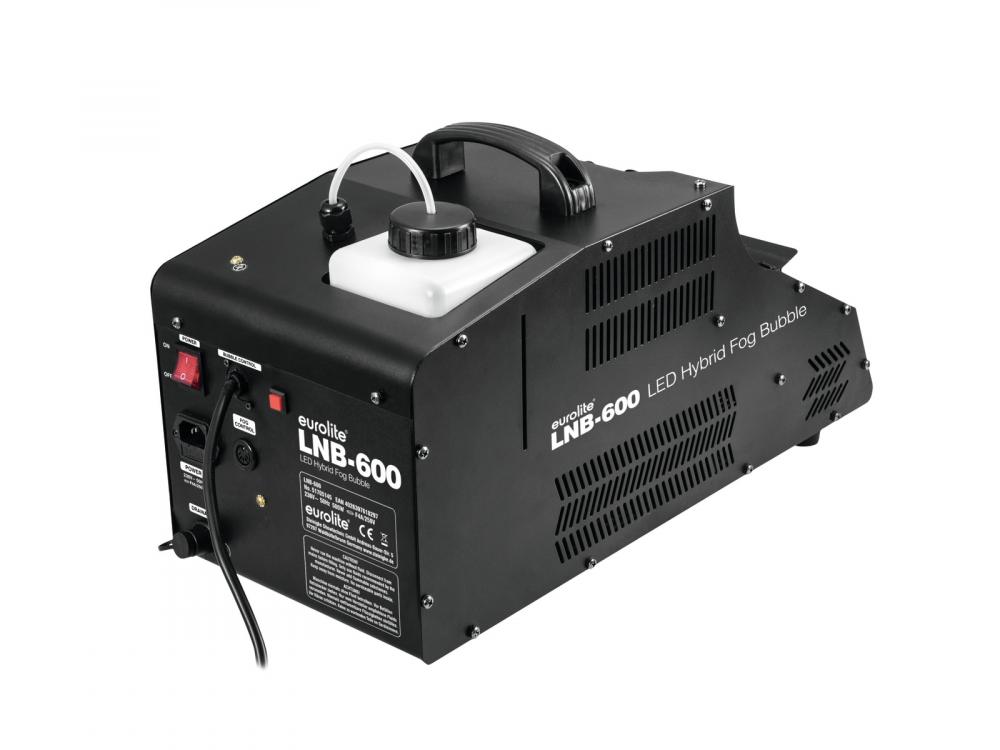

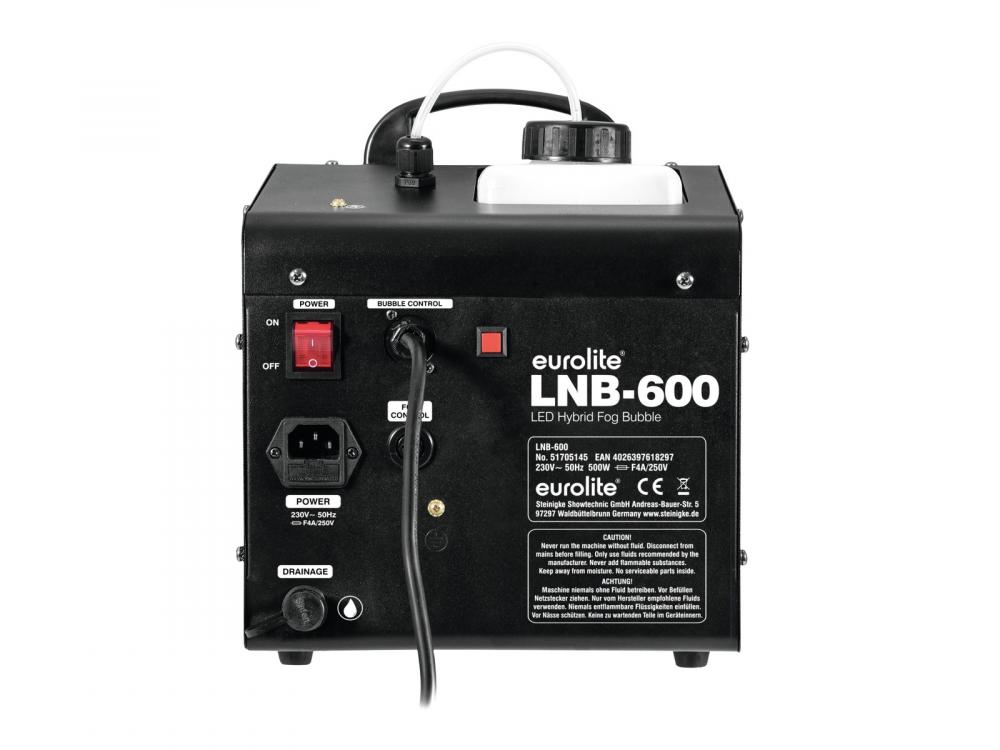

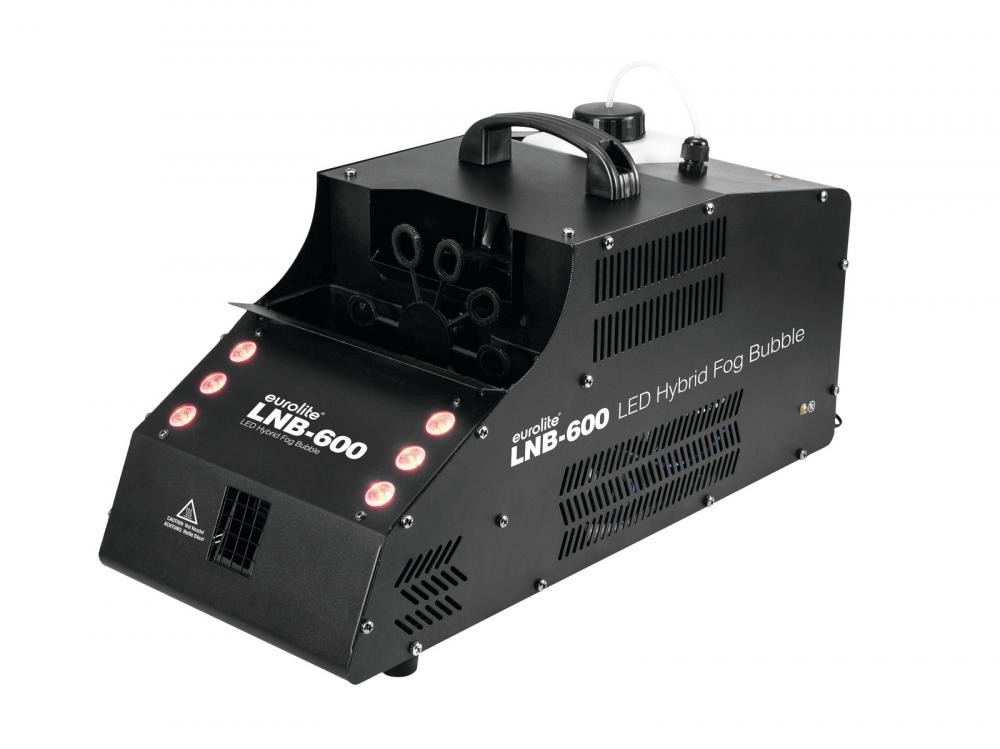

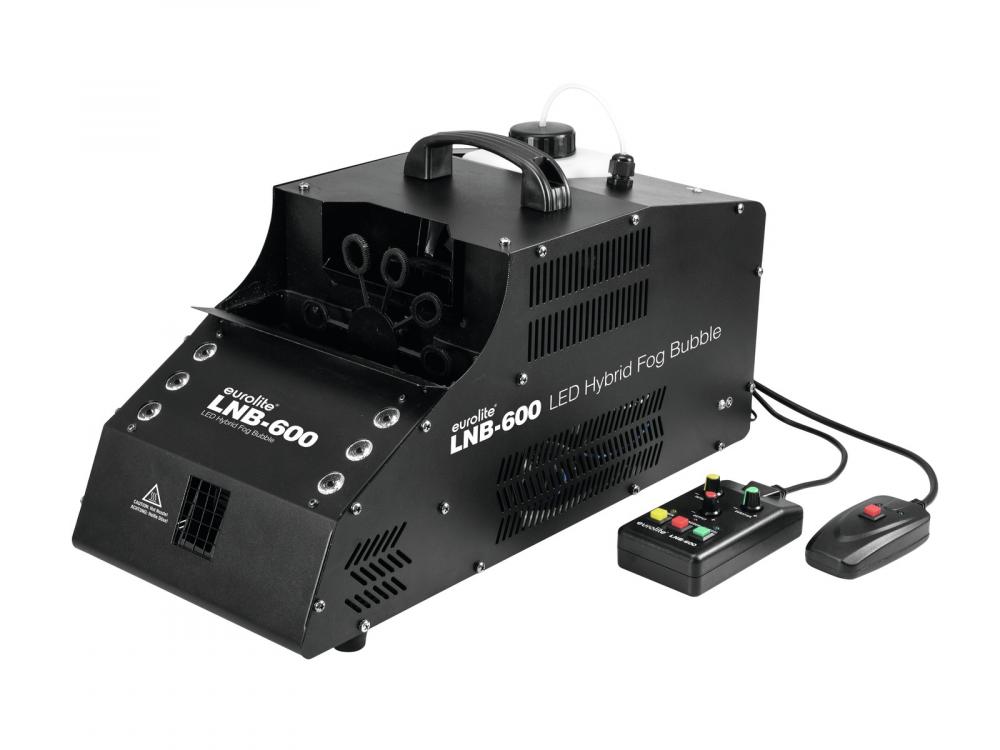

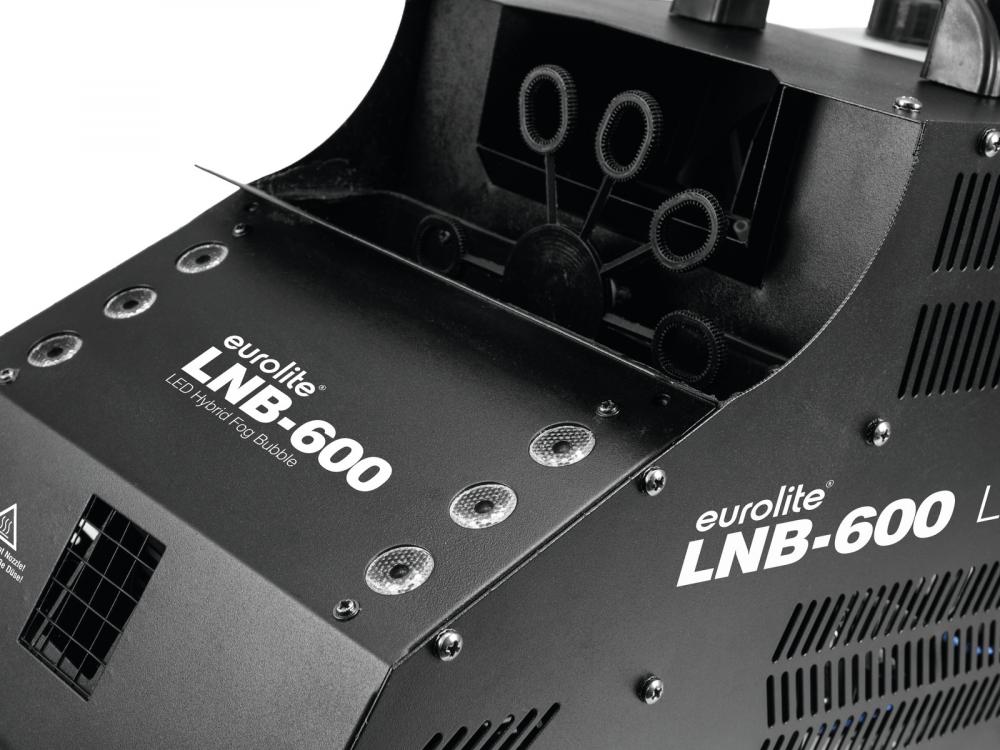

EUROLITE LNB-600 LED Hybrid Fog Bubble

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LNB-600 LED Hybrid Fog Bubble

Info
order code
51705145
product link
EAN
4026397618297
Product Name
EUROLITE LNB-600 LED Hybrid Fog Bubble
technical overview
Power supply: 230 V AC, 50 Hz
Tank capacity: 1.1 l (fog fluid), 0.7 l (bubble fluid)
Output distance: 3 m
Warm-up time: 5 min.
LED type: 6 x 3 W RGB (3in1)
Dimensions (L x W x H): 530 x 240 x 285 mm
Power consumption: 470 W
Weight: 7,6 kg
IP classification: IP20
Color: Black
Height: 28,5 cm
Width: 24 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Depth: 53 cm
LED: 6 x high-power 3 W 3in1 TCL RGB (homogenous color mix)
Power supply: 230 V AC, 50 Hz
main features
Effect with haze, fog-filled bubbles and LED illumination
-Incredible haze and bubble machine with RGB LED illumination
-Unique: creates hundreds of large bubbles filled with fog per minute
-400-watt heating element produces fine, translucent haze
-LED illumination with 6 high-power 3 W RGB LEDs (3in1) for additional color effects
-Individual or joint control of haze and bubbles
-Cable remote control with timer and interval function for haze effect
-Cable remote control for bubble effect
-User-friendly operation and easy cleanup
-Liquid drainage valve system
-Metal housing with carry handle
-Removable tank, fluid level indication
-Smoke-output: ca. 3 m
-Case color: Black
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: Wired remote control (provided)
-LED: 6 x high-power 3 W 3in1 TCL RGB (homogenous color mix)
*# category-effect
tank size
1.00 l
Electrical
power consumption watt, max
3.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
Mechanical
weight
7.60 kg
width
240.00 mm
height
285.00 mm
length
530.00 mm
Optical
Number of light sources
6 pcs
wattage per light source
3.00 W
multichip LED
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
