EUROLITE NH-110 Tour Hazer

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE NH-110 Tour Hazer

Info
order code
51701989
product link
EAN
4026397612622
Product Name
EUROLITE NH-110 Tour Hazer
technical overview
Power supply: 230 V AC, 50 Hz
Output distance: 3 m
Warm-up time: 3 min.
Fluid consumption: 15 ml/min.
Output volume: 170 m³/min.
Tank capacity: 3.5 l
DMX connection: 3-pin XLR
Dimensions (L x W x H): 500 x 390 x 265 mm
Power consumption: 1100 W
Weight: 14,60 kg
Fluid consumption: ca. 15 -
IP classification: IP20
Color: Black
Height: 26,5 cm
Depth: 50 cm
Width: 39 cm
Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M)
DMX channels: 2
Power supply: 230 V AC, 50 Hz
main features

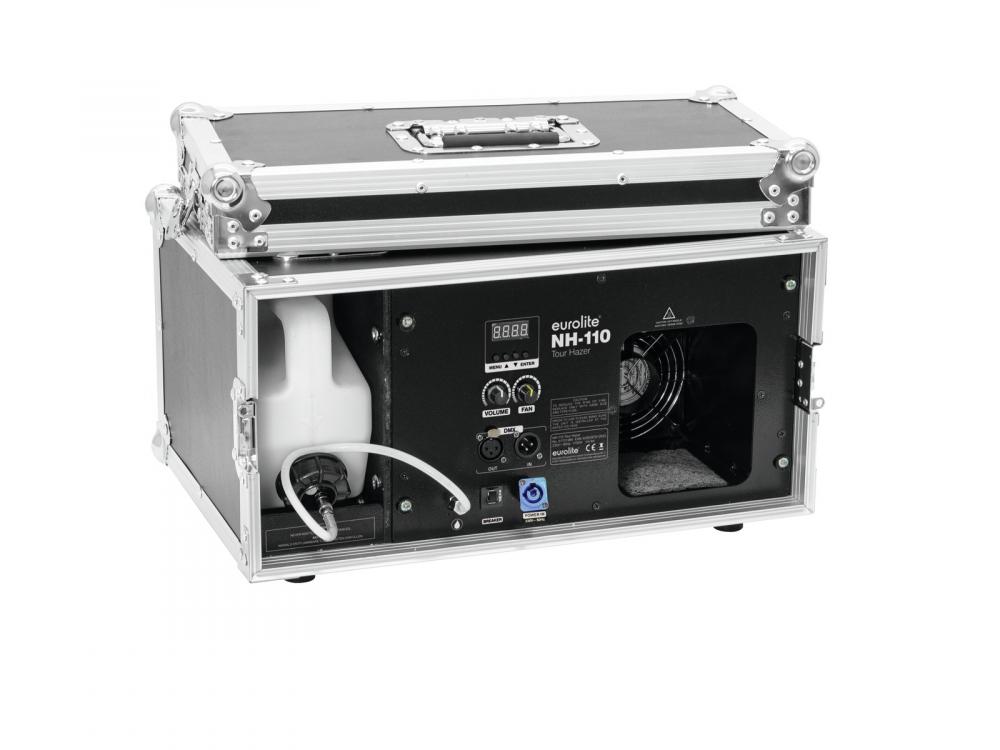

Powerful 1000 W hazer (DMX/manual operation), in its own case

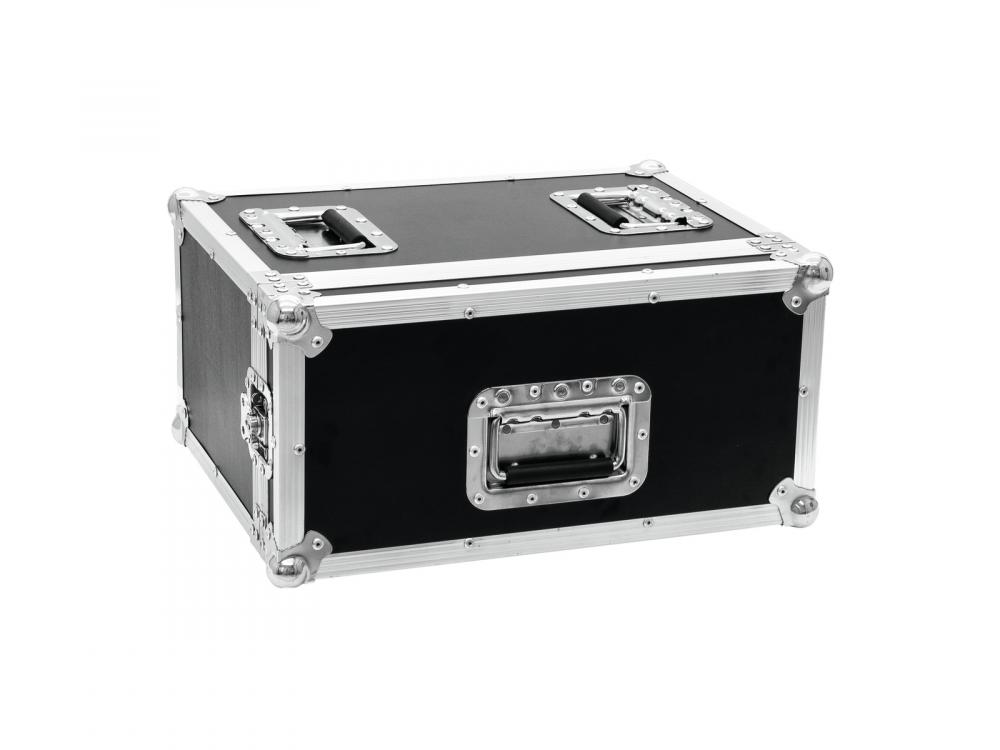

-Integration in a stackable flightcase makes the machine tough, durable and easy to carry
-Produces fine, translucent haze without nebulizing the room at the same time
-Ideal for accentuating light and laser beams
-Fog output and fan speed variably adjustable via rotary controls
-DMX interface with 3-pin connectors
-DMX settings via control panel with LED display
-Auto temperature control
-Removable tank
-Low fluid sensor
-Operates on standard waterbased fluid
-Smoke-output: ca. 3 m
-Case color: Black
-Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided)
-Control: Stand-alone; DMX
Connectors
DMX connector types
3pin
Control
control channels, min
2 ch
control channels, max
2 ch
*# category-effect
output volume
170 m3/min
tank size
5.00 l
Electrical
power consumption watt, max
1100.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
power input connector
Powercon
Mechanical
weight
14.60 kg
width
390.00 mm
height
265.00 mm
length
500.00 mm
color
black
