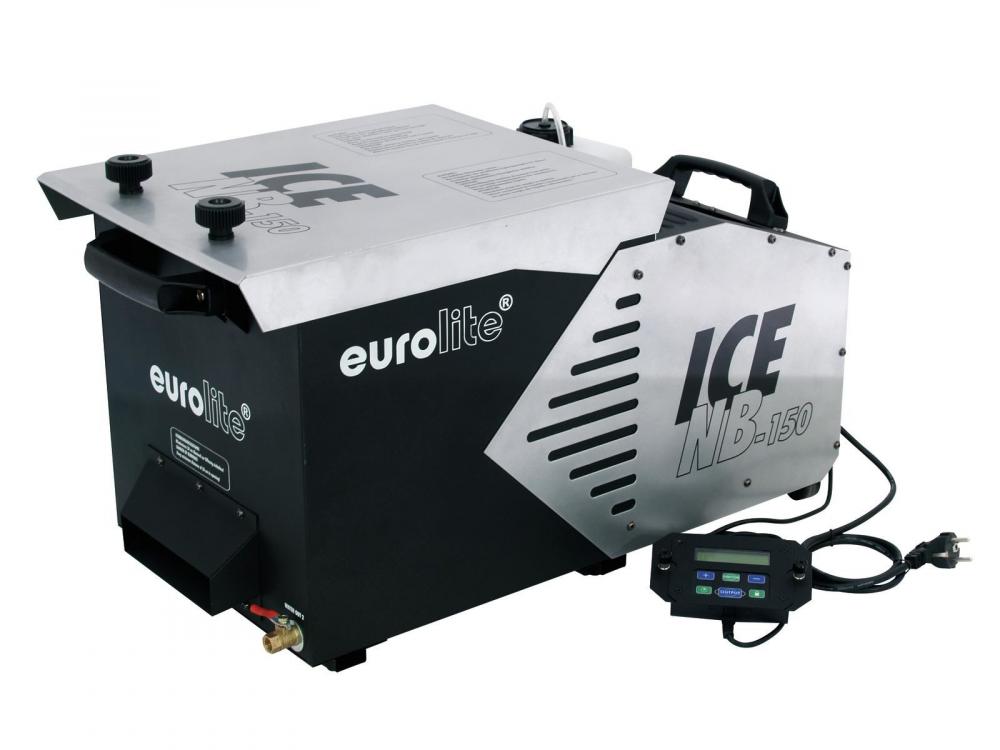

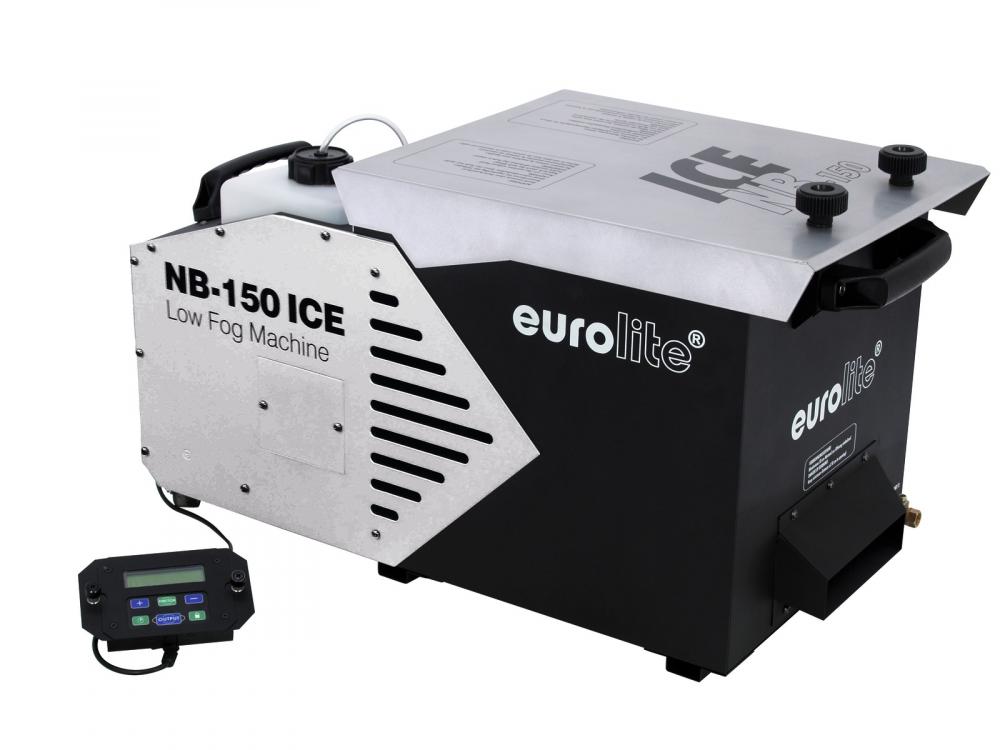

EUROLITE NB-150 ICE Low Fog Machine

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE NB-150 ICE Low Fog Machine

Info
order code
51701983
product link
EAN
4026397638608
Product Name
EUROLITE NB-150 ICE Low Fog Machine
technical overview
Power supply: 230 V AC, 50 Hz
DMX channels: 1
DMX connection: 3-pin XLR
Output distance: 5 m
Warm-up time: 4 min.
Tank capacity: 2 l
Dimensions (L x W x H): 680 x 360 x 420 mm
Weight: 20 kg
DMX channels: 1
Power consumption: 1500 W
Fluid consumption: ca. 25 -
IP classification: IP20
Color: Silver
Height: 42 cm
Depth: 68 cm
Width: 36 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Power supply: 230 V AC, 50 Hz
main features
Simple floor fogger with 1500 W, ice cube cooling
-Stand-alone smoke machine with fluid tank
-The fog is cooled down by ice cubes and is then converted to ground fog
-Operation with standard smoke fluid and ice cubes
-Volume/timer remote control
-DMX controlling via any standard DMX512 controller
-Smoke-output: ca. 5 m
-Case color: Silver
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: Wired remote control (provided); DMX; Stand-alone
Connectors
DMX connector types
3pin
Control
control channels, min
1 ch
control channels, max
1 ch
*# category-effect
tank size
2.00 l
Electrical
power consumption watt, max
1500.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
Mechanical
weight
20.00 kg
width
360.00 mm
height
420.00 mm
length
680.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00116514.pdf
