| Info | |
|---|---|
| order code |
51706305
|
| product link | |
| EAN |
4026397625912
|
| Product Name |

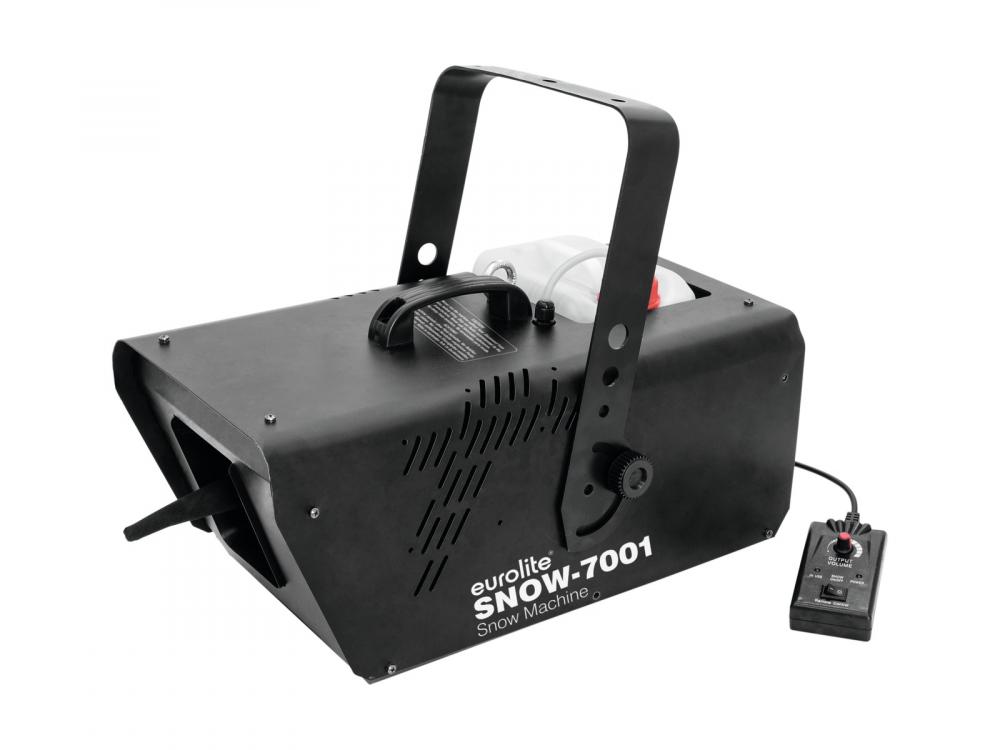

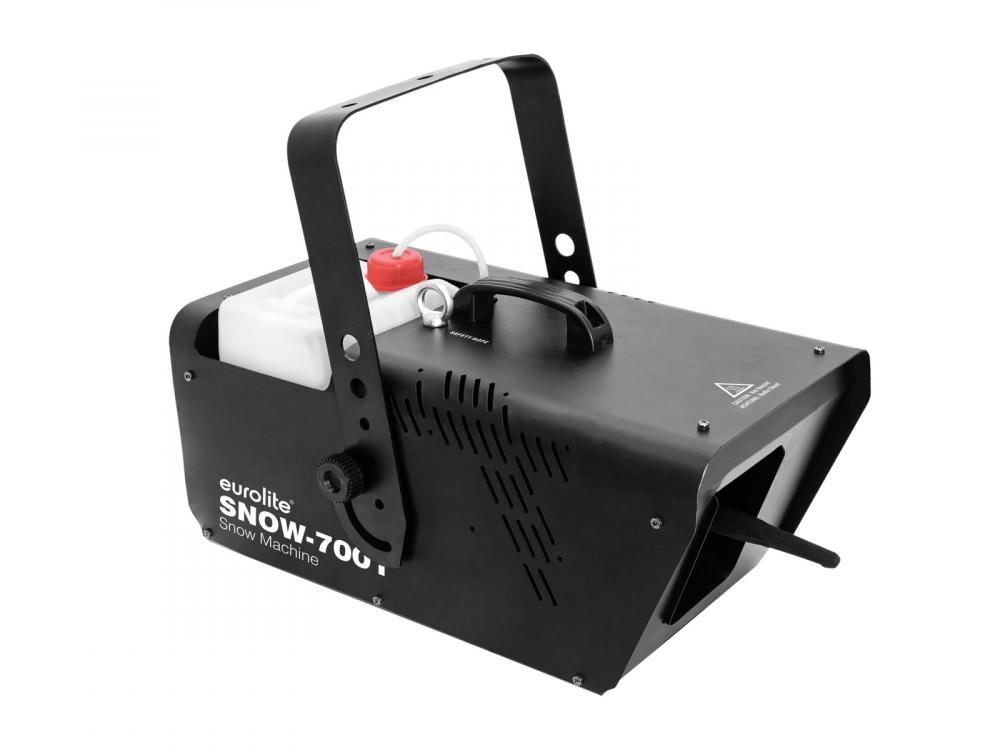

EUROLITE Snow 7001 Snow Machine
|
| technical overview |
Power supply: 230 V AC, 50 Hz Tank capacity: 5 l Fluid consumption: 360 ml/min. Dimensions (L x W x H): 510 x 300 x 390 mm Power consumption: 1500 W Fluid consumption: ca. 360 - Weight: 9,40 kg Height: 39 cm Depth: 51 cm Width: 30 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 2 Power supply: 230 V AC, 50 Hz |
| main features |

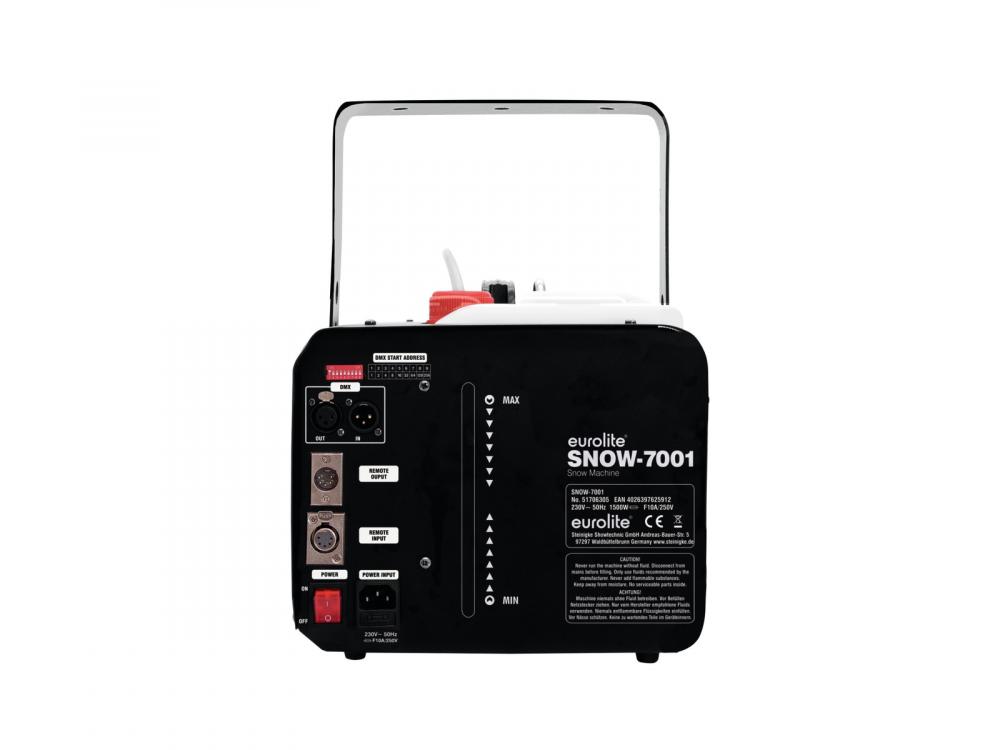

Mid-sized DMX snow machine with particularly large tank volume -Powerful snow machine with simple operation -3 m output distance -5 l tank for permanent operation -Control via integrated DMX interface (occupies 2 channels) or supplied cable remote control -Manual activation via supplied cable remote control -Removable tank with illumination and level indication -Metal housing with movable mounting bracket and safety eyelet -DMX settings via DIP switches -Matching snow fluid available as accessory -Case color: Black -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: DMX; Wired remote control (provided) |
| Control | |
| control channels, min |
2 ch
|
| control channels, max |
2 ch
|
| *# category-effect | |
| tank size |
5.00 l
|
| Electrical | |
| power consumption watt, max |
1500.00 W
|
| AC Volts, min |
230 V
|
| AC Volts, max |
230 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
50 Hz
|
| power input connector |
IEC-60320 C13/C14
|
| Mechanical | |
| weight |
9.40 kg
|
| width |
300.00 mm
|
| height |
390.00 mm
|
| length |
510.00 mm
|
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00121008.pdf |
