EUROLITE Snow 6001 Snow Machine

EUROLITE

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for EUROLITE Snow 6001 Snow Machine

Info
order code
51706320
product link
EAN
4026397333732
Product Name
EUROLITE Snow 6001 Snow Machine
technical overview
Power supply: 230 V AC, 50 Hz
DMX channels: 1
DMX connection: 3-pin XLR
Snow output: 120 ml/min.
Tank capacity: 2.5 litres
Fluid-consumption: 10 l/h
Dimensions (L x W x H): 510 x 330 x 355 mm
Weight: 11 kg
DMX channels: 1
Power consumption: 1350 W
Fluid consumption: ca. 120 -
Height: 35,5 cm
Depth: 51 cm
Width: 33 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Power supply: 230 V AC, 50 Hz
main features

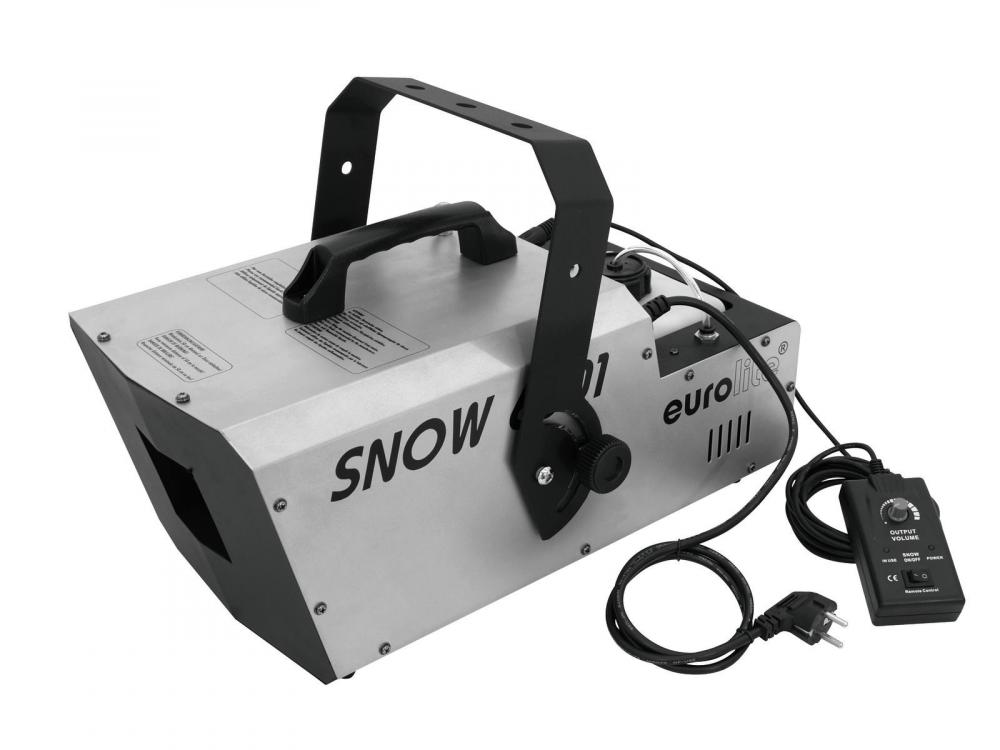

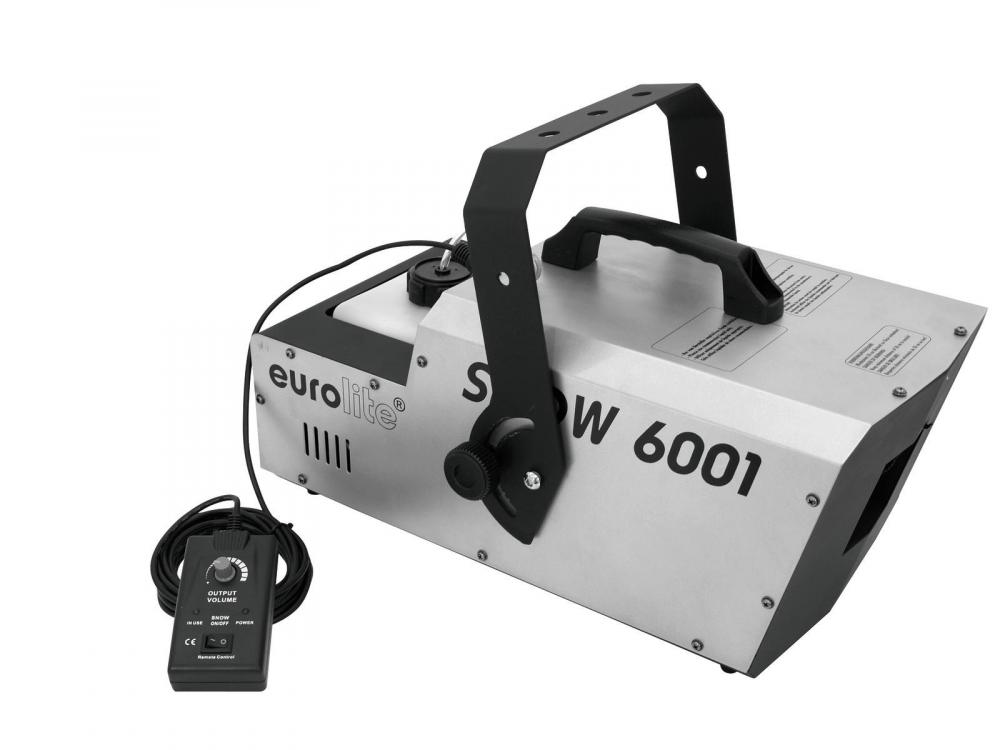

Mid-sized DMX controllable machine with cable remote control

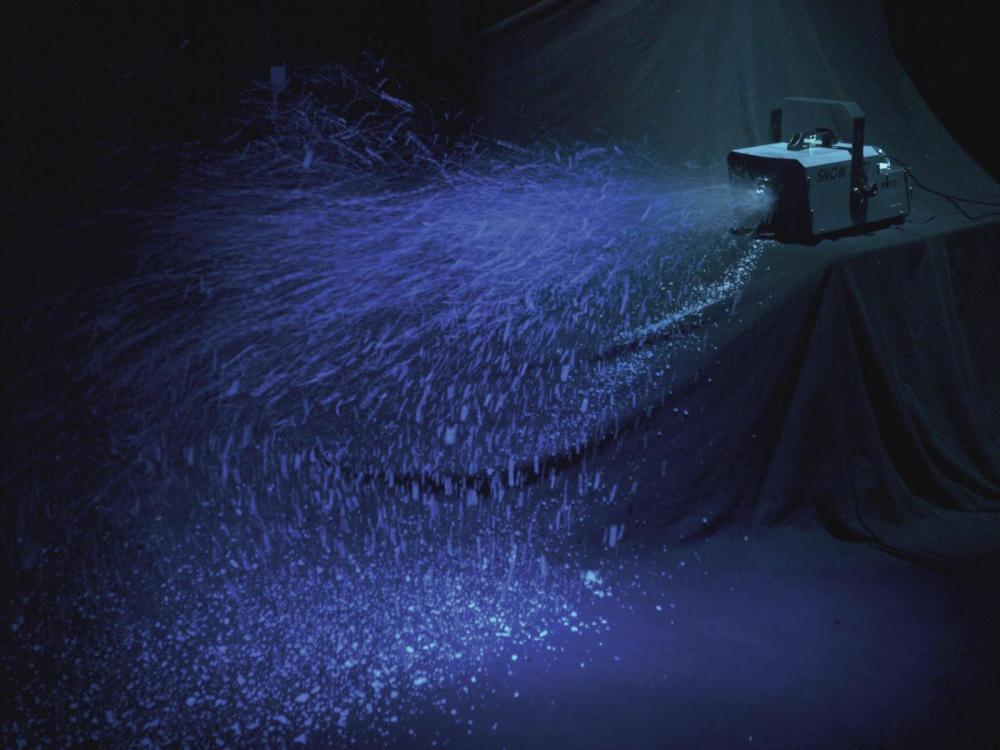

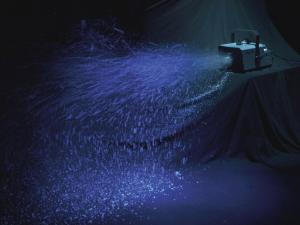

-A lot of snowflakes are thrown into the room up to a distance of 2 m
-Constant snowing creates a foam/snow build up, which dissolves gradually
-The dissolution of the "blanket of snow" happens nearly without residues
-Snow output is controlled via the control unit at the remote control
-Ideal for a "winter" subject in discos, theatres etc.
-With 2.5 l tank for permanent operation
-Suitable snowfluid: EUROLITE Snowfluid
-DMX512 control via regular DMX controller (occupies 1 channel)
-With bracket for suspended mounting
-High-quality structure
-High quality at a low price
-Case color: Silver
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: Wired remote control (provided); DMX
Connectors
DMX connector types
3pin
Control
control channels, min
1 ch
control channels, max
1 ch
*# category-effect
tank size
5.00 l
Electrical
power consumption watt, max
1350.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
power input connector
IEC-60320 C13/C14
Mechanical
weight
11.00 kg
width
330.00 mm
height
355.00 mm
length
510.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00053450.pdf
