| Info | |
|---|---|
| order code |
51707007
|
| product link | |
| EAN |
4026397625196
|
| Product Name |

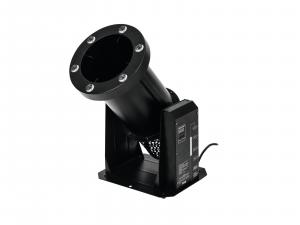

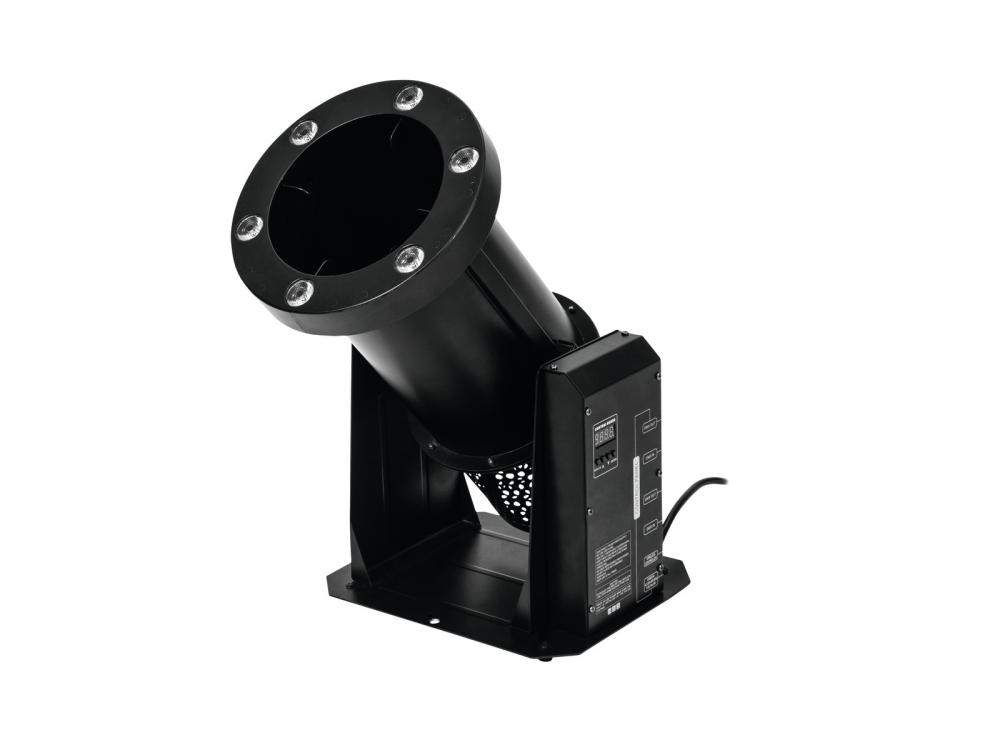

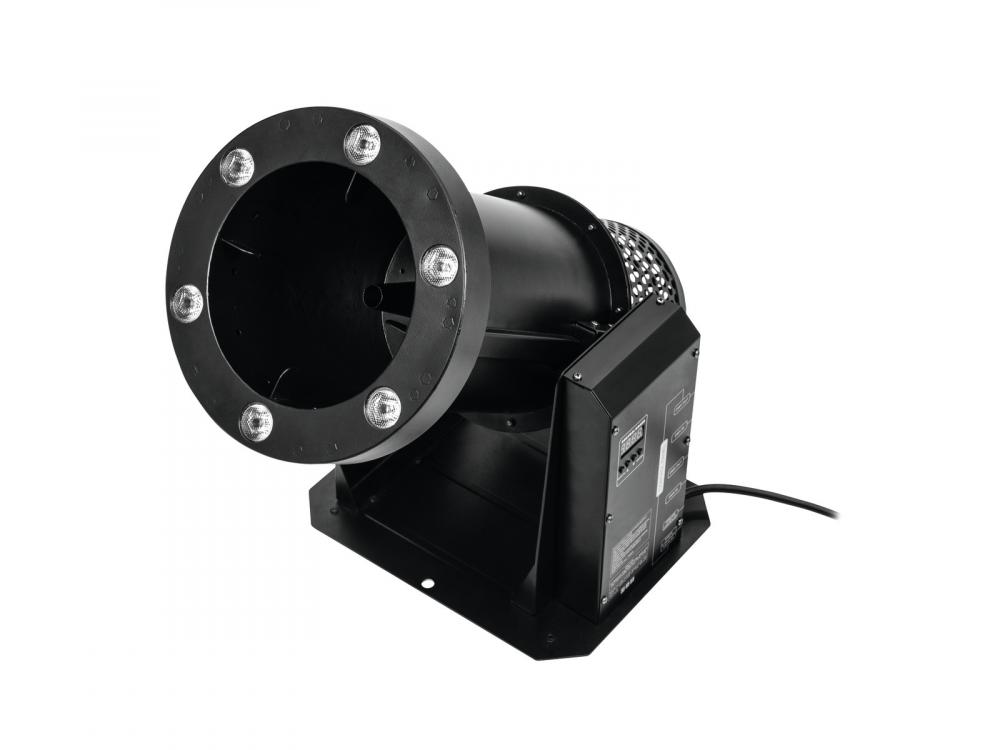

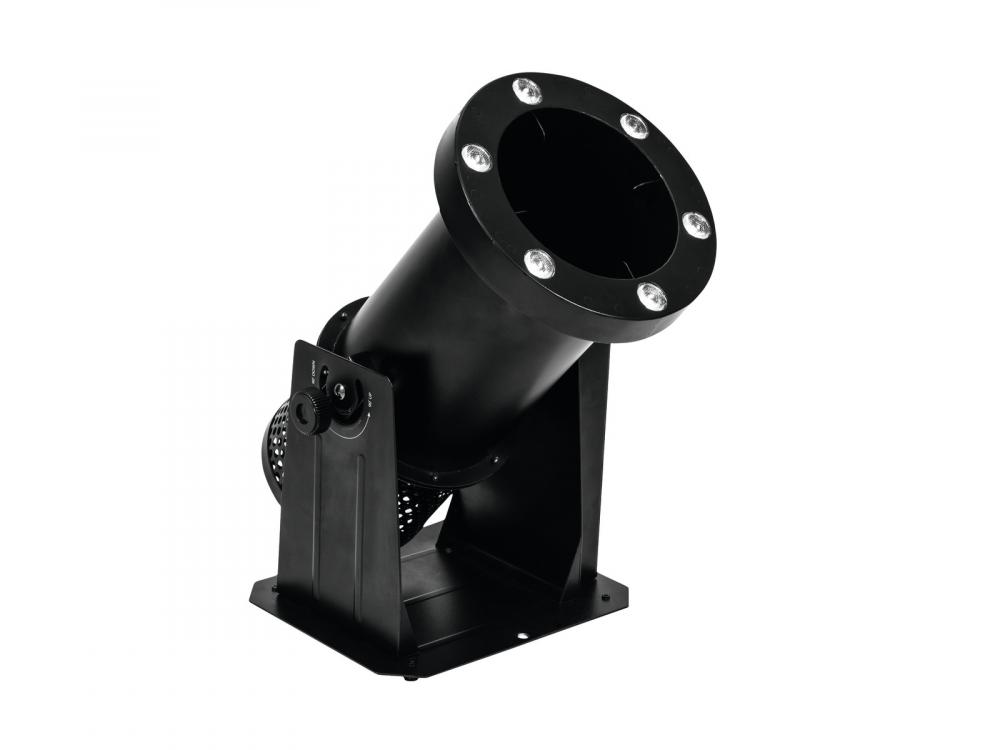

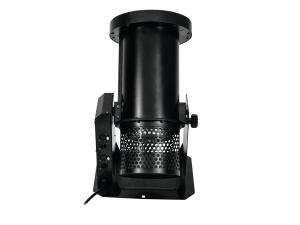

EUROLITE LED Confetti Storm
|
| technical overview |
Power supply: 230 V AC, 50 Hz Output height (90°): up to 5 meters Output distance (45°): up to 5.5 meters LED type: 6 x 8 W RGBA (4in1) Dimensions (L x W x H): 300 x 240 x 500 mm Weight: 8,5 kg Power consumption: 1300 W Height: 50 cm Width: 24 cm Power connection: Fix Power supply cord with safety plug (M) Depth: 30 cm LED: 6 x high-power 8 W 4in1 QCL RGBA (homogenous color mix) DMX channels: 9 Power supply: 230 V AC, 50 Hz |
| main features |

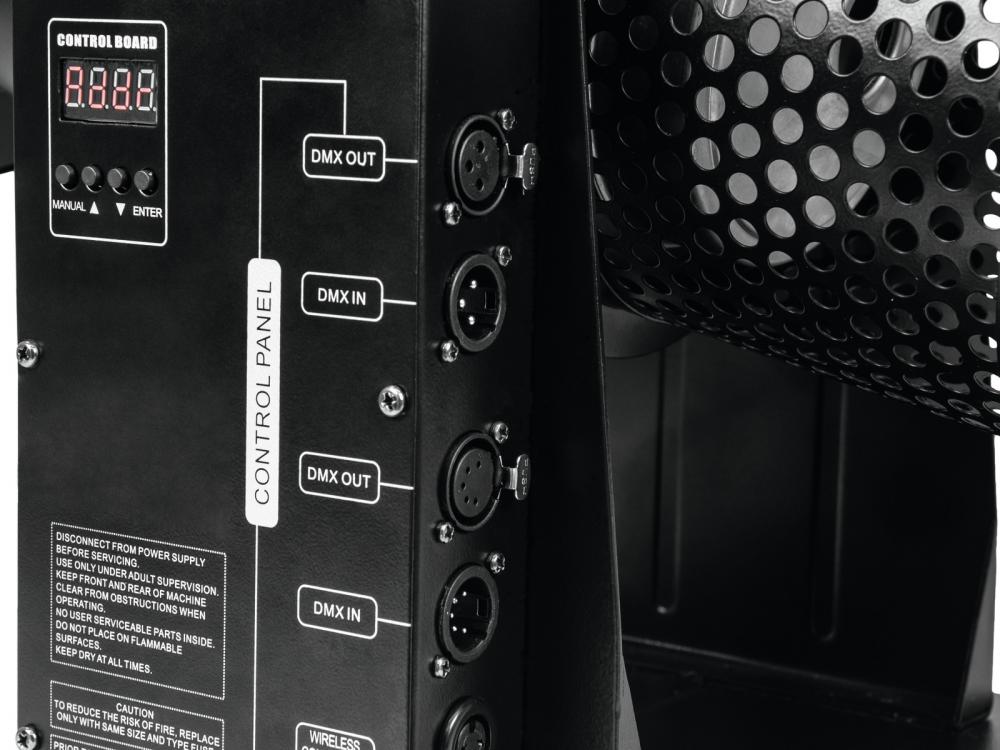

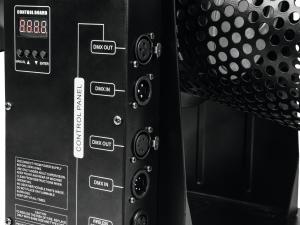

DMX confetti machine with LED illumination and wireless controller -Easy-to-use DMX confetti machine with wireless controller -Output nozzle with RGBA LED illumination for impressive effect presentations -Variable output angle -Output height (90°) up to 5 meters -Output distance (45°) up to 5.5 meters -Control via supplied wireless controller or integrated DMX512 interface -Matching confetti with metallic colors available as accessory -6 high-power 8 W LEDs for rich RGBA colors -LED color, color change, brightness and strobe effect selectable -Control panel with LED display and four operating buttons -Rugged metal housing for truss installation -Case color: Black -Use: Machine -Power connection: Fix Power supply cord with safety plug (M) -Control: Wireless remote control (provided); Stand-alone; DMX -LED: 6 x high-power 8 W 4in1 QCL RGBA (homogenous color mix) |
| Control | |
| control channels, min |
9 ch
|
| control channels, max |
9 ch
|
| Electrical | |
| power consumption watt, max |
8.00 W
|
| AC Volts, min |
230 V
|
| AC Volts, max |
230 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
50 Hz
|
| power input connector |
fixed
|
| Mechanical | |
| weight |
8.50 kg
|
| width |
240.00 mm
|
| height |
500.00 mm
|
| length |
300.00 mm
|
| Optical | |
| Number of light sources |
6 pcs
|
| wattage per light source |
8.00 W
|
| multichip LED |
yes
|
| RED light source |
yes
|
| GREEN light source |
yes
|
| BLUE light source |
yes
|
