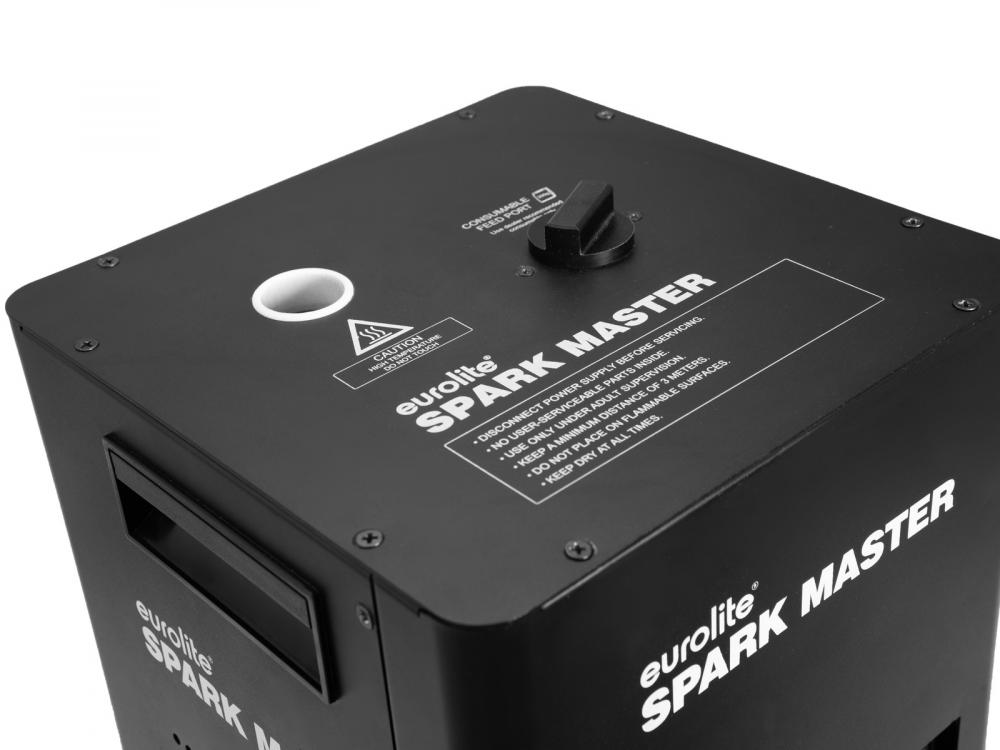

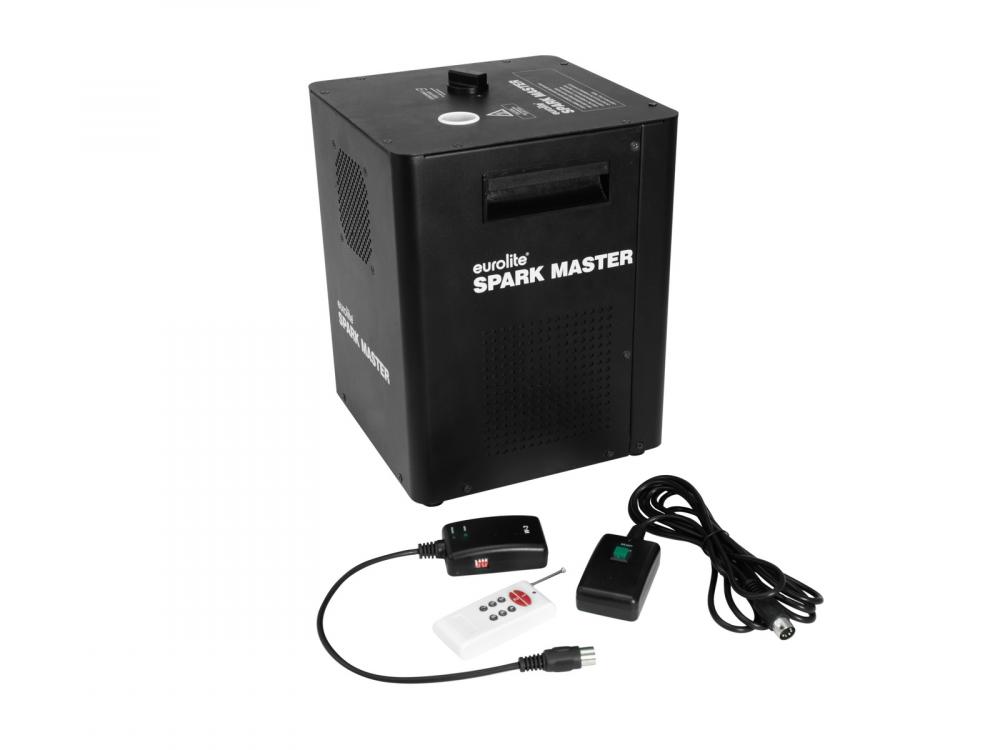

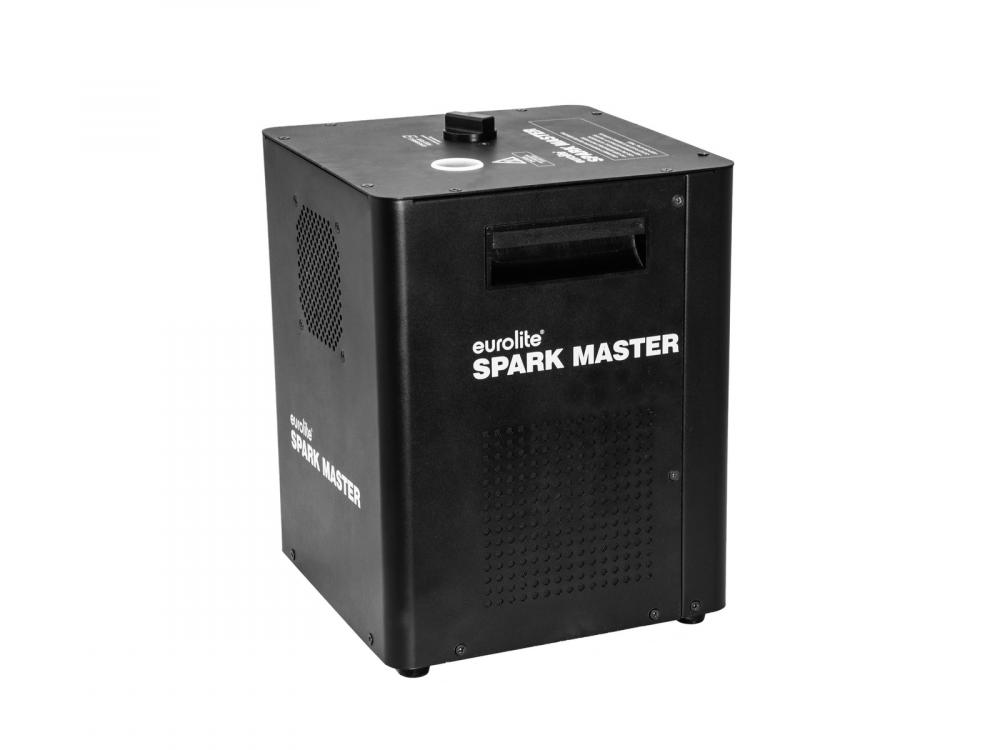

EUROLITE Spark Master

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE Spark Master

Info
order code
51707800
product link
EAN
4026397647143
Product Name
EUROLITE Spark Master
technical overview
Power supply: 230 V AC, 50 Hz
Output height: 1-5 m
Warm-up time: 5 min
DMX channels: 2
DMX connection: 3-pin XLR
Dimensions (L x W x H): 250 x 245 x 325 mm
Color: Black
Weight: 10,95 kg
Power consumption: 760 W
Cooling fan: Yes
IP classification: IP20
Width: 24,5 cm
DMX channels: 2
Depth: 25 cm
Height: 32,5 cm
Power supply: 230 V AC, 50 Hz
main features
DMX spark effect without pyrotechnics for indoor fireworks
-Impressive spark effect for stages and events
-Safe and easy operation via remote control or DMX
-Creates spark fountains up to 5 meters high using special granules
-Does not use dangerous materials like conventional pyrotechnics
-Cold sparks - not dangerous with combustibles
-Environmentally friendly without smoke and odor
-Not categorized as pyrotechnics, therefore no permit required for operation
-Low-price granules for refilling available as accessory
-Per filling 10-15 minutes effect
-Output height adjustable between 1-5 meters

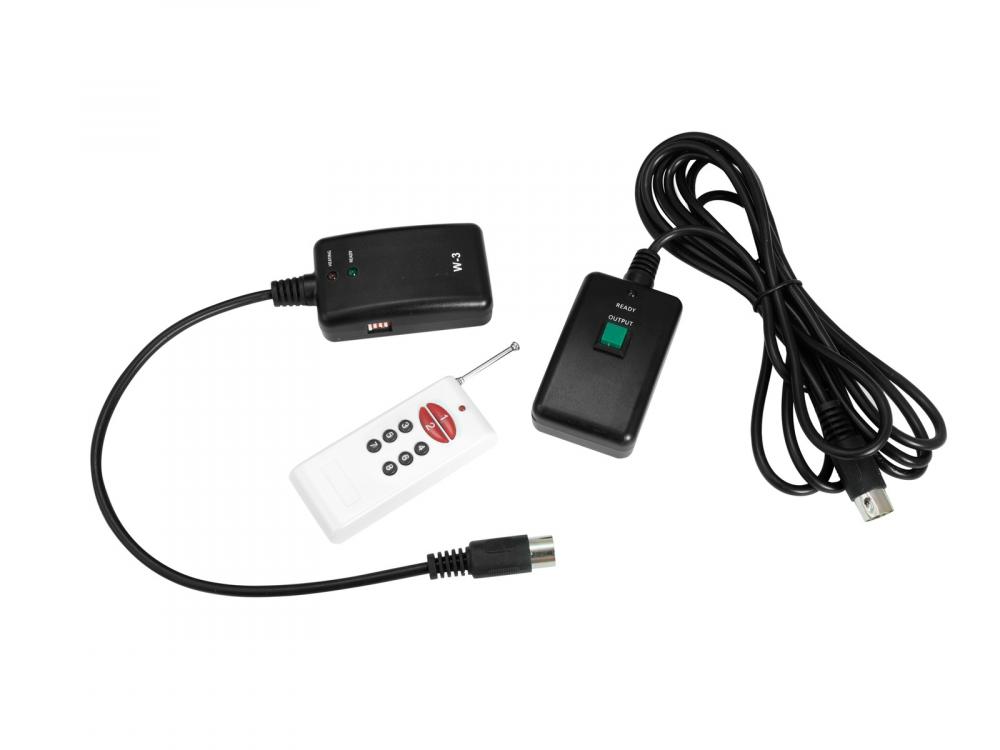

-Wireless remote control WRC-9 for simultaneous control of multiple devices
-Additional cable remote control included
-DMX interface with 3-pin connectors

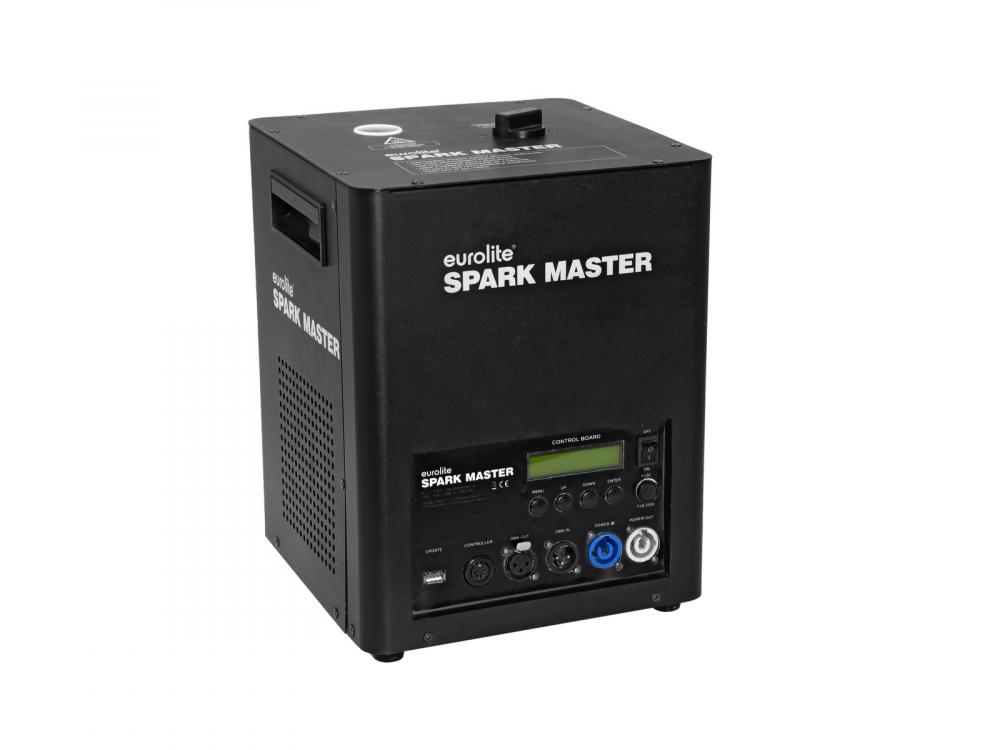

-Control panel with display and 4 operating buttons
-Temperature sensor and overcurrent protection
-Self-cleaning function
-Rugged metal housing
-Flightcase available as accessory
-Power connection and feed-through outpu via P-Con jack
-Smoke-output: ca. 5 m
-Control: Wireless remote control (provided); Wired remote control (provided); DMX
Connectors
DMX connector types
3pin
Control
control channels, min
2 ch
control channels, max
2 ch
Electrical
power consumption watt, max
760.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
IP rating
20
cooling
active
Mechanical
weight
10.95 kg
width
245.00 mm
height
325.00 mm
length
250.00 mm
color
black

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00119174.pdf
