Info | |
---|---|
order code |
51785963
|
product link | |
EAN |
4026397441673
|
Product Name |

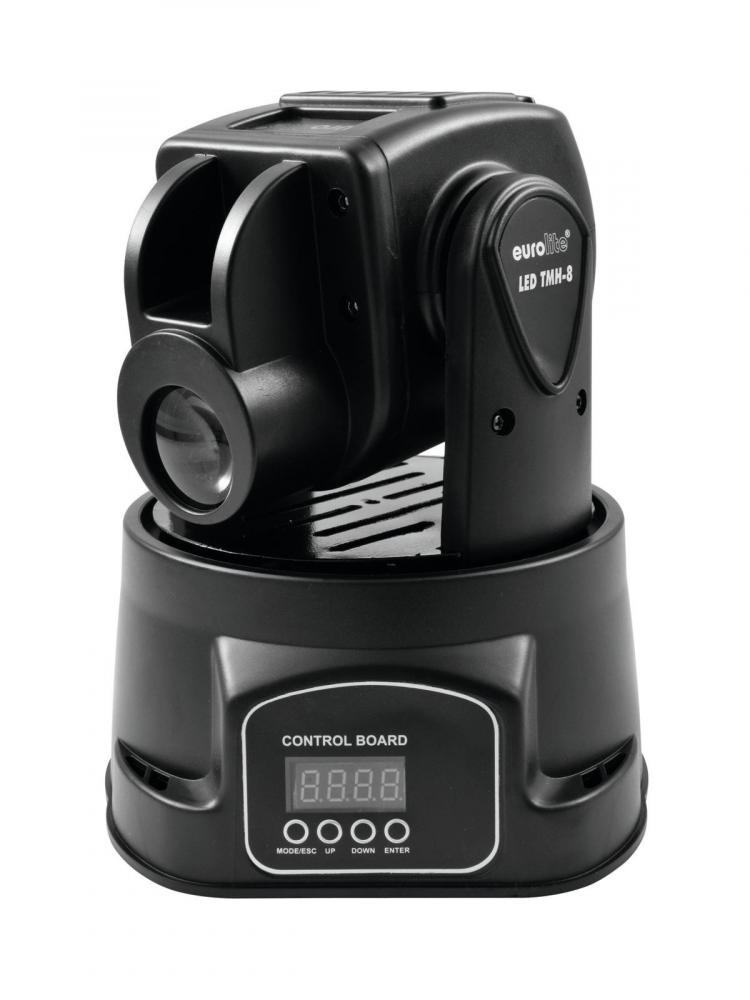

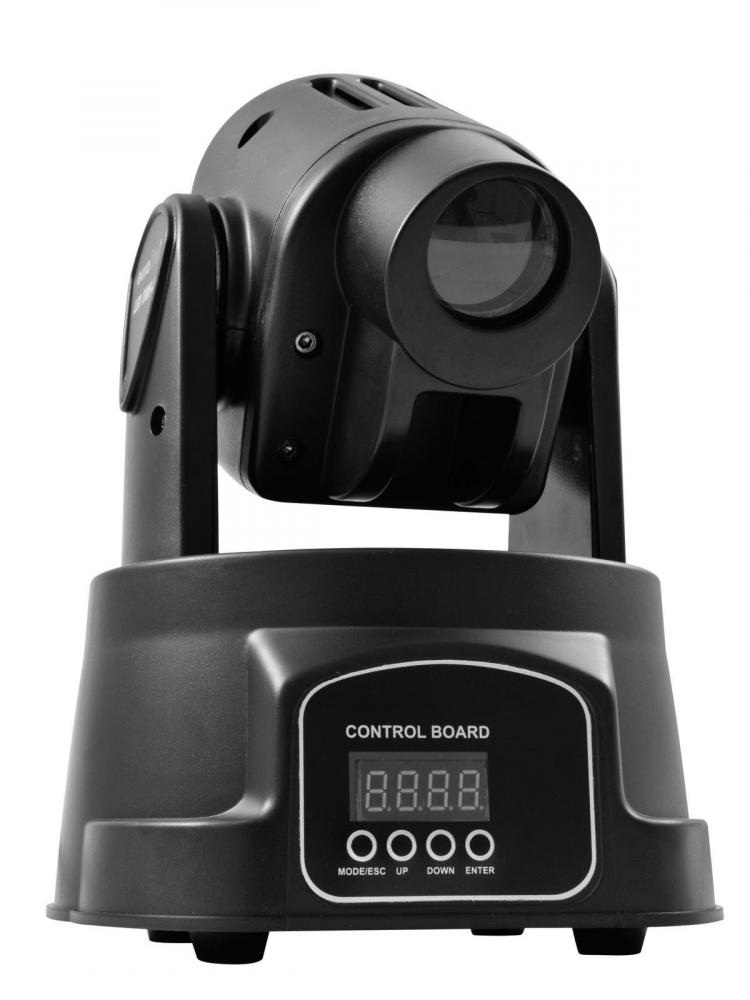

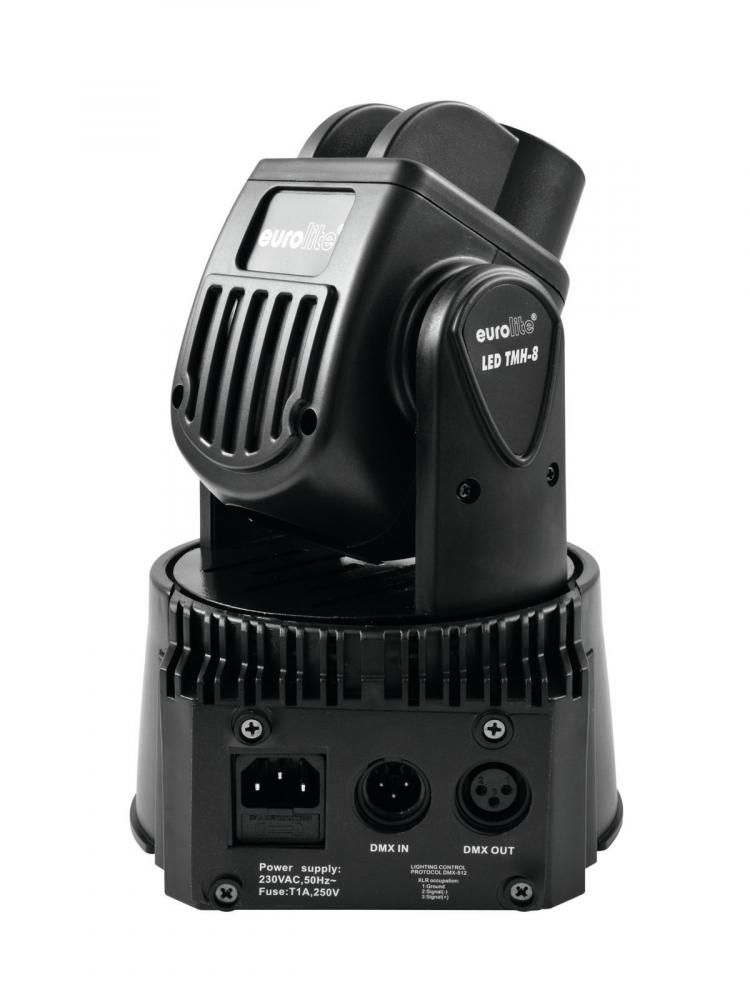

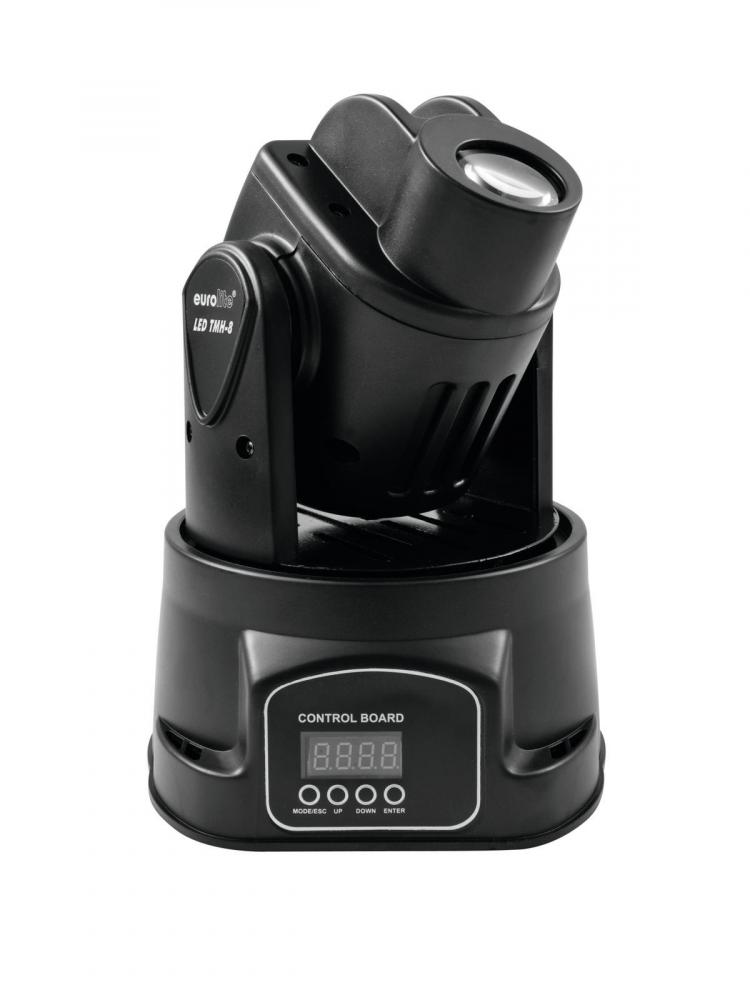

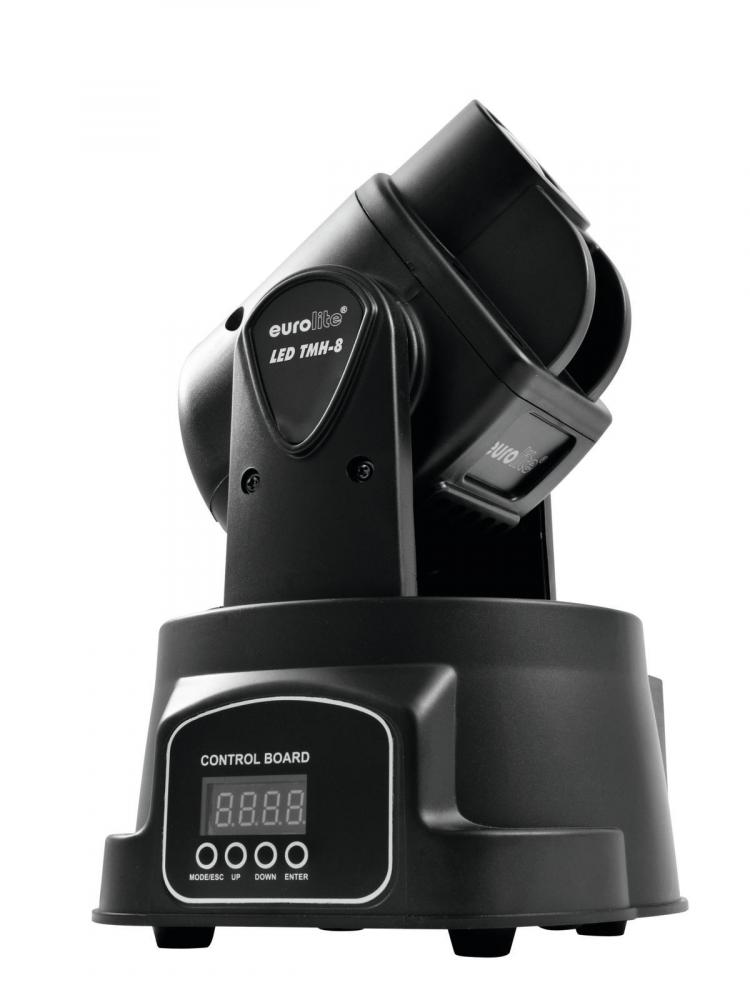

EUROLITE LED TMH-8 Moving Head Spot
|
technical overview |
Power supply: 230 V AC, 50 Hz DMX channels: 14/5 DMX connection: 3-pin XLR Flash-rate: 10 Hz Sound-control: via built-in microphone LED number: 1 Type of LED: 10 W RGBW (4in1) Beam angle: 13° Static gobo-wheel: 9 gobos and open Maximum PAN-movement: 540° Maximum TILT-movement: 230° Dimensions (L x W x H): 170 x 175 x 245 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 3 kg DMX channels: 5 Flash rate: 1 - 10 Hz Max. TILT movement: Exact positioning (16 bit resolution) 230° Positioning switchable to 180° and 90° Max. PAN movement: Exact positioning (16 bit resolution) 540° Positioning switchable to 360° and 180° Beam angle: 13° Lamp type: LED lamp Cooling fan: Yes IP classification: IP20 Height: 24,5 cm Depth: 17,5 cm Width: 17 cm Equipment: Gobos Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) LED: 1 x SMD 10 W 4in1 QCL RGBW (homogenous color mix) Power supply: 230 V AC, 50 Hz intern Power consumption: 35 W |
main features |
Powerful QCL Moving Head with a 10 W CREE quadcolor LED with RGBW colors -Equipped with a 10 W CREE quadcolor LED with RGBW colors -Compact lightweight -14 or 5 DMX channels selectable for numerous applications -Positioning within 540° PAN and 230° TILT -Stepless RGBW color mixture -Color-macro-function for an easy selection of possible color-combinations -Gobo-wheel with 9 static gobos plus open -With gobo-shake function -Rainbow-effect with adjustable speed -Programmable color-change speed and strobe effect -Strobe effect with 1-10 flashes per second -Exact positioning via 16 bit PAN/TILT movement resolution -PAN-angle switchable between 540°, 360° and 180° (in sound and auto mode) -TILT-angle switchable between 230°, 180° and 90° (in sound and auto mode) -DMX-controlled operation or stand-alone operation with Master/Slave function -8 motion macros can be called up via DMX controller -Sound-control via built-in microphone -Addressing via control panel with 4-digit LED display -DMX control via every standard DMX controller -Case color: Black -Effect: Gobo effect; Single Beam -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: Sound to light via microphone; Stand-alone; DMX -LED: 1 x SMD 10 W 4in1 QCL RGBW (homogenous color mix) |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
5 ch
|
control channels, max |
5 ch
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
35.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
cooling |
active
|
Mechanical | |
weight |
3.00 kg
|
width |
175.00 mm
|
height |
245.00 mm
|
length |
170.00 mm
|
pan range |
540 °
|
tilt range |
230 °
|
Optical | |
beam angle/zoom, min |
13.00 °
|
beam angle/zoom, max |
13.00 °
|
light source |
LED
|
optics/projection type |
Spotlight
|
Number of light sources |
1 pcs
|
shutter/strobe frequency, max |
10 Hz
|
gobowheels total |
1 pcs
|
number of fixed gobos |
9 pcs
|
