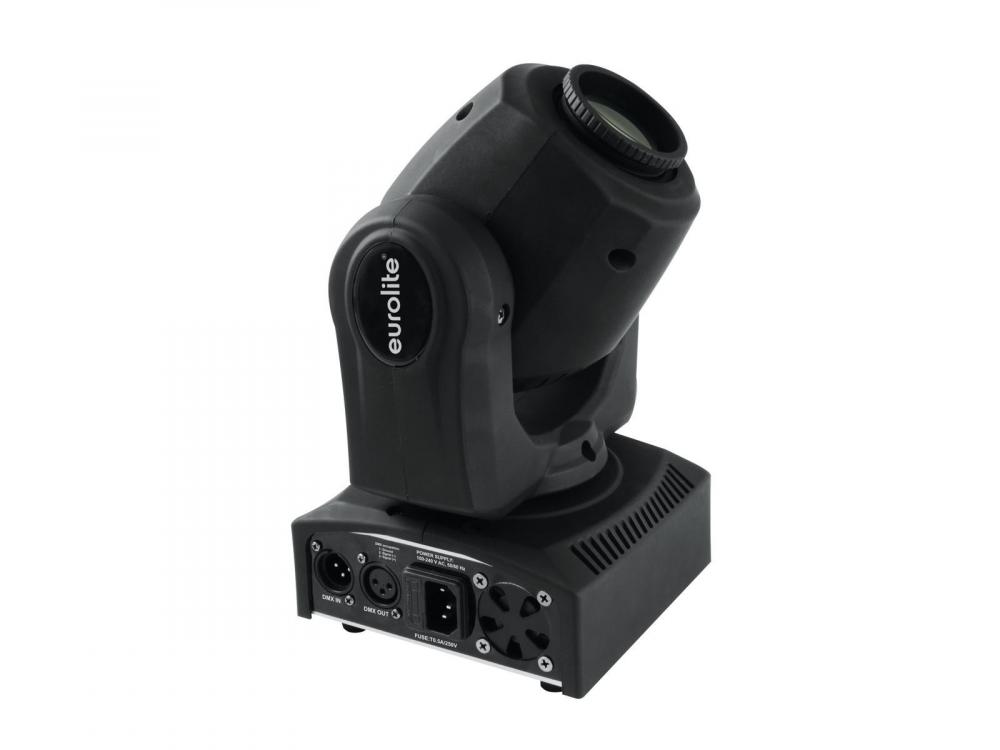

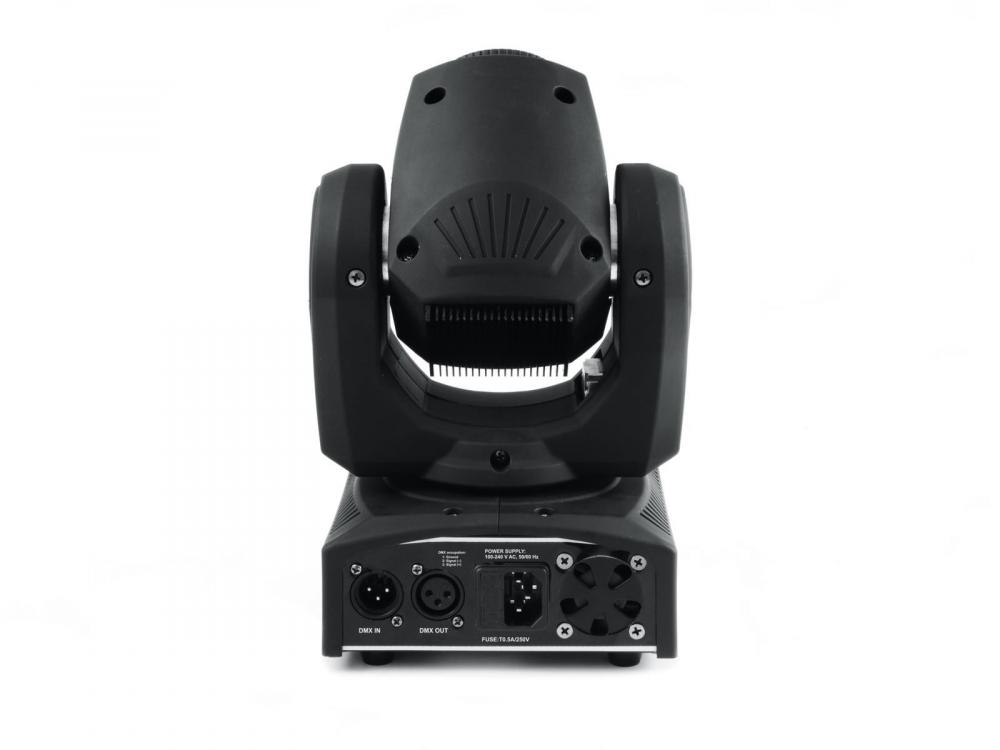

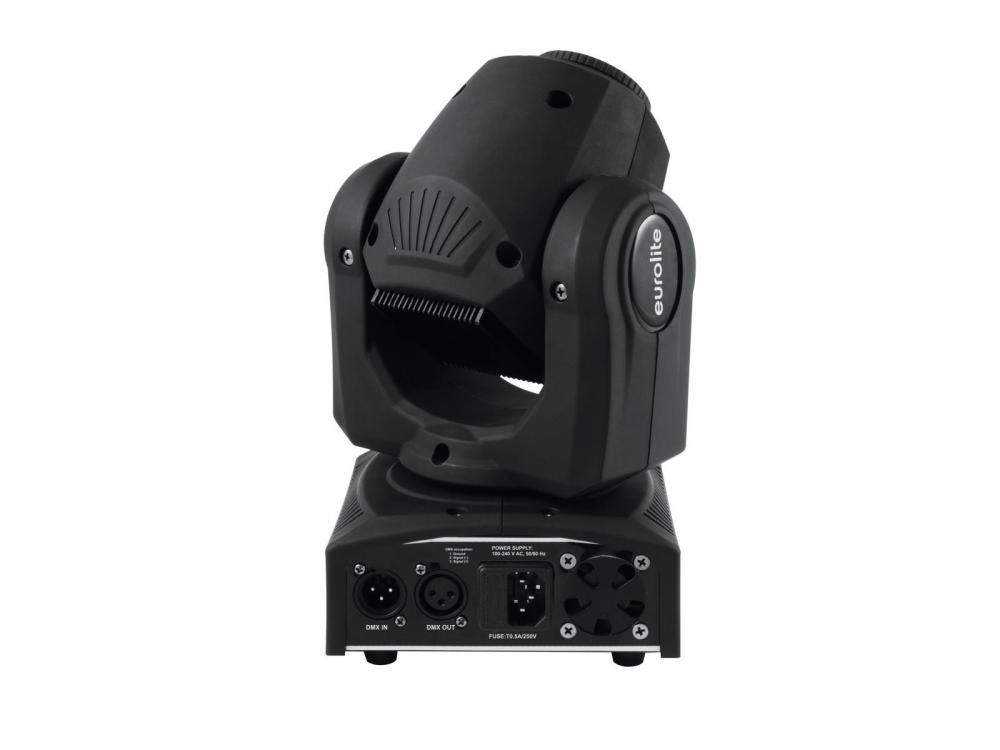

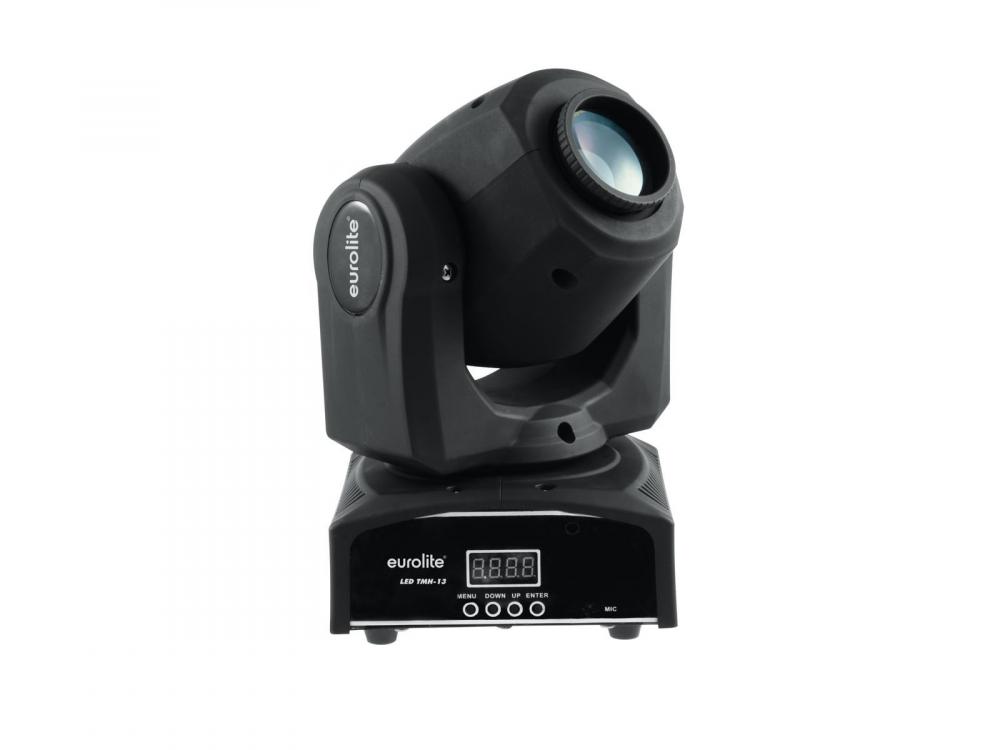

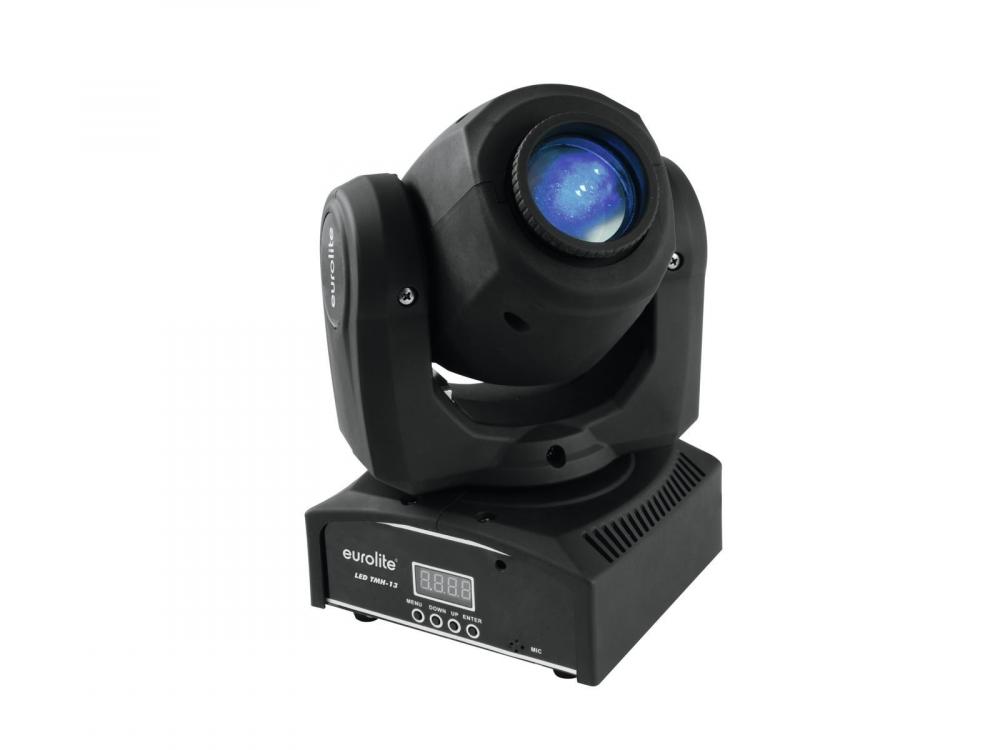

EUROLITE LED TMH-13 Moving Head Spot

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED TMH-13 Moving Head Spot

Info
order code
51785972
product link
EAN
4026397553604
Product Name
EUROLITE LED TMH-13 Moving Head Spot
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 9/11
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
Color-wheel: 7 colors and open
Static gobo wheel: 7 gobos and open
LED number: 1
LED type: 10 W, white
Beam angle: 13°
Maximum PAN-movement: 540°
Maximum TILT-movement: 200°
Dimensions (L x W x H): 160 x 158 x 280 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Weight: 2,7 kg
Lamp type: LED lamp
Cooling fan: Yes
IP classification: IP20
Power consumption: 30 W
Beam angle: 13°
Height: 28 cm
Depth: 15,8 cm
Width: 16 cm
Max. PAN movement: Exact positioning (16 bit resolution) 540°
Max. TILT movement: Exact positioning (16 bit resolution) 200°
Equipment: Gobos static
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels: 9; 11
LED: 1 x high-power 10 W Color wheel
Power supply: 110-240 V AC, 50/60 Hz
main features
Handy-size spotlight with 10 W LED, gobos and color wheel
-Compact lightweight
-Equipped with a 10 W CREE LED
-9 or 11 DMX channels selectable
-7 brilliant, dichroic colors plus white
-Rainbow effect with adjustable speed
-Gobo wheel with 7 static gobos plus open
-Electronic dimmer
-Strobe effect with adjustable speed
-Internal programs
-Sound-control via built-in microphone; sensitivity adjustable
-Fan-cooled
-Manual focus
-Exact positioning via 16 bit PAN/TILT movement resolution
-Positioning within 540° PAN and 200° TILT
-DMX-controlled operation or stand-alone operation with Master/Slave function
-Control board with 4-digit LED display for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
-Switch-mode power supply for operation between 100 and 240 volts
-DMX control via every standard DMX controller
-Case color: Black
-Effect: Gobo effect; Single Beam
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: Stand-alone; DMX
-LED: 1 x high-power 10 W Color wheel
Connectors
DMX connector types
3pin
Control
control channels, min
9 ch
control channels, max
11 ch
max Movement resolution
16 bit
Electrical
power consumption watt, max
10.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
cooling
active
Mechanical
weight
2.70 kg
width
160.00 mm
height
280.00 mm
length
158.00 mm
pan range
540 °
tilt range
200 °
Optical
beam angle/zoom, min
13.00 °
beam angle/zoom, max
13.00 °
light source
LED
Number of light sources
1 pcs
wattage per light source
10.00 W
optics/projection type
Spotlight
gobowheels total
1 pcs
number of fixed gobos
7 pcs
