Info | |
---|---|
order code |
51785992
|
product link | |
EAN |
4026397553147
|
Product Name |

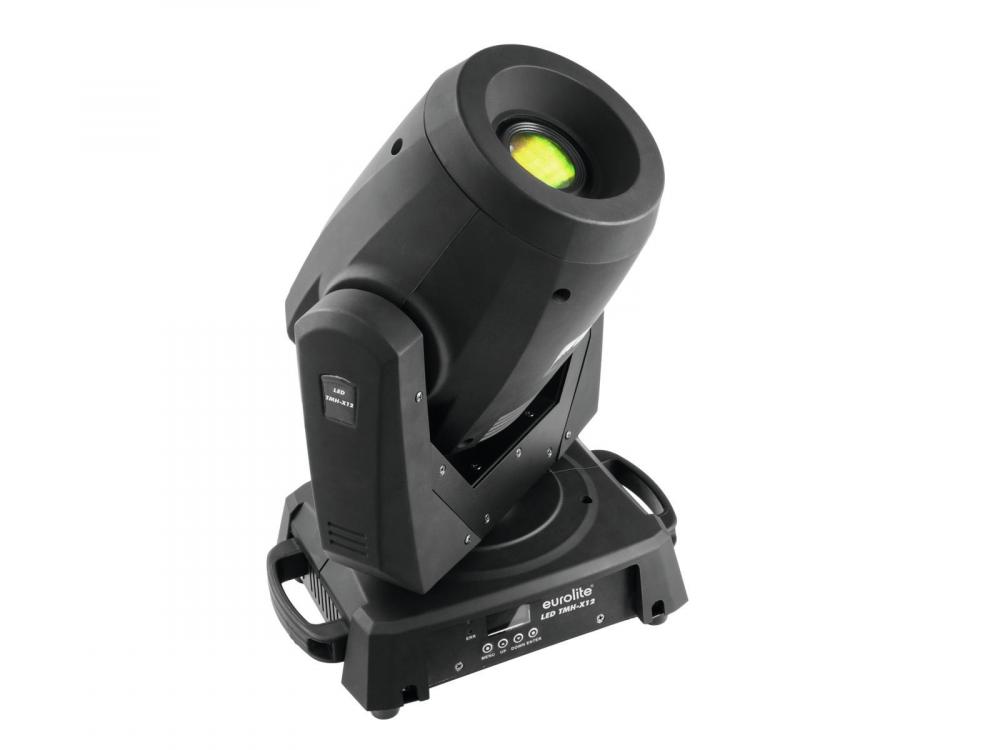

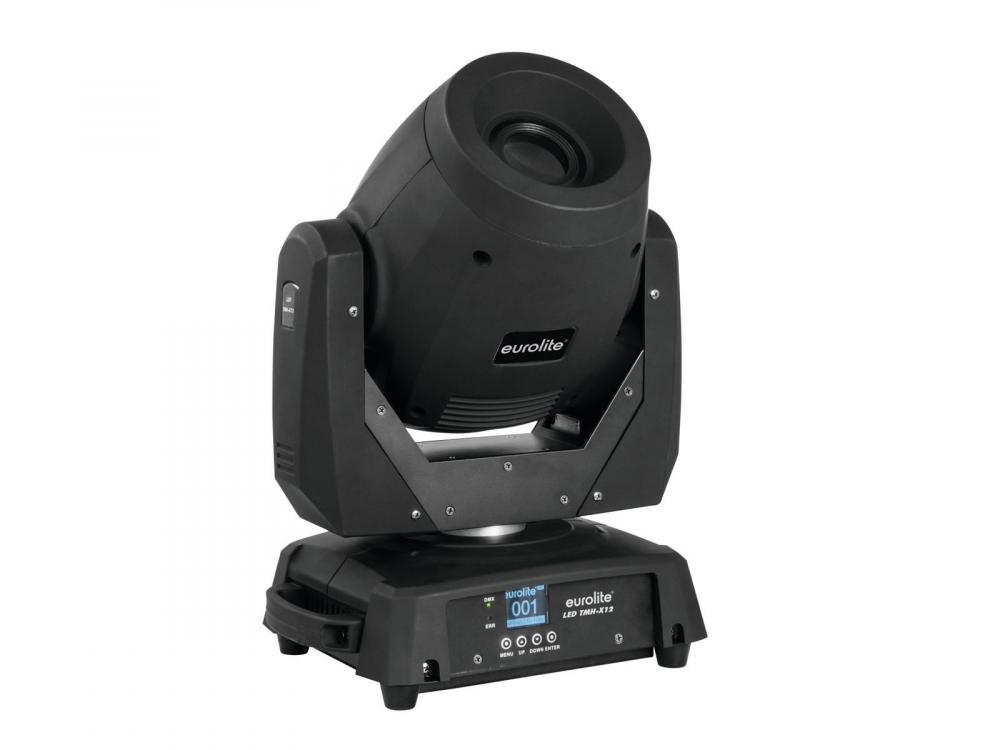

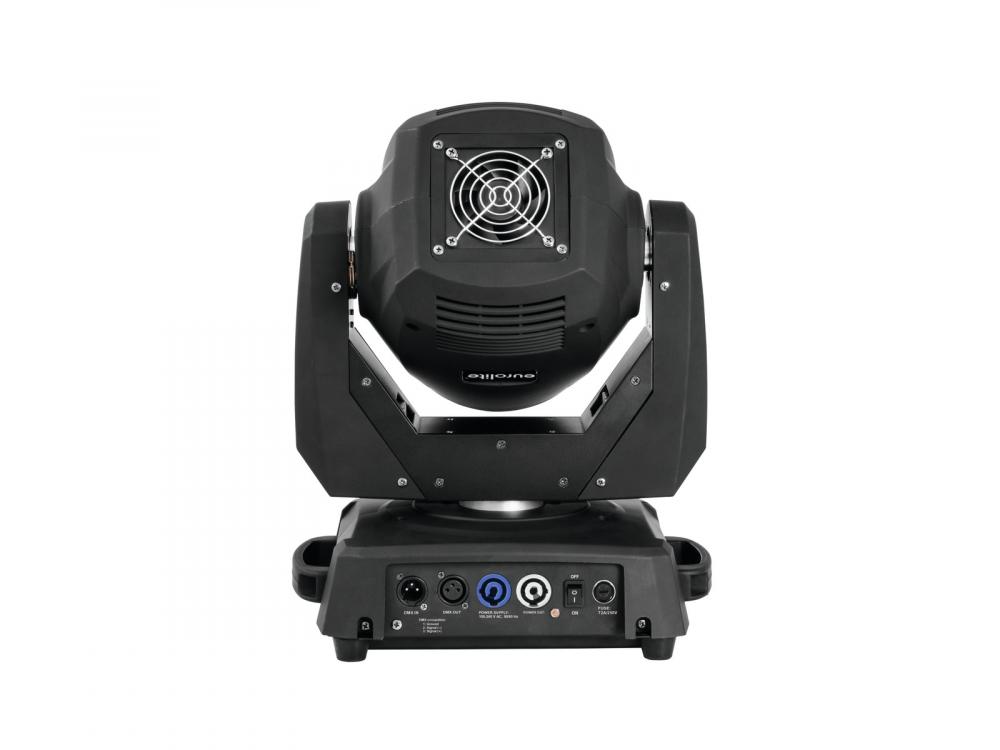

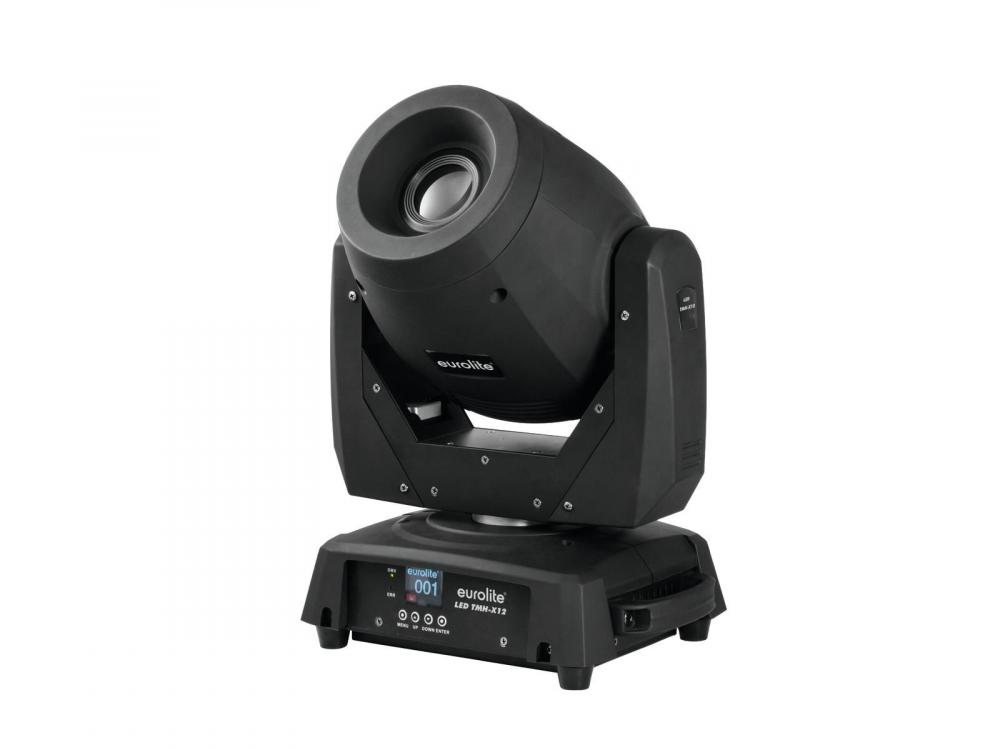

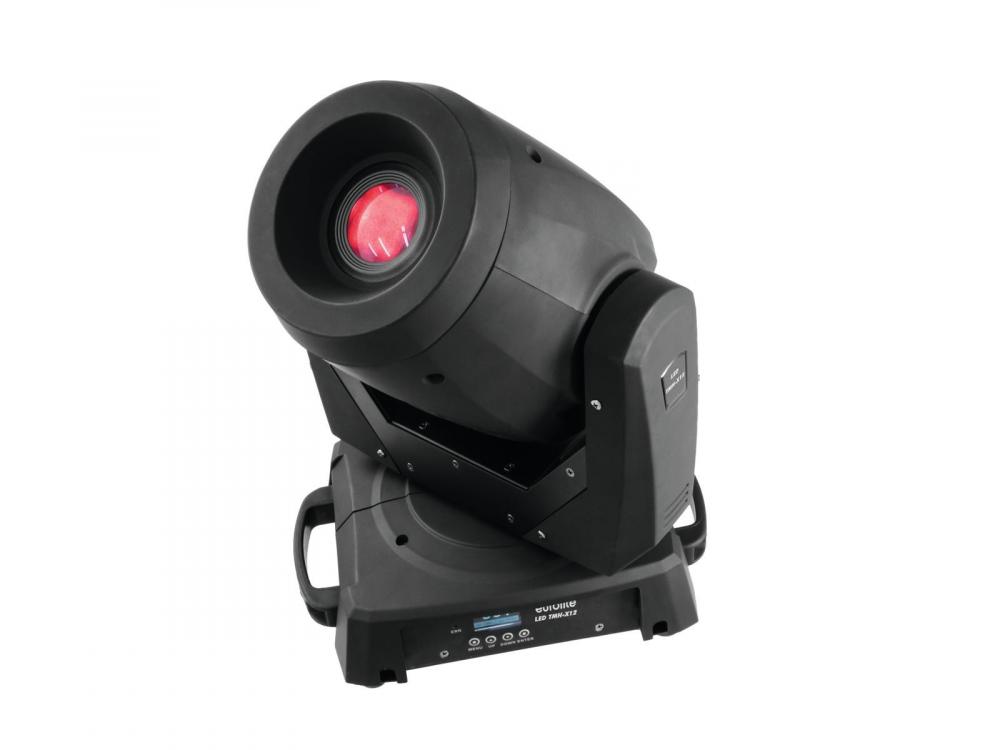

EUROLITE LED TMH-X12 Moving-Head Spot
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 13/15 DMX connection: 3-pin XLR Sound-control: via built-in microphone Flash rate: 18 Hz LED number: 1 LED type: COB 120 W, white Beam angle: 12° Color-wheel: 8 dichroic filters plus open Rotating gobo-wheel: 7 gobos and open Maximum PAN-movement: 540° Maximum TILT-movement: 270° Dimensions (L x W x H): 330 x 320 x 400 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 10 kg Lamp type: LED lamp Cooling fan: Yes IP classification: IP20 Power consumption: 170 W Beam angle: 12° Height: 40 cm Depth: 32 cm Width: 33 cm Max. PAN movement: Exact positioning (16 bit resolution) 540° Pan tilt feedback Max. TILT movement: Exact positioning (16 bit resolution) 270° Pan tilt feedback Equipment: Gobos rotating; Prisma 3-fold; Focus motor-driven Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 13; 15 LED: 1 x COB (chip-on-board) 120 W Color wheel Power supply: 110-240 V AC, 50/60 Hz |
main features |
Bright spot with 120 W LED, rotating gobos, color wheel and prism -Equipped with a white 120 W COB LED -13 or 15 DMX channel mode selectable -DMX-controlled operation or stand-alone operation with Master/Slave function -Sound-controlled via built-in microphone -Internal programs -Color wheel with 8 dichroic color filters and white -Rainbow effect with adjustable speed -Gobo-wheel with 7 rotating gobos plus open -All gobos can be interchanged -Slot-in gobo system for exchanging gobos without tools -Gobo shake function -Rotating 3-facet prism -Exact positioning via 16 bit PAN/TILT movement resolution -Strobe effect with adjustable speed -Random strobe effect -Motorized focus -Electronic dimmer -Automatic position correction -Fan-cooled -Lightbeam with 12° radiation angle -Control board with graphic LC display and four operating buttons for adjusting the DMX starting address, PAN/TILT reverse -Switch-mode power supply for operation between 100 and 240 volts -P-Con power input and feed-through output to power up to 8 devices -DMX control via any standard DMX controller -Color rendering index (CRI) more than: 80 Ra -Case color: Black -Effect: Multi beam effect; Gobo effect -Projection: flicker-free -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: Stand-alone; DMX -LED: 1 x COB (chip-on-board) 120 W Color wheel |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
13 ch
|
control channels, max |
15 ch
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
120.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
cooling |
active
|
Mechanical | |
weight |
10.00 kg
|
width |
320.00 mm
|
height |
400.00 mm
|
length |
330.00 mm
|
pan range |
540 °
|
tilt range |
270 °
|
Optical | |
beam angle/zoom, min |
12.00 °
|
beam angle/zoom, max |
12.00 °
|
light source |
LED
|
optics/projection type |
Spotlight
|
Number of light sources |
1 pcs
|
wattage per light source |
120.00 W
|
shutter/strobe frequency, max |
18 Hz
|
fixed/virtual colorwheels |
1 pcs
|
rotating gobowheels |
1 pcs
|
number of rotating gobos |
7 pcs
|
prism |
yes
|
