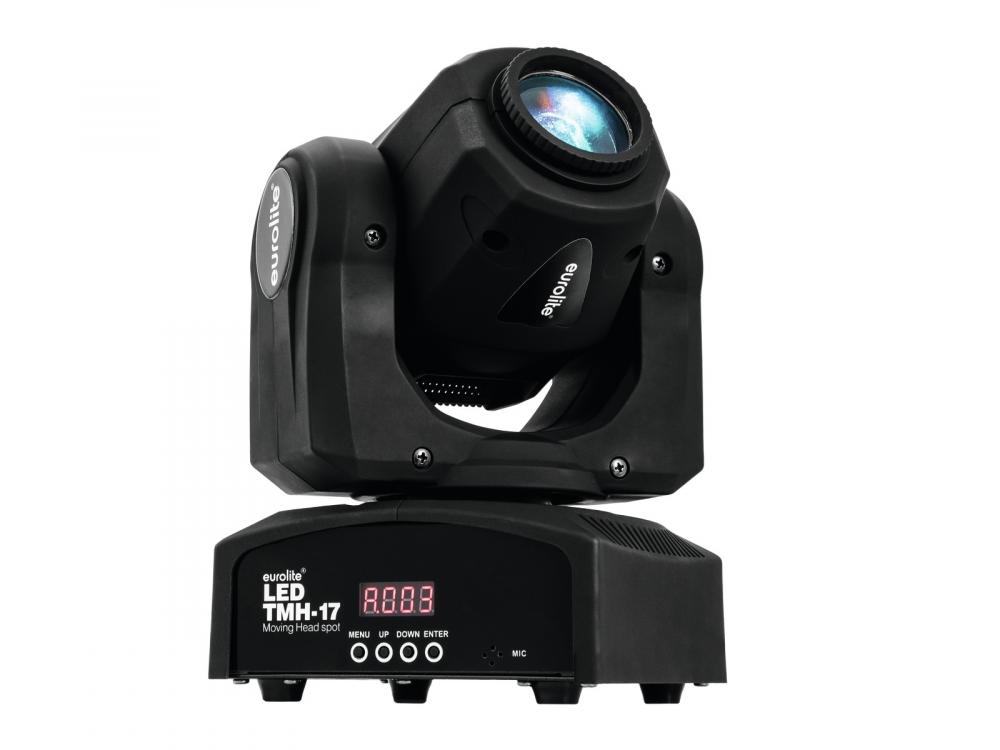

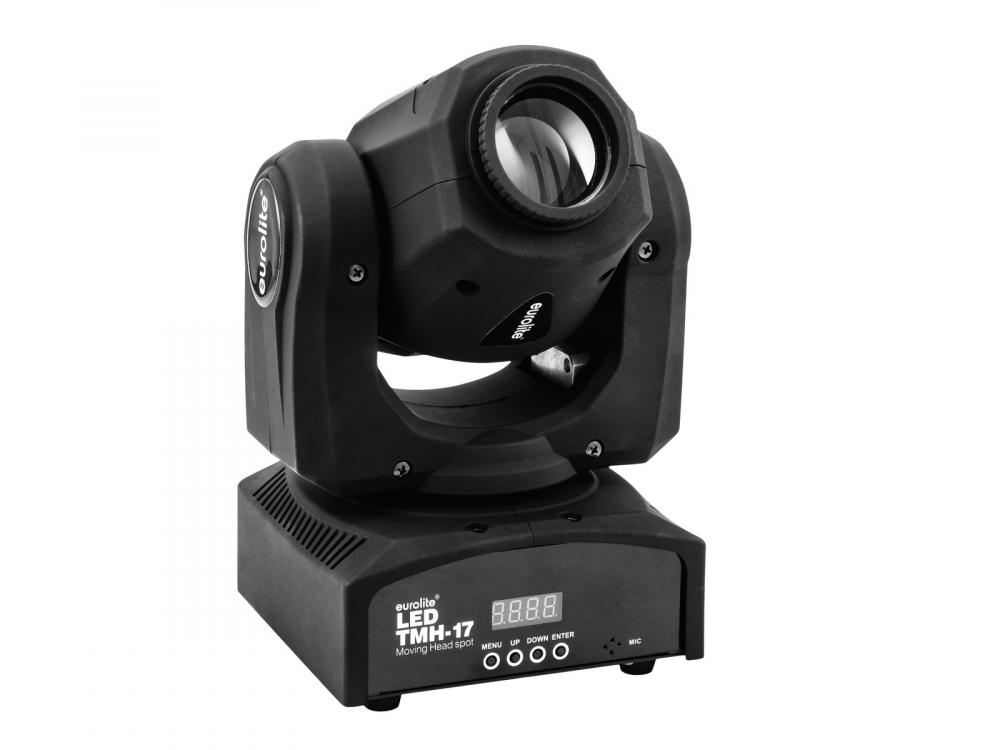

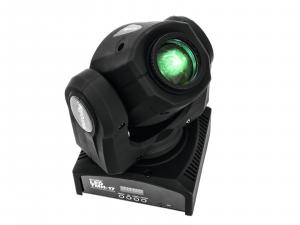

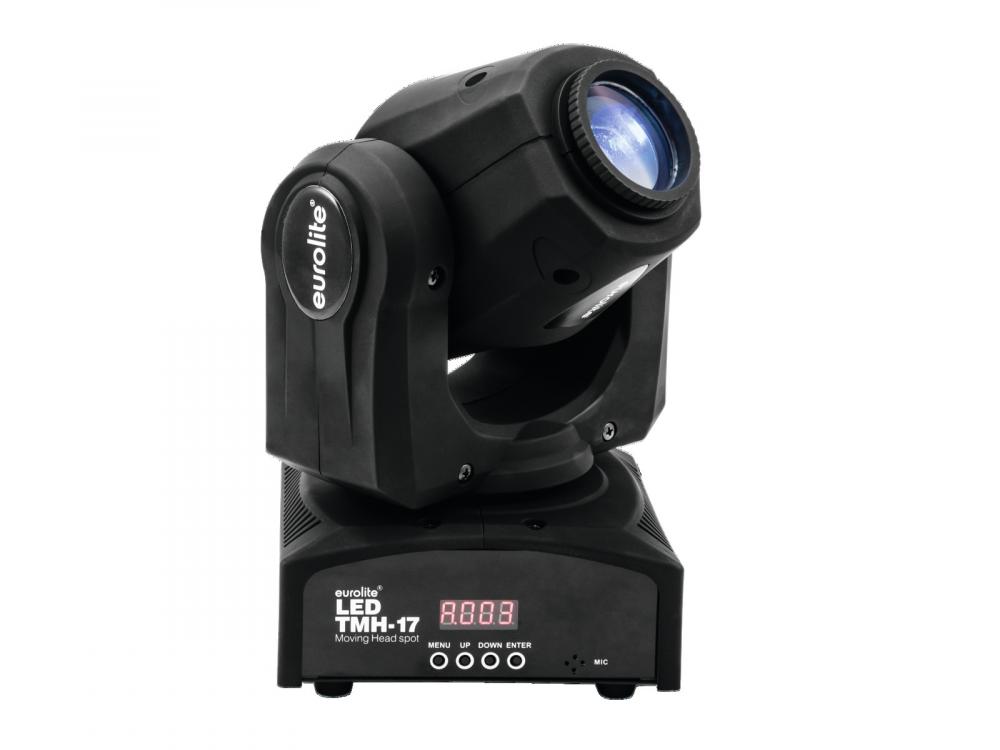

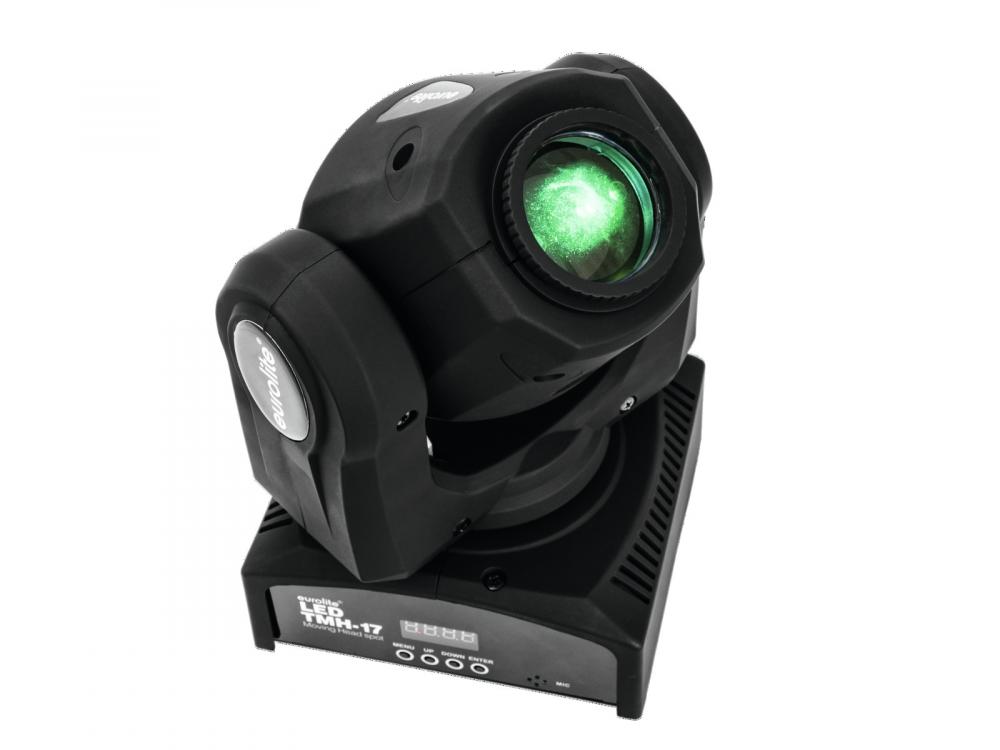

EUROLITE LED TMH-17 Moving Head Spot
EUROLITE
Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED TMH-17 Moving Head Spot
| Info | |
|---|---|
| order code |
51786065
|
| product link | |
| EAN |
4026397603125
|
| Product Name |
EUROLITE LED TMH-17 Moving Head Spot
|
| technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 9/11 DMX connection: 3-pin XLR Sound-control: via built-in microphone Color-wheel: 7 colors and open Static gobo wheel: 7 gobos and open LED number: 1 LED type: 30 W, white Beam angle: 12° Maximum PAN-movement: 540° Maximum TILT-movement: 200° Dimensions (L x W x H): 145 x 170 x 240 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 2,65 kg Lamp type: LED lamp Cooling fan: Yes IP classification: IP20 Power consumption: 50 W Beam angle: 12° Height: 24 cm Depth: 14,5 cm Width: 17 cm Max. PAN movement: Exact positioning (16 bit resolution) 540° Max. TILT movement: Exact positioning (16 bit resolution) 200° Equipment: Gobos static Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) DMX channels: 9; 11 LED: 1 x COB (chip-on-board) 30 W Color wheel Power supply: 110-240 V AC, 50/60 Hz |
| main features |
Handy-size spotlight with 30 W LED, gobos and color wheel -Compact lightweight -Equipped with a 30 W COB LED -9 or 11 DMX channels selectable -7 brilliant, dichroic colors plus white -Rainbow effect with adjustable speed -Gobo wheel with 7 static gobos plus open -Electronic dimmer -Strobe effect with adjustable speed -Internal programs -Sound-control via built-in microphone; sensitivity adjustable -Manual focus -Exact positioning via 16 bit PAN/TILT movement resolution -Positioning within 540° PAN and 200° TILT -DMX-controlled operation or stand-alone operation with Master/Slave function -Control board with 4-digit LED display for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset -Switch-mode power supply for operation between 100 and 240 volts -DMX control via every standard DMX controller -Case color: Black -Effect: Gobo effect; Single Beam -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: Stand-alone; DMX -LED: 1 x COB (chip-on-board) 30 W Color wheel |

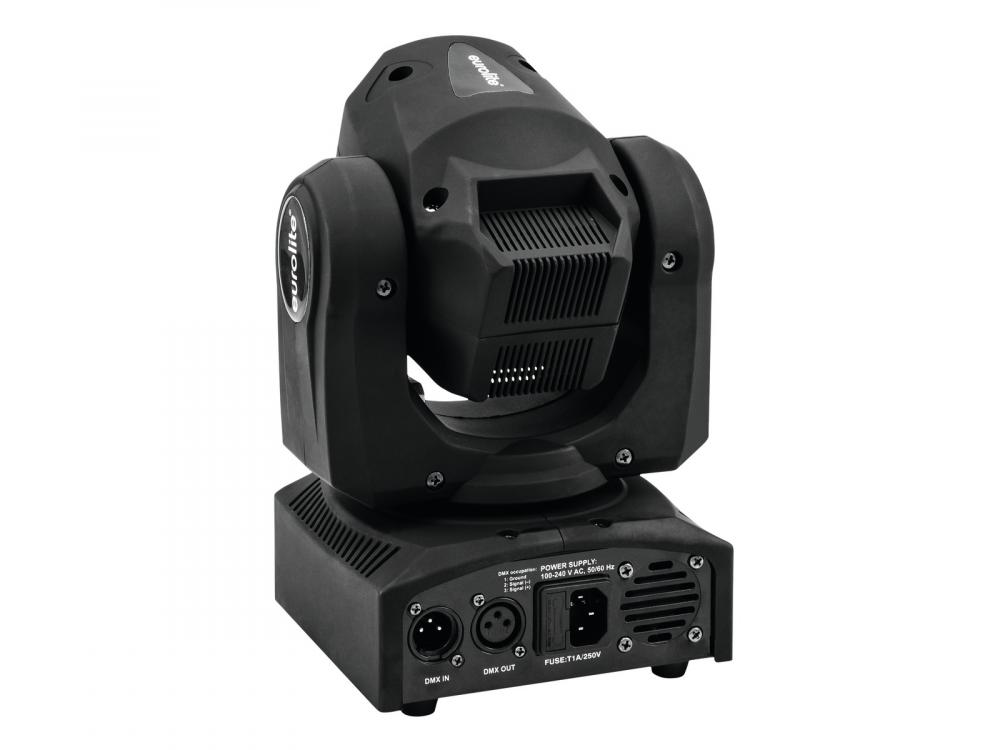

| Connectors | |
| DMX connector types |
3pin
|
| Control | |
| control channels, min |
9 ch
|
| control channels, max |
11 ch
|
| max Movement resolution |
16 bit
|
| Electrical | |
| power consumption watt, max |
30.00 W
|
| AC Volts, min |
110 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
20
|
| power input connector |
IEC-60320 C13/C14
|
| cooling |
active
|
| Mechanical | |
| weight |
2.65 kg
|
| width |
170.00 mm
|
| height |
240.00 mm
|
| length |
145.00 mm
|
| pan range |
540 °
|
| tilt range |
200 °
|
| Optical | |
| beam angle/zoom, min |
12.00 °
|
| beam angle/zoom, max |
12.00 °
|
| light source |
LED
|
| Number of light sources |
1 pcs
|
| wattage per light source |
30.00 W
|
| optics/projection type |
Spotlight
|
| gobowheels total |
1 pcs
|
| number of fixed gobos |
7 pcs
|
add to list
Collect interesting products in a list and download tender specifications at once
| Videos |
|---|
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00111842.pdf |
