| Info | |
|---|---|
| order code |
51785908
|
| product link | |
| EAN |
4026397632910
|
| Product Name |

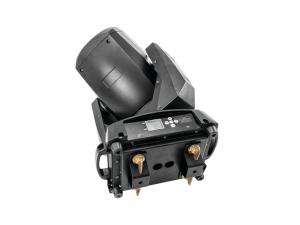

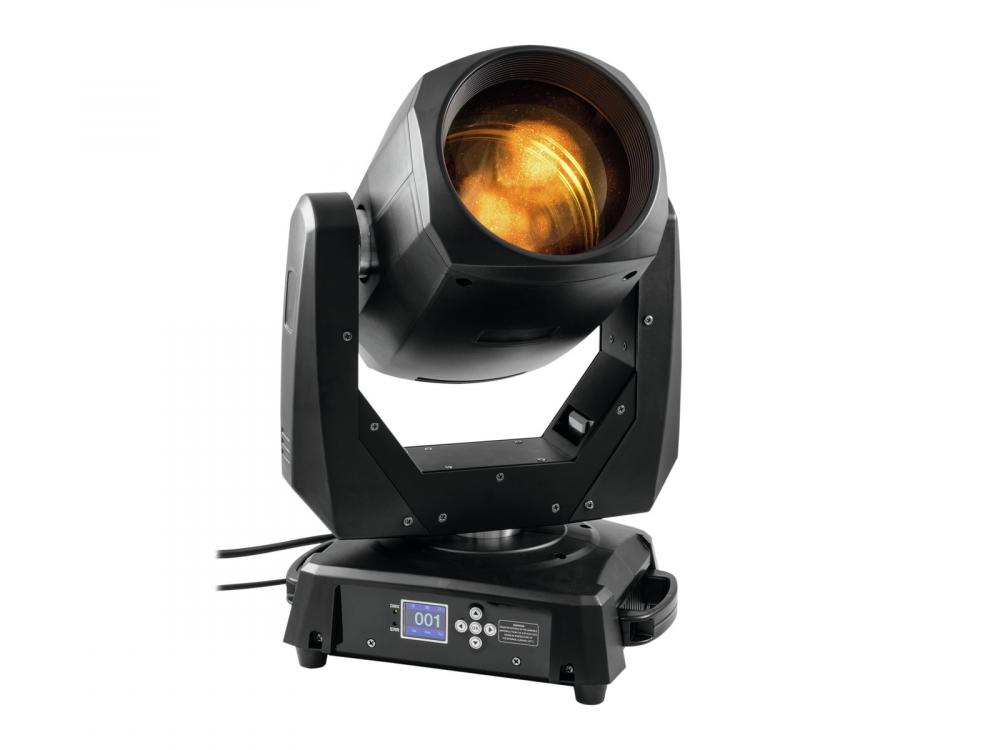

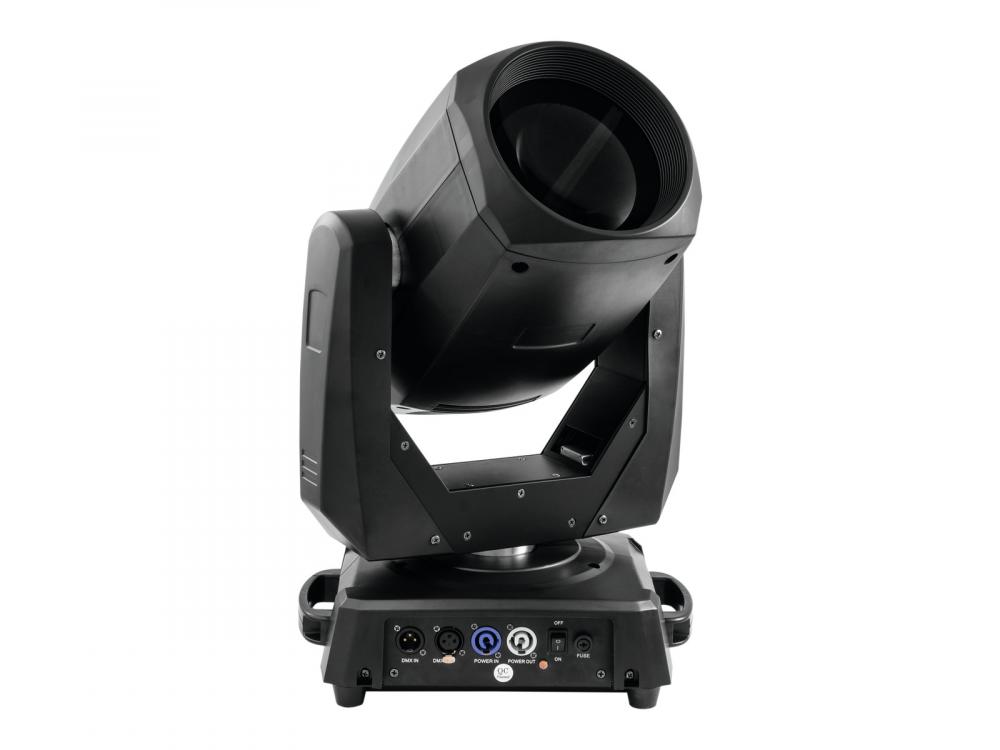

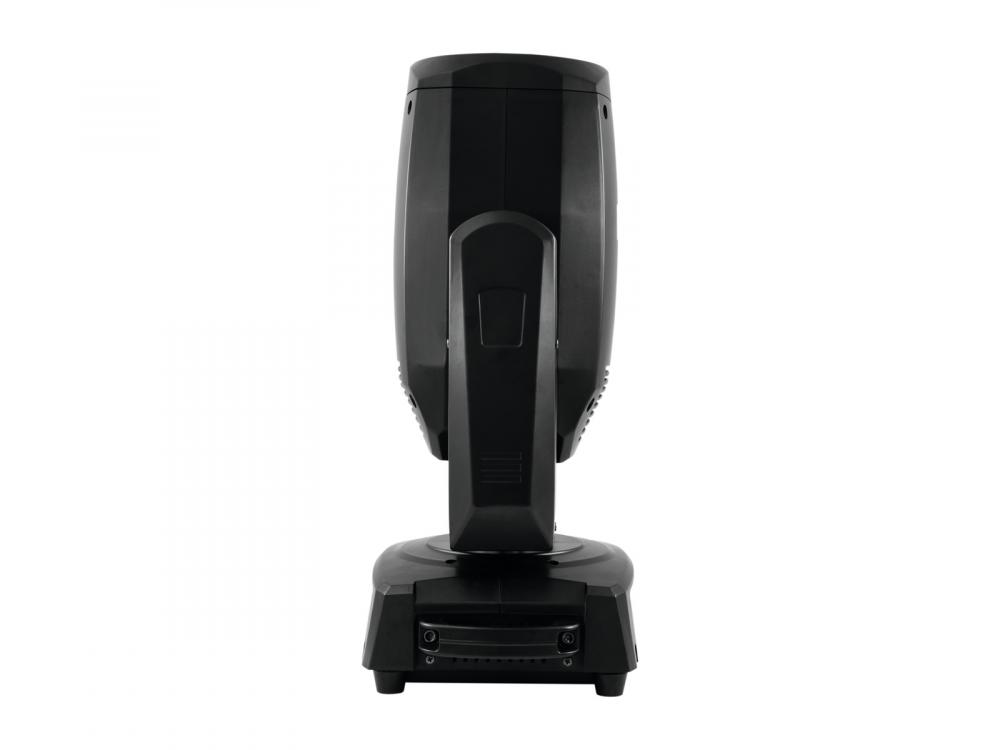

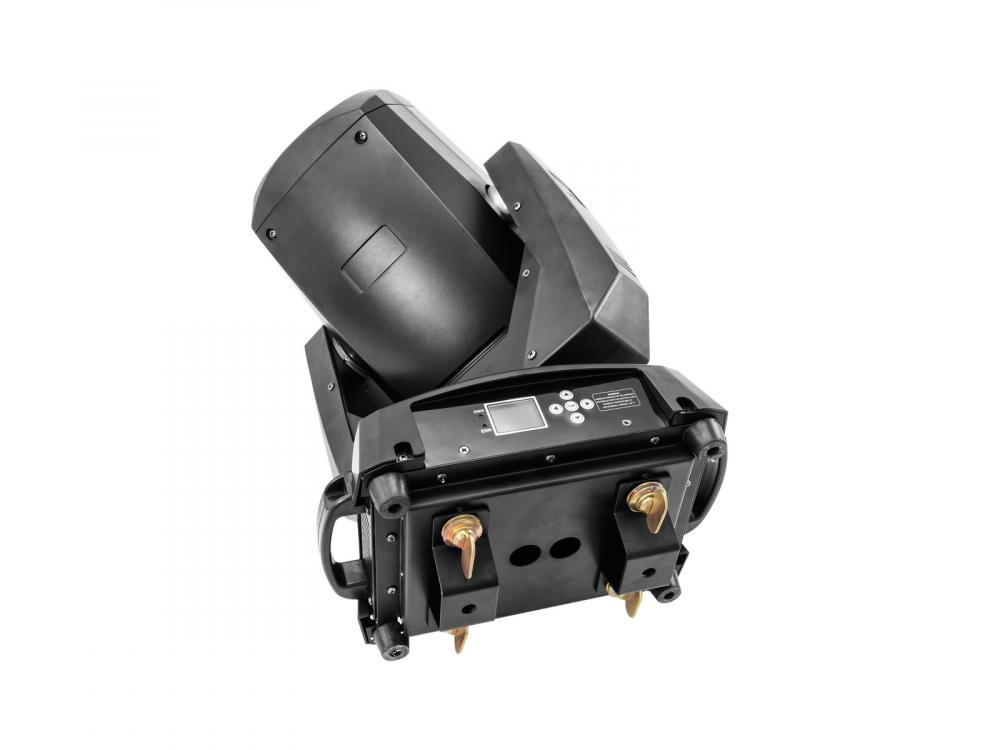

EUROLITE LED TMH-X18 Moving-Head Beam
|
| technical overview |
Power supply: 100-240 V AC, 50/60 Hz Power consumption: 210 W DMX control channels: 14 DMX512 connection: 3-pin XLR Sound-control: via built-in microphone Flash-rate: 18 Hz Color-wheel: 13 dichroic filters plus open Static gobo-wheel: 13 gobos and open Maximum PAN-movement: 540° Maximum TILT-movement: 270° LED type: 150 W, white, 6000 K Number of LEDs: 1 Beam angle: 1° Dimensions (L x W x H): 340 x 330 x 450 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 14,5 kg Lamp type: LED lamp Cooling fan: Yes IP classification: IP20 Laser class: Without laser Power consumption: 210 W Beam angle: 1° Width: 33 cm Max. PAN movement: Exact positioning (16 bit resolution) 540° Pan tilt feedback Max. TILT movement: Exact positioning (16 bit resolution) 270° Pan tilt feedback Equipment: Gobos static; Prisma 8-fold; Frost filter; Focus motor-driven Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) Depth: 34 cm Height: 45 cm LED: 1 x COB (chip-on-board) 150 W Color wheel Power supply: 110-240 V AC, 50/60 Hz |
| main features |
Beam spot with 1° beam angle, 150 W LED, color wheel, gobos and rotating prism -Equipped with a white 150 W COB LED -Lightbeam with 1° radiation angle -Positioning within 540° PAN and 270° TILT -Exact positioning via 16 bit PAN/TILT movement resolution -DMX-controlled operation or stand-alone operation with Master/Slave function -Sound-controlled via built-in microphone -Color wheel with 13 dichroic color filters and white -Switchable color change (mode 1: only full colors, mode 2: color-change at every position) -Rainbow effect with adjustable speed in both directions -Rotating 8-facet prism -The prism rotates in both directions and at different speeds -Gobo wheel with 13 static gobos plus open -With gobo shake function -Frost-filter -Strobe effect with 1-18 flashes per second -Internal programs -Dimmer -Motorized focus -Fan-cooled -Automatic position correction -Control board with LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT-Reverse, Program, Reset -P-Con power input and feed-through output to power up to 8 devices -DMX control via any standard DMX controller -Case color: Black -Effect: Strobe effect -Projection: flicker-free -Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided) -Power out: 1 x P-Con (Power out) gray, mounting version -Control: DMX; Stand-alone -LED: 1 x COB (chip-on-board) 150 W Color wheel |
| Connectors | |
| DMX connector types |
3pin
|
| Control | |
| control channels, min |
1 ch
|
| control channels, max |
4 ch
|
| max Movement resolution |
16 bit
|
| Electrical | |
| power consumption watt, max |
210.00 W
|
| AC Volts, min |
110 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
20
|

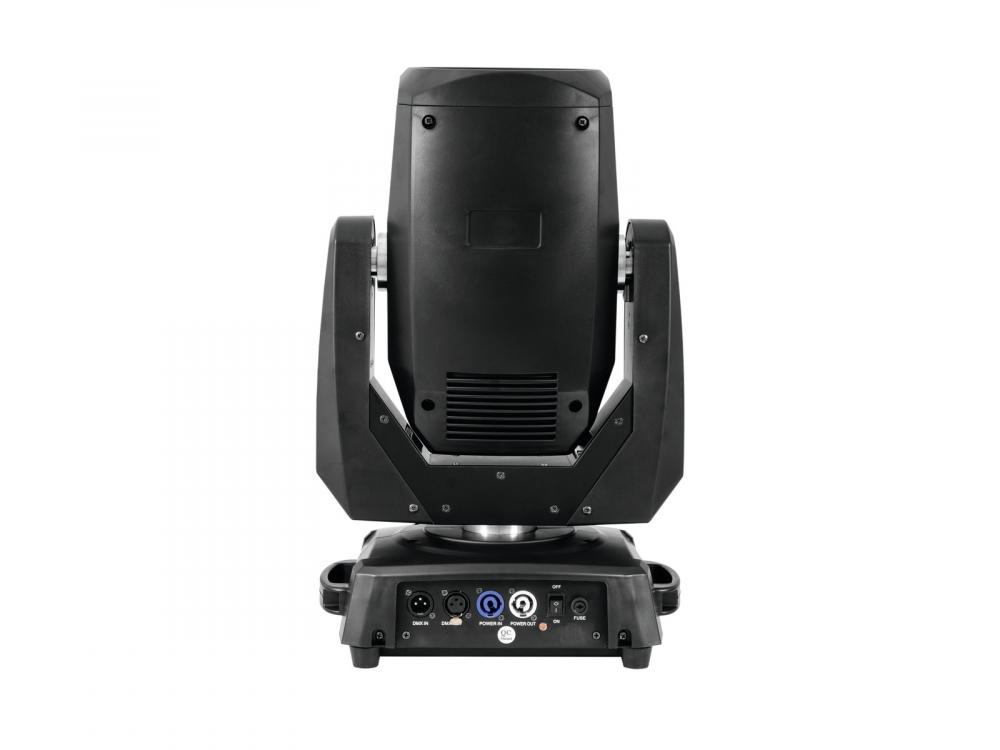

| power input connector |
Powercon
|
| cooling |
active
|
| Mechanical | |
| weight |
14.50 kg
|
| width |
330.00 mm
|
| height |
450.00 mm
|
| length |
340.00 mm
|
| pan range |
540 °
|
| tilt range |
270 °
|
| Optical | |
| beam angle/zoom, min |
1.00 °
|
| beam angle/zoom, max |
1.00 °
|
| light source |
LED
|
| Number of light sources |
1 pcs
|
| wattage per light source |
150.00 W
|
| shutter/strobe frequency, max |
18 Hz
|
| fixed/virtual colorwheels |
1 pcs
|
| gobowheels total |
1 pcs
|
| number of fixed gobos |
13 pcs
|
| prism |
yes
|
