Info | |
---|---|
order code |
51785967
|
product link | |
EAN |
4026397481792
|
Product Name |

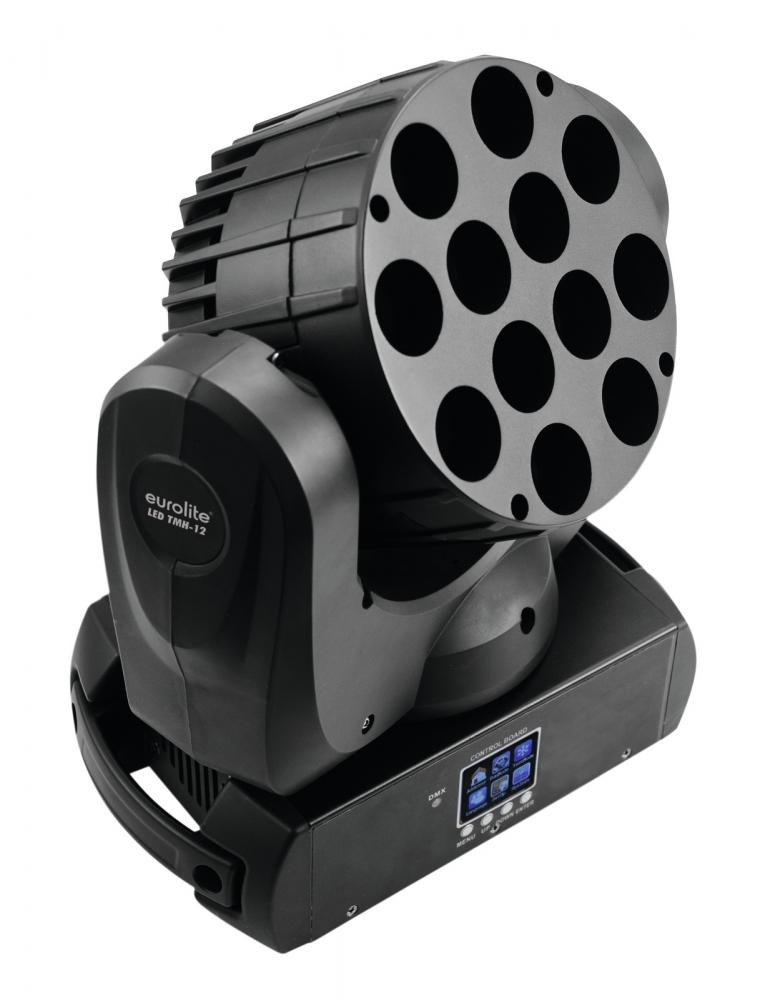

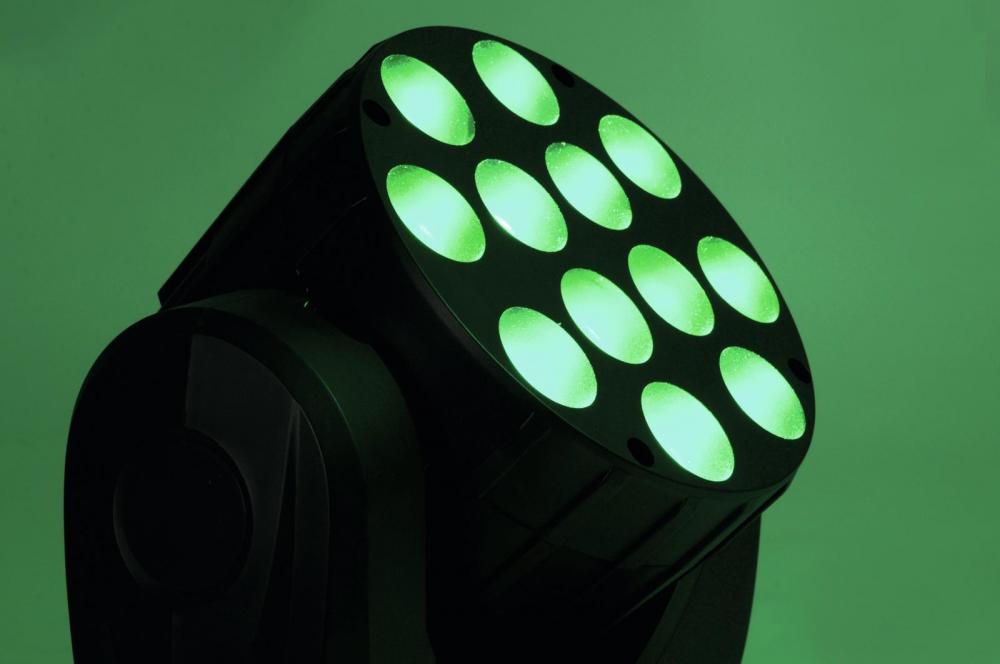

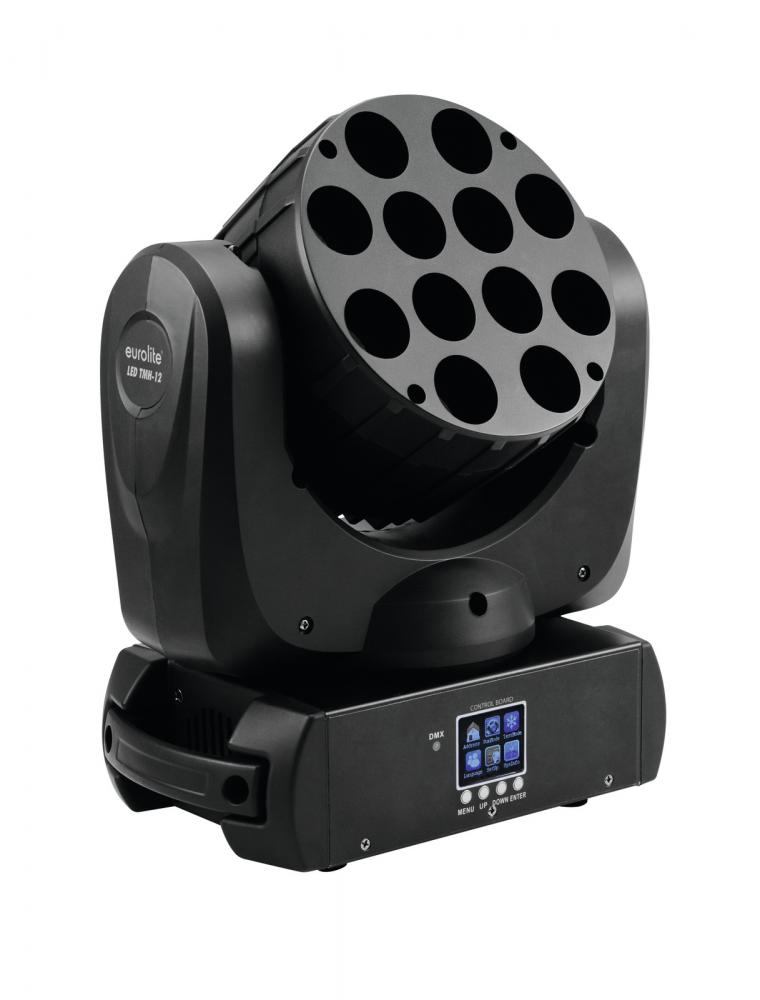

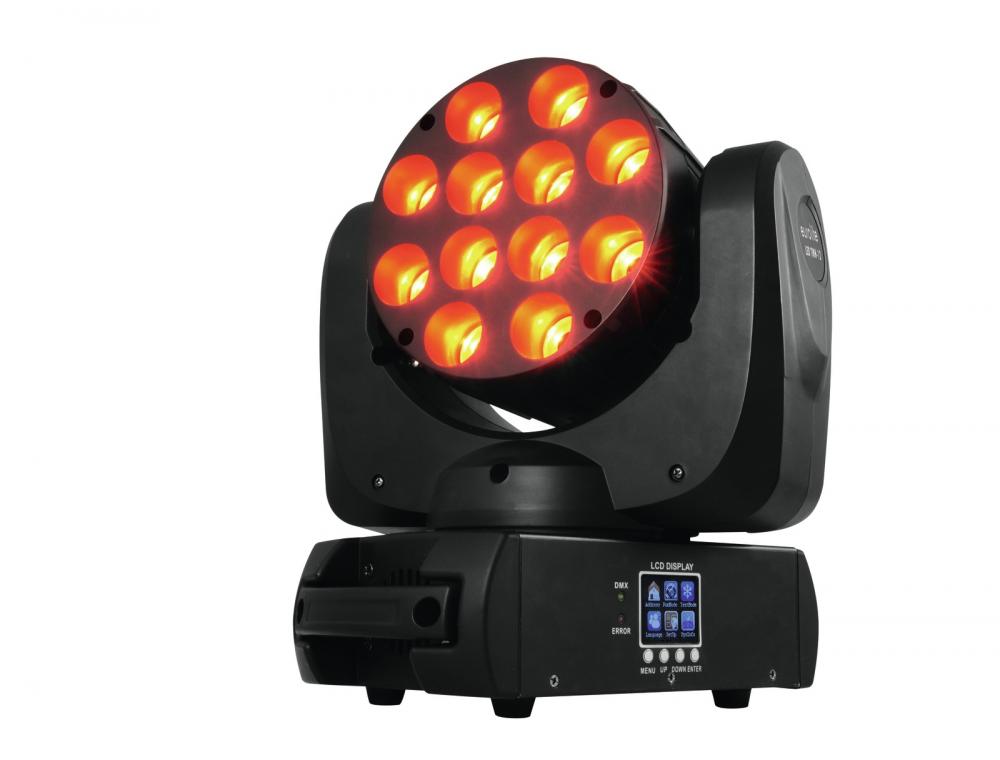

EUROLITE LED TMH-12 Moving Head Beam
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX channels: 12 DMX connection: 3-pin XLR Sound-control: via built-in microphone Flash-rate: 18 Hz LED type: 10 W RGBW (4in1) LED number: 12 Maximum PAN-movement: 540° Maximum TILT-movement: 200° Beam angle: 9° Dimensions (L x W x H): 255 x 155 x 310 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting DMX channels: 12 Weight: 5 kg Power consumption: 150 W Flash rate: 1 - 18 Hz Max. TILT movement: Exact positioning (16 bit resolution) 200° Pan tilt feedback Max. PAN movement: Exact positioning (16 bit resolution) 630° Pan tilt feedback Lamp type: LED lamp Beam angle: 9° Cooling fan: Yes IP classification: IP20 Laser class: Without laser Height: 31 cm Depth: 15,5 cm Width: 25,5 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) LED: 12 x high-power 10 W 4in1 QCL RGBW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
main features |
QCL Moving Head with narrow beam angle -Equipped with 12 high-power 10 W RGBW CREE LEDs (4in1) -Compact lightweight -Narrow beam angle -Positioning within 630° PAN and 200° TILT -Stepless RGBW color mixture -Different dimmer speeds (step response) adjustable -Masterdimmer -8 internal programs can be called up via Control board -Color-macro-function for an easy selection of possible color-combinations -Strobe effect with 1-18 flashes per second -Random strobe effect -Exact positioning via 16 bit PAN/TILT movement resolution -Automatic position correction -DMX-controlled operation or stand-alone operation with Master/Slave function -Sound-control via built-in microphone -Control board with graphic LCD for adjusting the DMX-starting address, PAN/TILT reverse, program, reset, operating hours -Switch-mode power supply -Automatic power supply adaption between 100 and 240 Volts without power selector -DMX control via every standard DMX controller -Case color: Black -Effect: Gobo effect -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: Sound to light via microphone; DMX; Stand-alone -LED: 12 x high-power 10 W 4in1 QCL RGBW (homogenous color mix) |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
12 ch
|
control channels, max |
12 ch
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
10.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|

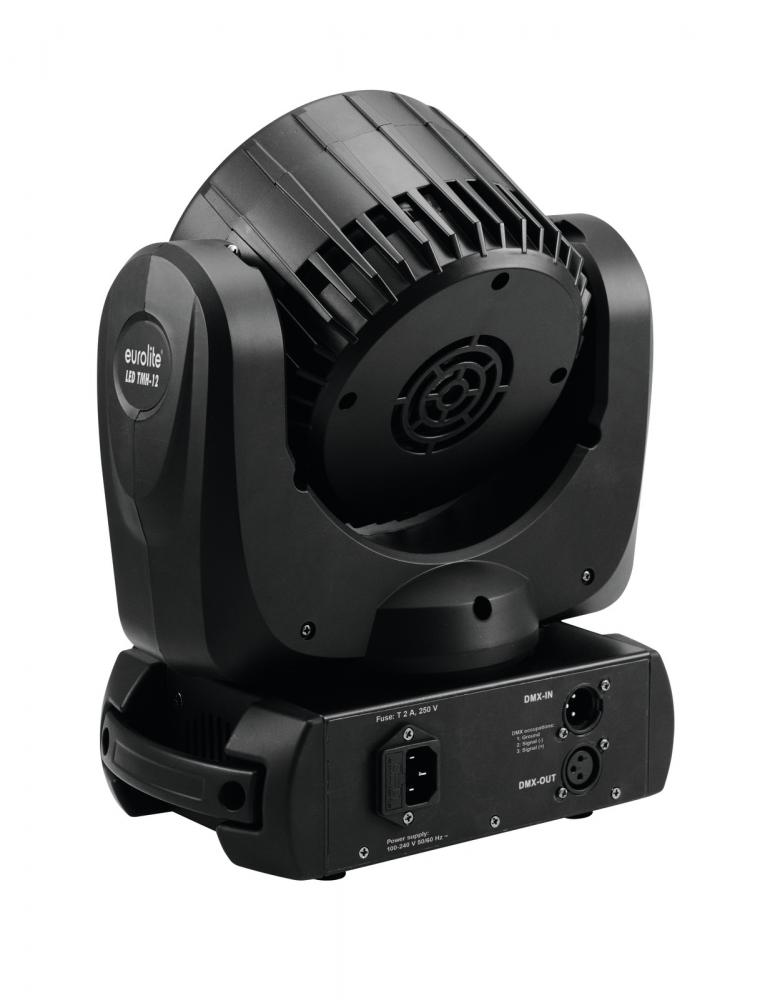

power input connector |
IEC-60320 C13/C14
|
cooling |
active
|
Mechanical | |
weight |
5.00 kg
|
width |
155.00 mm
|
height |
310.00 mm
|
length |
255.00 mm
|
pan range |
540 °
|
tilt range |
200 °
|
Optical | |
beam angle/zoom, min |
9.00 °
|
beam angle/zoom, max |
9.00 °
|
light source |
LED
|
Number of light sources |
12 pcs
|
wattage per light source |
10.00 W
|
multichip LED |
yes
|
COLD WHITE LED source |
yes
|
RED light source |
yes
|
GREEN light source |
yes
|
BLUE light source |
yes
|
shutter/strobe frequency, max |
18 Hz
|
