Info | |
---|---|
order code |
51786810
|
product link | |
EAN |
4026397616644
|
Product Name |

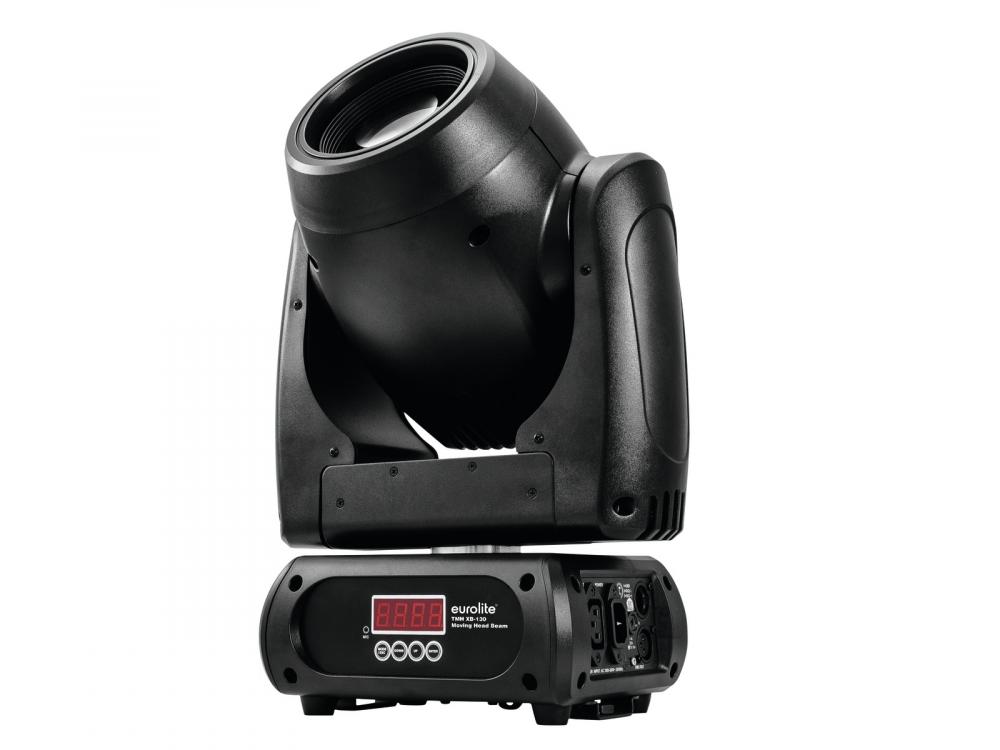

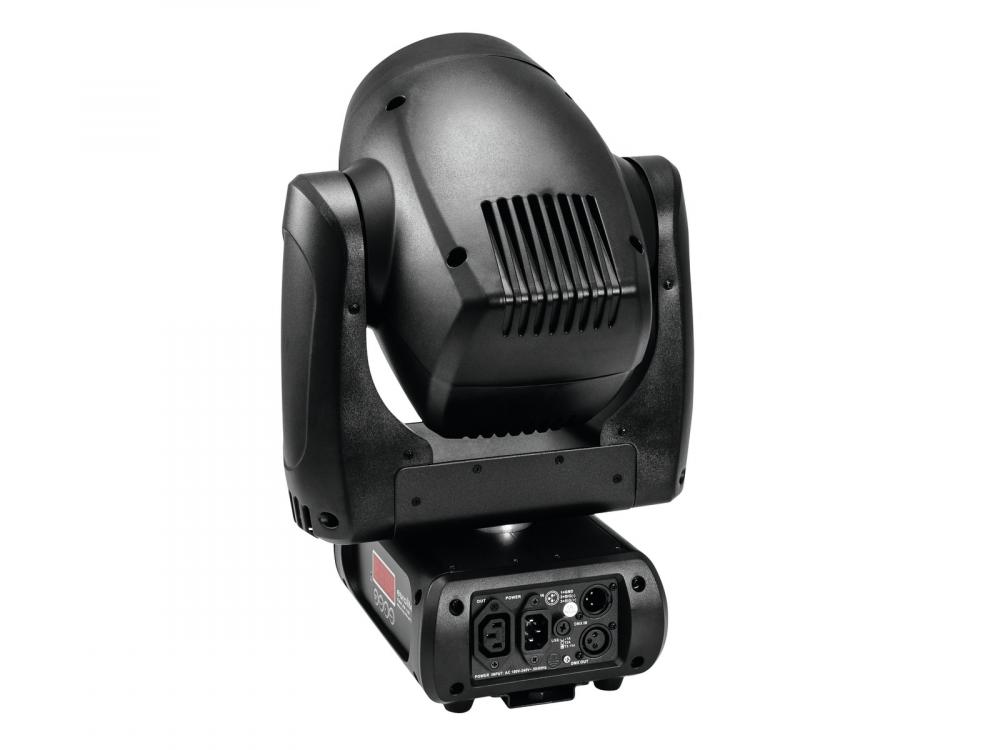

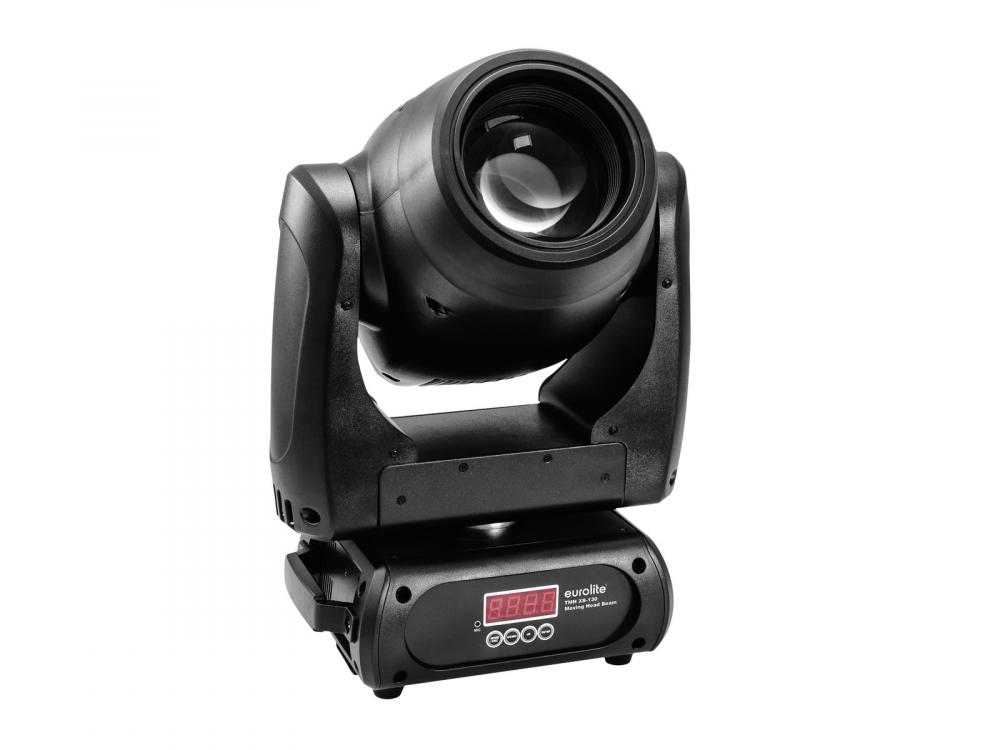

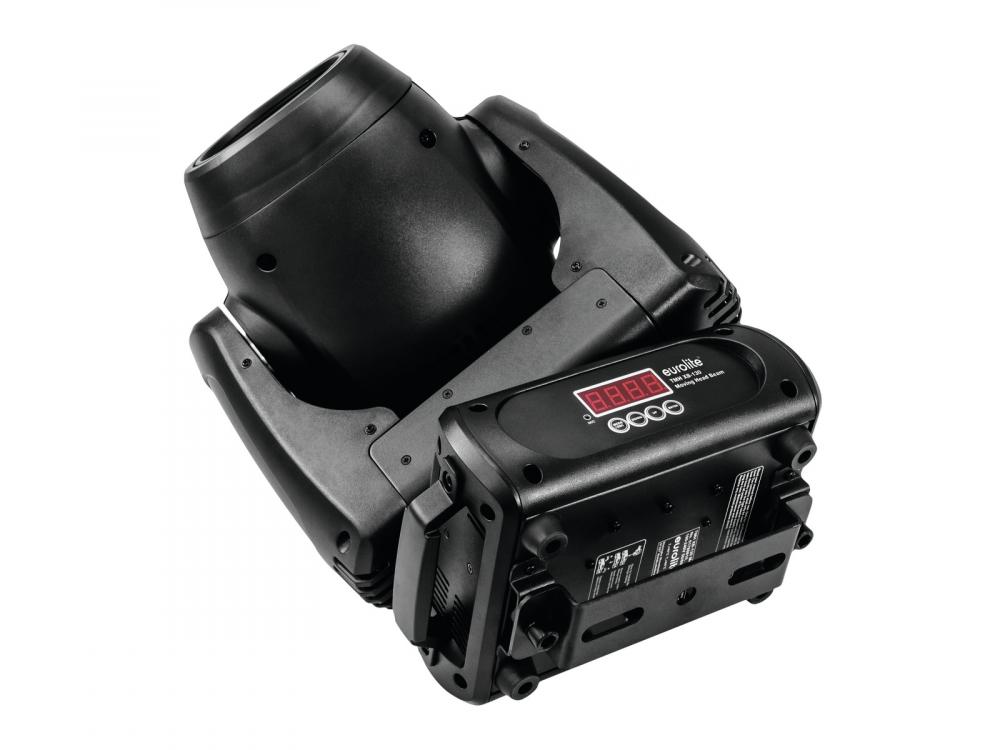

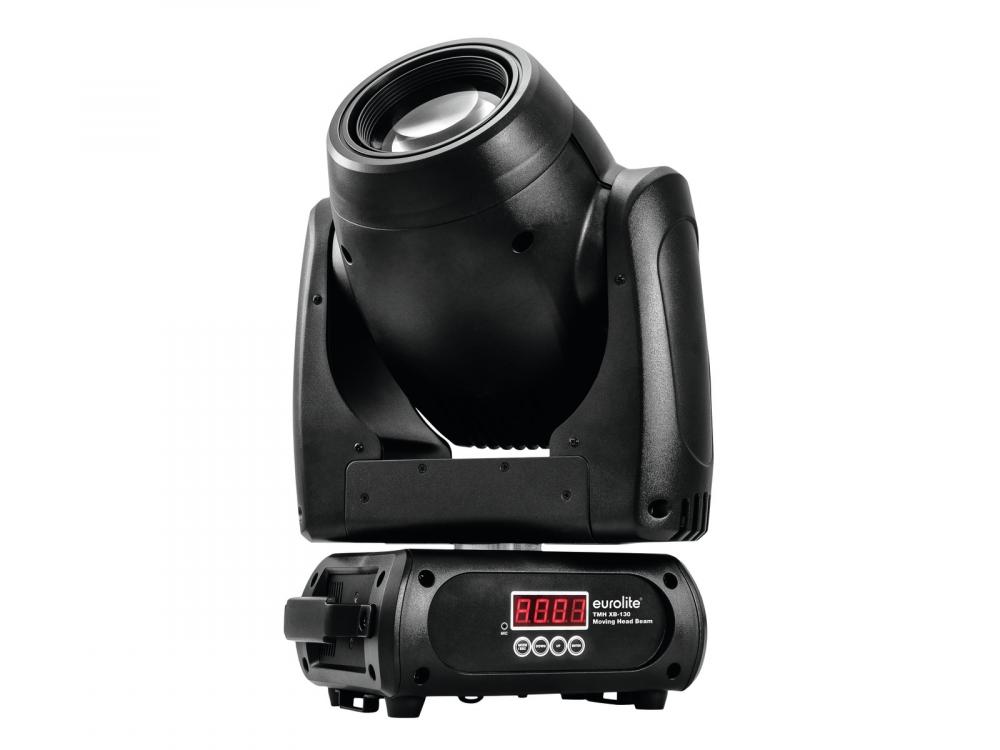

EUROLITE TMH XB-130 Moving-Head-Beam
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz DMX control channels: 11/14 DMX512 connection: 3-pin XLR Sound-control: via built-in microphone Flash-rate: 20 Hz Color-wheel: 14 dichroic filters plus open Static gobo wheel: 17 gobos and open Maximum PAN-movement: 630° Maximum TILT-movement: 270° Beam angle: 1° Dimensions (L x W x H): 260 x 290 x 400 mm Lamp type: Discharge lamp Weight: 10 kg Cooling fan: Yes, temperature-controlled IP classification: IP20 Power consumption: 170 W Laser class: Without laser Beam angle: 1° Height: 40 cm Depth: 26 cm Width: 29 cm Max. PAN movement: Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Pan tilt feedback Max. TILT movement: Exact positioning (16 bit resolution) 270° Pan tilt feedback Equipment: Gobos static; Prisma 8-fold; Frost filter; Focus motor-driven Color generation: Color wheel Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 110-240 V AC, 50/60 Hz |
main features |
Bright, extremely narrow beam with Osram Sirius HRI 132 W lamp -11 or 14 DMX channels selectable -Very narrow beam angle of 1° -Color wheel with 12 different dichroic color filters plus white -Rainbow effect with adjustable speed in both directions -Effect wheel with rotating 8-facet prism -The prism rotates in both directions and at different speeds -Gobo wheel with 17 static gobos plus open -With gobo shake function -Motorized focus -Strobe effect with adjustable speed -Random strobe effect -Frost filter -Dimmer -Exact positioning via 16 bit PAN/TILT movement resolution -Automatic position correction -Switch-mode power supply for operation between 100 and 240 Volts -Control board with LED display for adjusting the DMX-starting address, PAN/TILT reverse, reset, lamp on/off -PAN-angle switchable between 630° and 540° -DMX-controlled operation or stand-alone operation with master/slave function -Software upload by optional accessory via DMX link -Sound-controlled via built-in microphone -With Osram Sirius HRI 132 W lamp -Ready for connection via included IEC power cord with safety power plug -Feed-through output allows to power up to 8 devices -DMX-control via any standard DMX-controller -Case color: Black -Effect: Single Beam -Color generation: Color wheel -Power out: 1 x IEC connector (F) mounting version -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: DMX; Stand-alone |
Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
11 ch
|
control channels, max |
14 ch
|
max Movement resolution |
16 bit
|
Electrical | |
power consumption watt, max |
170.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
cooling |
active
|
Mechanical | |
weight |
10.00 kg
|
width |
290.00 mm
|
height |
400.00 mm
|
length |
260.00 mm
|
pan range |
630 °
|
tilt range |
270 °
|
Optical | |
beam angle/zoom, min |
1.00 °
|
beam angle/zoom, max |
1.00 °
|
light source |
Discharge
|
shutter/strobe frequency, max |
20 Hz
|
fixed/virtual colorwheels |
1 pcs
|
gobowheels total |
1 pcs
|
number of fixed gobos |
17 pcs
|
prism |
yes
|
