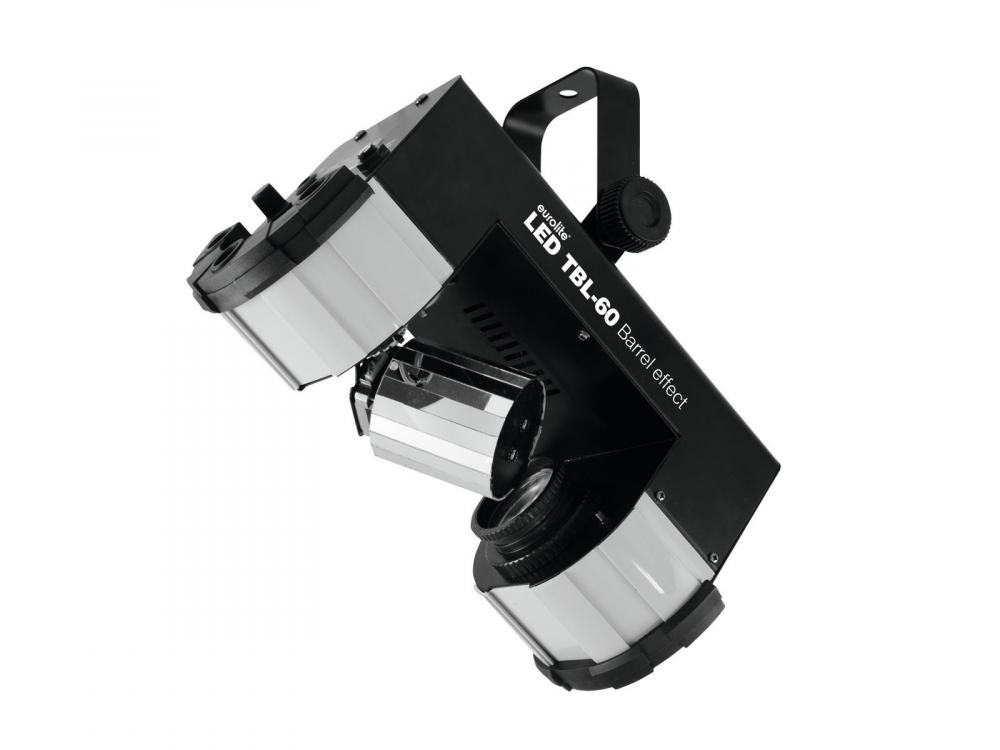

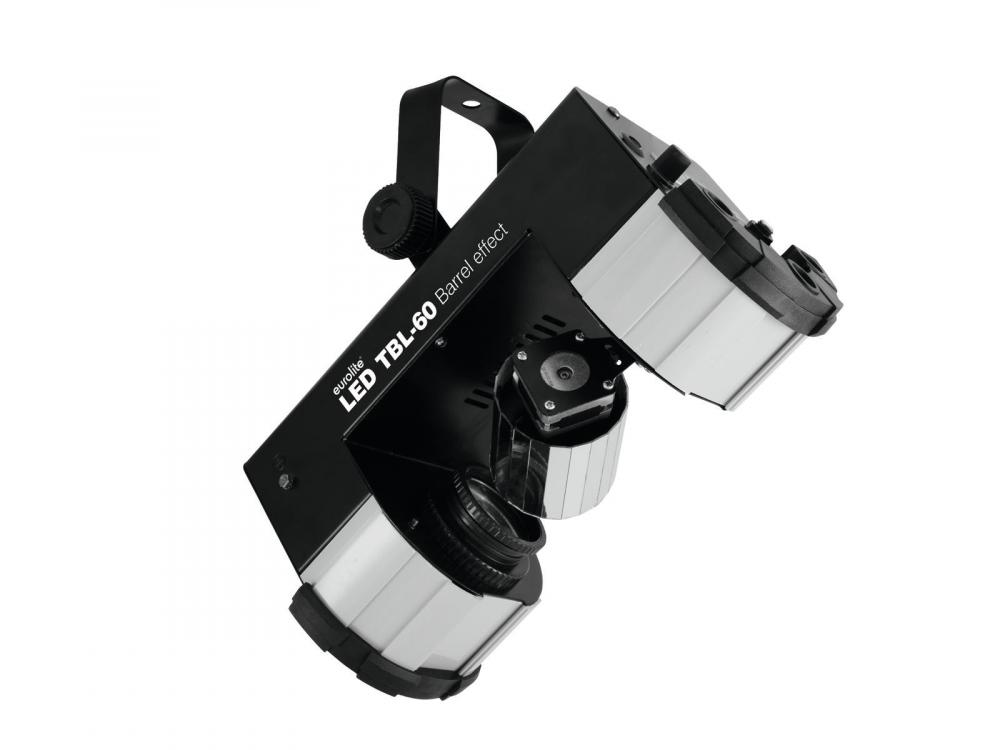

EUROLITE LED TBL-60 Barrel Effect

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED TBL-60 Barrel Effect

Info
order code
51786105
product link
EAN
4026397602852
Product Name
EUROLITE LED TBL-60 Barrel Effect
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 8
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
Flash-rate: 18 Hz
LED type: 60 W COB, RGBW
LED number: 1
Dimensions (L x W x H): 300 x 135 x 275 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Cooling fan: Yes
IP classification: IP20
Weight: 2,8 kg
Power consumption: 90 W
Height: 27,5 cm
Depth: 30 cm
Width: 13,5 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels: 8
LED: 1 x COB (chip-on-board) 60 W 4in1 QCL RGBW
Power supply: 110-240 V AC, 50/60 Hz
main features
Very compact mirror effect with 60 W COB LED in RGBW
-Equipped with a 60 W COB LED in the colors red, green, blue and white
-DMX-controlled operation or stand-alone operation with Master/Slave function (up to 4 slaves)
-Sound-controlled via built-in microphone
-Microphone-sensitivity adjustable via rotary-control
-Fuzzy sound control: program continues automatically during periods without music or bass-beat
-Functions: stepless RGBW color mixture, strobe effect with adjustable speed and random strobe effect, built-in programs, dimmer
-Manual focus
-Compact housing with mounting bracket and fixation screws

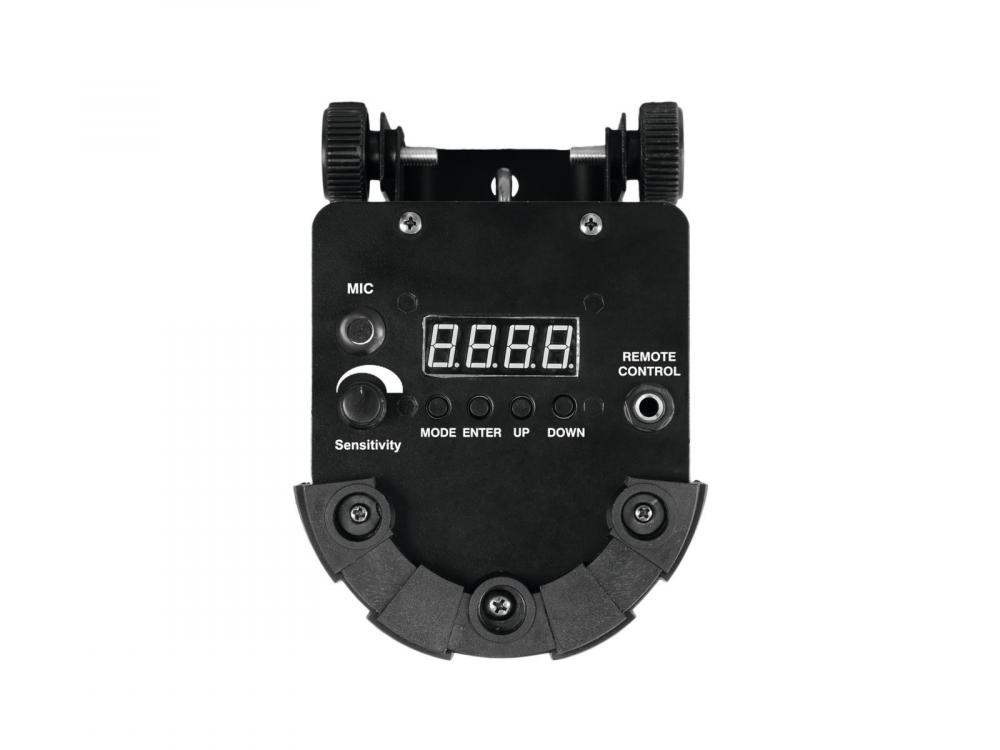

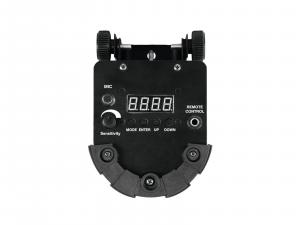

-Control board with LED display and four operating buttons
-6.3 mm jack socket for remote control
-Auto, sound and standby mode applicable via optional available FUTURELIGHT Easy-4 remote control
-DMX control via every standard DMX controller
-Switch-mode power supply for operation between 100 and 240 volts
-Ready for connection via included IEC power cord with safety power plug
-Case color: Black
-Effect: Multi beam effect; Mirror cylinder effect
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: Stand-alone; DMX
-LED: 1 x COB (chip-on-board) 60 W 4in1 QCL RGBW
Connectors
DMX connector types
3pin
Control
control channels, min
8 ch
control channels, max
8 ch
Electrical
power consumption watt, max
90.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
cooling
active
Mechanical
weight
2.80 kg
width
135.00 mm
height
275.00 mm
length
300.00 mm
Optical
Number of light sources
1 pcs
wattage per light source
60.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
shutter/strobe frequency, max
18 Hz
