Info | |
---|---|
order code |
51786123
|
product link | |
EAN |
4026397390742
|
Product Name |

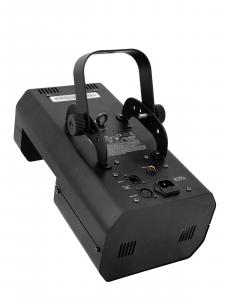

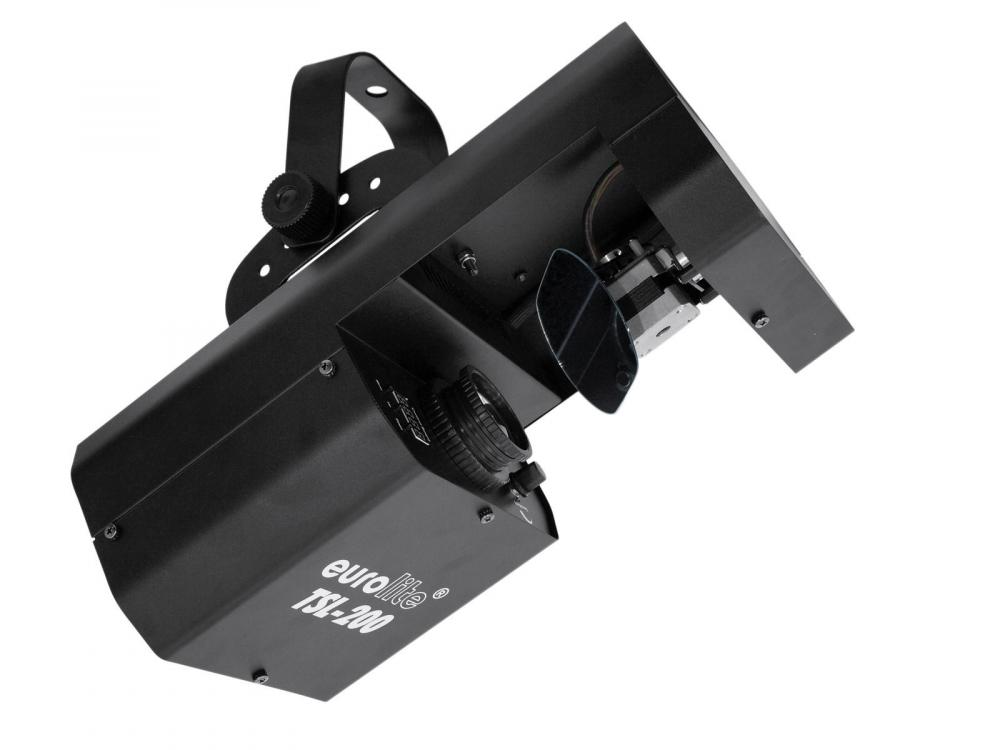

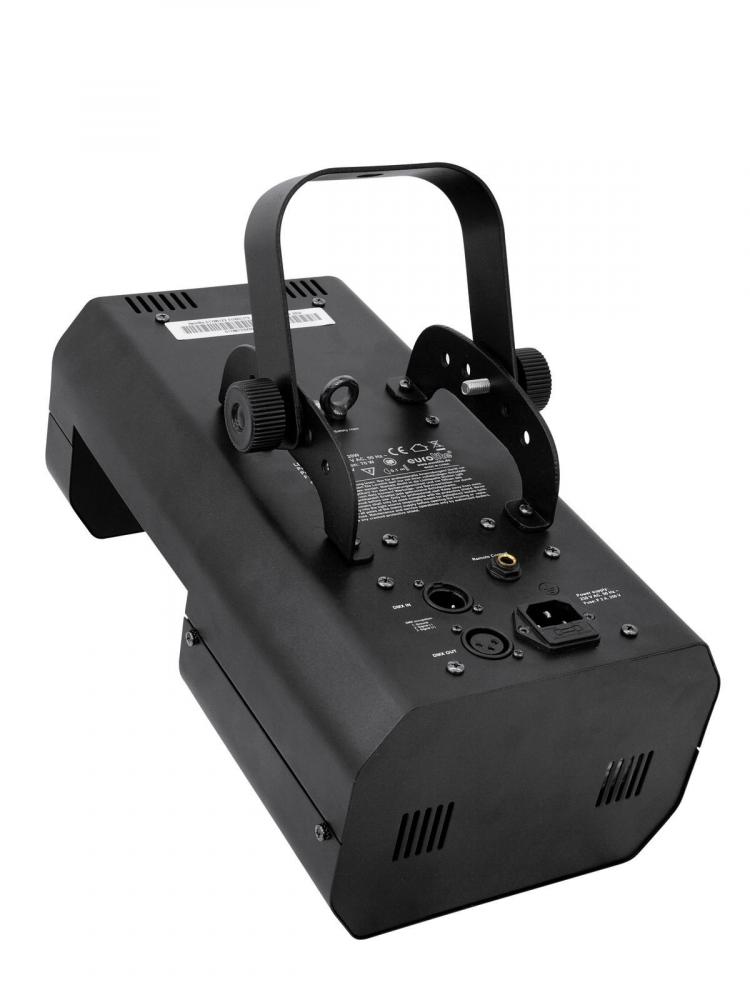

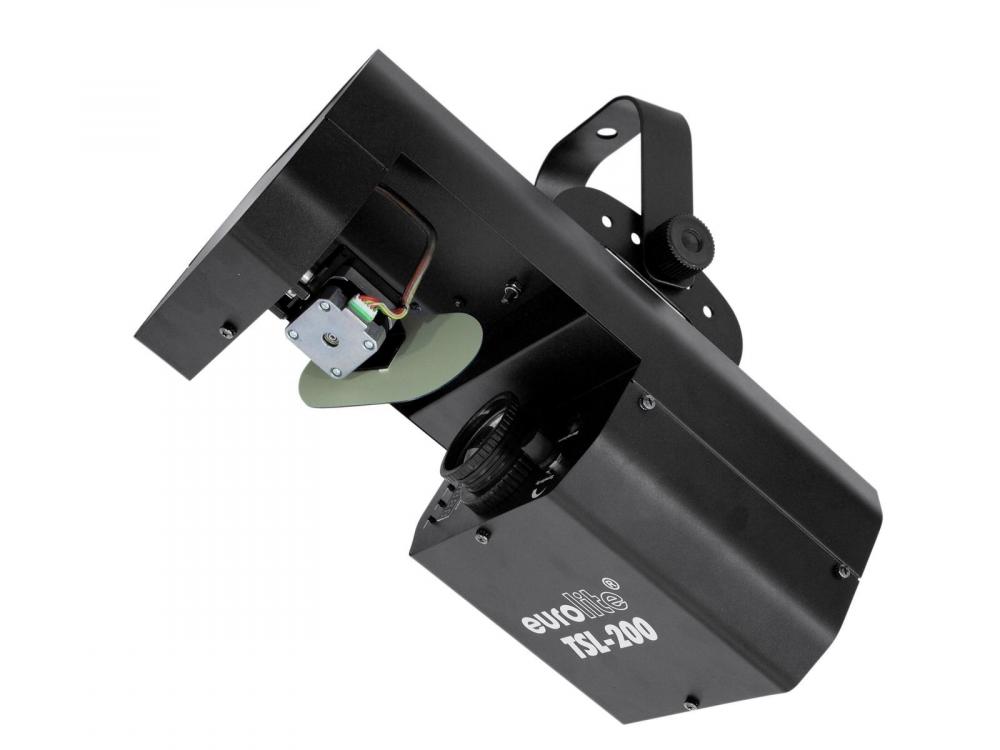

EUROLITE LED TSL-200 Scan COB
|
technical overview |
Power supply: 230 V AC, 50 Hz DMX channels: 9 DMX connection: 3-pin XLR Sound-control: via built-in microphone Flash-rate: 18 Hz Color-wheel: 7 colors and open Rotating gobo-wheel: 7 gobos and open Outside diameter of the gobos: 25 mm Image diameter of the gobos: 20 mm LED type: Array 20 W LED number: 1 Dimensions (L x W x H): 390 x 205 x 300 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting DMX channels: 9 Weight: 6 kg Power consumption: 70 W Flash rate: 1 - 18 Hz Beam angle: 13° Lamp type: LED lamp Cooling fan: Yes IP classification: IP20 Laser class: Without laser Height: 30 cm Depth: 39 cm Width: 20,5 cm Equipment: Gobos rotating Wheel with 7 gobos and open; Focus manual Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) LED: 1 x COB (chip-on-board) 20 W Color wheel Power supply: 230 V AC, 50 Hz |
main features |
Scanner with 20 W COB LED, rotating gobos and color wheel -Equipped with a 20 W COB LED -Long LED life -Comparable to the light output of a 250 W halogen lamp -DMX-controlled operation or stand-alone operation with Master/Slave function (up to 4 slaves) -14 motion macros can be called up via DMX controller -Sound-controlled via built-in microphone -Microphone-sensitivity adjustable via rotary-control -Fuzzy sound control: program continues automatically during periods without music or bass-beat -7 brilliant, dichroic colors plus white -Rainbow effect with adjustable speed -Gobo-wheel with 7 rotating gobos plus open -With gobo-shake function -Strobe effect with 1-18 flashes per second -Strobe effect with adjustable speed -Random strobe effect -Manual focus -Dimmer -Fan-cooled -Small and portable -Lightbeam with 13° radiation angle -Control board with 4-digit display for adjusting the DMX-starting address, Pan/Tilt-Reverse -6.3 mm jack socket for remote control -Blackout, gobos, colors and Auto/Manual Mode applicable in Stand Alone mode via optional EUROLITE RC-1 remote control -Advantages of LED technology: long life, low power consumption, minimal heat emission, defacto maintenance free with brilliant light radiation -DMX control via every standard DMX controller -Case color: Black -Effect: Gobo effect -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) -Control: Sound to light via microphone; DMX; Stand-alone -LED: 1 x COB (chip-on-board) 20 W Color wheel |

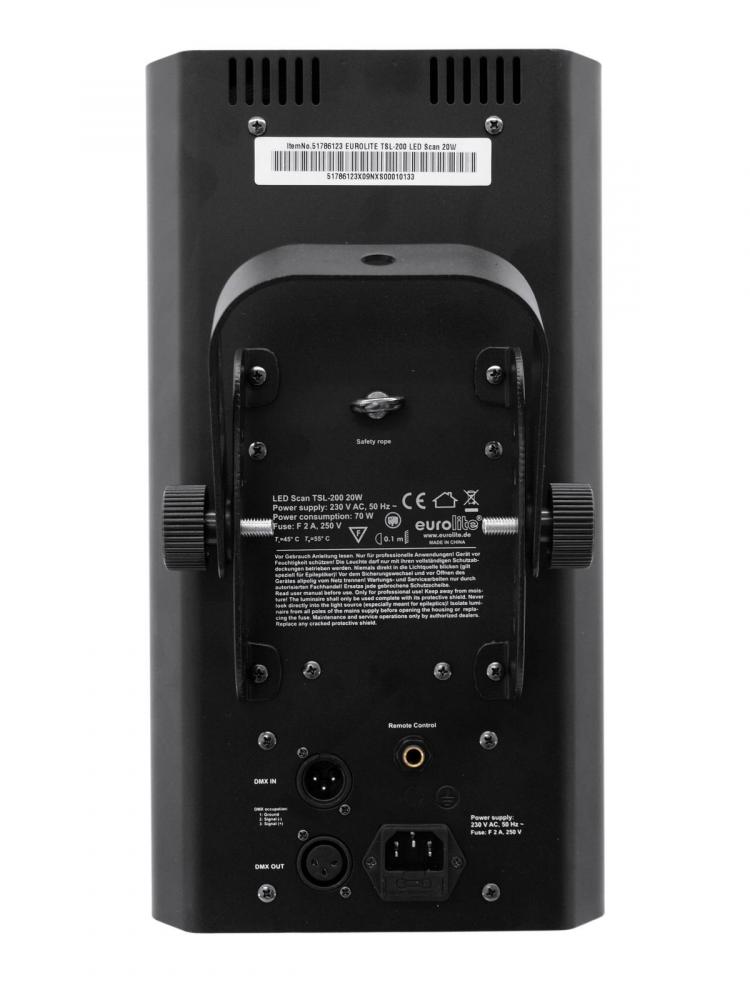

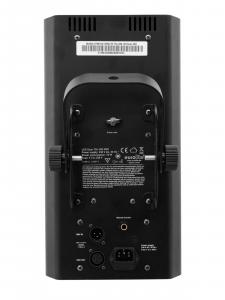

Connectors | |
DMX connector types |
3pin
|
Control | |
control channels, min |
9 ch
|
control channels, max |
9 ch
|
Electrical | |
power consumption watt, max |
20.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
IP rating |
20
|
power input connector |
IEC-60320 C13/C14
|
cooling |
active
|
Mechanical | |
weight |
6.00 kg
|
width |
205.00 mm
|
height |
300.00 mm
|
length |
390.00 mm
|
Optical | |
beam angle/zoom, min |
13.00 °
|
beam angle/zoom, max |
13.00 °
|
Number of light sources |
1 pcs
|
wattage per light source |
20.00 W
|
shutter/strobe frequency, max |
18 Hz
|
rotating gobowheels |
1 pcs
|
number of rotating gobos |
7 pcs
|
