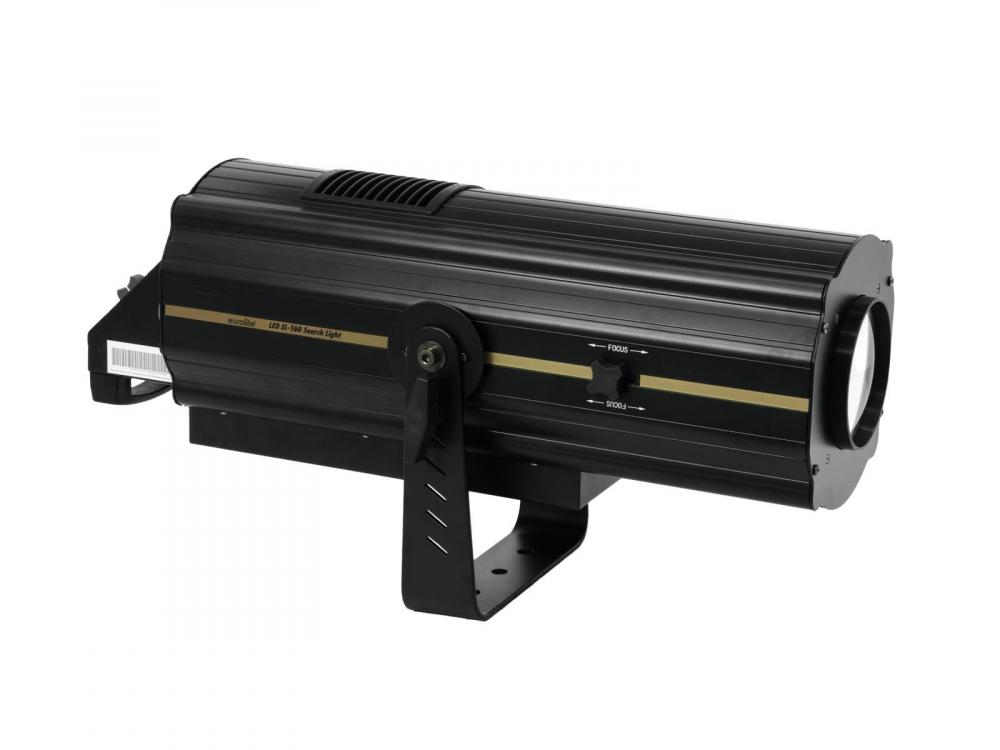

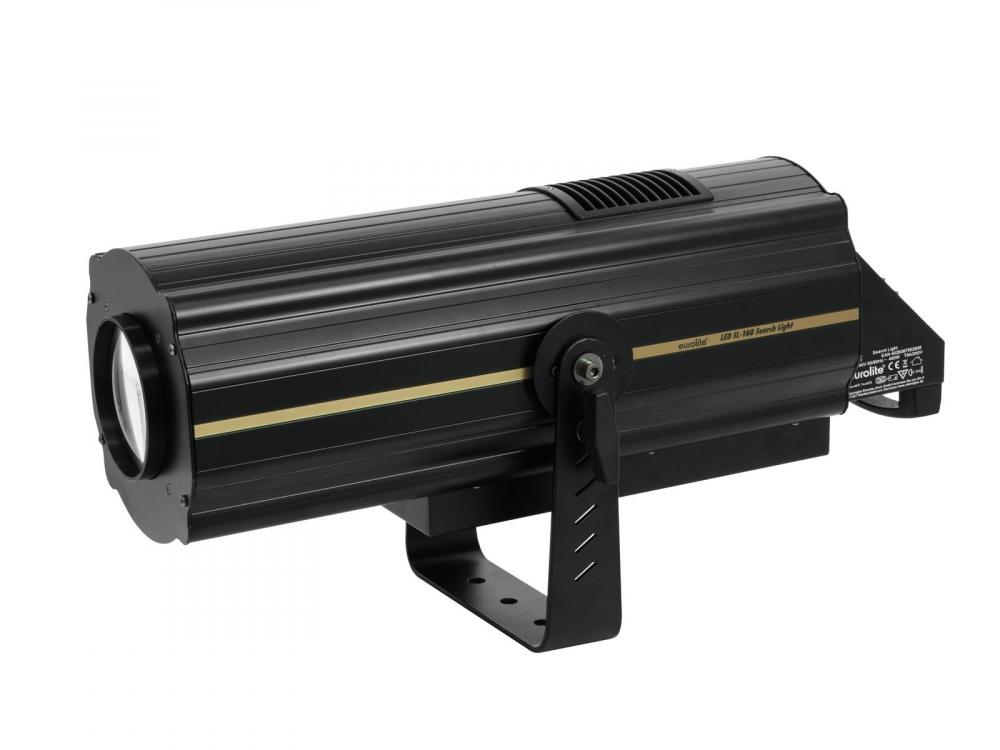

EUROLITE LED SL-160 Search Light

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED SL-160 Search Light

Info
order code
51787311
product link
EAN
4026397571295
Product Name
EUROLITE LED SL-160 Search Light
technical overview
Power supply: 100-240 V AC, 50/60 Hz
LED type: 160 W COB
LED number: 1
Beam angle: 10°
Dimensions (L x W x H): 600 x 275 x 315 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Weight: 10 kg
IP classification: IP20
Power consumption: 230 W
Lamp type: LED lamp
Beam angle: 10°
Height: 31,5 cm
Length: 60 cm
Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M)
Width: 27,5 cm
LED: 1 x COB (chip-on-board) 160 W CW (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features
Follow spot with cold white 160 W LED for small to medium distances
-Suitable for a projection area of up to 20 meters

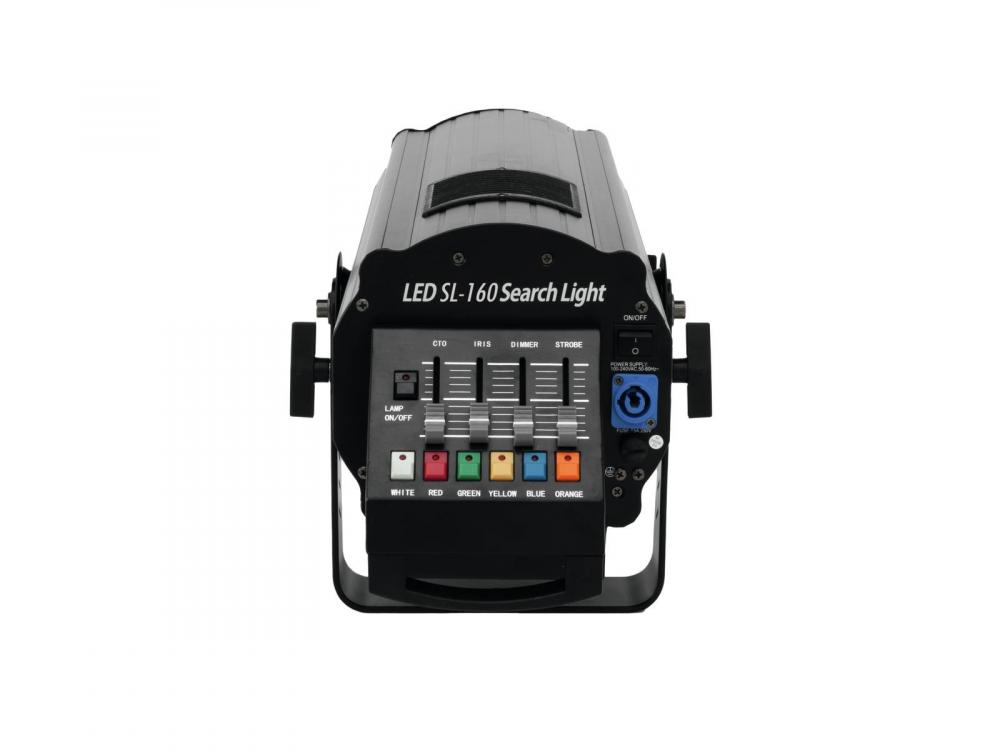

-Comfortable control via control panel with buttons and faders
-Color wheel with 5 different, dichroic color filters and white
-Strobe effect with adjustable speed (1-20 flashes/sec.)
-CTO correction filter 3200 K, 4500 K and 5600 K
-Steplessly adjustable iris from 5-100%
-Dimmer for stepless adjustment of the light-output brightness between 0 % and 100 %

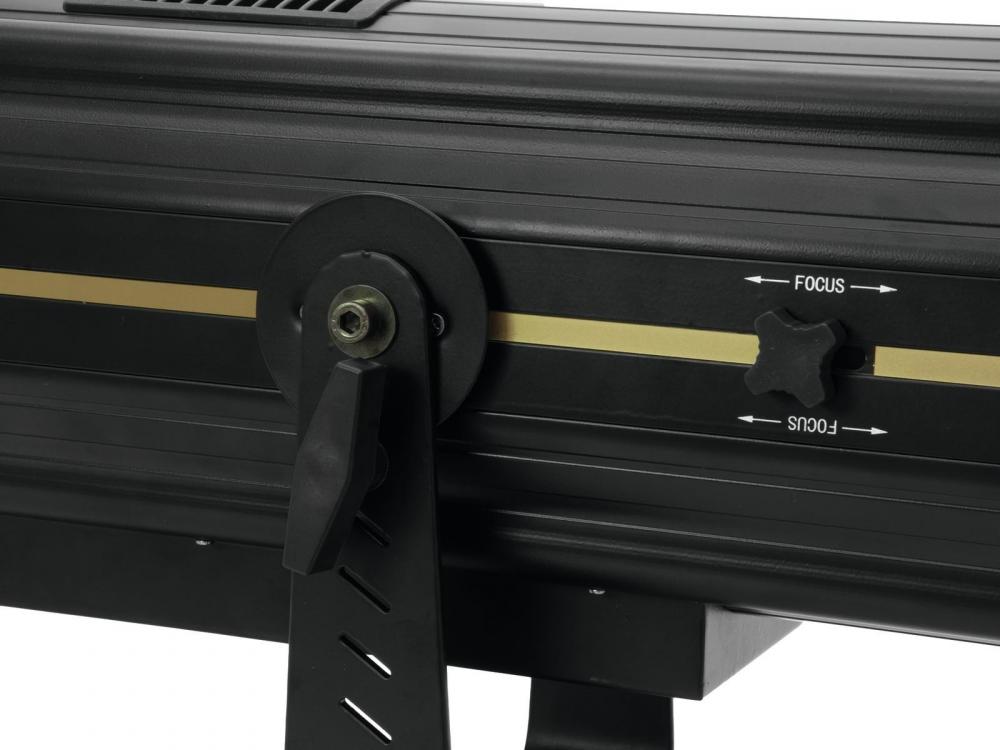

-Manual focus
-Comfortable control via control-panel

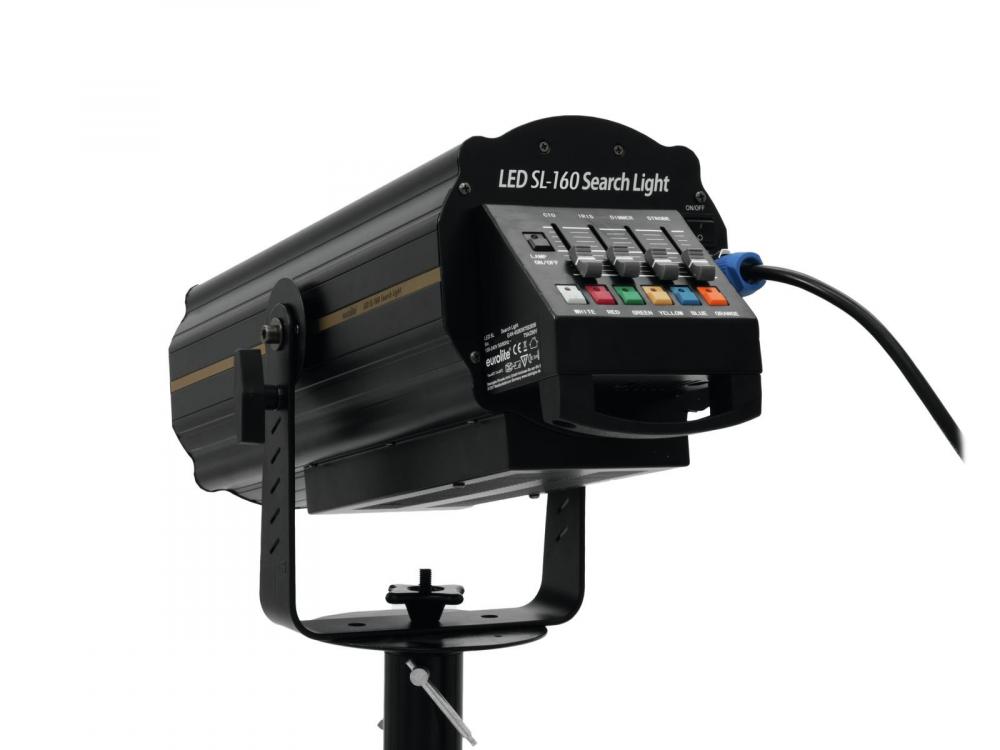

-Mounting bracket for installation on a stand
-Equipped with one 160 W LED
-Switch-mode power supply allows for automatic power supply adaption between 100 and 240 volts without power selector
-Power connection via Neutrik PowerCon socket and included power cable
-Case color: Black
-Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided)
-Control: Stand-alone
-LED: 1 x COB (chip-on-board) 160 W CW (homogenous color mix)
Electrical
power consumption watt, max
160.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
Mechanical
weight
10.00 kg
width
275.00 mm
height
315.00 mm
length
600.00 mm
Optical
beam angle/zoom, min
10.00 °
beam angle/zoom, max
10.00 °
light source
LED
Number of light sources
1 pcs
wattage per light source
160.00 W

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00096142.pdf
