| Info | |
|---|---|
| order code |
51787315
|
| product link | |
| EAN |
4026397552836
|
| Product Name |

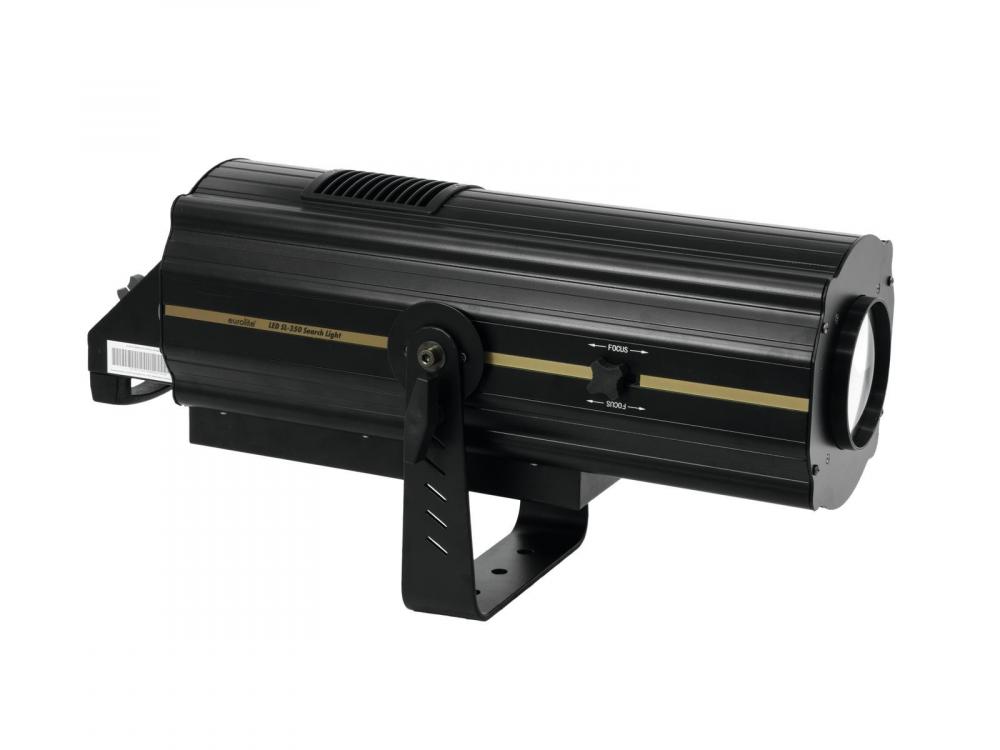

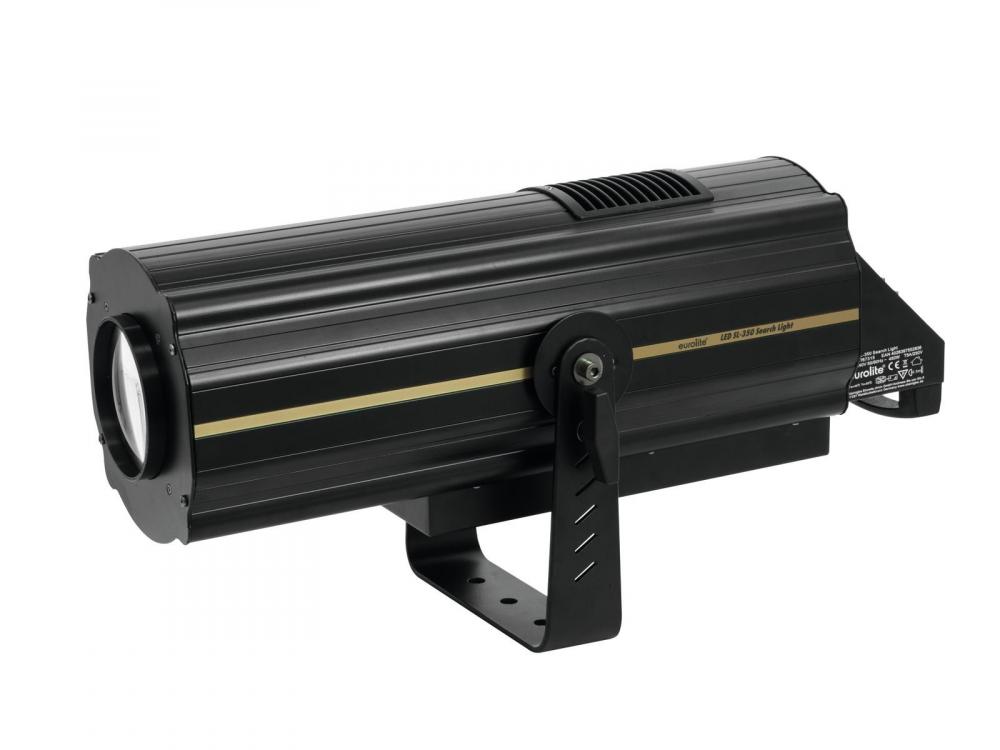

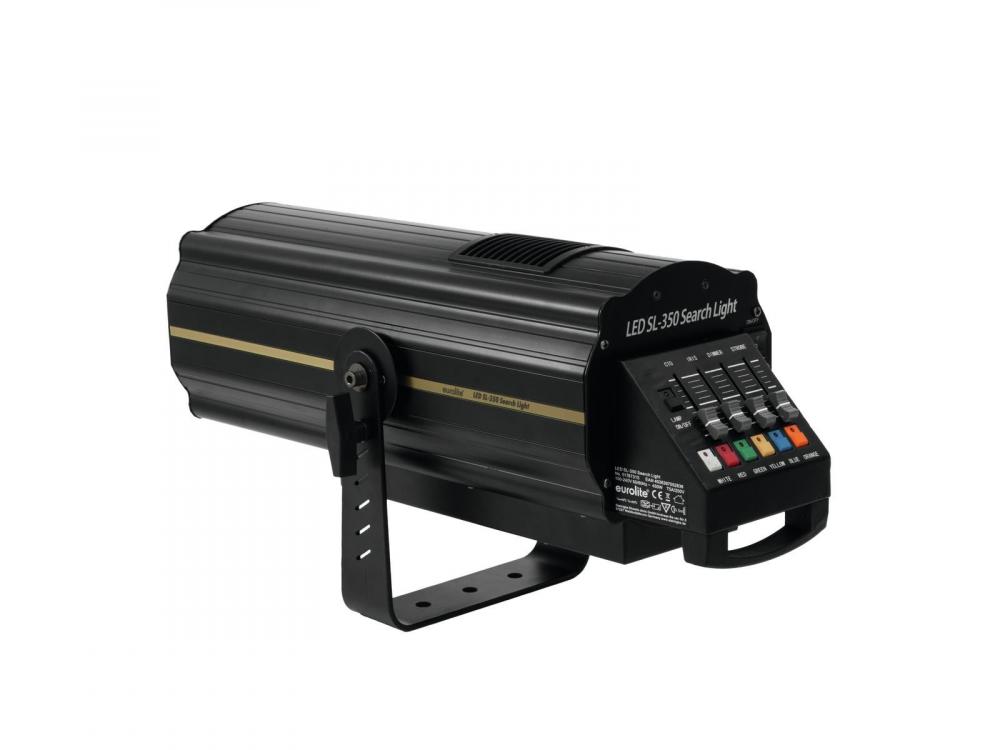

EUROLITE LED SL-350 Search Light
|
| technical overview |
Power supply: 100-240 V AC, 50/60 Hz LED type: 300 W LED number: 1 Beam angle: 10° Flash-rate: 20 Hz Dimensions (L x W x H): 600x275x300 mm Ecodesign regulation: Yes Special product: Not designed for household room illumination Purpose: Show effect lighting Weight: 10 kg IP classification: IP20 Power consumption: 490 W Lamp type: LED lamp Beam angle: 10° Height: 30 cm Width: 27,5 cm Length: 60 cm Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) LED: 1 x COB (chip-on-board) 300 W CW (homogenous color mix) Power supply: 110-240 V AC, 50/60 Hz |
| main features |

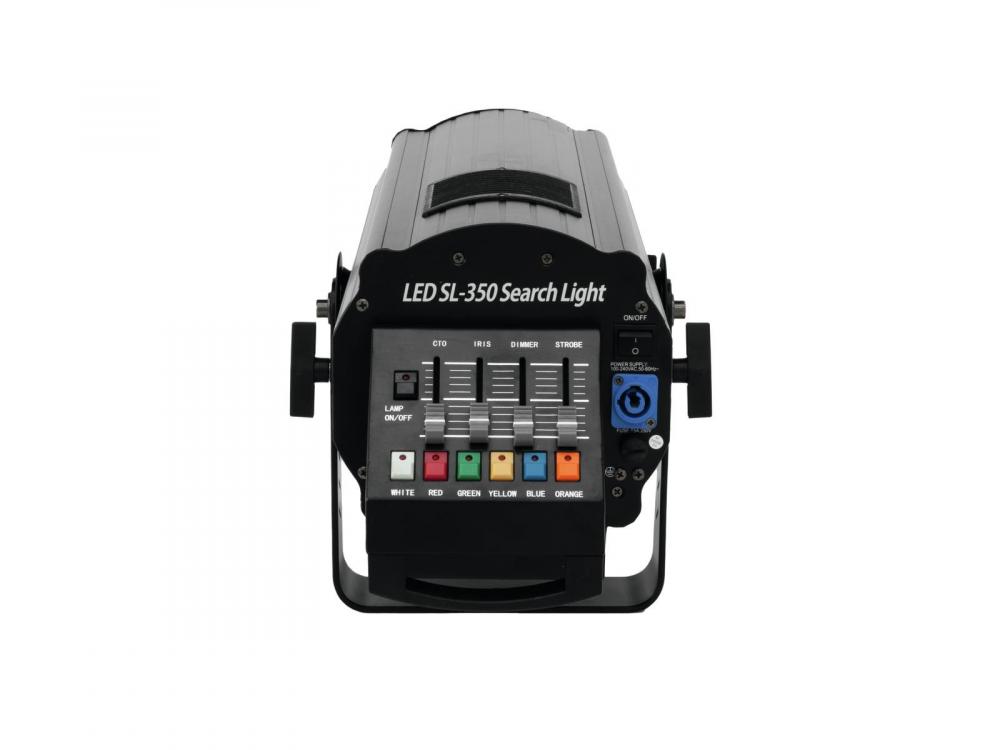

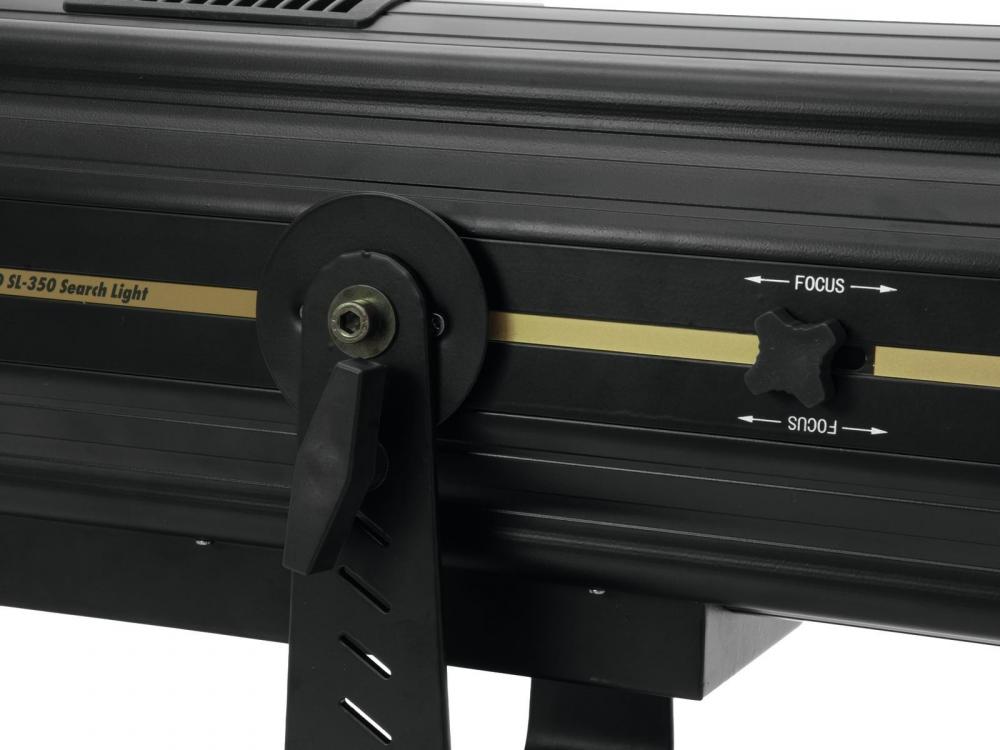

Follow spot with cold white 300 W LED for small to medium distances -Suitable for a projection area of up to 20 meters -Comfortable control via control panel with buttons and faders -Color wheel with 5 different, dichroic color filters and open -Strobe effect with adjustable speed (1-20 flashes/sec.) -CTO correction filter 3200 K, 4500 K and 6500 K -Steplessly adjustable iris from 5 - 100% -Dimmer for stepless adjustment of the light-output brightness between 0 % and 100 % -Manual focus -Comfortable control via control-panel -Mounting bracket for installation on a stand -Equipped with 1 x 300 W LED -Switch-mode power supply for operation between 100 and 240 volts -Power connection via Neutrik PowerCon socket and included power cable -Case color: Black -Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided) -Control: Stand-alone -LED: 1 x COB (chip-on-board) 300 W CW (homogenous color mix) |
| Electrical | |
| power consumption watt, max |
300.00 W
|
| AC Volts, min |
110 V
|
| AC Volts, max |
240 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
60 Hz
|
| IP rating |
20
|
| power input connector |
Powercon
|
| Mechanical | |
| weight |
10.00 kg
|
| width |
275.00 mm
|
| height |
300.00 mm
|
| length |
600.00 mm
|
| Optical | |
| beam angle/zoom, min |
10.00 °
|
| beam angle/zoom, max |
10.00 °
|
| light source |
LED
|
| Number of light sources |
1 pcs
|
| wattage per light source |
300.00 W
|
| shutter/strobe frequency, max |
20 Hz
|
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00102131.pdf |
