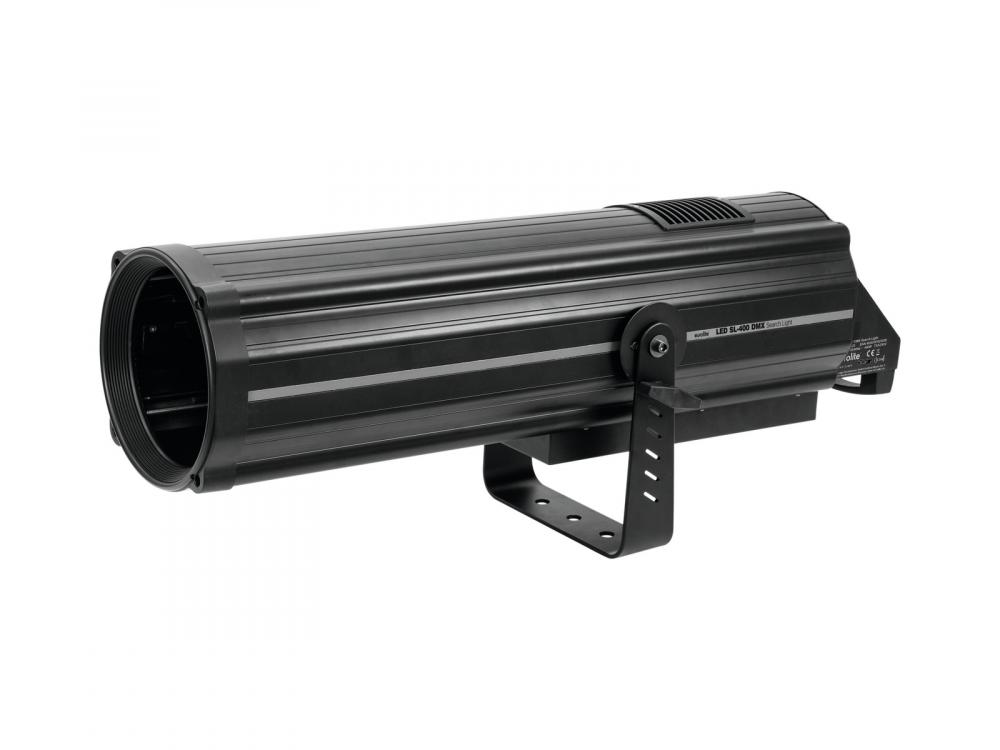

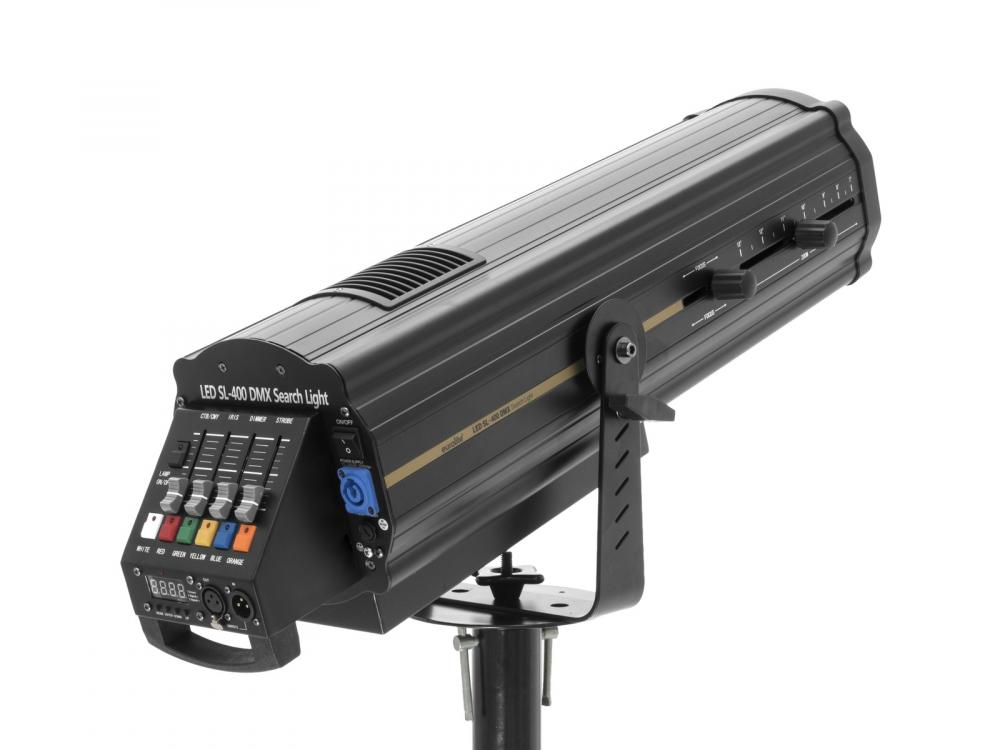

EUROLITE LED SL-400 DMX Search Light

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED SL-400 DMX Search Light

Info
order code
51787320
product link
EAN
4026397625059
Product Name
EUROLITE LED SL-400 DMX Search Light
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX control channels: 6
DMX512 connection: 3-pin XLR
Flash-rate: 1-20 Hz
LED type: 300 W WW
Number of LEDs: 1
Color temperature: 3500 K
Beam angle: 7-13°
Dimensions (L x W x H): 770 x 270 x 290 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Weight: 12 kg
IP classification: IP20
Power consumption: 440 W
Lamp type: LED lamp
Beam angle: 7 - 13°
Height: 29 cm
Width: 27 cm
Length: 77 cm
Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M)
LED: 1 x COB (chip-on-board) 300 W WW (homogenous color mix)
DMX channels: 6
Power supply: 110-240 V AC, 50/60 Hz
main features
Follow spot with 300 W warm white LED for medium distances, zoom, CRI >80
-Operable in manual mode or via DMX
-DMX512 control possible via any commercial DMX controller (occupies 6 channels)
-Suitable for a projection area from 25 to 50 meters

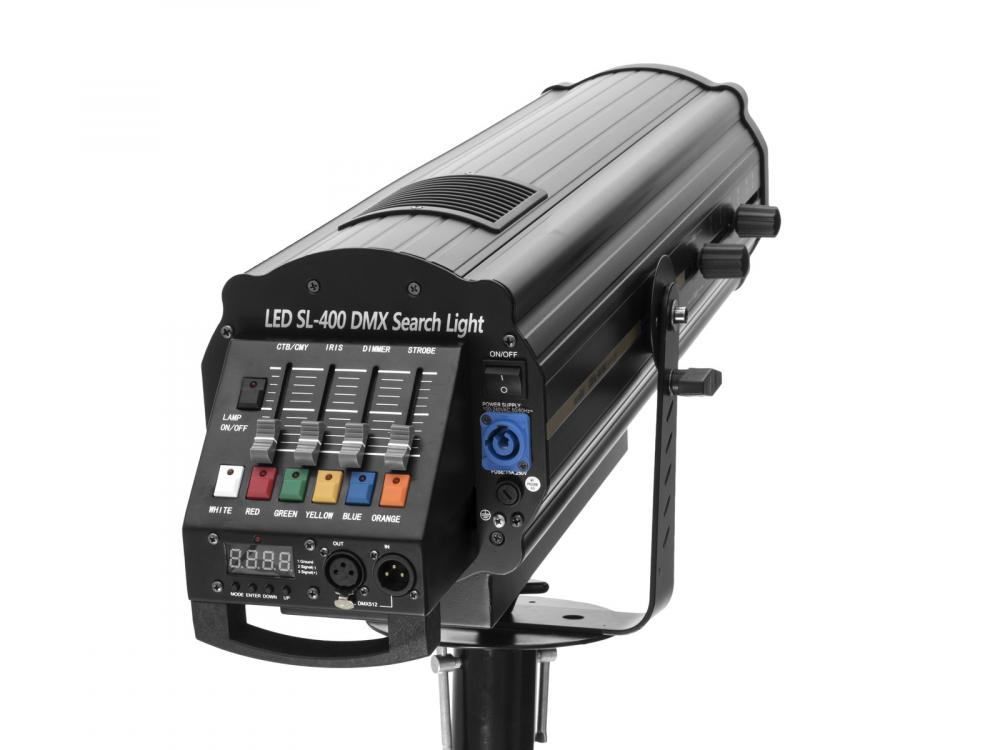

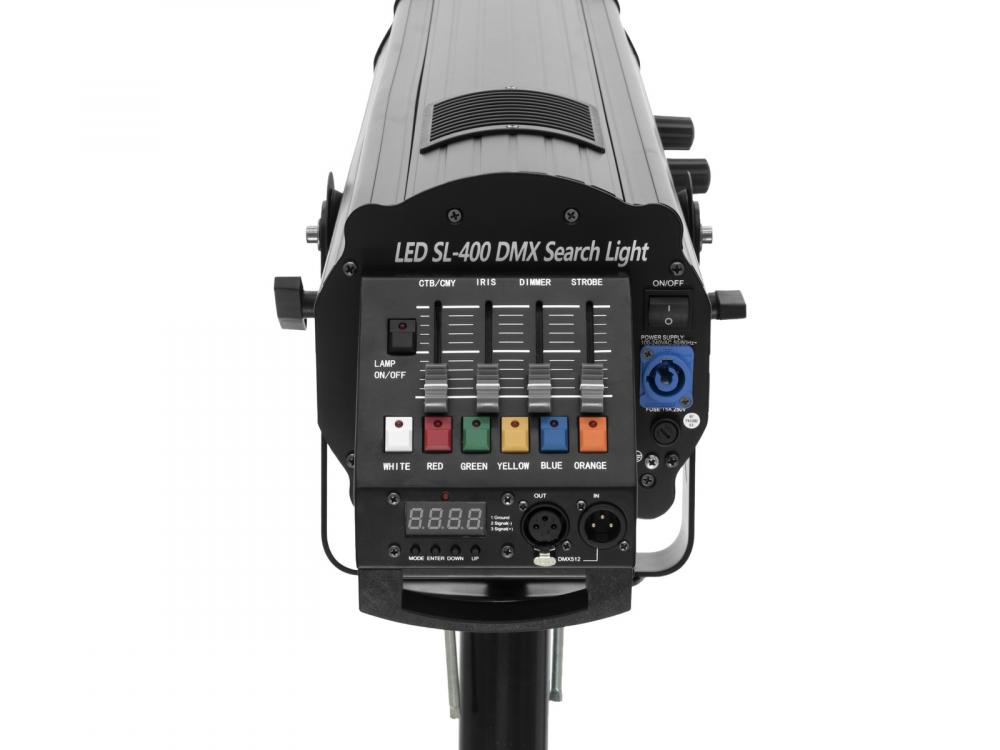

-Manual control via control panel with buttons and faders
-DMX addressing via LED display and four operating buttons
-Color wheel with 5 different, dichroic color filters and open
-Strobe effect with adjustable speed (1-20 flashes/sec.)
-Four correction filters: CTB, cyan, magenta, yellow
-Steplessly adjustable iris from 5-100%
-Dimmer for stepless adjustment of the light-output brightness between 0 % and 100 %
-Manual focus
-Manual zoom (from 7° to 13°)
-Mounting bracket for installation on a stand
-Equipped with 1 x 300 W LED
-Switch-mode power supply for operation between 100 and 240 volts
-Power connection via P-Con socket and included power cable
-Case color: Black
-Color rendering index (CRI) more than: 80 Ra
-Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided)
-Control: Stand-alone; DMX
-LED: 1 x COB (chip-on-board) 300 W WW (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
6 ch
control channels, max
6 ch
Electrical
power consumption watt, max
440.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
Mechanical
weight
12.00 kg
width
270.00 mm
height
290.00 mm
length
770.00 mm
Optical
beam angle/zoom, min
13.00 °
beam angle/zoom, max
7.00 °
light source
LED
light source color temperature
3500 K
color temperature, min
3500 K
color temperature, max
3500 K
Number of light sources
1 pcs
wattage per light source
300.00 W
WARM WHITE LED source
yes
shutter/strobe frequency, max
20 Hz
