EUROLITE LED SL-600 DMX Search Light

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED SL-600 DMX Search Light

Info
order code
51787330
product link
EAN
4026397625066
Product Name
EUROLITE LED SL-600 DMX Search Light
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX control channels: 5
DMX512 connection: 3-pin and 5-pin XLR
Flash-rate: 1-20 Hz
LED type: 600 W CW
Number of LEDs: 1
Color temperature: 6500 K
Beam angle: 7-13°
Dimensions (L x W x H): 1050 x 230 x 340 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Weight: 19 kg
Cooling fan: Yes
IP classification: IP20
Power consumption: 640 W
Lamp type: LED lamp
Beam angle: 7 - 13°
Height: 34 cm
Width: 23 cm
Length: 105 cm
Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M)
LED: 1 x COB (chip-on-board) 600 W CW (homogenous color mix)
DMX channels: 5
Power supply: 110-240 V AC, 50/60 Hz
main features
Follow spot with 600 W cold white LED for long distances, zoom, DMX
-Operable in manual mode or via DMX
-DMX512 control possible via any commercial DMX controller (occupies 5 channels)
-Suitable for a projection area from 50 to 120 meters

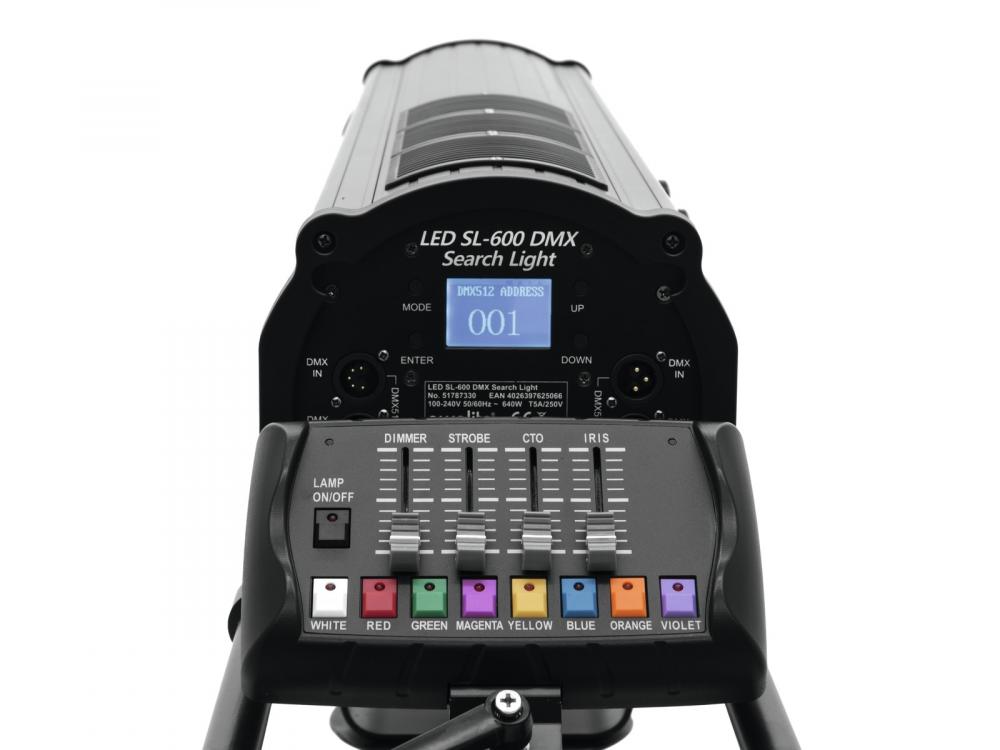

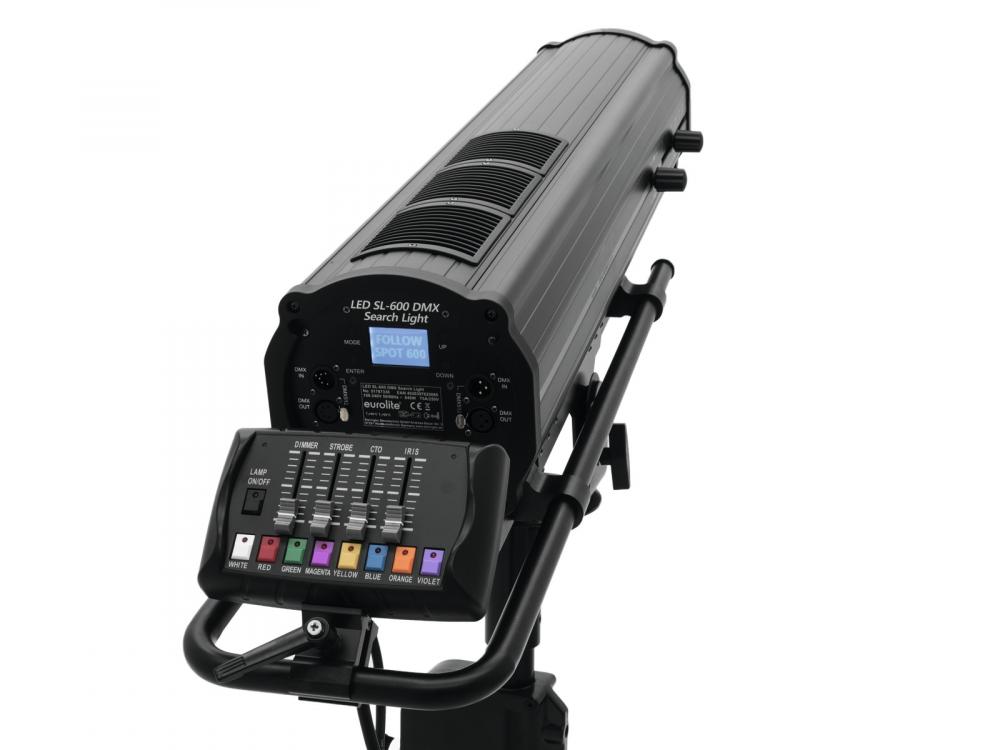

-Manual control via control panel with buttons and faders
-The control panel can be removed to mount laterally for easier operation of the control board with control buttons
-DMX addressing via LCD and four operating buttons
-Color wheel with 7 different, dichroic color filters and open
-Strobe effect with adjustable speed (1-20 flashes/sec.)
-Three color correction filters for a warmer color temperature
-Steplessly adjustable iris from 5-100%
-Dimmer for stepless adjustment of the light-output brightness between 0 % and 100 %

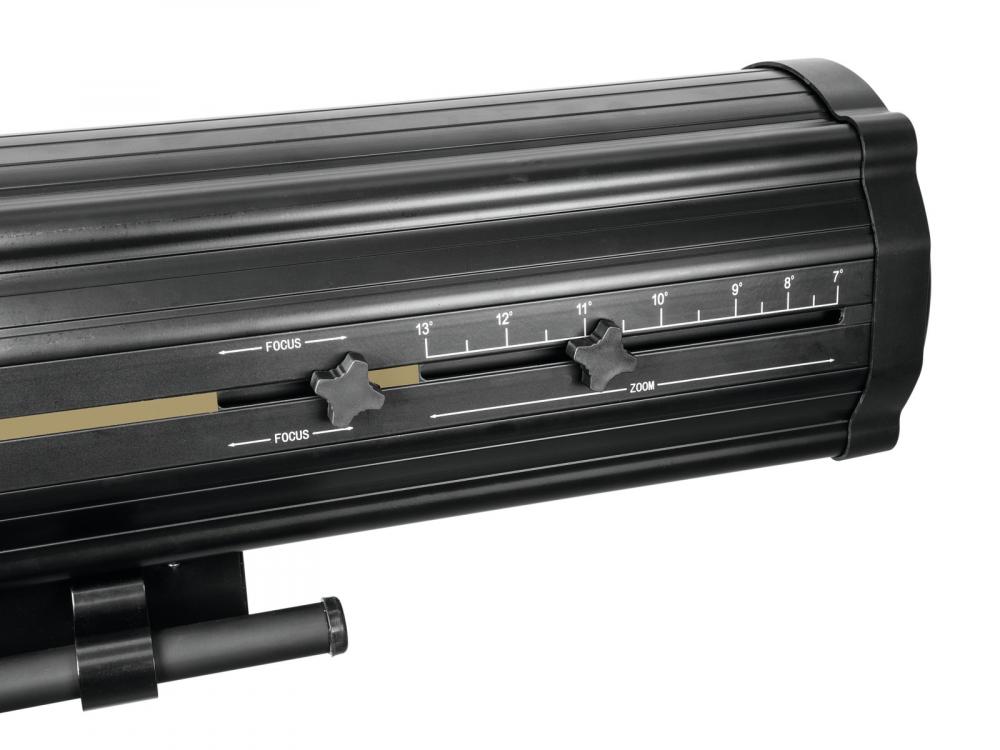

-Manual focus
-Manual zoom (from 7° to 13°)
-Mounting bracket for installation on a stand
-Equipped with 1 x 600 W LED
-Switch-mode power supply for operation between 100 and 240 volts
-Power connection via P-Con socket and included power cable
-Case color: Black
-Power connection: Mains Input Socket (M) Powercon (Power-In) blue Power supply cord with safety plug (M) (provided)
-Control: Stand-alone; DMX
-LED: 1 x COB (chip-on-board) 600 W CW (homogenous color mix)
Connectors
DMX connector types
5pin
Control
control channels, min
5 ch
control channels, max
5 ch
Electrical
power consumption watt, max
600.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
Powercon
cooling
active
Mechanical
weight
19.00 kg
width
230.00 mm
height
340.00 mm
length
1050.00 mm
Optical
beam angle/zoom, min
13.00 °
beam angle/zoom, max
7.00 °
light source
LED
light source color temperature
6500 K
color temperature, min
6500 K
color temperature, max
6500 K
Number of light sources
1 pcs
wattage per light source
600.00 W
shutter/strobe frequency, max
20 Hz

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00117888.pdf
