Info | |
---|---|
order code |
51860121
|
product link | |
EAN |
4026397588729
|
Product Name |

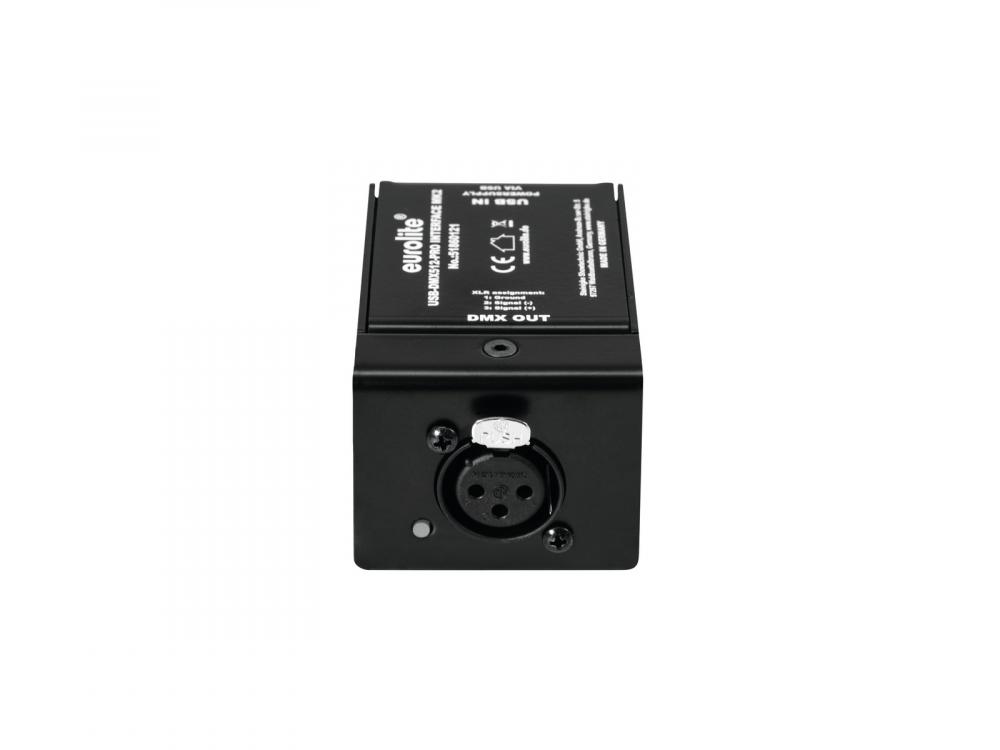

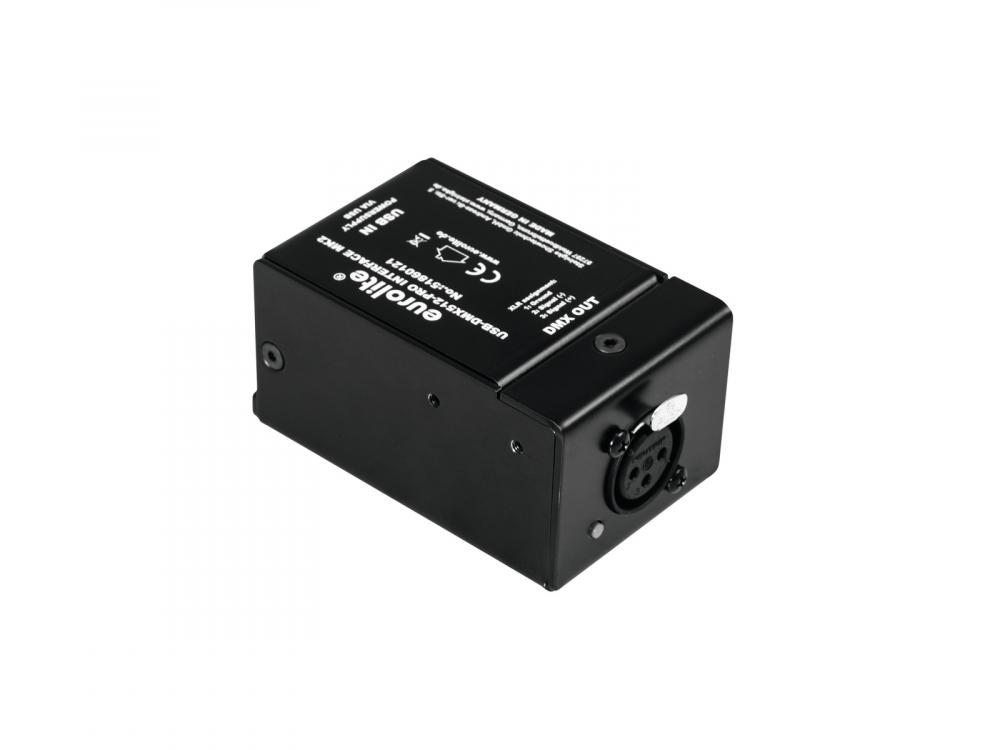

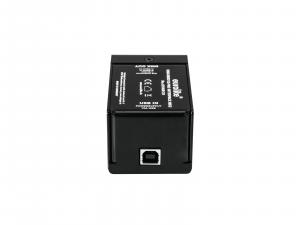

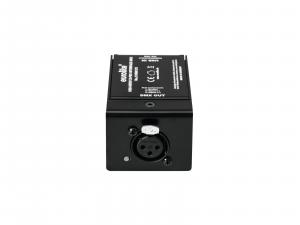

EUROLITE USB-DMX512 PRO Interface MK2
|
technical overview |
Power supply: 5 V DC via USB DMX512 output: 1 universe (512 channels) DMX connector: 3-pin XLR mounting socket USB port: USB 2.0 / USB 1.1, type B Output frequency: 44 Hz Dimensions (L x W x H): 80 x 42 x 50 mm Weight: 0,35 kg IP classification: IP20 Color: Black Height: 5 cm Depth: 4,2 cm Width: 8 cm DMX channels: 512 Power connection: Mains Input Socket (M) USB, type B Power supply cord for USB A mains connection Power supply: 5 V DC 500 mA |
main features |
USB DMX interface with integrated processor for steady DMX output -Pro USB DMX interface for controlling DMX devices with a computer -Works with FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) -Output of 512 DMX channels -Integrated CPU for steady DMX output -Windows 7, 8 and 10, Mac OS X, Linux -Connections: 3-pin XLR jack (Neutrik), USB 2.0/1.1 B -DMX output galvanically isolated against overvoltage -Powered via USB -Rugged metal body for use on stage -Including USB A/B cable 0.5 m -PC driver available for download at www.eurolite.de -PC connect: EUROLITE LED PC-Control 512 via USB -Power connection: Mains Input Socket (M) USB, type B Power supply cord for USB A mains connection (provided) -Controller useable for: Controls KLS in general; general mix of colors; Controls Moving Lights; Controls DMX effects; Luminaires for white -Control: DMX |
Control | |
control channels, min |
512 ch
|
control channels, max |
512 ch
|
Electrical | |
IP rating |
20
|
DC Volts, min |
5 V
|
DC Volts, max |
5 V
|
Mechanical | |
weight |
0.35 kg
|
width |
80.00 mm
|
height |
50.00 mm
|
length |
80.00 mm
|
color |
black
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00107793.pdf |
