Info | |
---|---|
order code |
51860158
|
product link | |
EAN |
4026397644234
|
Product Name |

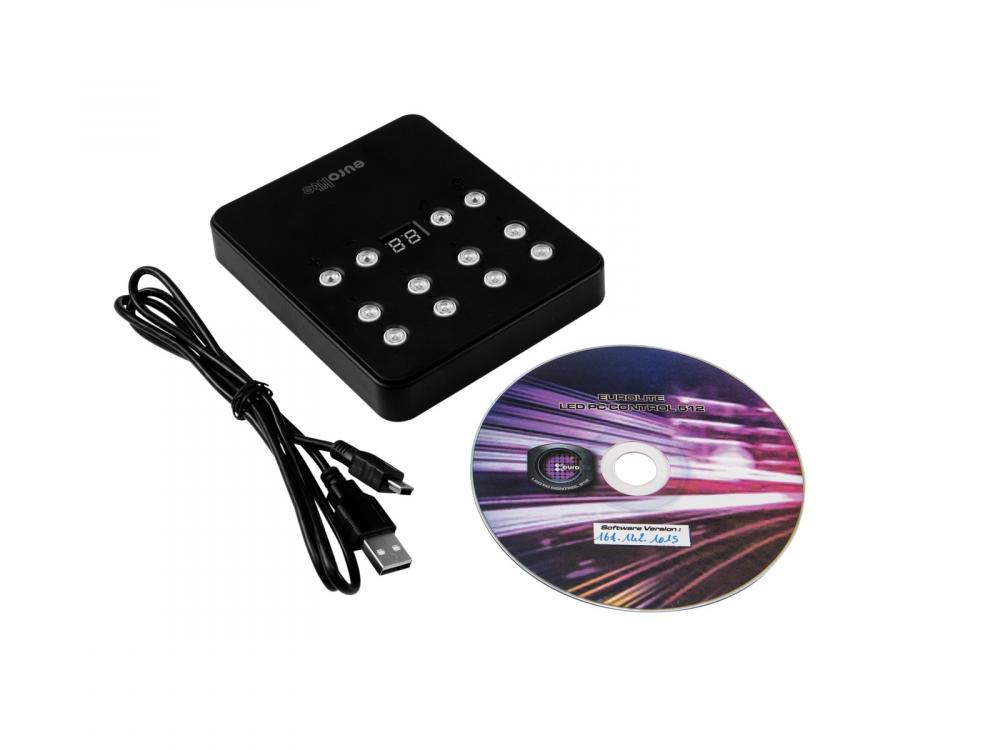

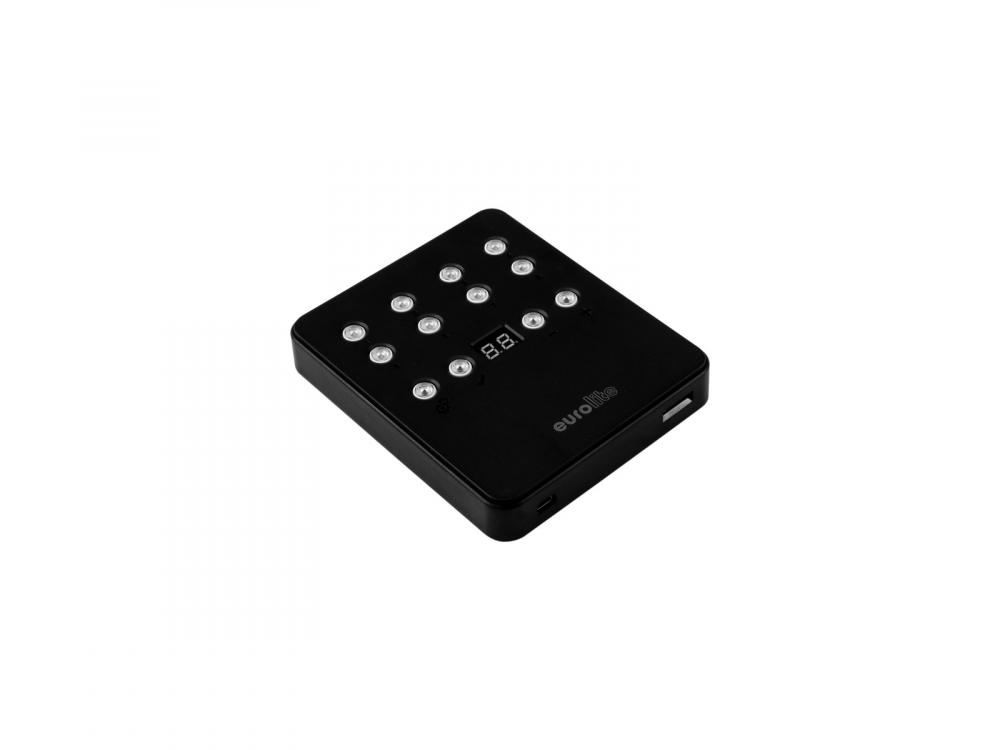

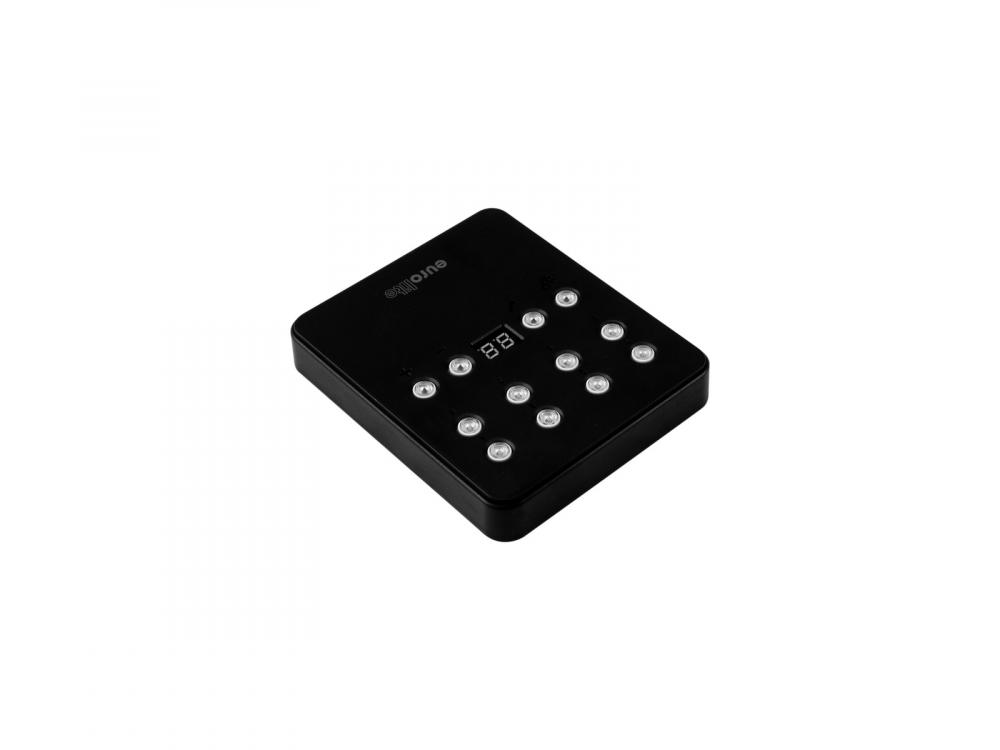

EUROLITE LED SAP-1024 Slim Standalone Player
|
technical overview |
Power supply: 9-36 V external or 5 V via USB DMX output: 1204 channels Dimensions (L x W x H): 127 x 110 x 19 mm Weight: 0,2 kg IP classification: IP20 Color: Black DMX channels: 1024 Power connection: Mains Input Socket (M) Mini USB (F) mounting version Power supply cord for USB A mains connection Width: 11 cm Depth: 12,7 cm Height: 1,9 cm |
main features |

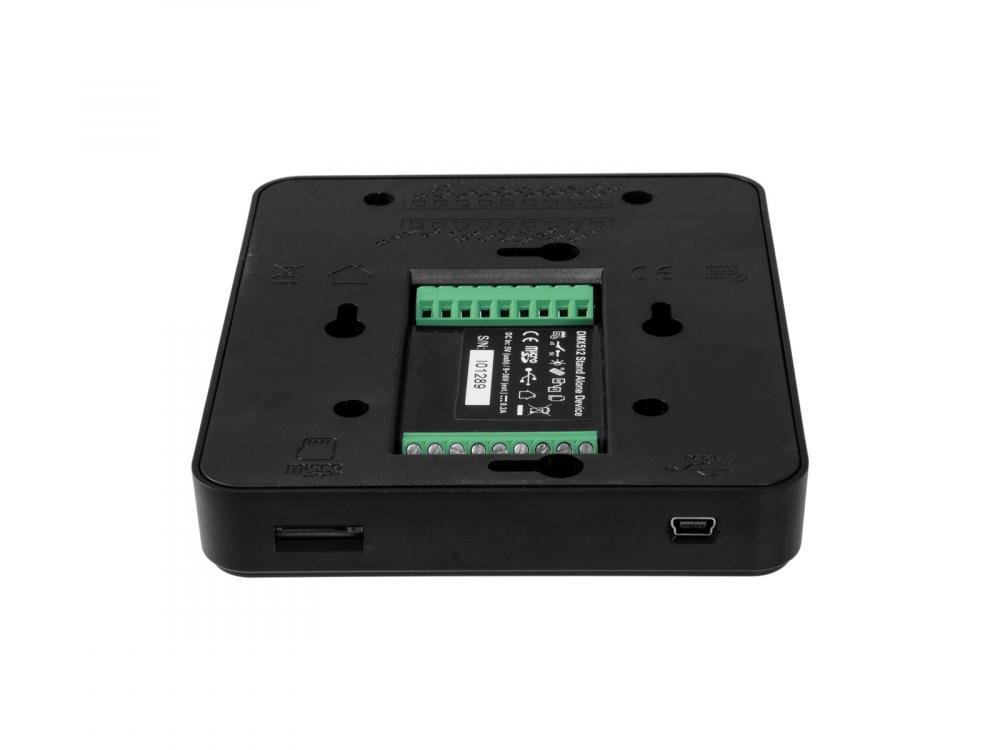

Stand-alone player incl. DMX control software PC-Control 1024 -Flat, wall-mounted stand-alone player for DMX control of light effects without the need for a computer -Incl. DMX control software PC-Control 1024 to program your shows -Ideal DMX512 software for all architectural and stage applications -Write a show in to the stand-alone memory of the player and play back sequences without a computer -Most user-friendly and affordable DMX software on the market -Flush mounting in customary 60 mm wall sockets -Screw terminals for all wire external connections (rear) -2 DMX universes -4 MB of internal memory (min. capacity: 4000 steps/512 channels) -10 illuminated trigger buttons -Scene selection with next and previous buttons -Speed and dimmer adjustment for each scene in stand-alone mode -Real-time clock triggering for each scene (day, week, month, year) -Applicable for serial connection of 16 players in Master/Slave mode -Automatic Scene Recovery if the power is accidently cut off -15 external contact closure triggering (4 wires multiplexed) -Mini USB 2.0 (input) -Windows XP, Vista, 7, 8, 8.1, 10, MAC OS X (10.6 and higher), Linux -PC connect: EUROLITE LED PC-Control 512 via USB -Power connection: Mains Input Socket (M) Mini USB (F) mounting version Power supply cord for USB A mains connection (provided) -Controller useable for: Controls Moving Lights; Controls DMX effects; Luminaires for white; Controls KLS in general; general mix of colors -Control: DMX |
Control | |
control channels, min |
1024 ch
|
control channels, max |
1024 ch
|
Electrical | |
AC Volts, min |
9 V
|
AC Volts, max |
36 V
|
IP rating |
20
|
Mechanical | |
weight |
0.20 kg
|
width |
110.00 mm
|
height |
19.00 mm
|
length |
127.00 mm
|
color |
black
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00096591.pdf |
