Info | |
---|---|
order code |
70063802
|
product link | |
EAN |
4026397568035
|
Product Name |

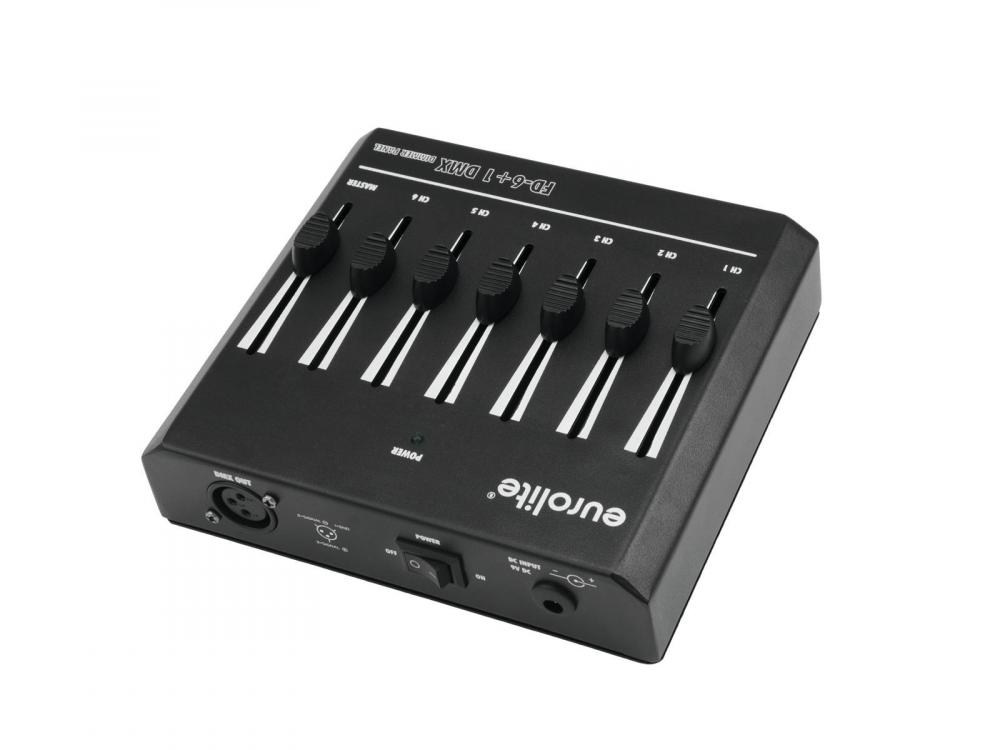

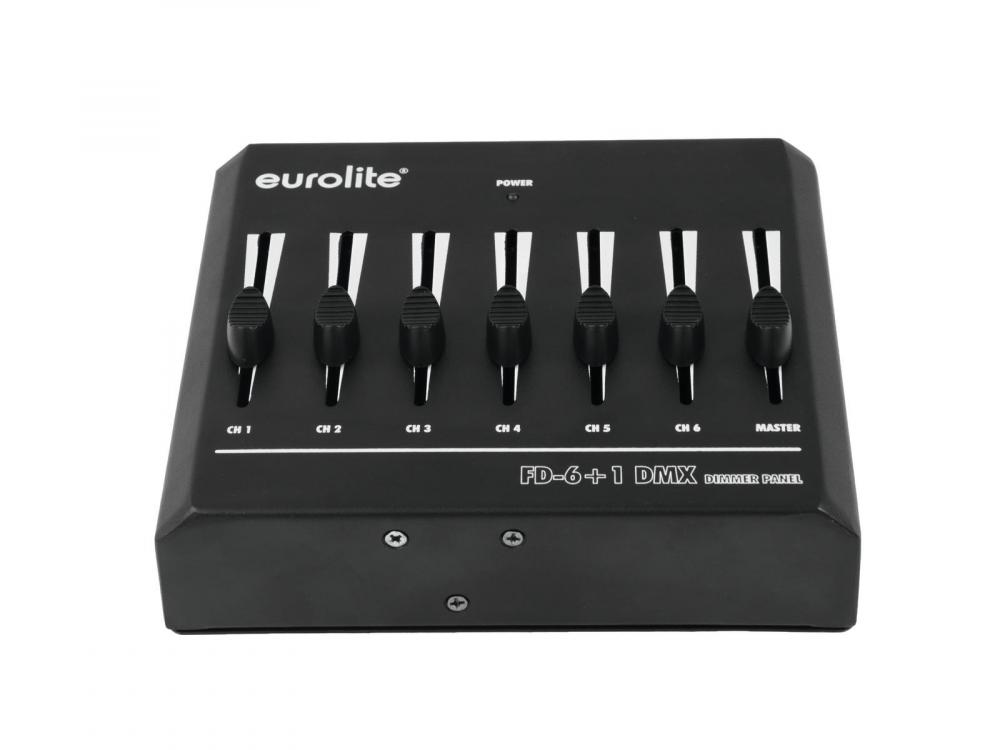

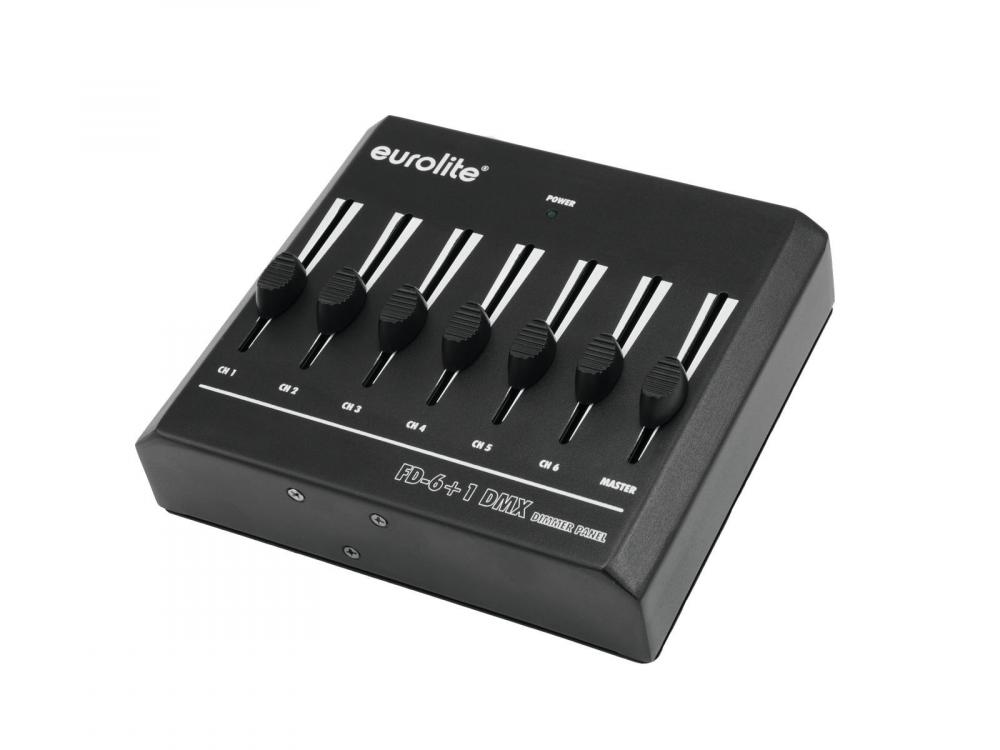

EUROLITE FD-6+1 DMX Dimmer Panel
|
technical overview |

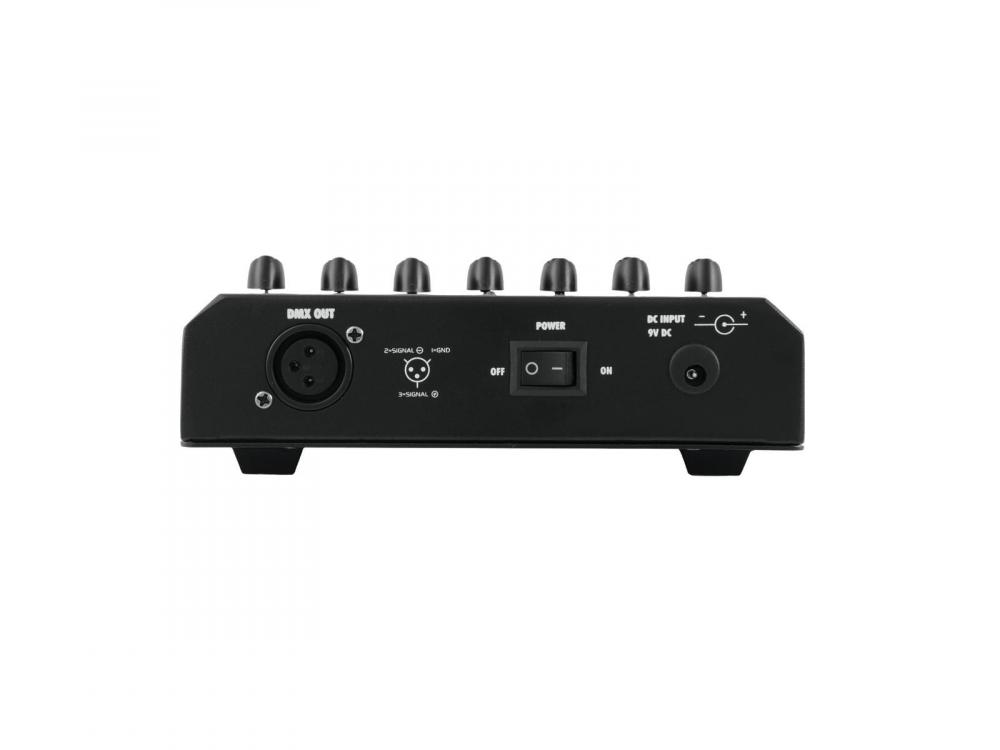

Power supply: 100-240 V AC, 50/60 Hz via included power unit Battery operation: 9 V battery Number of control channels: 6 DMX512 output: 3-pin XLR connector Dimensions (L x W x H): 170 x 155 x 60 mm Weight: 0,98 kg Power consumption: 1,8 W IP classification: IP20 Color: Black Height: 6 cm Depth: 15,5 cm Width: 17 cm DMX channels: 6 Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) Power supply: 110-240 V AC, 50/60 Hz |
main features |

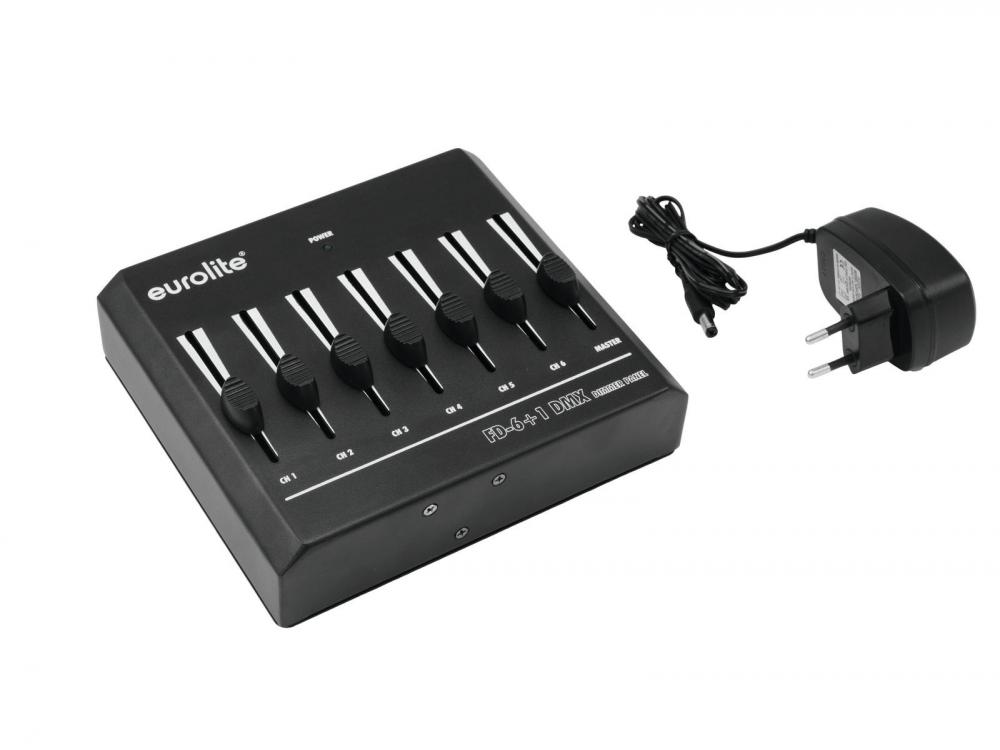

Basic DMX controller for 6 channels with master fader -Basic DMX controller for convenient operation of light effect units with DMX512 interface (e.g. spotlights and dimmers) -6 channel faders for adjusting the DMX values -1 master fader -Compact design -3-pin XLR connector -Power supply via included power unit or 9 V battery (not included) -Case color: Black -Housing design: Desktop console -Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided) -Controller useable for: Luminaires up to 6 LED colors; Controls DMX effects; Luminaires for white -Control: DMX |
Control | |
control channels, min |
6 ch
|
control channels, max |
6 ch
|
Electrical | |
power consumption watt, max |
1.80 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
external PSU |
yes
|
Mechanical | |
weight |
0.98 kg
|
width |
170.00 mm
|
height |
60.00 mm
|
length |
170.00 mm
|
color |
black
|
