Power supply: 230 V AC, 50 Hz
via 12 V DC, 500 mA power unit included in the delivery
Number of control channels: 24
Sound-control: via built-in microphone or
RCA line input (min. 100 mV)

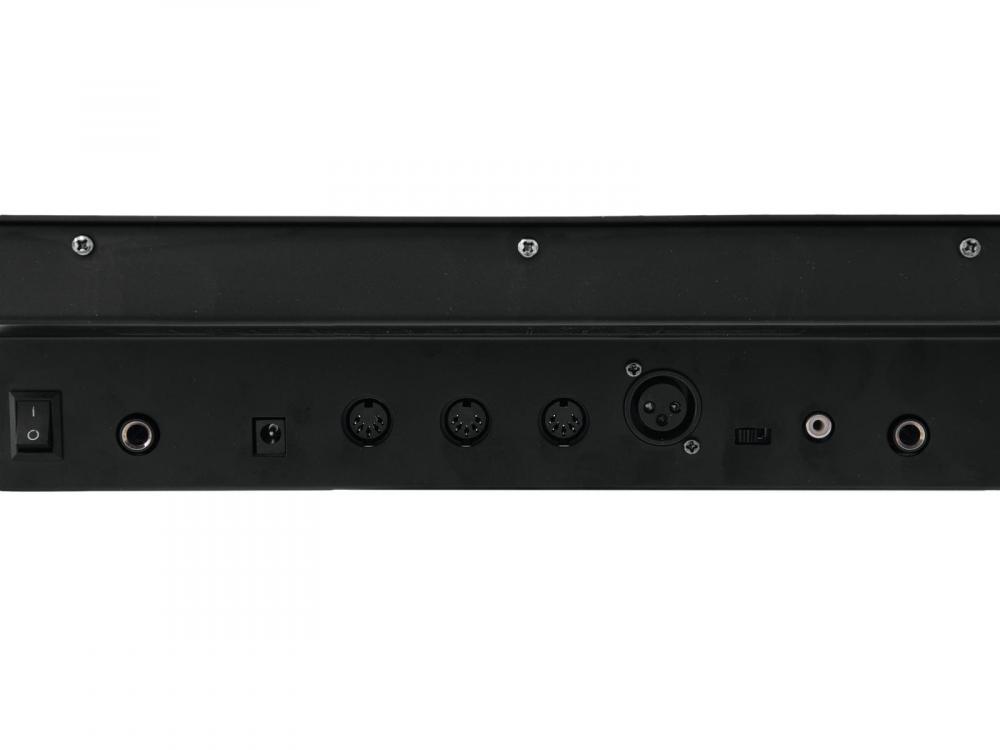

DMX512 output: 3-pin XLR connector with polarity selector
Dimensions (L x W x H): 483 x 264 x 90 mm
Rack installation with 6 U
Minimum mounting depth: 80 mm
Power consumption: 4,00 W
Weight: 4,00 kg
IP classification: IP20
Color: Black
Height: 8,9 cm
Depth: 26,4 cm
Width: 48,3 cm
DMX channels: 24
Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m)
Power supply: 230 V AC, 50 Hz

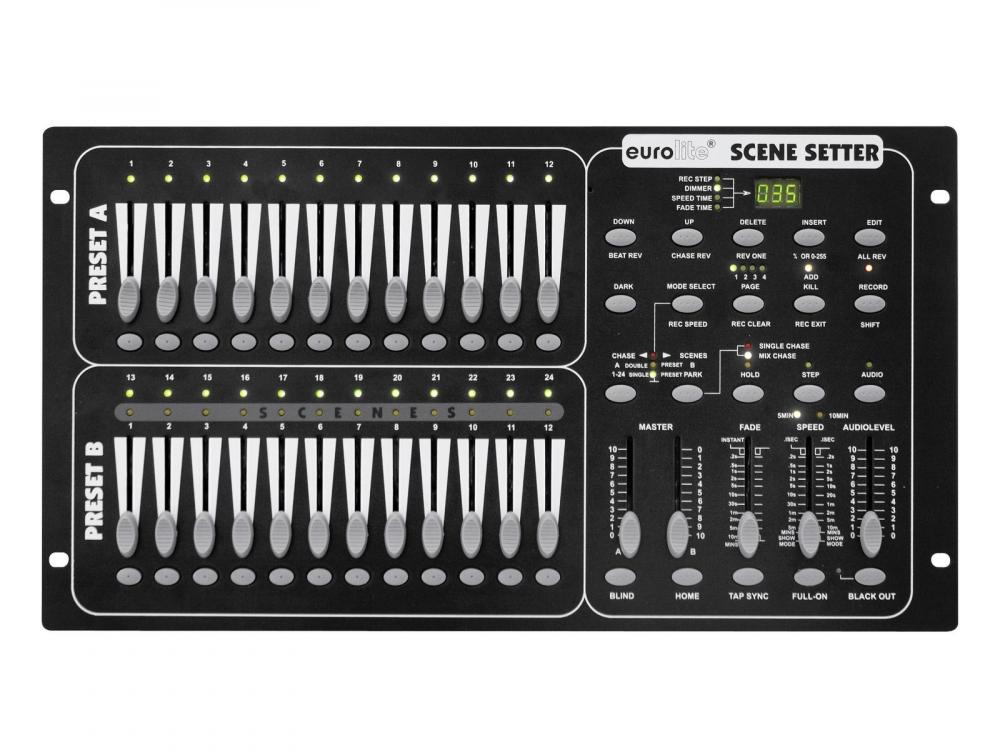

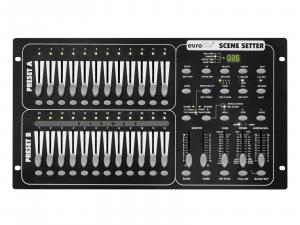

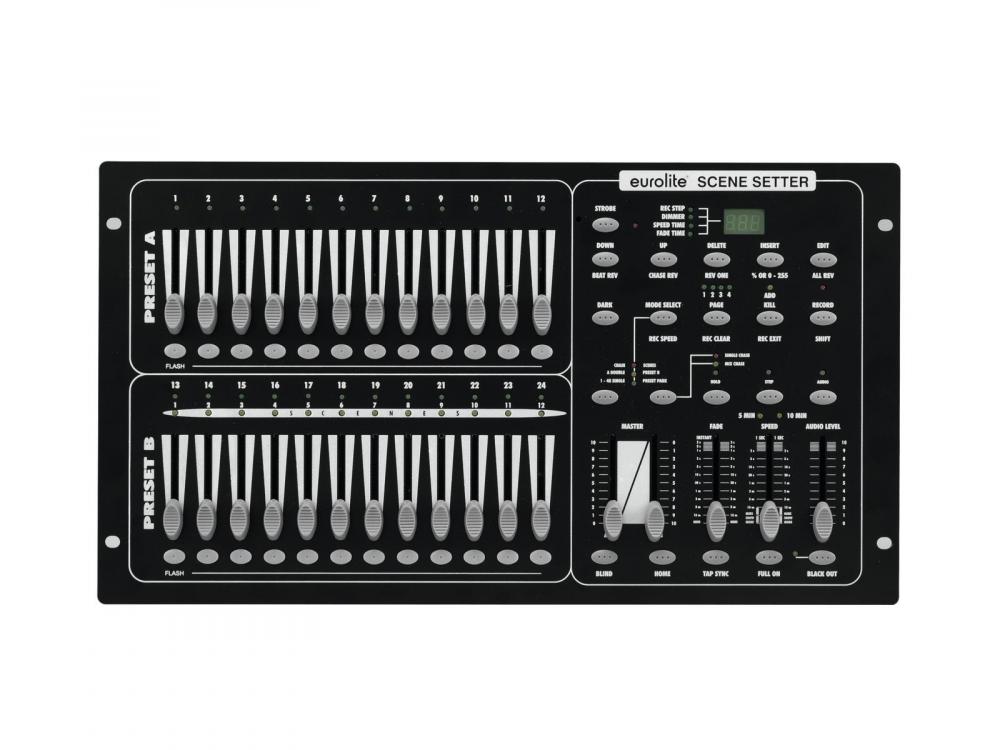

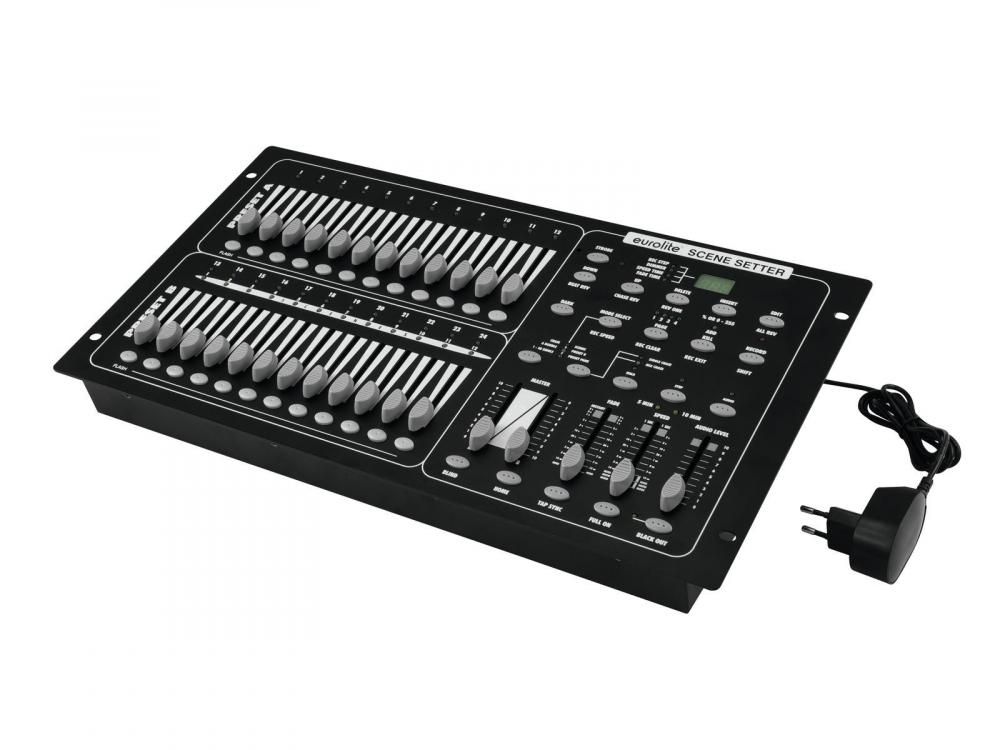

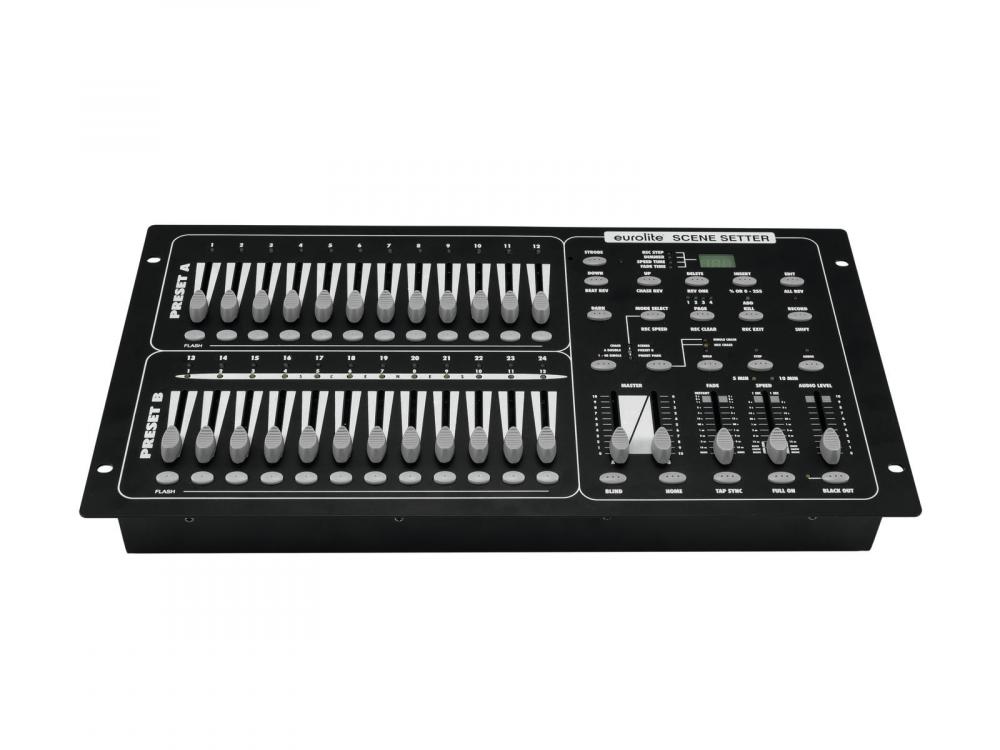

Theater light console for 24 DMX channels, brightness control for each scene
-24 control channels
-48 memorizable programs via 4 pages
-12 scenes can be called up directly via the faders
-Blackout function
-Mix and single chase function
-Blind/home function
-Sound control via built-in microphone or via line input
-Supports standard MIDI
-3-pin XLR connector with polarity selector
-Footswitch control possible
-Desktop console
-Rack installation with 6 units
-Case color: Black
-Housing design: (19") 48,3 cm rack installation
-Height unit: 6 U
-Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
-Controller useable for: general mix of colors; Controls KLS in general; Controls DMX effects; Luminaires for white
-Control: DMX
