Info | |
---|---|
order code |
70064545
|
product link | |
EAN |
4026397656701
|
Product Name |

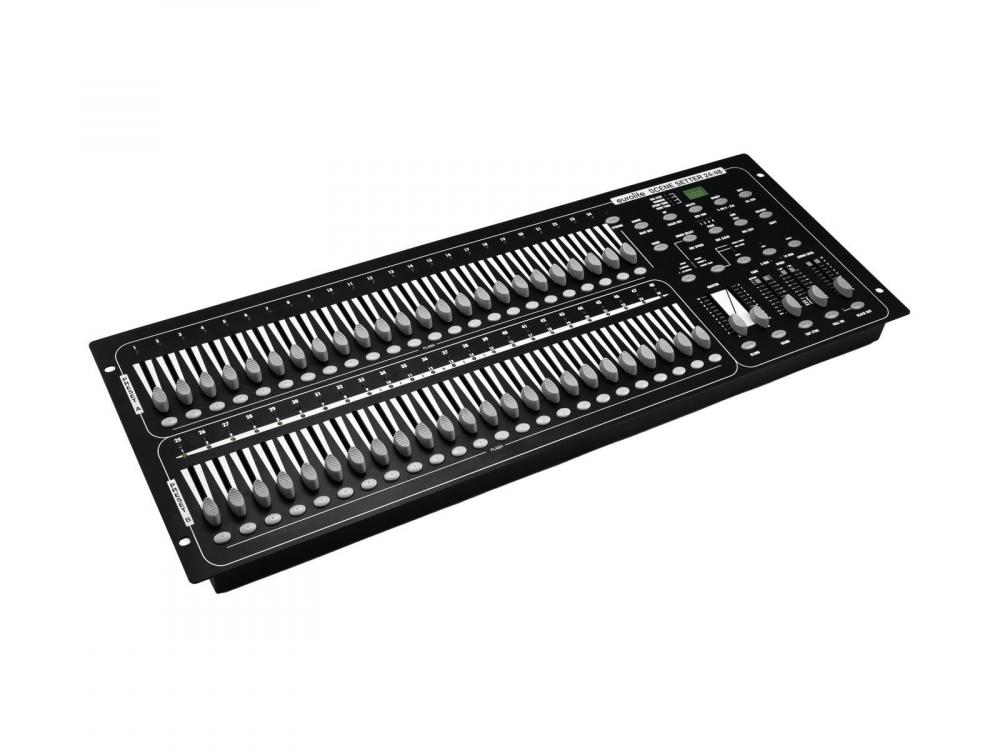

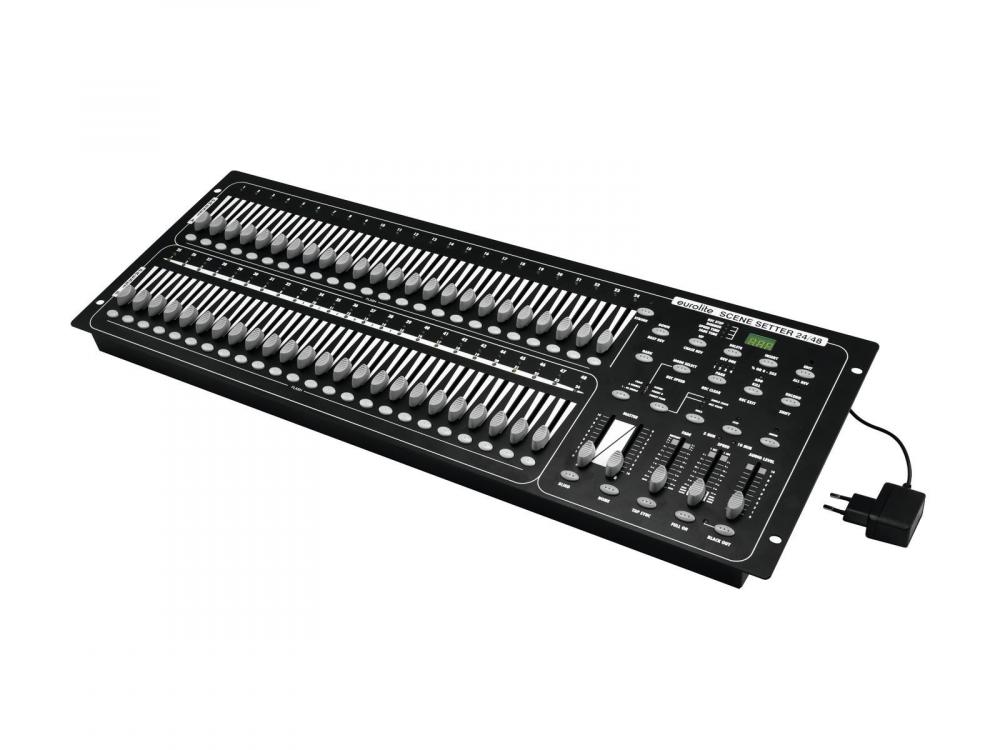

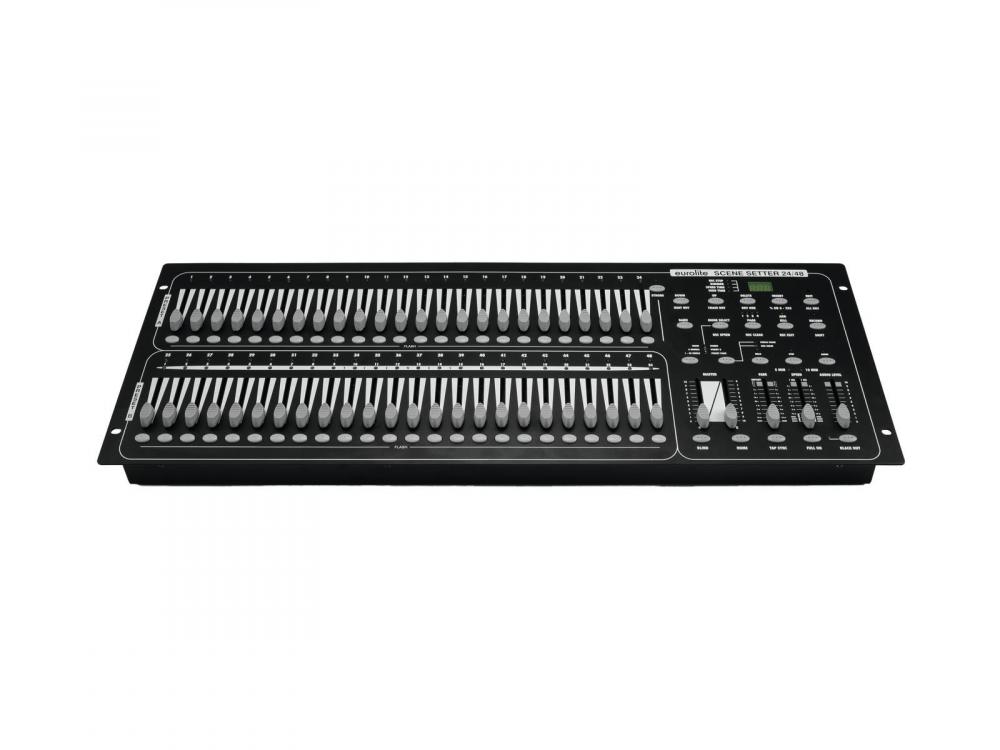

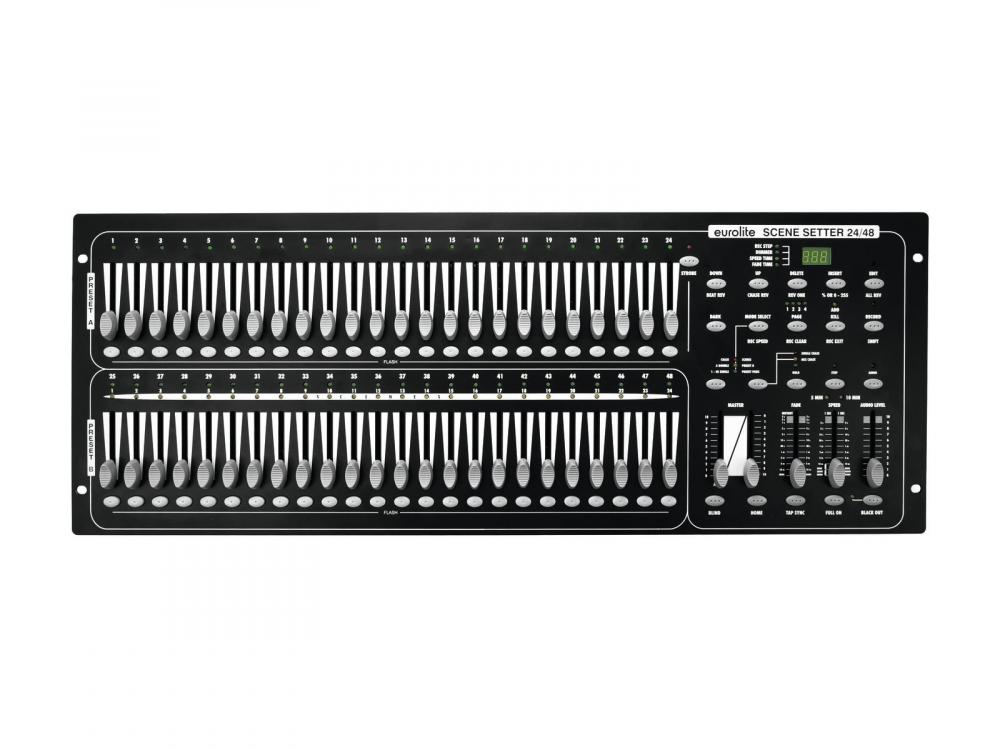

EUROLITE DMX Scene Setter 24/48
|
technical overview |

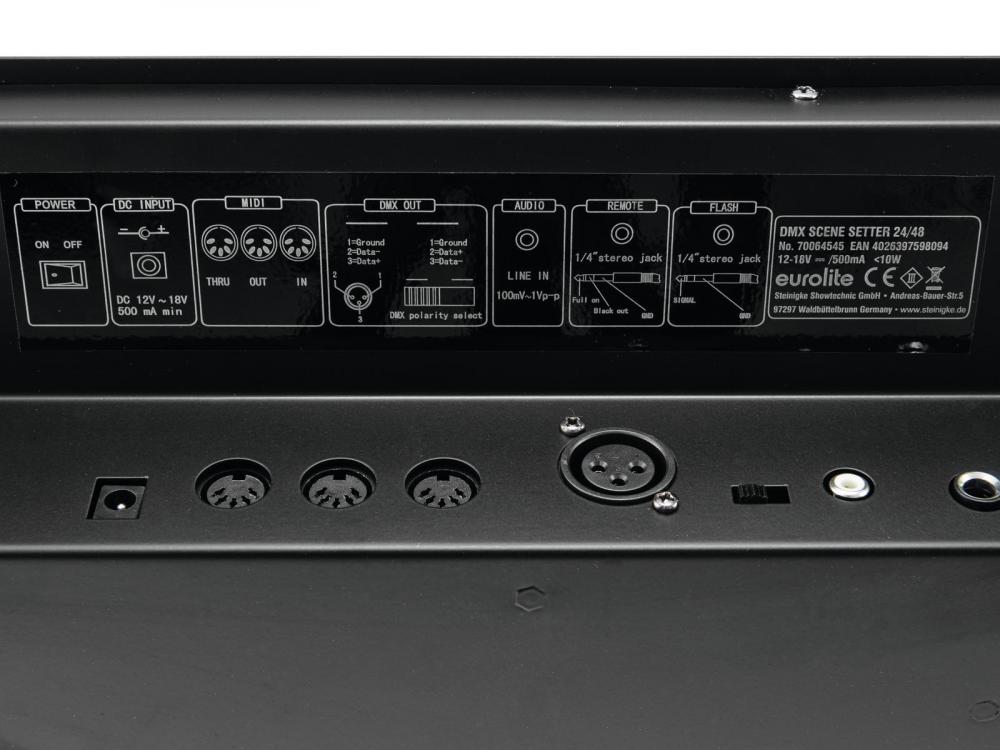

Power supply: 230 V AC, 50 Hz via 12 V DC, 500 mA power unit included in the delivery Number of control channels: 48 Sound-control: via built-in microphone or RCA line input (min. 100 mV) DMX512 output: 3-pin XLR connector with polarity selector Dimensions (L x W x H): 710 x 264 x 90 mm Rack installation with 6 U Power consumption: 8,00 W Weight: 5,60 kg IP classification: IP20 Color: Black Height: 9 cm Depth: 26,4 cm Width: 71 cm DMX channels: 48 Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) Power supply: 230 V AC, 50 Hz |
main features |
Theater light console for 48 DMX channels, brightness control for each scene -48 control channels -96 memorizable programs via 4 pages -24 scenes can be called up directly via the faders -Blackout function -Mix and single chase function -Blind/home function -Sound control via built-in microphone or via line input -Supports standard MIDI -3-pin XLR connector with polarity selector -Footswitch control possible -Desktop console -Rack installation (27") with 6 units -Case color: Black -Height unit: 6 U -Housing design: (19") 48,3 cm rack installation -Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided) -Controller useable for: general mix of colors; Controls KLS in general; Controls DMX effects; Luminaires for white -Control: DMX |
Control | |
control channels, min |
48 ch
|
control channels, max |
48 ch
|
Electrical | |
power consumption watt, max |
8.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
IP rating |
20
|
external PSU |
yes
|
Mechanical | |
weight |
5.60 kg
|
width |
264.00 mm
|
height |
90.00 mm
|
length |
710.00 mm
|
color |
black
|
height in rack-units |
6 U
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00108808.pdf |
