Info | |
---|---|
order code |
70064575
|
product link | |
EAN |
4026397617023
|
Product Name |

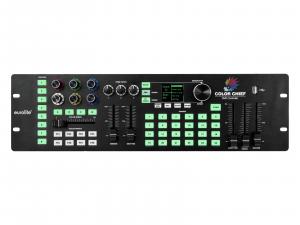

EUROLITE DMX LED Color Chief Controller
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz via included power adapter (9 V/800 mA) Control channels: maximum 240 Storable scenes/chases: 24 DMX512 output: 3-pin XLR connector Sound-control: via built-in microphone or RCA line input (min. 100 mV) Available storage media: USB devices (FAT32) Dimensions (L x W x H): 482 x 132 x 85 mm Rack installation with 3 U Weight: 2,2 kg Power consumption: 10 W IP classification: IP20 Color: Black Height: 8,5 cm Depth: 13,35 cm Width: 48,3 cm DMX channels: 240 Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) Power supply: 110-240 V AC, 50/60 Hz |
main features |
DMX lighting desk with innovative control concept for LED spotlights -Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects -For 8 devices or device groups, each with up to 4 segments -Each device can occupy up to 30 channels -Quick and easy programming -Eurolite KLS systems and LED spotlights already in the library -Additional fixtures can be configured manually -8 color effects directly selectable -3 additional channels available per fixture (e.g. for rotations) -Color wheel selection and simulation -24 memory spaces for scenes and chases -Several chases can be run simultaneously -USB port for data storage of lighting programs -Sound control via audio signal or TAP button -Master dimming, fade time and run time easily adjustable -Very simple to program and use -3-pin XLR connector -Firmware update via USB -Desktop console -Rack installation with 3 units -Case color: Black -Housing design: (19") 48,3 cm rack installation -Height unit: 3 U -Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided) -Controller useable for: Luminaires up to 6 LED colors; Controls KLS in general; Controls DMX effects; Luminaires for white -Control: DMX |
Control | |
control channels, min |
240 ch
|
control channels, max |
240 ch
|
Electrical | |
power consumption watt, max |
10.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
external PSU |
yes
|
Mechanical | |
weight |
2.20 kg
|
width |
483.00 mm
|
height |
85.00 mm
|
length |
482.00 mm
|
height in rack-units |
3 U
|
