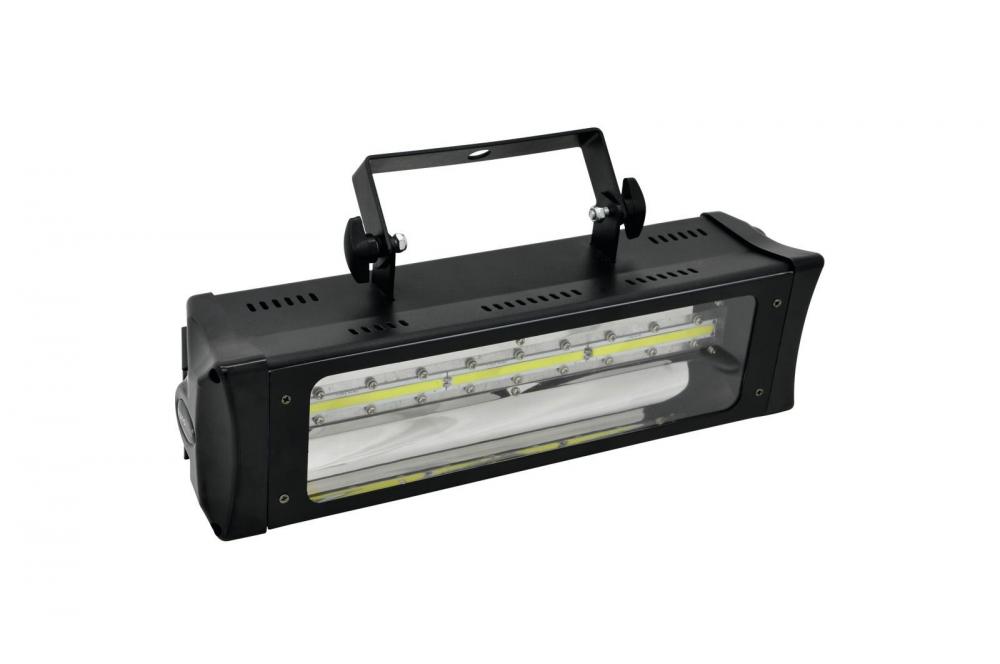

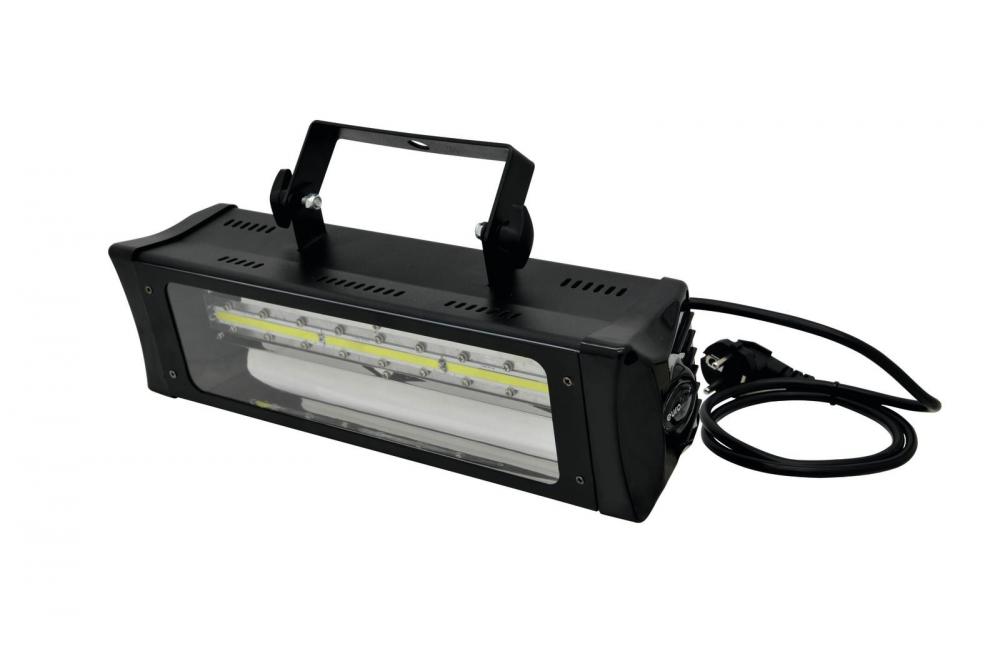

EUROLITE LED Strobe COB PRO DMX

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED Strobe COB PRO DMX

Info
order code
52200890
product link
EAN
4026397429701
Product Name
EUROLITE LED Strobe COB PRO DMX
technical overview
Power supply: 230 V AC, 50 Hz
DMX channels: 2
DMX connection: 3-pin XLR
Flash-rate: 1-12 Hz
Sound-control: via built-in microphone
LED type: 3 W Array
LED number: 3
Dimensions: 380 x 120 x 180 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Weight: 1,8 kg
Power consumption: 80 W
Lamp type: LED
Height: 18 cm
Depth: 12 cm
Width: 38 cm
Power connection: Fix Power supply cord with safety plug (M)
DMX channels: 2; 3; 4; 5; 7; 9; 18; 22

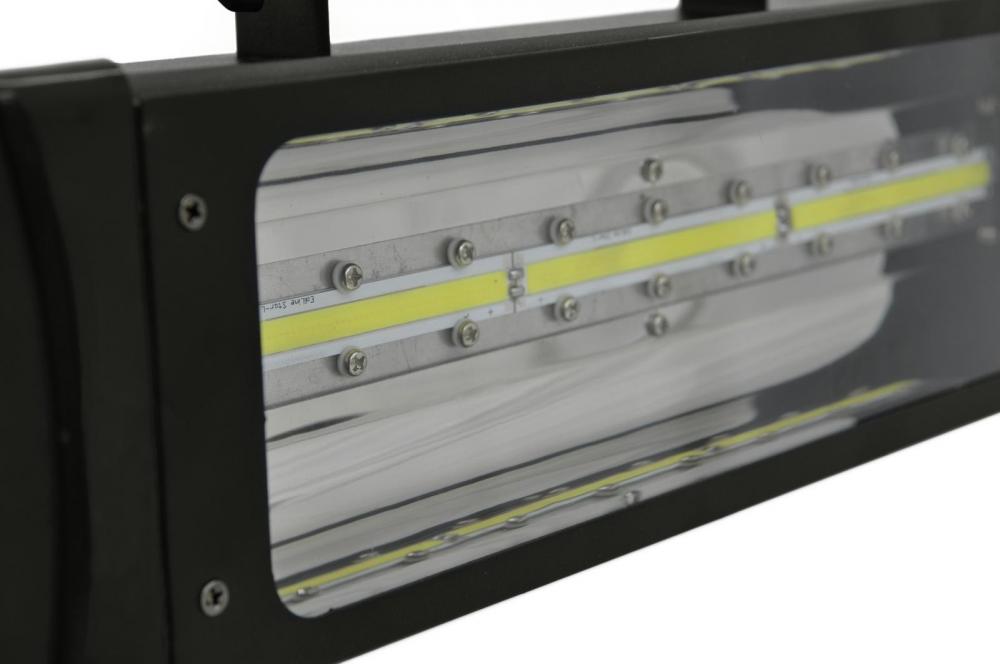

LED: 3 x COB (chip-on-board) 3 W CW (homogenous color mix)
Power supply: 230 V AC, 50 Hz
main features
Strobe with 3 x 3 W COB LED and adjustable flash freuquency
-Equipped with three powerful 3 W Arrays
-DMX512 standard control (2 channels: brightness and flash rate)
-Brightness and flash-rate via rotary-control
-Brightness steplessly adjustable (0-100%)
-Flash-rate steplessly adjustable (1-12 flashes/sec)
-DMX starting address adjustable via DIP switches
-Sound control via built-in microphone
-Elaborate reflector system
-With 3-pin XLR-connection
-Connector for analog controller
-Strobe color: White
-Effect: Strobe effect
-Power connection: Fix Power supply cord with safety plug (M)
-Control: Stand-alone; DMX
-LED: 3 x COB (chip-on-board) 3 W CW (homogenous color mix)

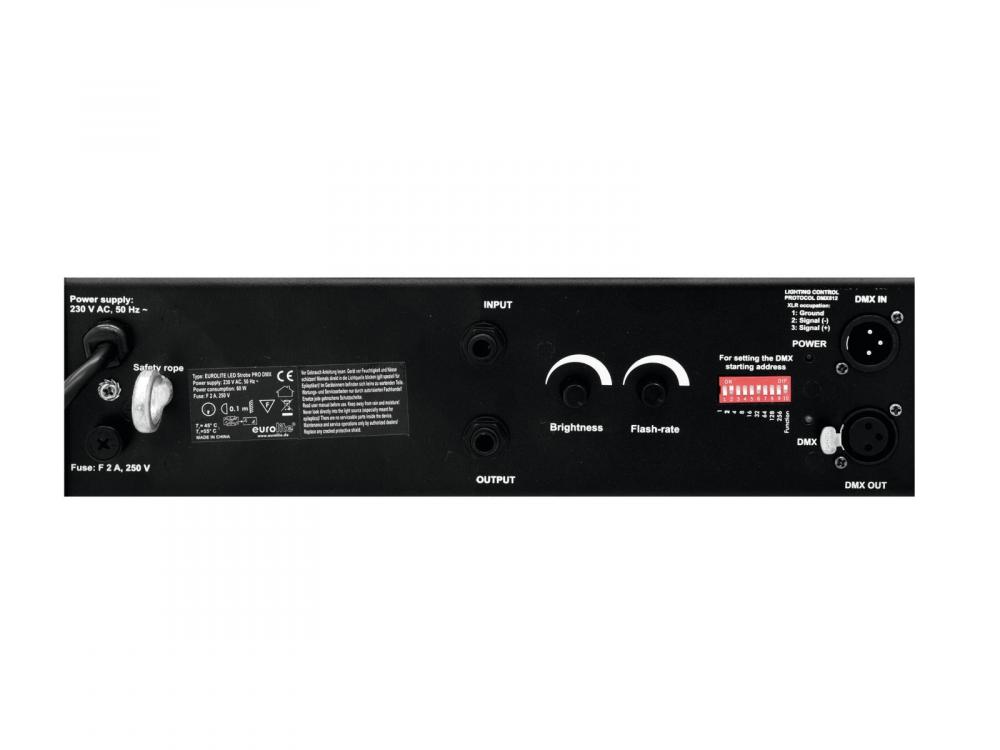

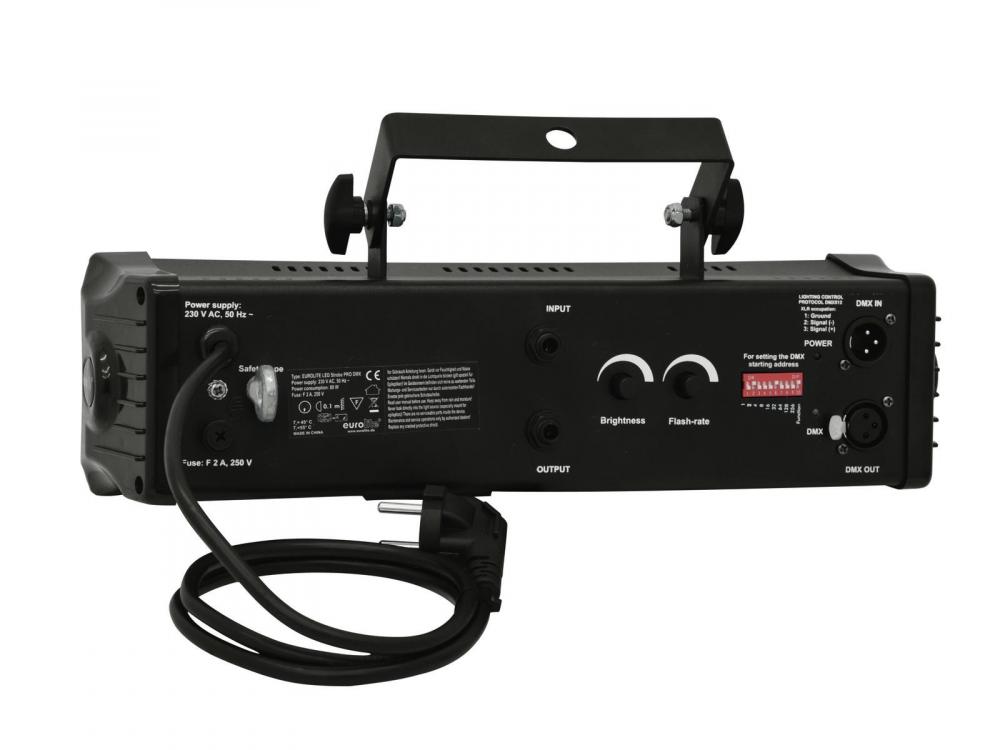

Connectors
DMX connector types
3pin
Control
control channels, min
2 ch
control channels, max
22 ch
Electrical
power consumption watt, max
3.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
power input connector
fixed
Mechanical
weight
1.80 kg
width
120.00 mm
height
180.00 mm
length
120.00 mm
Optical
light source
LED
Number of light sources
3 pcs
wattage per light source
3.00 W
shutter/strobe frequency, max
12 Hz

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00063725.pdf
