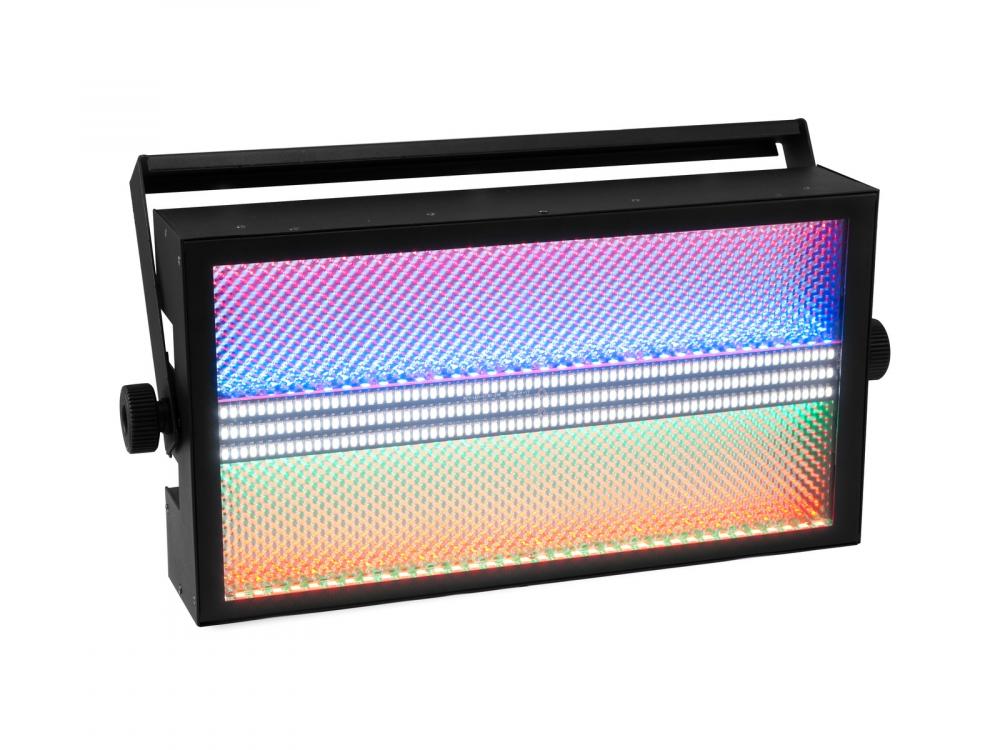

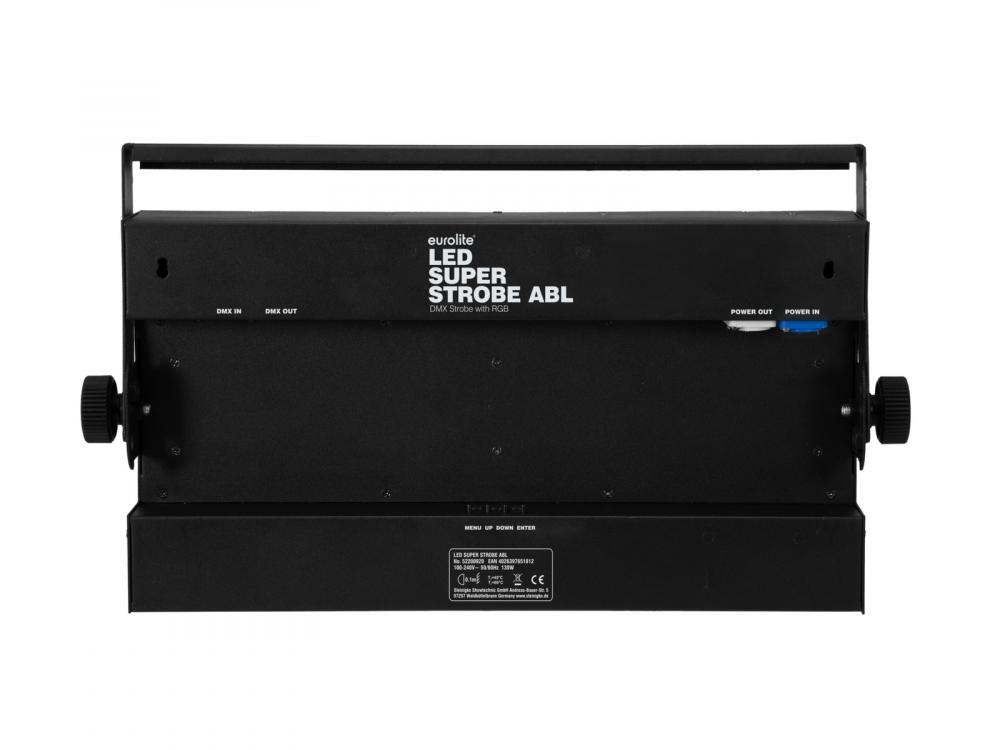

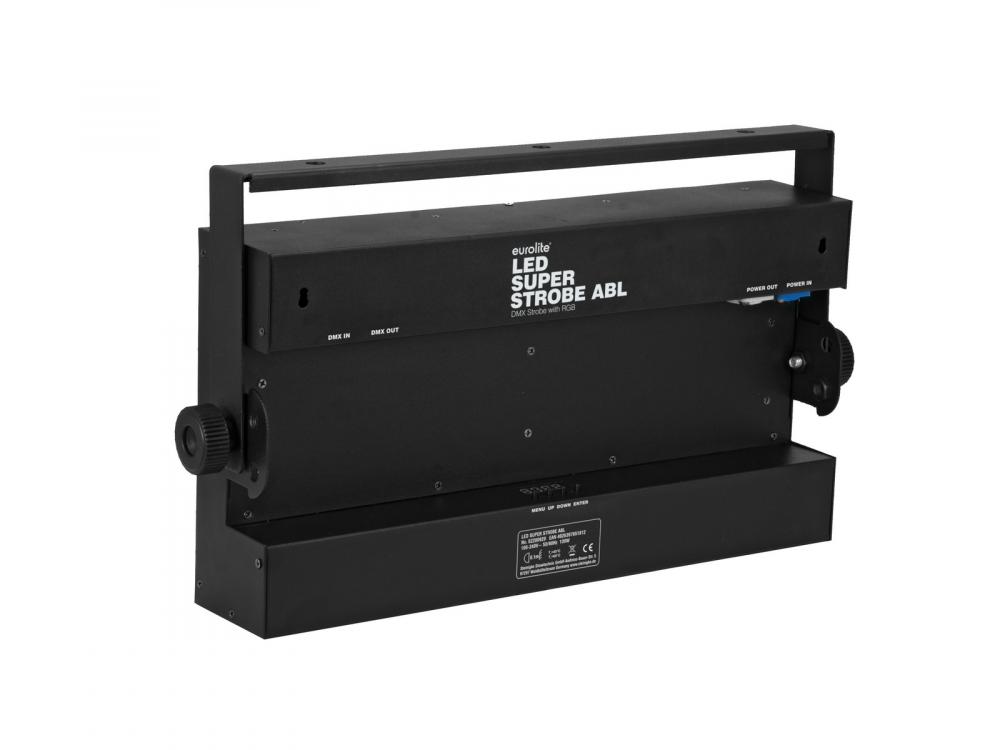

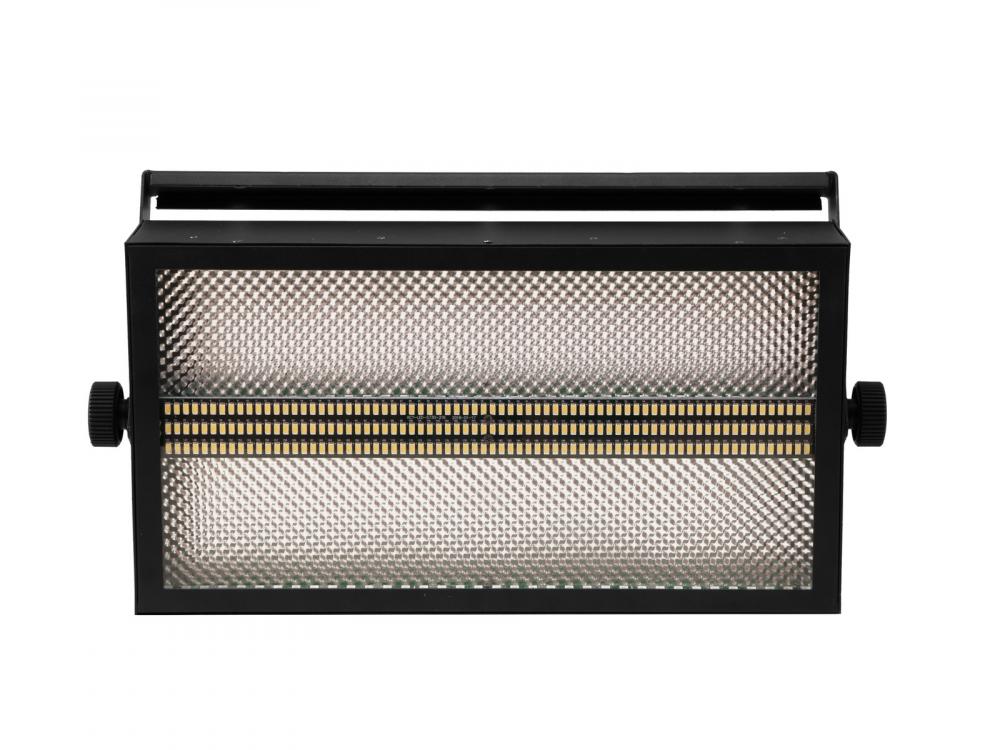

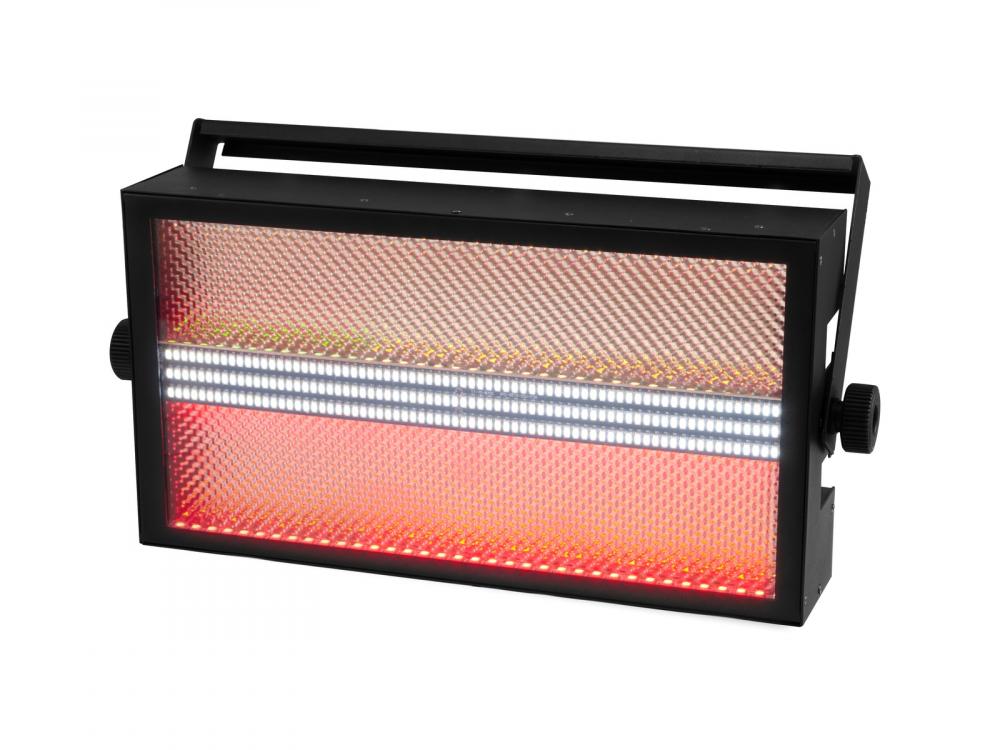

EUROLITE LED Super Strobe ABL

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED Super Strobe ABL

Info
order code
52200920
product link
EAN
4026397651812
Product Name
EUROLITE LED Super Strobe ABL
technical overview
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 130 W
Number of DMX channels: 7/13/22/148
DMX512 connection: 3-pin XLR
Sound-control: via built in microphone
LED type: 144 x SMD 5050, RGB
216 x SMD 5730, cold white
Number of LEDs: 360
Beam angle: 120°
Dimensions (LxWxH): 80 x 455 x 255 mm
Weight: 3.5 kg
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
DMX channels: 7
Width: 45,5 cm
DMX channels: 13; 22; 148
Depth: 8 cm
Weight: 3,94 kg
Height: 25,5 cm
main features
3in1 LED effect light with RGB color mixing
-3 effects in one device: strobe, blinder and ambient light
-216 cold white LEDs (SMD 5730) for fast, dynamic strobe effects
-144 additional RGB LEDs (SMD 5050) create a pleasant mood light
-Individual control of RGB and cold white LEDs in DMX mode
-RGB LEDs controllable in 1 or 48 segments depending on the DMX mode
-Auto, music, master/slave and DMX mode
-17 built-in auto and music chase programs
-Flash rate 20 Hz
-Stepless RGB color mixing
-Dimmer
-Addressing and setting via control panel with 4-digit LED display
-Sound-control via built-in microphone with adjustable microphone sensitivity
-DMX512 control possible via any commercial DMX controller
-7, 13, 22 or 148 DMX channels selectable
-Flat metal housing with integrated wall holders
-Swivel mounting bracket
-Power connection via P-Con jack and included power cable with safety plug
-Feed-through output allows to power up to 8 devices
-Effect: Strobe effect
-Projection: flicker-free
Connectors
DMX connector types
3pin
Control
control channels, min
13 ch
control channels, max
148 ch
Electrical
power consumption watt, max
130.00 W
AC Volts, min
100 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
Mechanical
weight
3.94 kg
width
455.00 mm
height
255.00 mm
length
80.00 mm
Optical
beam angle/zoom, min
120.00 °
beam angle/zoom, max
120.00 °
Number of light sources
360 pcs
RED light source
yes
GREEN light source
yes
BLUE light source
yes
