EUROLITE LED SLS-98 Strobe SMD

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED SLS-98 Strobe SMD

Info
order code
52201092
product link
EAN
4026397613346
Product Name
EUROLITE LED SLS-98 Strobe SMD
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 4/9
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
Flash-rate: 20 Hz
LED number: 98
LED type: 0.5 W (SMD 5030), 5900 K
Dimensions (L x W x H): 120 x 215 x 245 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Weight: 1 kg
Power consumption: 24 W
Lamp type: LED
Height: 24,5 cm
Depth: 12 cm
Width: 21,5 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels: 4; 9
LED: 98 x SMD CW (homogenous color mix)
Power supply: 110-240 V AC, 50/60 Hz
main features

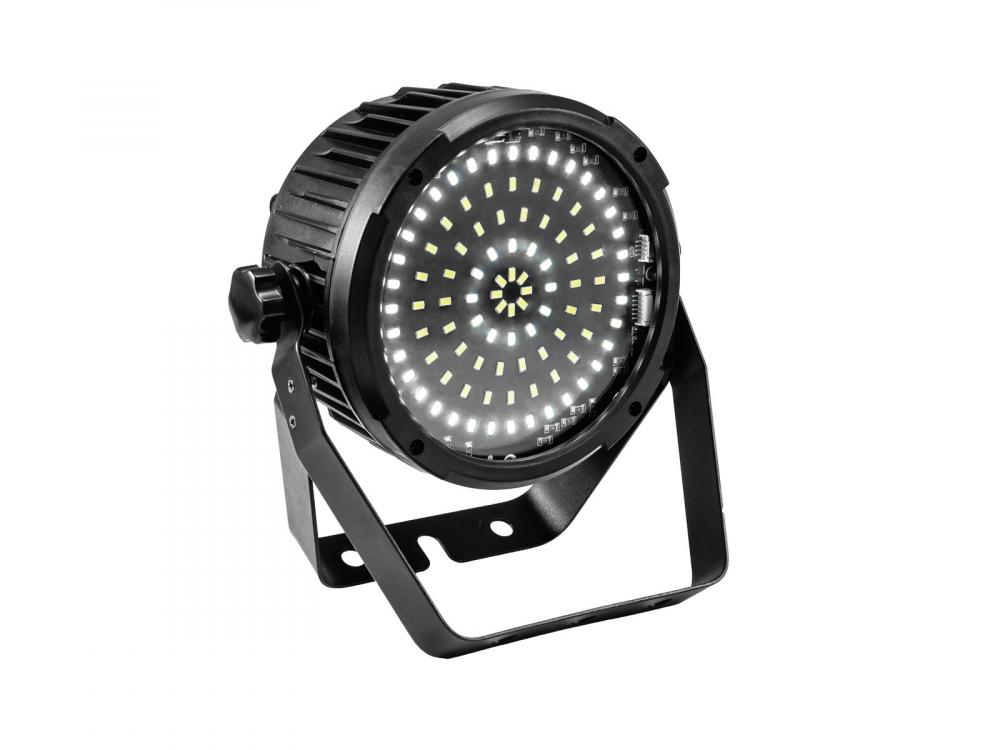

Compact strobe with 98 SMD LEDs & DMX, each ring individually controlable
-Operable in stand-alone mode or via DMX
-DMX512 control possible via any commercial DMX controller (occupies max. 9 channels)
-4 or 9 DMX channels selectable for numerous applications
-Each LED ring (or ring combination) can be controlled individually via DMX
-Master/Slave function for synchronous operation with several devices
-Sound-controlled via built-in microphone, adjustable microphone sensitivity
-Equipped with 98 SMD 5030 LEDs
-Flat housing form requires minimal space when rigging
-Second mounting bracket for safe standing installation
-Fan-cooled
-Comfortable addressing and setting via control panel with LED display and four operating buttons

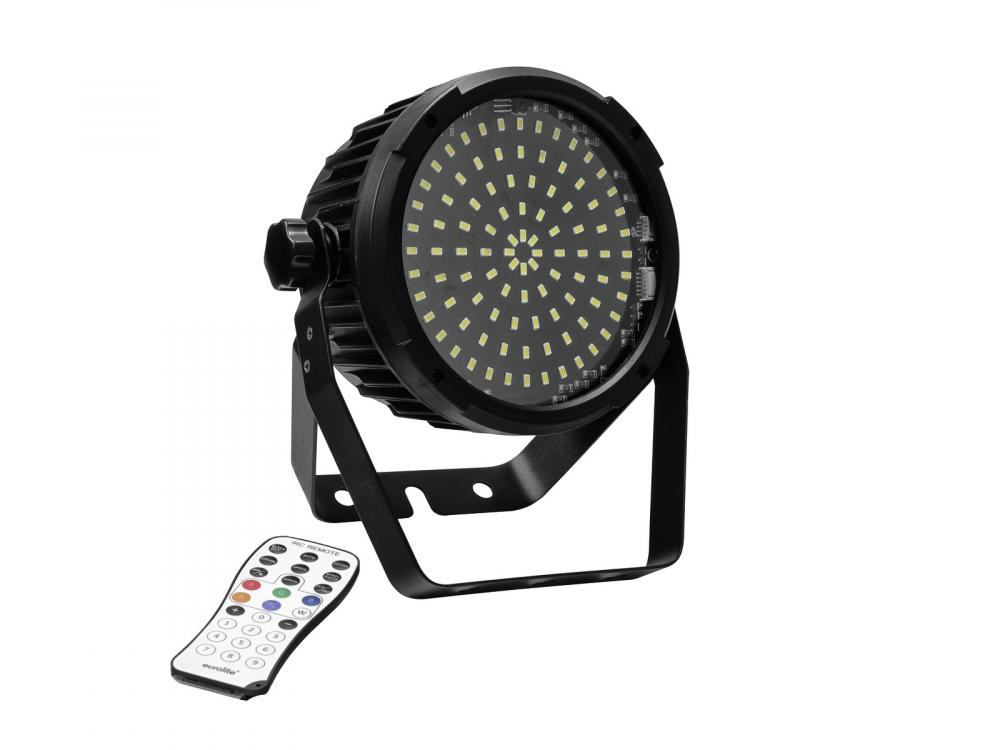

-Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
-Functions: internal programs, sound-control, Blinder effect, dimmer, adjustable flash-rate (1-20 flashes/sec), Master/Slave
-Adjustable internal program speed
-Ready for connection via included power cable
-Feed-through output allows to power up to 8 devices
-Switch-mode power supply for operation between 100 and 240 volts
-Strobe color: White
-Effect: Strobe effect
-Projection: flicker-free
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Power out: 1 x IEC connector (F) mounting version
-Control: IR remote control (provided); Stand-alone; DMX
-LED: 98 x SMD CW (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
4 ch
control channels, max
9 ch
Electrical
power consumption watt, max
0.50 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
power input connector
IEC-60320 C13/C14
Mechanical
weight
1.00 kg
width
215.00 mm
height
245.00 mm
length
120.00 mm
Optical
light source
LED
Number of light sources
98 pcs
shutter/strobe frequency, max
20 Hz
