EUROLITE LED Power Strobe COB DMX

EUROLITE

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED Power Strobe COB DMX

Info
order code
52201123
product link
EAN
4026397456974
Product Name
EUROLITE LED Power Strobe COB DMX
technical overview
Power supply: 230 V AC, 50 Hz
DMX channels: 2
DMX connection: 3-pin XLR
Flash-rate: 1-12 Hz
Sound-control: via built-in microphone
LED type: Array 30 W, white
LED number: 1
Dimensions (L x W x H): 190 x 305 x 280 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Weight: 2,7 kg
Power consumption: 30 W
Lamp type: LED
Height: 19 cm
Depth: 28 cm
Width: 30,5 cm
DMX channels: 2

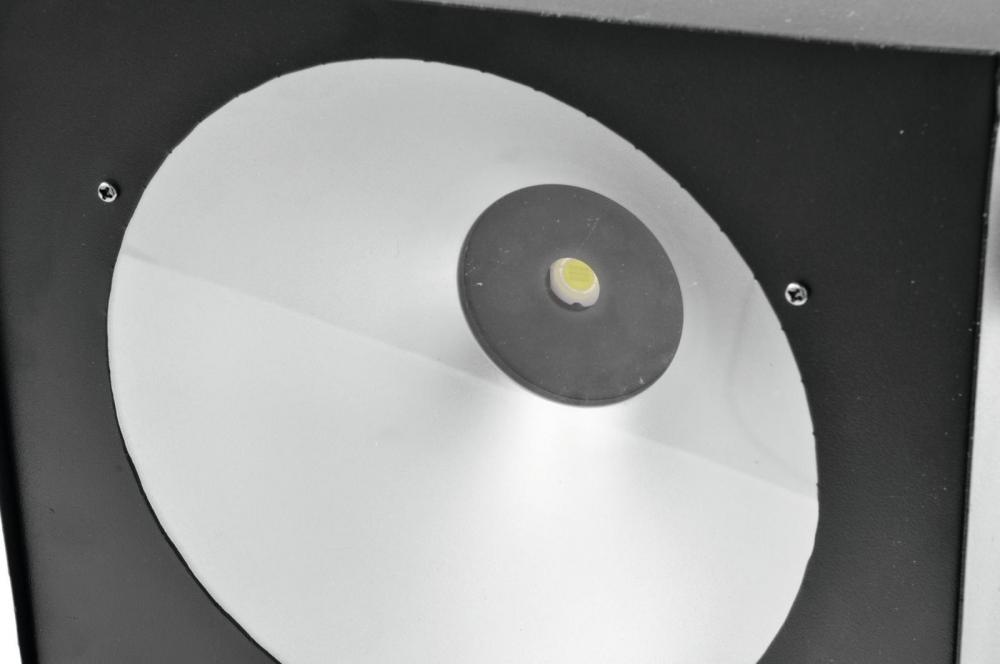

LED: 1 x COB (chip-on-board) 30 W CW (homogenous color mix)
Power supply: 230 V AC, 50 Hz
main features
DMX strobe with 30 W COB LED
-High-quality reflector
-Compact housing with mounting bracket and fixation screws
-Equipped with a powerful 30 W COB LED
-DMX-controlled operation or stand-alone operation with Master/Slave function
-DMX512 standard control (2 channels: brightness and flash rate)
-Brightness and flash-rate steplessly adjustable
-Adjustable microphone sensitivity via control board
-Sound-control via built-in microphone
-Ready for connection via power cord with IEC-plug
-With 3-pin XLR-connection
-Comfortable addressing and setting via control board with LED display and three operating buttons
-Connector for analog controller
-DMX512 control possible via any commercial DMX-controller
-Strobe color: White
-Effect: Strobe effect
-Control: Analog 0-10 V; Stand-alone; DMX
-LED: 1 x COB (chip-on-board) 30 W CW (homogenous color mix)
Connectors
DMX connector types
3pin
Control
control channels, min
2 ch
control channels, max
2 ch
Electrical
power consumption watt, max
30.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
Mechanical
weight
2.70 kg
width
305.00 mm
height
280.00 mm
length
280.00 mm
Optical
light source
LED
Number of light sources
1 pcs
wattage per light source
30.00 W
shutter/strobe frequency, max
12 Hz

add to list

Collect interesting products in a list and download tender specifications at once

show list

Videos
Downloads
Bedienungsanleitung
00066967.pdf
