EUROLITE LED WF-40 Water Effect

EUROLITE

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for EUROLITE LED WF-40 Water Effect

Info
order code
51918544
product link
EAN
4026397556193
Product Name

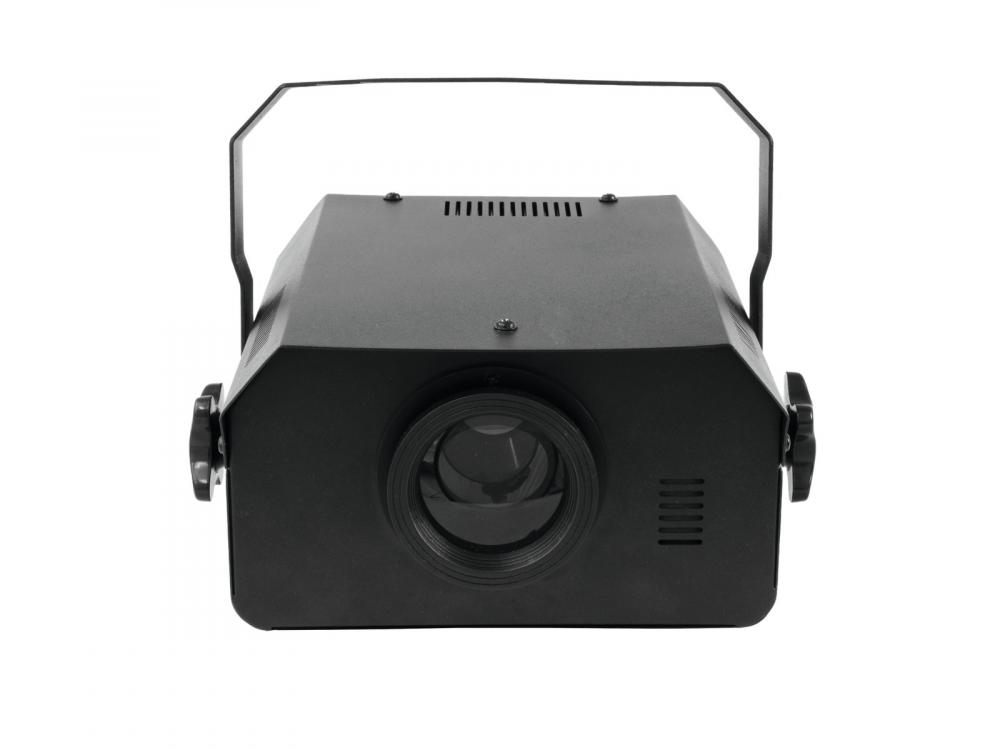

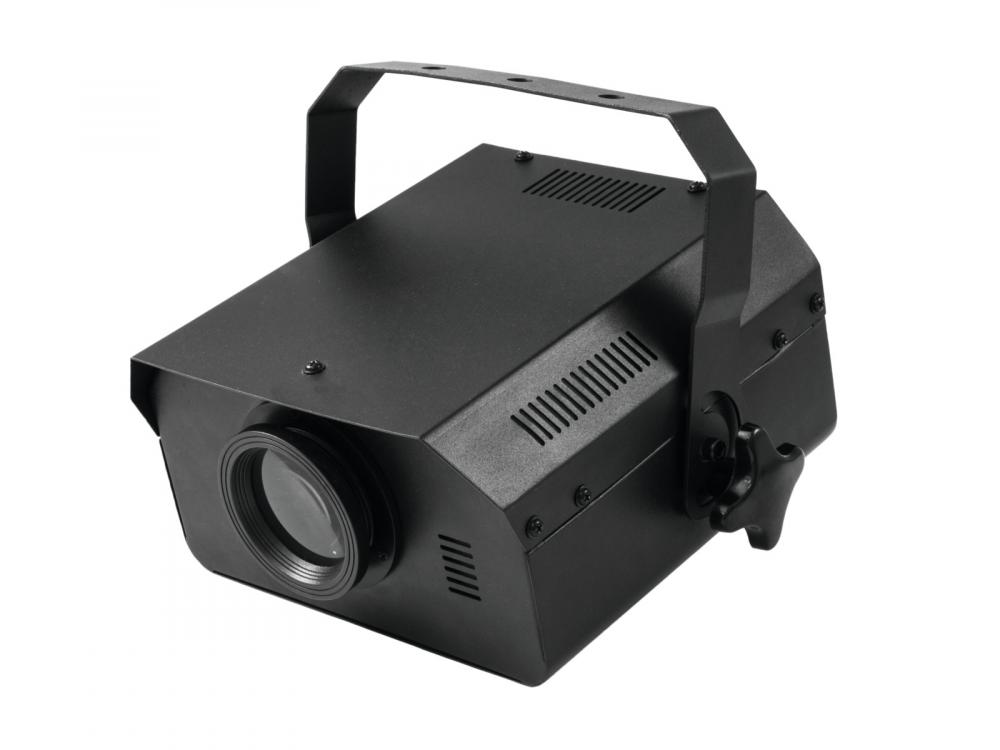

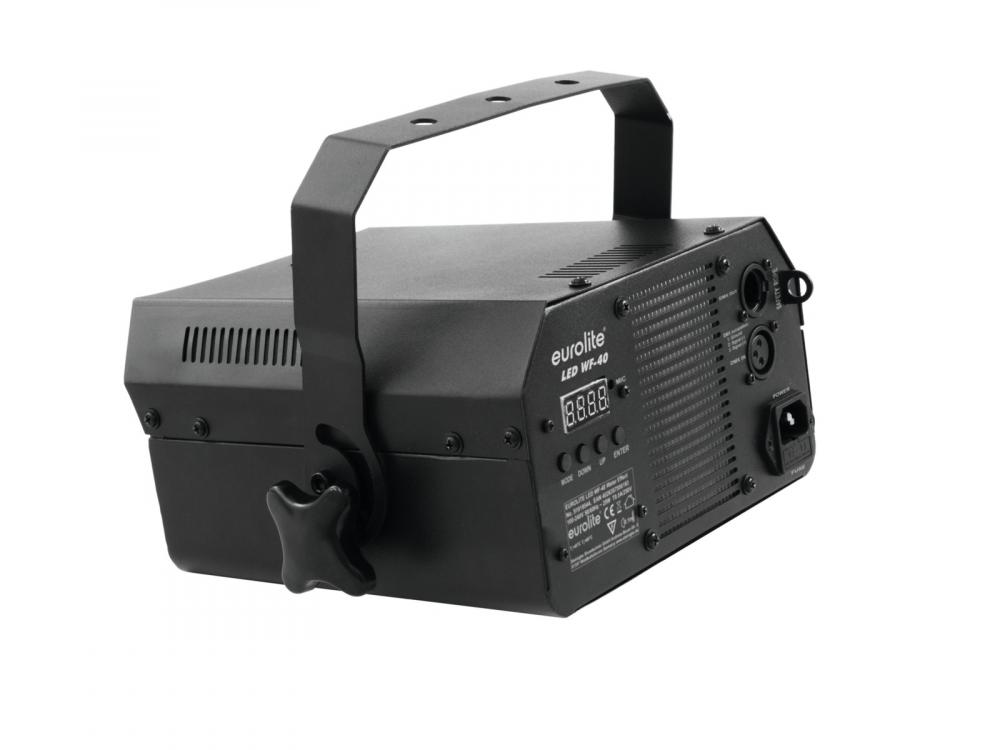

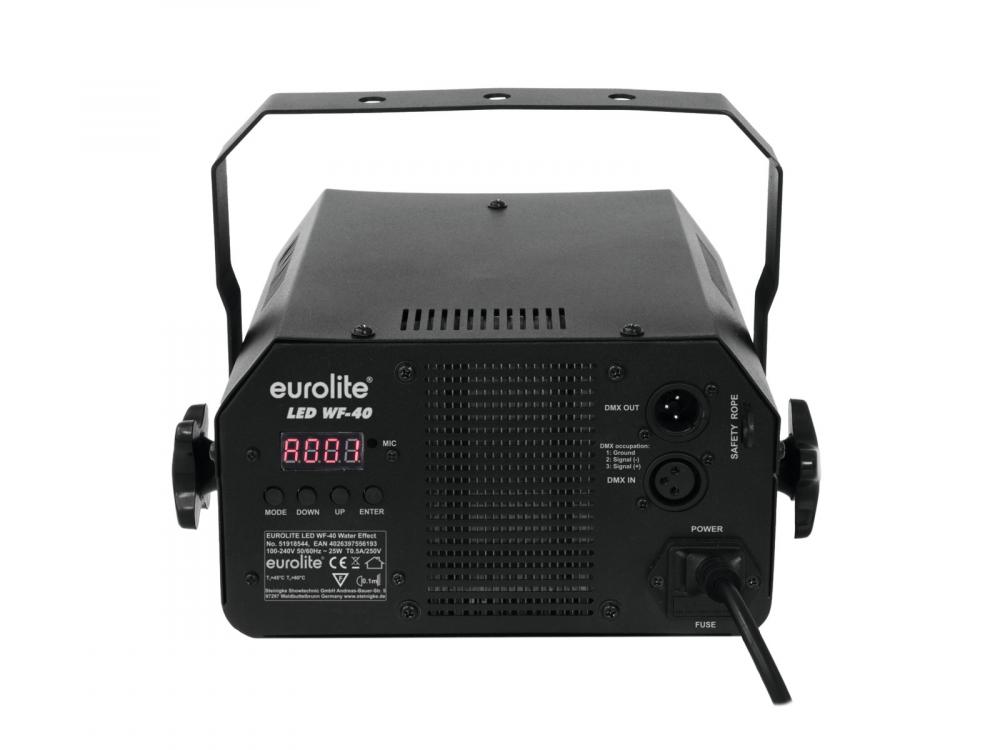

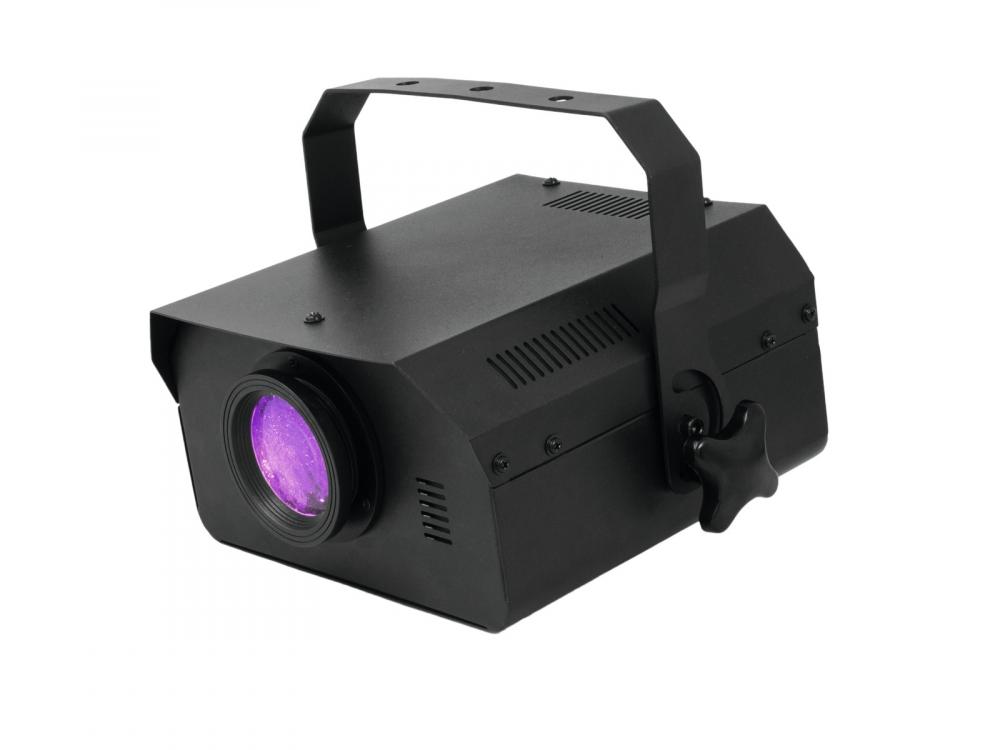

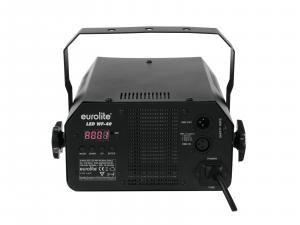

EUROLITE LED WF-40 Water Effect
technical overview
Power supply: 100-240 V AC, 50/60 Hz
DMX channels: 9
DMX connection: 3-pin XLR
Sound-control: via built-in microphone
Flash-rate: 10 Hz
LED type: 40 W RGBW (COB)
LED number: 1
Dimensions: 252 x 277 x 187 mm
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
Beam angle: 30°
Cooling fan: No, cooling by convection
IP classification: IP20
Weight: 3 kg
Lamp type: LED lamp
Power consumption: 25 W
Height: 18,7 cm
Depth: 25,2 cm
Width: 27,7 cm
Laser class: Without laser
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels: 9
LED: 1 x COB (chip-on-board) 40 W 4in1 QCL RGBW
Power supply: 110-240 V AC, 50/60 Hz
main features
Projection effect for water reflections, RGBW color mixing, DMX
-Produces projections like moving water
-Built-in effect wheels offers a lovely water effect
-Equipped with a 40 W COB LED with RGBW colors
-No fans, particularly quiet during operation
-DMX-controlled operation or stand-alone operation with Master/Slave function
-Master dimmer
-Color presets
-Preset color temperatures
-Built-in programs
-Stepless RGBW color mixture
-Strobe effect with adjustable speed
-Random strobe effect
-Sound-controlled via built-in microphone
-Manual focus
-Switch-mode power supply for operation between 100 and 240 volts
-Ready for connection with power cord and safety-plug
-Addressing via control panel with 4-digit LED display
-DMX control via every standard DMX controller
-Case color: Black
-Effect: Single Beam
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
-Control: DMX
-LED: 1 x COB (chip-on-board) 40 W 4in1 QCL RGBW
Connectors
DMX connector types
3pin
Control
control channels, min
9 ch
control channels, max
9 ch
Electrical
power consumption watt, max
25.00 W
AC Volts, min
110 V
AC Volts, max
240 V
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
IP rating
20
power input connector
IEC-60320 C13/C14
cooling
passive
Mechanical
weight
3.00 kg
width
277.00 mm
height
187.00 mm
length
252.00 mm
Optical
beam angle/zoom, min
30.00 °
beam angle/zoom, max
30.00 °
Number of light sources
1 pcs
wattage per light source
40.00 W
multichip LED
yes
COLD WHITE LED source
yes
RED light source
yes
GREEN light source
yes
BLUE light source
yes
shutter/strobe frequency, max
10 Hz

add to list

Collect interesting products in a list and download tender specifications at once

show list

Videos
Downloads
Bedienungsanleitung
00094870.pdf
