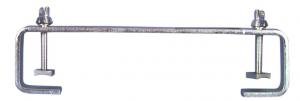

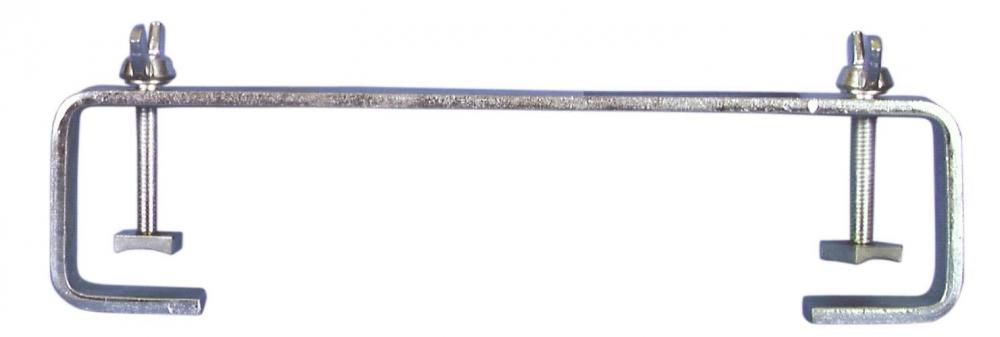

EUROLITE TCH-50/30 C-Clamp silver
EUROLITE
Technical specifications, datasheets, descriptions and tender texts for EUROLITE TCH-50/30 C-Clamp silver
| Info | |
|---|---|
| order code |
58000660
|
| product link | |
| EAN |
4026397484717
|
| Product Name |
EUROLITE TCH-50/30 C-Clamp silver
|
| technical overview |
Dimensions (L x W x H): 300 x 30 x 95 mm Color: Silver Max. load WLL (4fold): 30 kg Maximum load BGV C1 (8-fold): 15 kg Weight: 0,76 kg Length: 300 mm |
| main features |
Long mounting clamp for 50 mm tube, maximum load WLL 30 kg -C-hook for suspending crossbeams, Alu-Bars, aluminum tubes etc. -Tube diameter sector: 45 - 50 mm |
| Mechanical | |
| weight |
0.76 kg
|
| width |
30.00 mm
|
| height |
95.00 mm
|
| length |
300.00 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00120087.pdf |
