EUROLITE TH-250 Quick-Lock Coupler silver
EUROLITE
Technical specifications, datasheets, descriptions and tender texts for EUROLITE TH-250 Quick-Lock Coupler silver
| Info | |
|---|---|
| order code |
58000760
|
| product link | |
| EAN |
4026397593853
|
| Product Name |

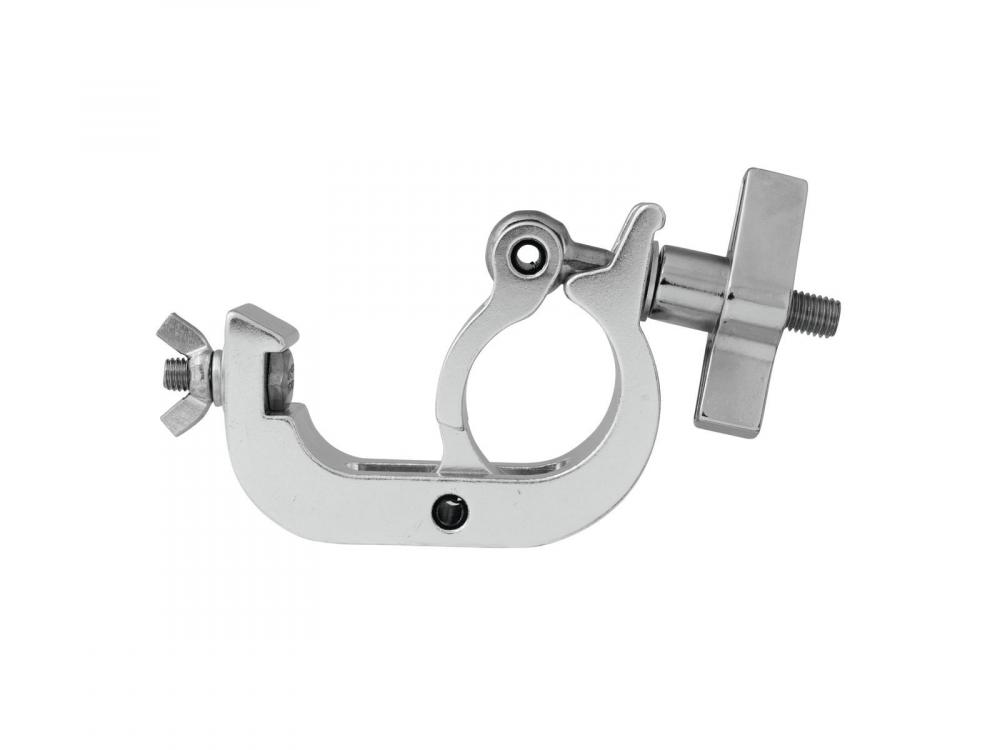

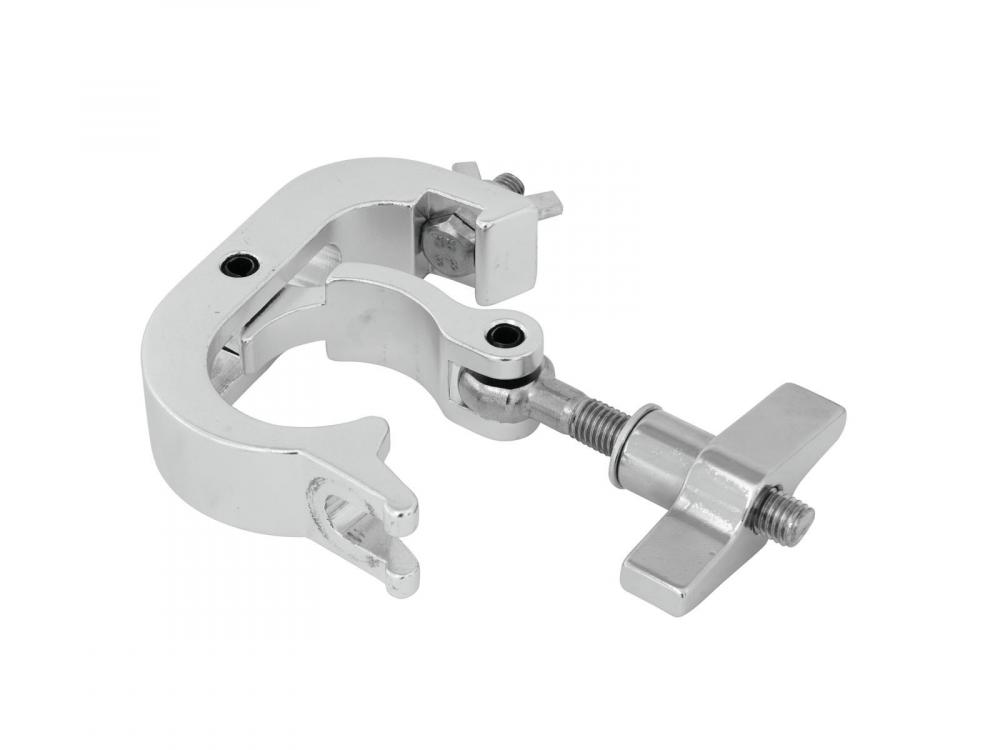

EUROLITE TH-250 Quick-Lock Coupler silver
|
| technical overview |
Dimensions (L x W x H): 190 x 100 x 30 mm Color: Silver Max. load WLL (4fold): 250 kg Maximum load BGV C1 (8-fold): 125 kg Weight: 0,4704 kg Length: 190 mm |
| main features |
PRO mounting clamp, QuickLock screw for 50 mm tube, max. load WLL 250 kg -Hook for installing projectors, lighting effects etc. via a truss system -For the installation at horizontal and vertical truss -Quick-lock hook with large wing bolt for easier mounting -Tube diameter sector: 45 - 50 mm |
| Mechanical | |
| weight |
0.47 kg
|
| width |
100.00 mm
|
| height |
30.00 mm
|
| length |
190.00 mm
|
| color |
silver
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00120678.pdf |
