EUROLITE TH35-75 Theatre Clamp silver
EUROLITE
Technical specifications, datasheets, descriptions and tender texts for EUROLITE TH35-75 Theatre Clamp silver
| Info | |
|---|---|
| order code |
58000763
|
| product link | |
| EAN |
4026397607345
|
| Product Name |
EUROLITE TH35-75 Theatre Clamp silver
|
| technical overview |
Dimensions (L x W x H): 90 x 30 x 90 mm Color: Silver Max. load WLL (4fold): 75 kg Maximum load BGV C1 (8-fold): 37,5 kg Weight: 0,192 kg Length: 90 mm |
| main features |

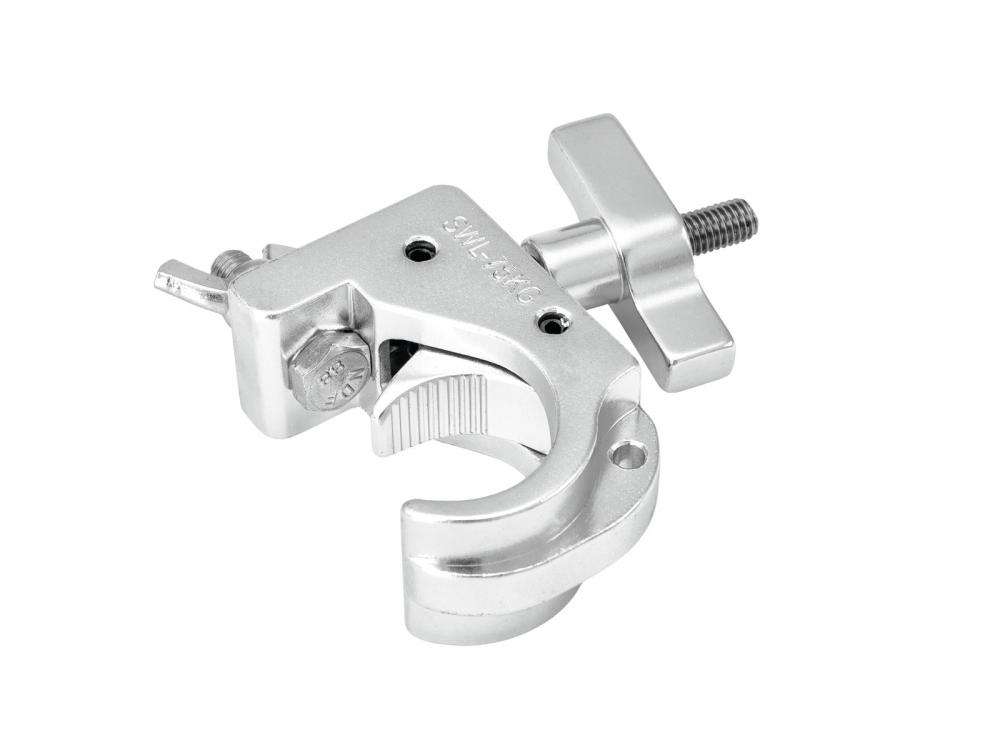

PRO Mounting clamp for 32-35 mm tube, maximum load WLL 75 kg -Hook for installing projectors, lighting effects etc. via a truss system -For the installation at horizontal truss -Quick-lock hook with large wing bolt for easier mounting -Tube diameter sector: 32 - 35 mm |
| Mechanical | |
| weight |
0.19 kg
|
| width |
30.00 mm
|
| height |
90.00 mm
|
| length |
90.00 mm
|
| color |
silver
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00120678.pdf |
