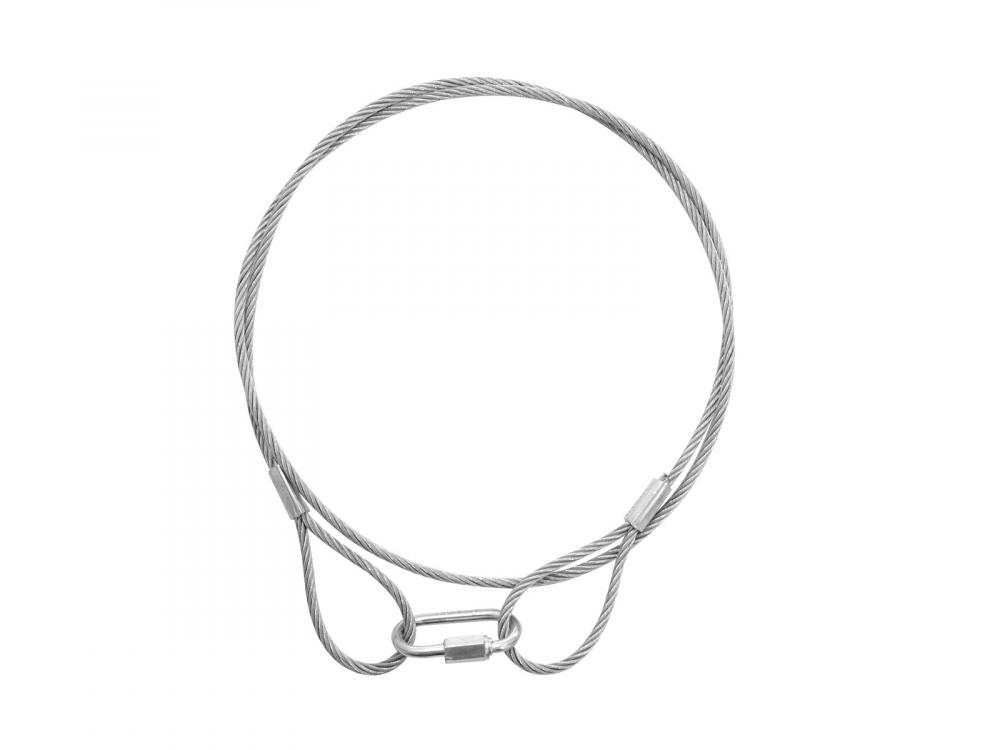

EUROLITE Steel Rope (SC) 900x3mm silver

EUROLITE

1

Technical specifications, datasheets, descriptions and tender texts for EUROLITE Steel Rope (SC) 900x3mm silver

Info
order code
58010411
product link
EAN
4026397614985
Product Name
EUROLITE Steel Rope (SC) 900x3mm silver
technical overview
58010421 EUROLITE Steel Rope (SC) 900x3mm silver without quick link
Rope grade: 1770
Surface finish of wires: A
Type of lay and direction of lay: sZ
Maximum load WLL (5-fold): 100 kg
Safety factor: 5
Temperature range: -40°C to +150°C
Diameter: 3 mm
Maximum load WLL (5-fold): 100 kg
Color: Silver
Nominal tensile strenght of rope: 1770 N/mm²
Design of the core: 6 x 19 WSC
Wire surface: Zinc-plated
Length: 90 cm
Weight: 0,04 kg
50301642 EUROLITE Quick Link Type A-50
Temperature range: -40° C to +100° C
Diameter: 3.5 mm
Form: A - small
Spanner opening: 5 mm
Dimensions: 35 x 19 mm
Maximum load WLL (5-fold): 100 kg
opening: 0-5 mm
Weight: 0,009 kg
Standard: DIN 56927:2009-03,
Diameter: 3,5 mm
Length: 29 mm
main features
58010421 EUROLITE Steel Rope (SC) 900x3mm silver without quick link

Steel rope with loops, grouted without grummet thimbles
-With steel core
-Stopping rope for general lifting purposes

50301642 EUROLITE Quick Link Type A-50

Quick link
-Form A (short)
-Galvanized
-Identification number: 50
-Stamp: DIN 56927 A 50
-Test report according to DIN EN 10204 as download
Electrical
operating temp, min
-40.00 °C
operating temp, max
150.00 °C
Mechanical
weight
0.04 kg
length
900.00 mm
color
silver
outer diameter
3 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
no files provided by the manufacturer
