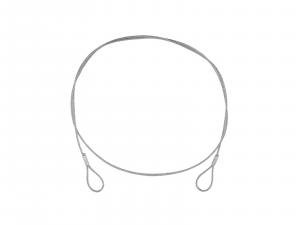

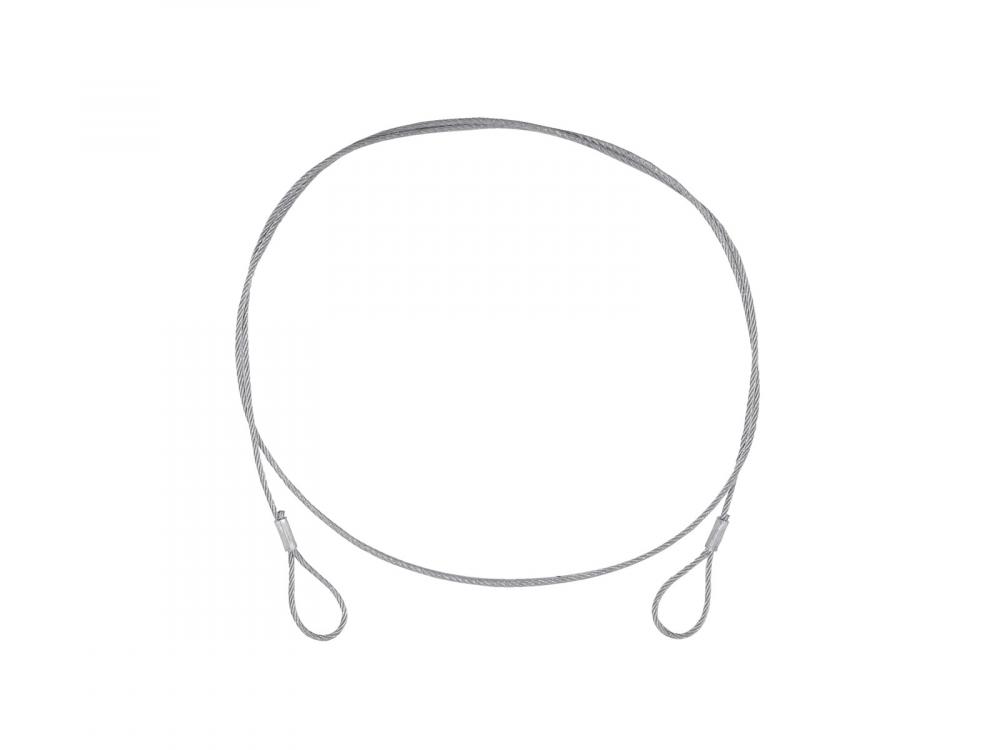

EUROLITE Steel Rope (SC) 900x3mm silver without quick link
EUROLITE
Technical specifications, datasheets, descriptions and tender texts for EUROLITE Steel Rope (SC) 900x3mm silver without quick link
| Info | |
|---|---|
| order code |
58010421
|
| product link | |
| EAN |
4026397602043
|
| Product Name |
EUROLITE Steel Rope (SC) 900x3mm silver without quick link
|
| technical overview |
Rope grade: 1770 Surface finish of wires: A Type of lay and direction of lay: sZ Maximum load WLL (5-fold): 100 kg Safety factor: 5 Temperature range: -40°C to +150°C Diameter: 3 mm Maximum load WLL (5-fold): 100 kg Color: Silver Nominal tensile strenght of rope: 1770 N/mm² Design of the core: 6 x 19 WSC Wire surface: Zinc-plated Length: 90 cm Weight: 0,04 kg |
| main features |
Steel rope with loops, grouted without grummet thimbles -With steel core -Stopping rope for general lifting purposes |
| Electrical | |
| operating temp, min |
-40.00 °C
|
| operating temp, max |
150.00 °C
|
| Mechanical | |
| weight |
0.04 kg
|
| length |
900.00 mm
|
| outer diameter |
3 mm
|
