Info | |
---|---|
order code |
58010433
|
product link | |
EAN |
4026397615012
|
Product Name |

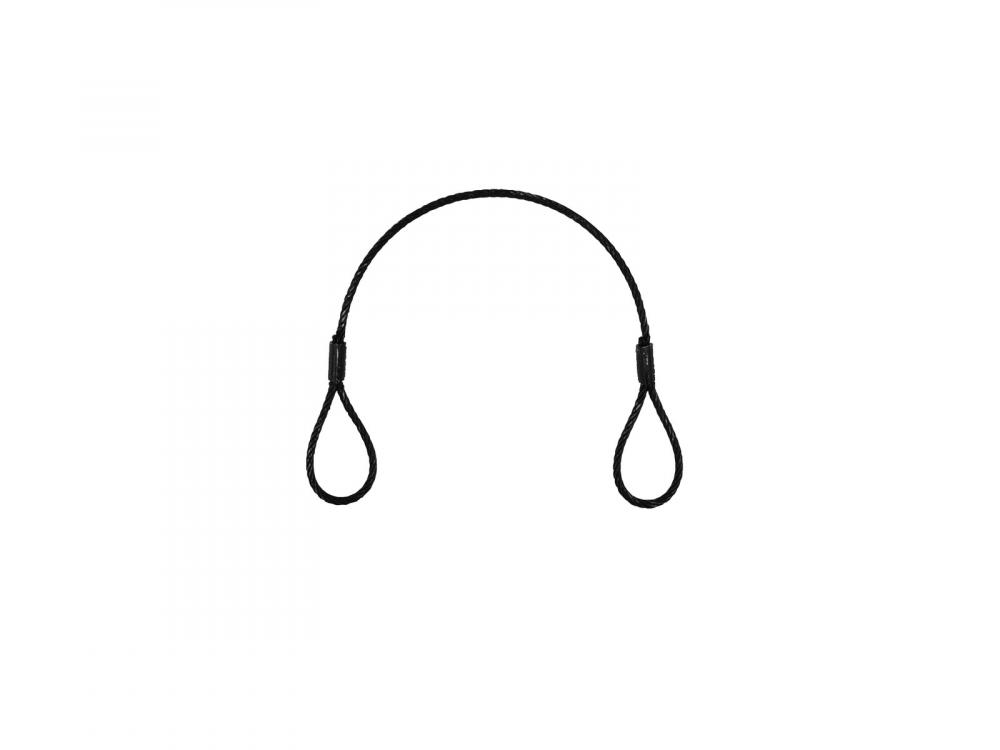

EUROLITE Steel Rope (SC) 400x4mm black
|
technical overview |
58010427 EUROLITE Steel Rope (SC) 400x4mm black without quick link Rope grade: 1770 Surface finish of wires: A Type of lay and direction of lay: sZ Maximum load WLL (5-fold): 175 kg Safety factor: 5 Temperature range: -40°C to +150°C Diameter: 4 mm Maximum load WLL (5-fold): 175 kg Color: Black Nominal tensile strenght of rope: 1770 N/mm² Design of the core: 6 x 19 WSC Wire surface: Zinc-plated Length: 40 cm Weight: 0,044 kg 50301644 EUROLITE Quick Link Type A-90 Temperature range: -40° C to +100° C Form: A - small Dimensions: 41 x 22 mm Maximum load WLL (5-fold): 180 kg opening: 0-5,5 mm Weight: 0,012 kg Standard: DIN 56927:2009-03, Diameter: 4 mm Length: 31 mm |
main features |
58010427 EUROLITE Steel Rope (SC) 400x4mm black without quick link Steel rope with loops, grouted without grummet thimbles -With steel core -Black -Stopping rope for general lifting purposes 50301644 EUROLITE Quick Link Type A-90 Quick link -Form A (short) -Galvanized -Identification number: 90 -Stamp: DIN 56927 A 90 -Test report according to DIN EN 10204 as download |
Electrical | |
operating temp, min |
-40.00 °C
|
operating temp, max |
150.00 °C
|
Mechanical | |
weight |
0.04 kg
|
length |
400.00 mm
|
outer diameter |
4 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
