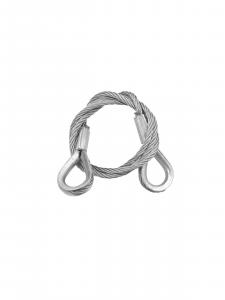

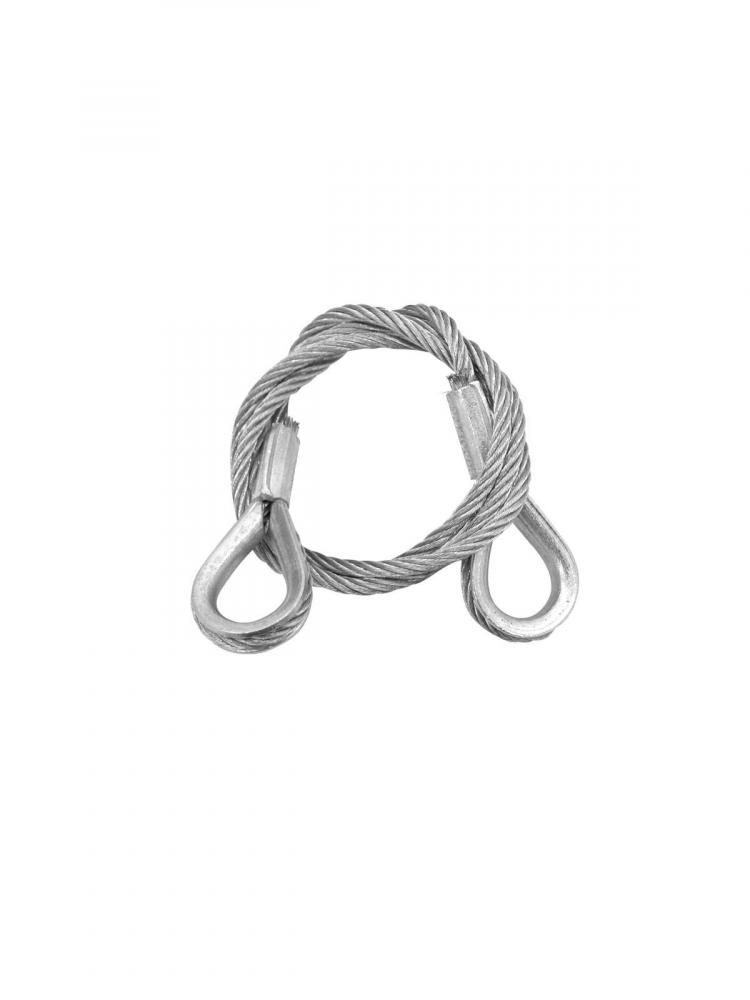

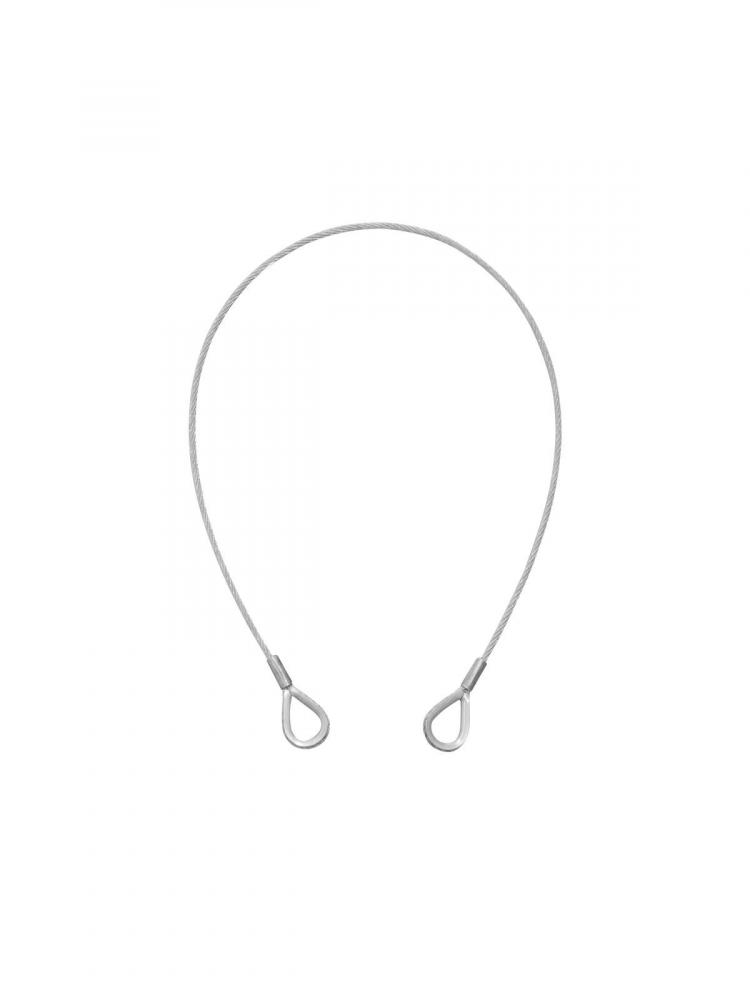

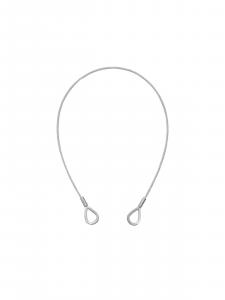

EUROLITE Steel Rope 600x3mm silver with Thimbles
EUROLITE
Technical specifications, datasheets, descriptions and tender texts for EUROLITE Steel Rope 600x3mm silver with Thimbles
| Info | |
|---|---|
| order code |
5801048F
|
| product link | |
| EAN |
4026397376074
|
| Product Name |
EUROLITE Steel Rope 600x3mm silver with Thimbles
|
| technical overview |
Maximum load WLL (5-fold): 100 kg Maximum load BGV C1 (12-fold): 40 kg Maximum load (safety): 5 kg Temperature range: -40° C to +100° C Rope length: 0.6 m Rope diameter: 3.00 mm Rope type: Round strand rope Nominal tensile strength: 1770 N/mm² Strength classification: 1960 Diameter: 3 mm Maximum load WLL (5-fold): 100 kg Color: Silver Nominal tensile strenght of rope: 1770 N/mm² Design of the core: 6 x 19 FC Strength classification: 1960 Wire surface: Zinc-plated Length: 60 cm Standard: DIN EN 12385-4:2008-06, DIN 56927:2009-03 Lengthweigth: 0,0311 kg/m Weight: 0,033 kg |
| main features |
Installation rope, safety bond, safety -Round strand rope 6 x 19 with fibre core -With two thimbles -Suitable for installing and securing loads above persons -3 x 600 mm -WLL 100 kg -Test report according to DIN EN 10204 as download |
| Electrical | |
| operating temp, min |
-40.00 °C
|
| operating temp, max |
100.00 °C
|
| Mechanical | |
| weight |
0.03 kg
|
| length |
600.00 mm
|
| outer diameter |
3 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| no files provided by the manufacturer |
