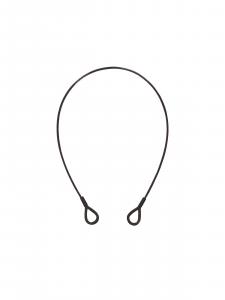

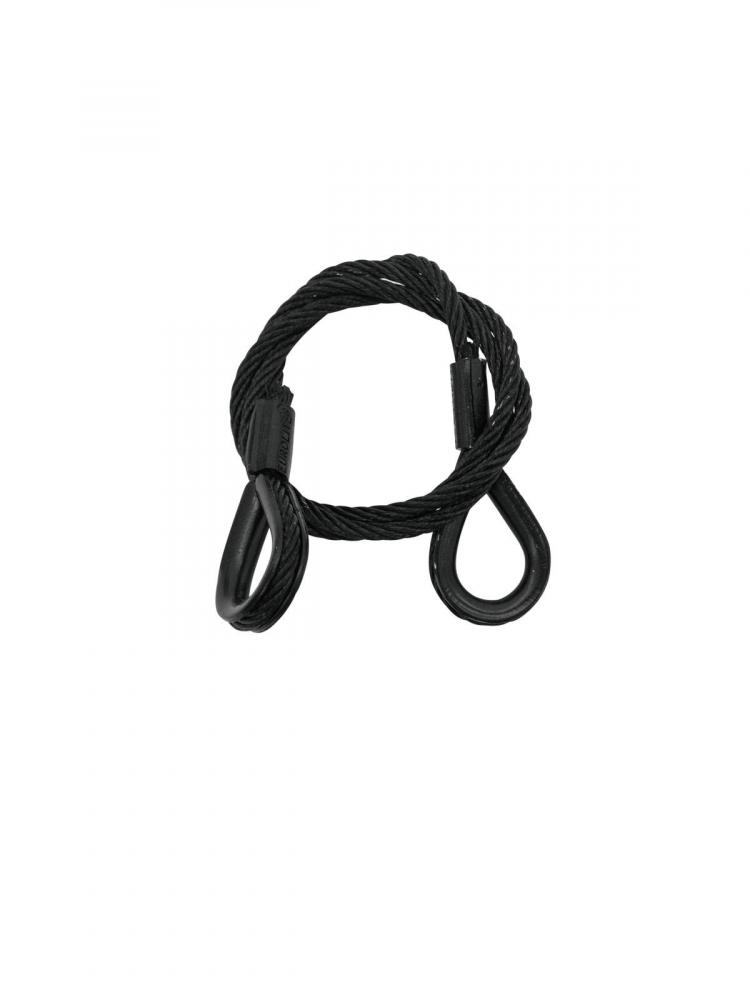

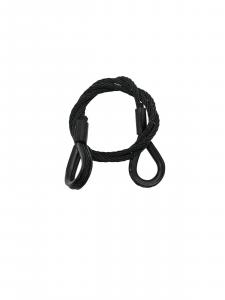

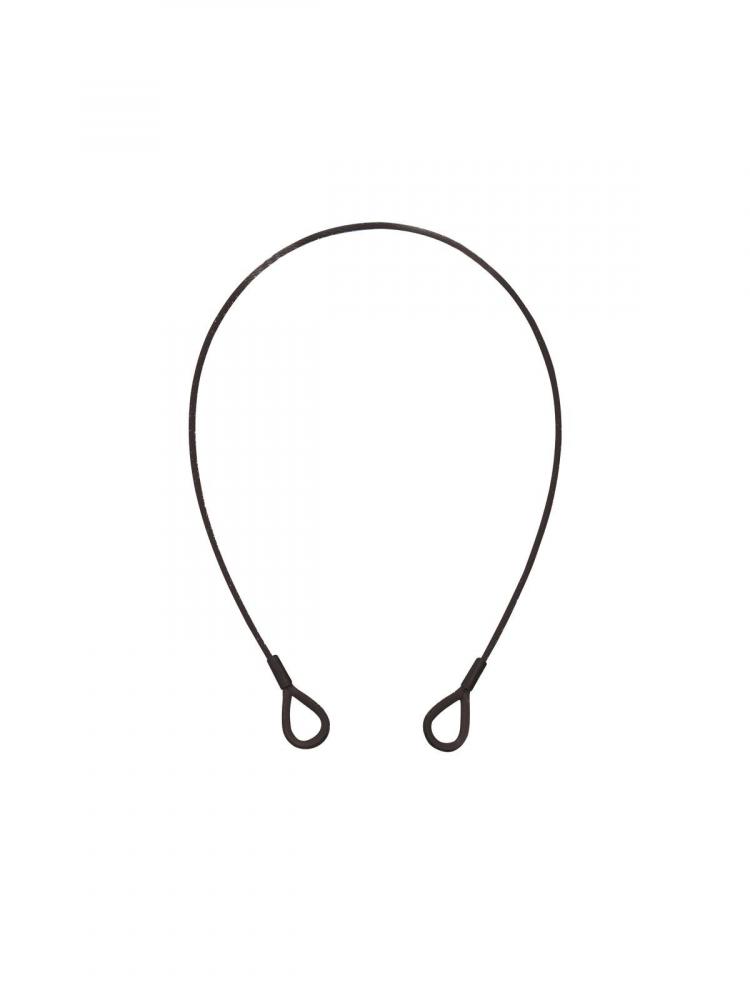

EUROLITE Steel Rope (SC) 600x3mm black with thimbles

EUROLITE

1
2

Technical specifications, datasheets, descriptions and tender texts for EUROLITE Steel Rope (SC) 600x3mm black with thimbles

Info
order code
5801049B
product link
EAN
4026397610390
Product Name
EUROLITE Steel Rope (SC) 600x3mm black with thimbles
technical overview
Maximum load WLL (5-fold): 100 kg
Maximum load BGV C1 (12-fold): 40 kg
Maximum load (safety): 5 kg
Temperature range: -40° C to +100° C
Rope length: 0.6 m
Rope diameter: 3.00 mm
Rope type: Round strand rope
Nominal tensile strength: 1770 N/mm²
Strength classification: 1960
Diameter: 3 mm
Maximum load WLL (5-fold): 100 kg
Color: Black
Nominal tensile strenght of rope: 1770 N/mm²
Design of the core: 6 x 19 WSC
Wire surface: Zinc-plated
Length: 60 cm
Standard: DIN EN 12385-4:2008-06, DIN 56927:2009-03
Lengthweigth: 0,0311 kg/m
Weight: 0,033 kg
main features
Installation rope, safety bond, safety
-Round strand rope 6 x 19 with steel core
-With two thimbles
-Suitable for installing and securing loads above persons
-3 x 600 mm
-WLL 100 kg
Electrical
operating temp, min
-40.00 °C
operating temp, max
100.00 °C
Mechanical
weight
0.03 kg
length
600.00 mm
color
black
outer diameter
3 mm
