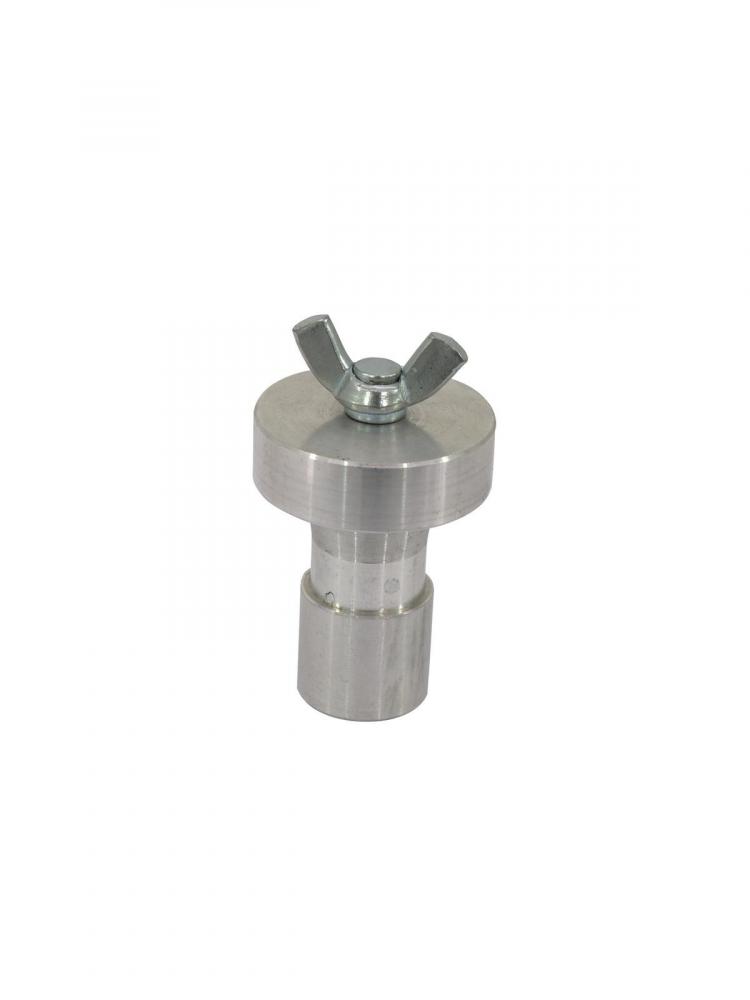

EUROLITE TVA-10S Adapter
EUROLITE
Technical specifications, datasheets, descriptions and tender texts for EUROLITE TVA-10S Adapter
| Info | |
|---|---|
| order code |
59007070
|
| product link | |
| EAN |
4026397277951
|
| Product Name |
EUROLITE TVA-10S Adapter
|
| technical overview |
Spigot: D = 28 mm Spigot: L = 50 mm Mounting plate: D = 50 mm Mounting plate: Thickness 15 mm Wing bolt: M10 x 25 mm Dimensions (L x W x H): 50 x 50 x 90 mm Weight: 0,2 kg Diameter: 50 mm Maximum load BGV C1 (8-fold): 50 kg Max. load WLL (4fold): 100 kg |
| main features |
With spigot (28 mm) & screw thread (M10 wing bolt), max. load WLL 100 kg -Adapter for installing a spot, speaker-system etc. on a stand -M10 wing bolt |
| Mechanical | |
| weight |
0.20 kg
|
| width |
50.00 mm
|
| height |
90.00 mm
|
| length |
50.00 mm
|
| outer diameter |
50 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00086292.pdf |
