Info | |
---|---|
order code |
70064130
|
product link | |
EAN |
4026397229776
|
Product Name |

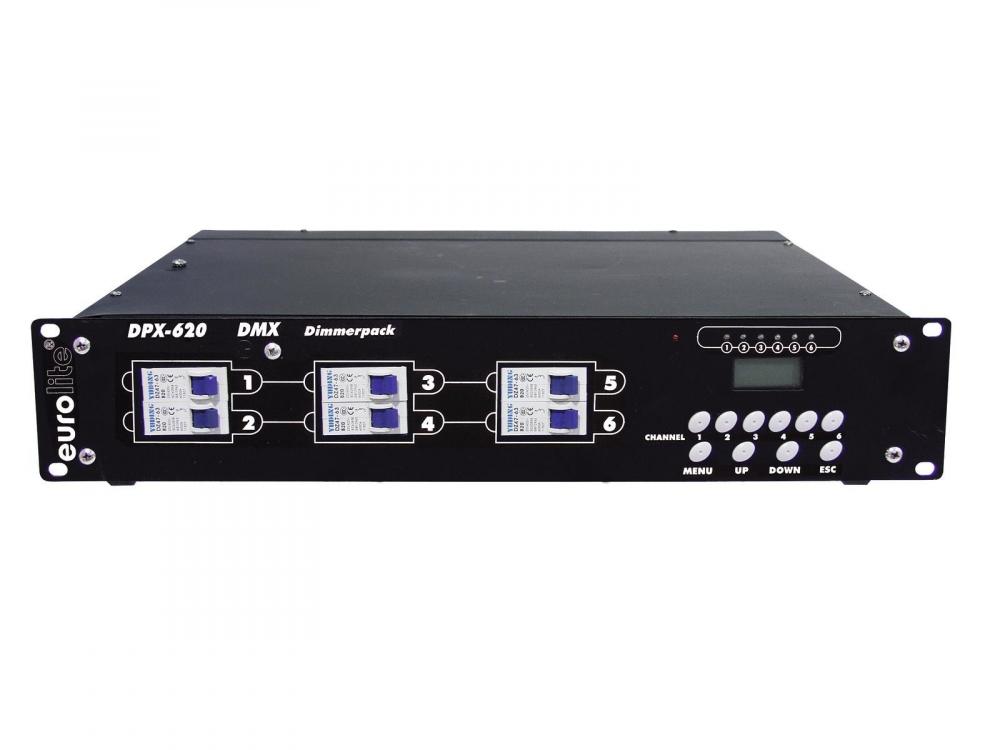

EUROLITE DPX-620 DMX Dimmer Pack
|
technical overview |
Power supply: 230-380 V AC, 50 Hz Max. power output: 27600 W Max. current: 120 A Number of control channels: 6 Max. output/channel: 4600 W Max. current/channel: 20 A Integrated programs: 12 Output sockets: via pole connectors Circuit breaker: 6 x C 20 A Dimensions (W x D x H): 420 x 482 x 95 mm Rack installation with 2 U Minimum mounting depth: 500 mm Weight: 7,70 kg Max. power output: 27600 W Color: Black Height: 8,9 cm Depth: 42 cm Width: 48,3 cm DMX channels: 6 Power connection: Mains Input Socket (M) Screw terminal |
main features |
Digital 6-channel dimmer pack -Universal dimmer pack for professional use -Can be operated 1-phase or 3-phase -6 x 20 A -DMX-control or analogue control possible -The DMX-starting address can be adjusted on the device -Synchronisation of several DPX-620 possible via DMX -Adjusting the lamp pre-heat -All modes are displayed via LEDs and the display -With automatic circuit breaker per channel -Channel-outputs on the rearpanel via pole connectors -Only for professional use -Height unit: 2 U -Housing design: (19") 48,3 cm rack installation -Power connection: Mains Input Socket (M) Screw terminal -Control: Analog 0-10 V; Stand-alone; DMX |
Control | |
control channels, min |
6 ch
|
control channels, max |
6 ch
|
Electrical | |
power consumption amps, max |
120.00 A
|
power consumption watt, max |
27600.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
380 V
|
power input connector |
screw terminal
|
total power rating per phase/channel, max |
20 A
|
Mechanical | |
weight |
7.70 kg
|
width |
420.00 mm
|
height |
89.00 mm
|
length |
420.00 mm
|
color |
black
|
height in rack-units |
2 U
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00083725.pdf |
