Power supply: 100-240 V AC, 50/60 Hz
via power unit included in the delivery
Carrier frequency: 2.4 GHz ISM band, 78 channels
Modulation: GFSK
Coverage: 400 m (line-of-sight)
Parallel operation: max. 6 transmitters
DMX conncector: 3-pin XLR (male)
DMX channels: 1 universe (512 channels)
Dimensions with antenna (L x W x H): 212 x 18 x 18 mm
Weight: 0,15 kg
IP classification: IP20
Color: Silver
Diameter: 1,8 cm
DMX channels: 512
Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m)
Length: 21,2 cm
Power supply: 110-240 V AC, 50/60 Hz

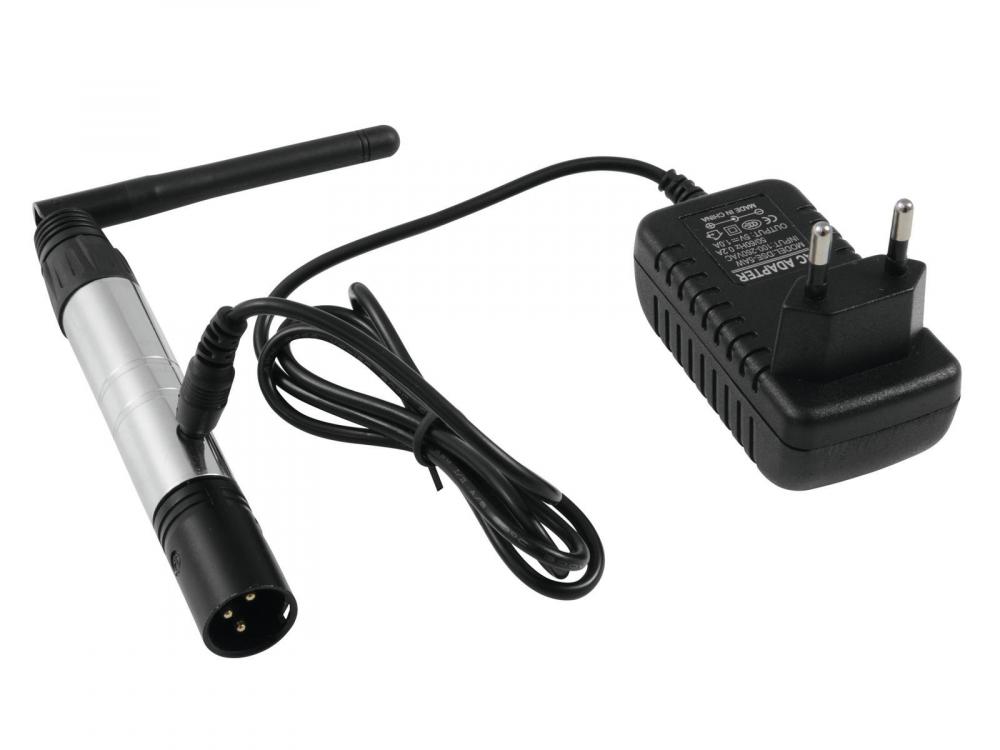

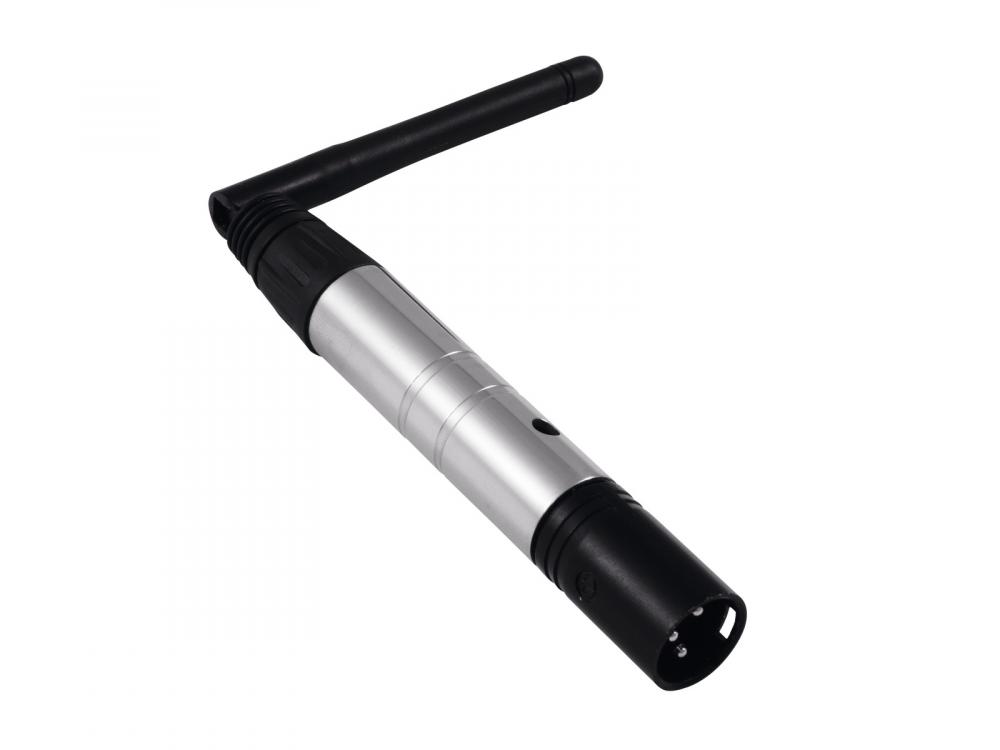

Wireless DMX transmitter 2.4 GHz
-Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
-User-friendly 3-pin XLR plug (male) with swivel antenna
-Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
-Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
-Operating range up to 400 m (with line-of-sight)
-Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
-1 to 512 QuickDMX receivers can be controlled by each transmitter
-Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
-LED indication for functions
-Transceiver, to be used as transmitter or receiver
-Powered via included PSU
-2.4 GHz ISM band - license-free worldwide
-Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
-Control: QuickDMX; DMX
