Info | |
---|---|
order code |
70064702
|
product link | |
EAN |
4026397513073
|
Product Name |

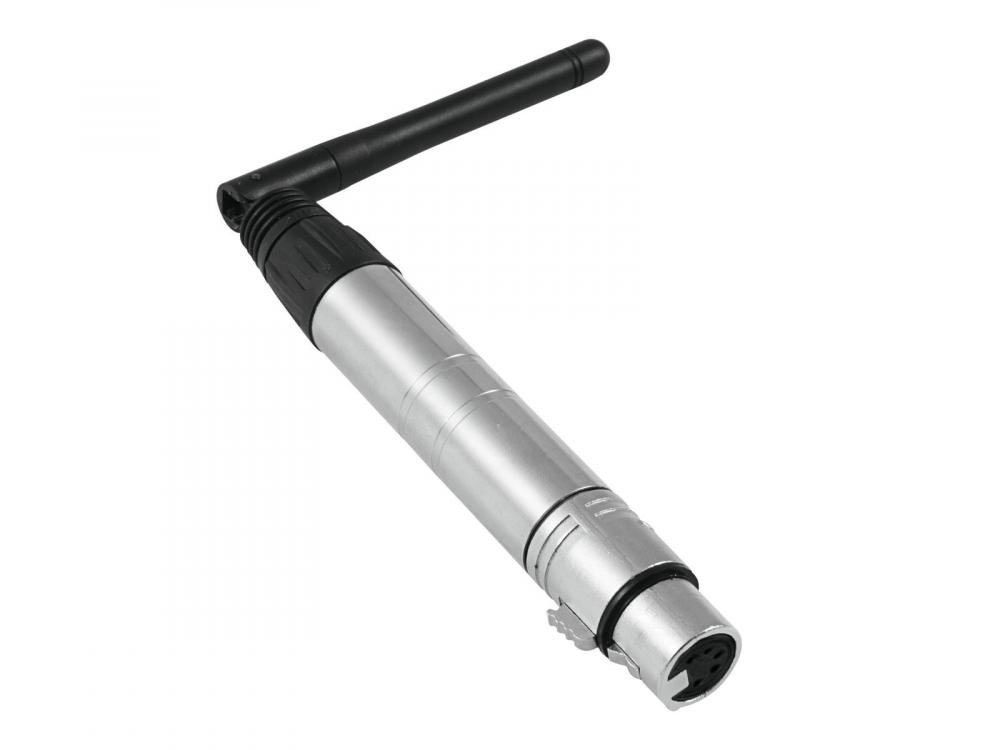

EUROLITE QuickDMX Wireless receiver phantom-power
|
technical overview |
Power supply: 5 V DC phantom power Carrier frequency: 2.4 GHz ISM band, 78 channels Modulation: GFSK Coverage: 400 m (line-of-sight) DMX conncector: 5-pin XLR (female) DMX channels: 1 universe (512 channels) Dimensions with antenna (L x W x H): 212 x 18 x 18 mm Weight: 0,08 kg IP classification: IP20 Color: Silver Diameter: 1,8 cm DMX channels: 512 Power connection: Mains Input Socket (M) 5-pin XLR connector (M) Length: 21,2 cm |
main features |

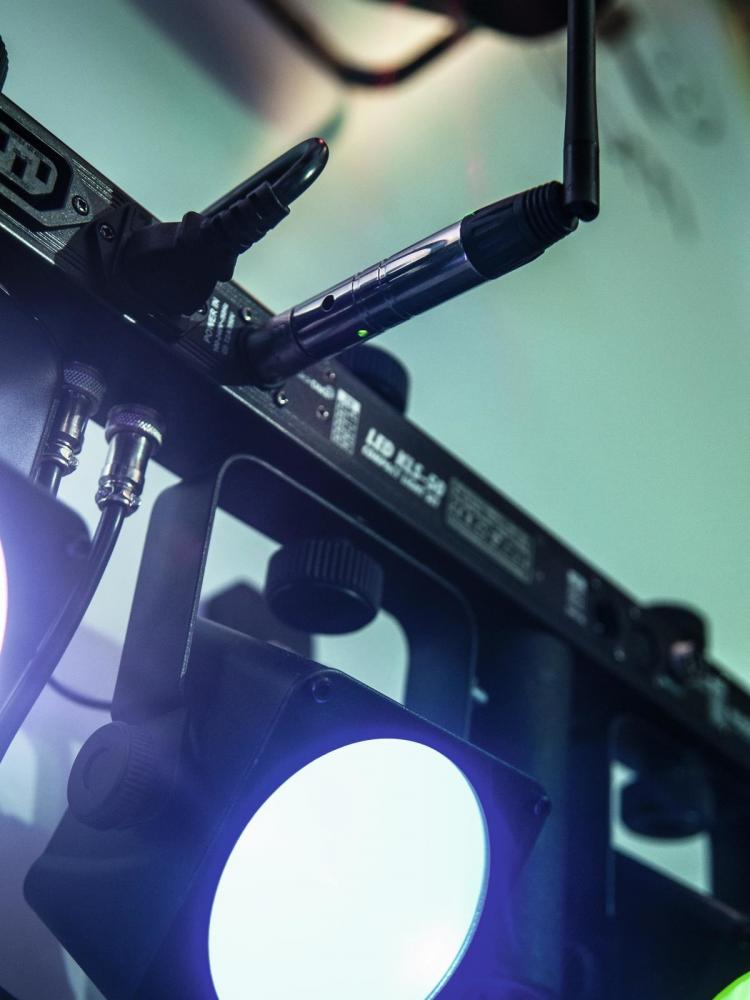

Wireless DMX receiver 2.4 GHz, phantom powered -Miniature wireless DMX receiver for the wireless transmission of up to 512 DMX channels -User-friendly 5-pin XLR plug (female) with swivel antenna -Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations -Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth) -Operating range up to 400 m (with line-of-sight) -1 to 512 QuickDMX receivers can be controlled by each transmitter -Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers -LED indication for functions -Transceiver, to be used as transmitter or receiver -Requires 5 V phantom power for operation -2.4 GHz ISM band - license-free worldwide -Only to be sold in Germany, no export model available -Power connection: Mains Input Socket (M) 5-pin XLR connector (M) -Control: QuickDMX 5-pin; QuickDMX; DMX |
Control | |
control channels, min |
512 ch
|
control channels, max |
512 ch
|
Electrical | |
IP rating |
20
|
DC Volts, min |
5 V
|
DC Volts, max |
5 V
|
Mechanical | |
weight |
0.08 kg
|
length |
20.00 mm
|
outer diameter |
18 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00081689.pdf |
