Info | |
---|---|
order code |
70064810
|
product link | |
main features |

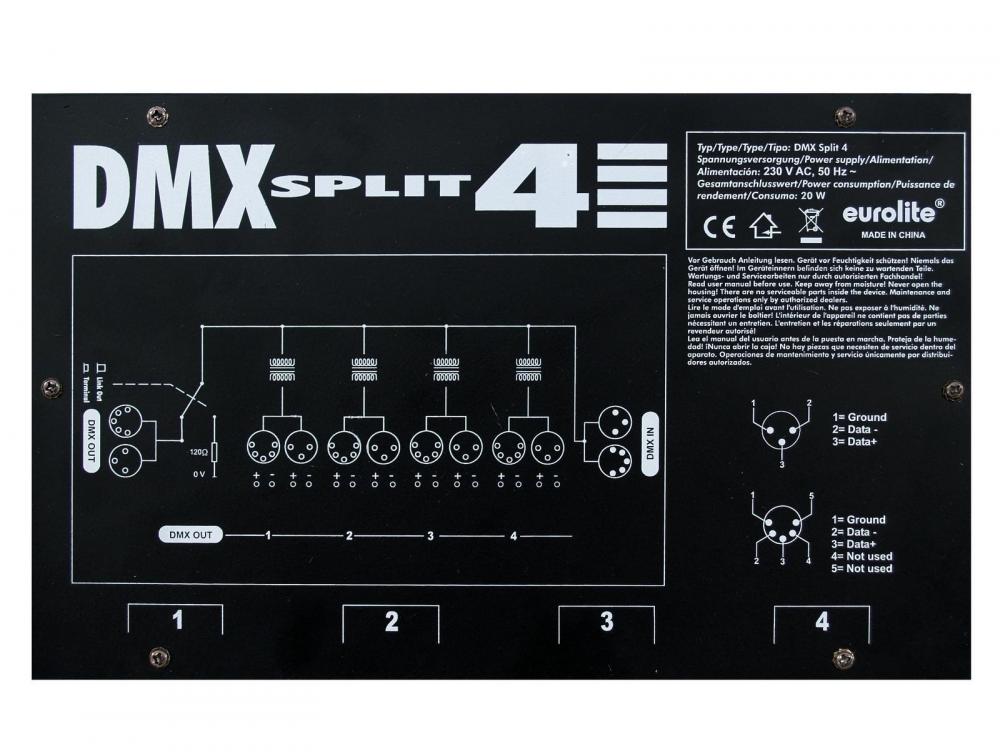

Splitter with 4 galvanized isolated outputs, 3-pin & 5-pin XLR sockets -DMX splitter for splitting one DMX input signal to 4 DMX outputs -Connections: 1 x DMX input, 1 x DMX feed-through output, 4 x DMX output -Input and outputs galvanically isolated -Connections XLR 3-pin and 5-pin -Each DMX output with independent driver and status indicators -Input and outputs with a set of respective power supply and internal fuse -Switchable termination resistor -Power connection: Fix Power supply cord with safety plug (M) |
technical overview |
Power supply: 230 V AC, 50 Hz DMX connection: 3-pin or 5-pin XLR Dimensions (L x W x H): 325 x 190 x 80 mm Weight: 2,33 kg Power consumption: 20 W Height: 8 cm Depth: 19 cm Width: 32,5 cm Power connection: Fix Power supply cord with safety plug (M) Power supply: 230 V AC, 50 Hz |
EAN |
4026397573442
|
Product Name |

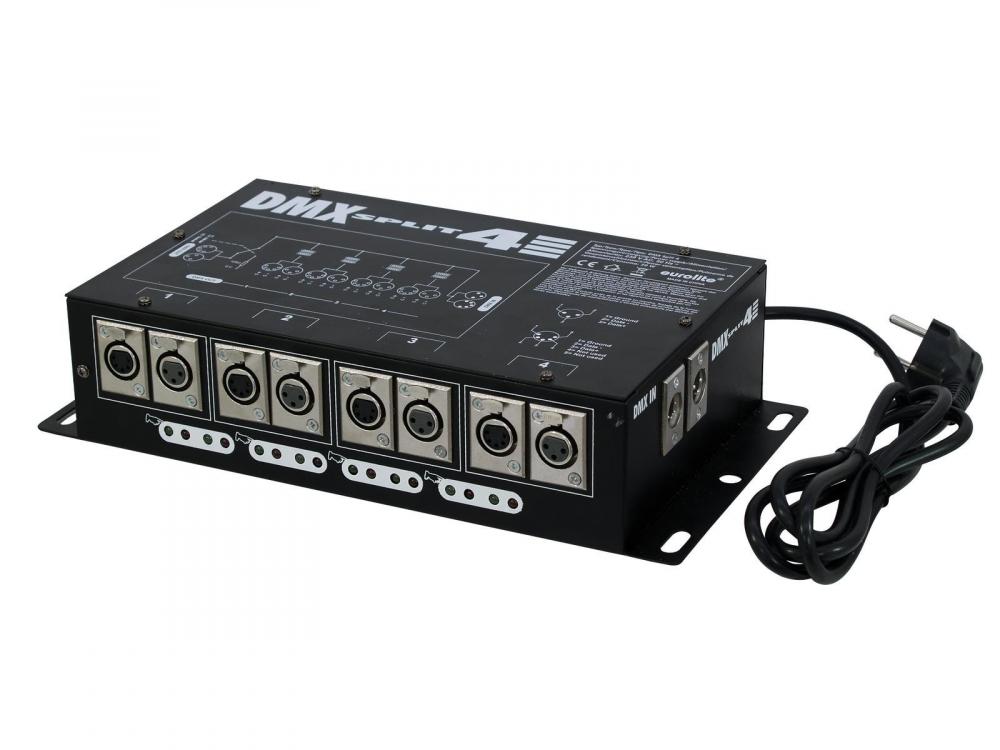

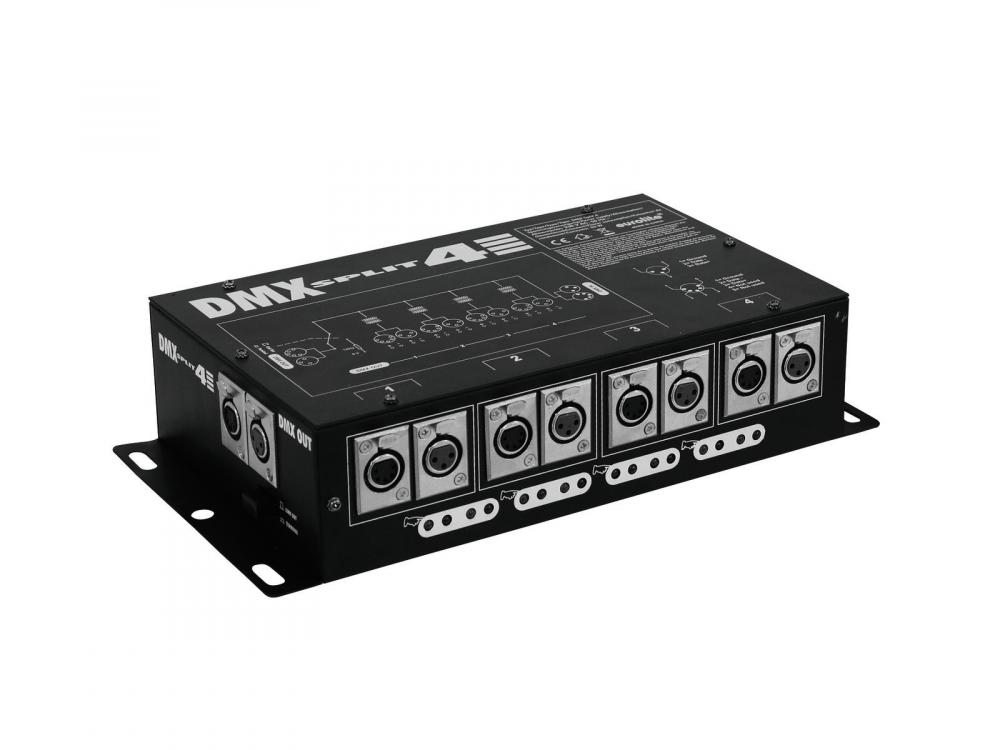

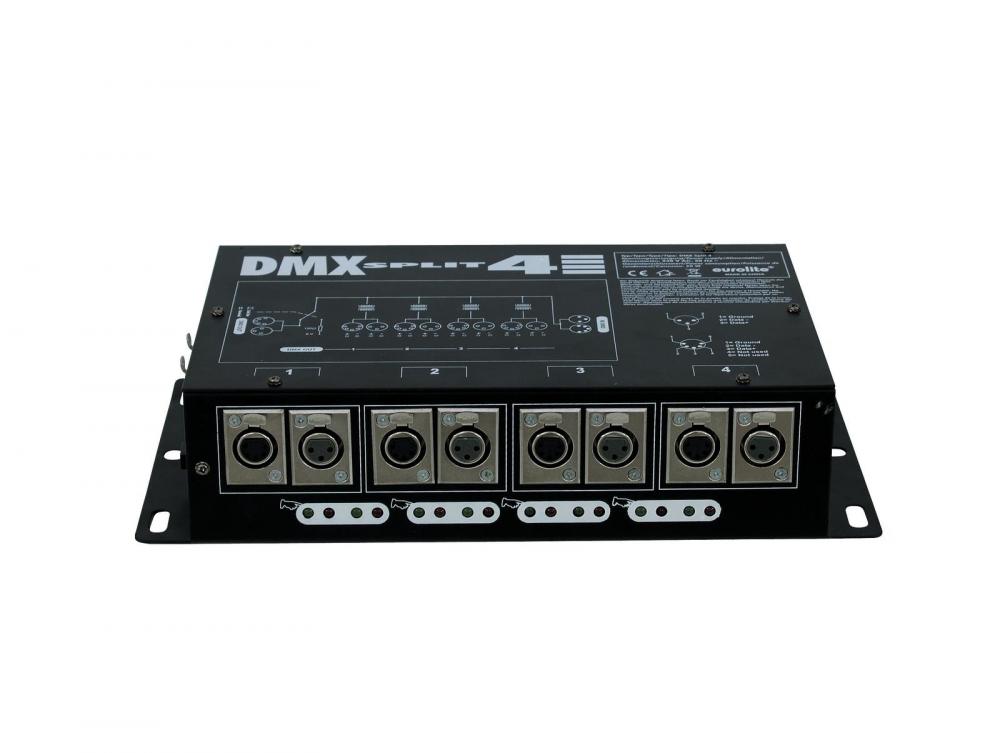

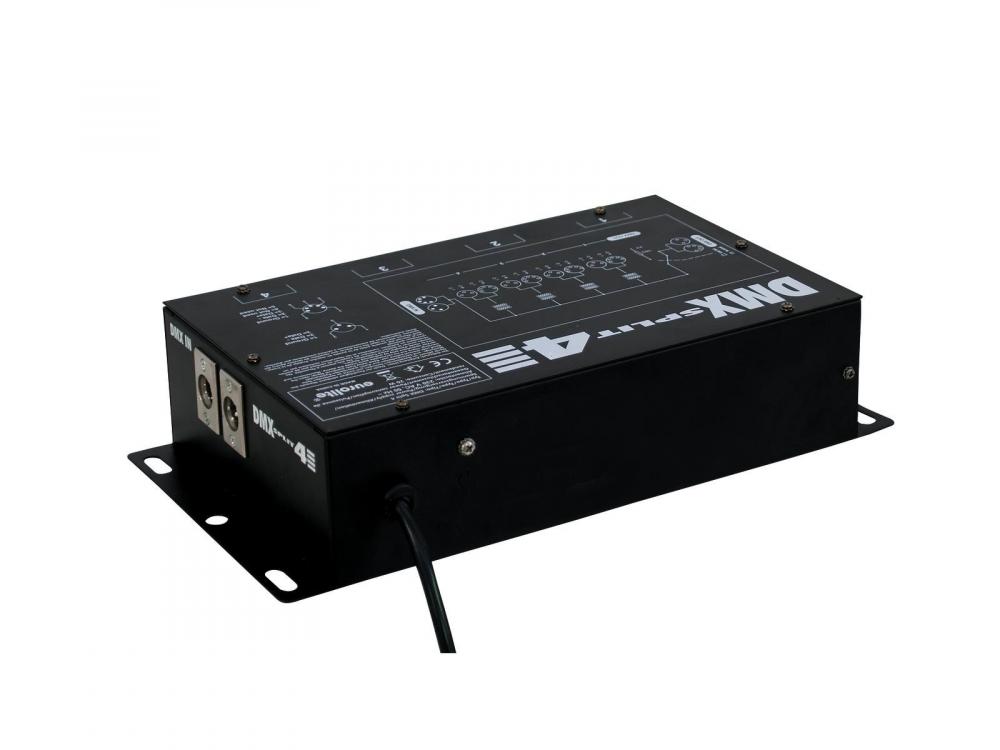

EUROLITE DMX Split 4 Splitter
|
Electrical | |
power consumption watt, max |
20.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
power input connector |
fixed
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
Mechanical | |
weight |
2.33 kg
|
width |
190.00 mm
|
height |
80.00 mm
|
length |
190.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00099448.pdf |
